Logico Easy System 100 - Opal / UGR19
L module

Code

T016BV940ELDB

Light colour
4000K
90
Light distribution
Opal/UGR19
Output
32.5W
2710-2760lm
Power supply Control
220-240Vac
ON-OFF
Colour
4
IP40
IK02

OP

UGR

1 / 4
Prev
Next

Technical Data

Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classE
Nominal power2x28,5W
Nominal fluxSee photometries
Colour rendering index90
Rf92
Rg101
CCT nominal4000K
Lifetime (L80/B10)100000h tq +25°C
Illuminotechnical characteristics
Direct/indirect emission in two effect variants: diffused light - OPAL optics - and controlled light - UGR19 optics. Diffused light - OPAL optic: optical system made of a steel reflector with white polymer coating and a closing diffuser screen in opal anti-glare polycarbonate supplied in unrollable reels and available as a related code. Controlled light - UGR19 optic: optical system made of a steel reflector with white polymer coating and UGR closing diffuser screen supplied in unrollable reels and available as a related code (UGR<19 and L65<3000 cd/m² EN-12464-1).
EmissionDIRECT/INDIRECT
OpticREFLECTOR
Optical efficiency100%

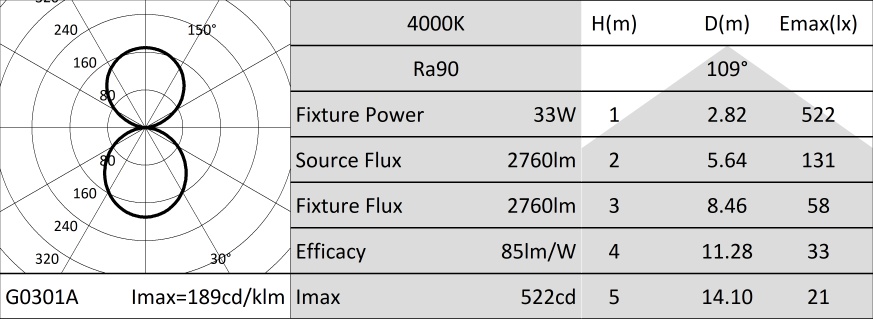

Fixture fluxOP - 2x2760lm

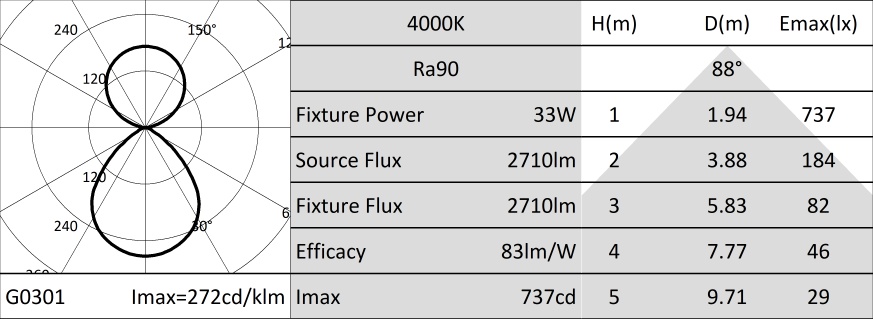

UGR - 2x2710lm
Luminous efficacyOP - 170lm/W
UGR - 167lm/W
Photobiological safetyCompliant with RG0 exempt risk group
Mechanical characteristics
Painted extruded aluminium body with 100mm section. Upper closing screen in translucent polycarbonate.
Colour and finishBlack
DimensionsAxB=812x812mm
Weight4Kg
VersionL CONNECTOR
Degree of protectionIP40
Mechanical ResistanceIK02
Electrical characteristics
Integrated electronic ON-OFF driver. "Easy Connection" system for a quick connection between the modules of the system thanks to the pre-assembled plug/socket connection elements. Preset for through wiring allowing to reach a maximum length of 18 meters. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power2x33W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Relative humidity UR<85%
Installation
To be completed with polycarbonate end caps, mounting systems for surface or suspended application and terminal block for connection to the power line.
Notes
Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Regulations and Certifications
CE.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.

Related codes

CodeDimensions
A001LL1L=6m
A001LL2L=9m
A001LL3L=15m
UGR19 screen (Direct Emission).

For LOGICO EASY System 100 - UGR19.
CodeDimensions
A002LL1L=6m
A002LL2L=9m
A002LL3L=15m
OPAL screen (Direct Emission).

For LOGICO EASY System 100 - OPAL.

Accessories

CodeColour
A003L1B
End caps (2 pieces).

For LOGICO EASY System 100.
CodeColour
A004B
Canopy with 5 poles terminal block. Feeding cable not included.
CodeColour
A005LB
Joint for screens. To be used for configurations longer than 15 meters.

For LOGICO EASY System 100.
Code
A007L
Bracket with adjustment system for suspended installation (2 pieces). Two brackets needed for each lighting module.

For LOGICO EASY 100.
CodeVersion
A008TL=6m
A008UL=5m
A008VL=4m
A008WL=3m
A008XL=2m
A008YL=1m
A008ZL=0,5m
Suspension cable (2 pieces).
CodeVersion
A009Z3 Poli ON-OFF
Terminal block (plug/socket). One for each power supply.

A009Z - For LOGICO EASY 37 | 57 | 100.
