Pendant luminaires
Logico Easy Stand Alone 57 - UGR19
Code
T021MX930ELPW
Light colour
3000K
90
90
Light distribution
UGR19
Output
33W
2316lm
2316lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
LED Engine made of linear LED boards Ra90.
Energy efficiency classE
Nominal power30W
Nominal flux2316lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)100000h tq +25°C

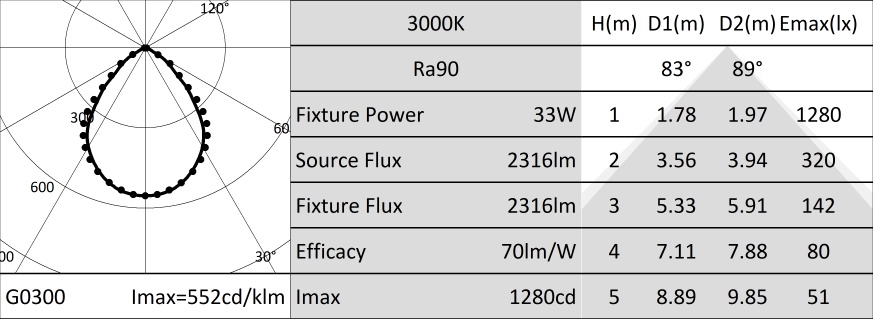

Illuminotechnical characteristics
Direct emission. Controlled light. UGR19 optics: optical system made of a reflector with white polymer coating and UGR closing diffuser screen (UGR<19 and L65<3000 cd/m² EN-12464-1).
EmissionDIRECT
OpticREFLECTOR
Optical efficiency100%
Fixture flux2316lm
Luminous efficacy70lm/W
Photobiological safetyCompliant with RG0 exempt risk group
Mechanical characteristics
Painted extruded aluminium body with 57mm section and polycarbonate end caps. Upper closing screen in white PVC.
Colour and finishWhite
DimensionsL=2340mm
Weight4.995Kg
VersionLINEAR
Degree of protectionIP40
Mechanical ResistanceIK02
Electrical characteristics
Integrated electronic ON-OFF driver. Luminaire compliant with EN 60598-2-22 for power supply from a centralised emergency system CPSS (Central Power Supply System), not incorporated in the luminaire - high risk areas excluded. The default power and flux are 100% in AC and 100% in DC.
Fixture Power33W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Relative humidity UR<85%
Installation
To be completed with mounting systems for surface or suspended application.
Notes
Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Regulations and Certifications
CE.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
| Code | Colour | ||||
|---|---|---|---|---|---|
| A004W |  |
Canopy with 5 poles terminal block.
Feeding cable not included.
| Code | |||||
|---|---|---|---|---|---|
| A006M |
Bracket for ceiling installation (2 pieces).
Two brackets needed for each lighting module.
For LOGICO EASY 57.
For LOGICO EASY 57.
| Code | |||||
|---|---|---|---|---|---|
| A007M |
Bracket with adjustment system for suspended installation (2 pieces).
Two brackets needed for each lighting module.
For LOGICO EASY 57.
For LOGICO EASY 57.
| Code | Version | ||||
|---|---|---|---|---|---|
| A008T | L=6m | ||||
| A008U | L=5m | ||||
| A008V | L=4m | ||||
| A008W | L=3m | ||||
| A008X | L=2m | ||||
| A008Y | L=1m | ||||
| A008Z | L=0,5m |
Suspension cable (2 pieces).
