Lighting Systems
Logico Easy System 57 - UGR16
Linear module Emergency
Code
T028MY840ELPW
Light colour
4000K
80
80
Light distribution
UGR16
Output
19W
2232lm
2232lm
Power supply
Control
220-240Vac
ON-OFF (EMERGENCY VERSION)
ON-OFF (EMERGENCY VERSION)
Colour
1 / 3
Technical Data
Source
LED Engine made of linear LED boards Ra80.
Energy efficiency classC
Nominal power15W
Nominal flux2232lm
Colour rendering index80
Rf84
Rg95
CCT nominal4000K
Lifetime (L80/B10)100000h tq +25°C

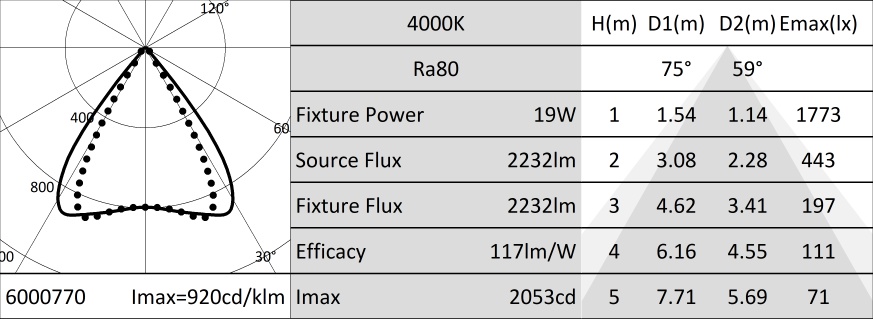

Illuminotechnical characteristics
Direct emission. Controlled light. UGR16 Optics: optical system made of lenses with differentiated facets for optimizing the direction of the luminous flux and cellular optics in white anti-glare polycarbonate (UGR<16 and L65<1500 cd/m² EN-12464-1).
EmissionDIRECT
OpticCELLULAR
Optical efficiency100%
Fixture flux2232lm
Emergency fixture flux BLF35%
Luminous efficacy117lm/W
Photobiological safetyCompliant with RG0 exempt risk group
Mechanical characteristics
Painted extruded aluminium body with 57mm section. Upper closing screen in white PVC.
Colour and finishWhite
DimensionsL=1468mm
Weight4.3Kg
VersionLINEAR
Degree of protectionIP40
Mechanical ResistanceIK02
Electrical characteristics
Integrated electronic ON-OFF driver. "Easy Connection" system for a quick connection between the modules of the system thanks to the pre-assembled plug/socket connection elements. Preset for through wiring allowing to reach a maximum length of 18 meters. Equipped with emergency pack - permanent emergency (1h autonomy and 24h recharge).
Fixture Power19W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF (EMERGENCY VERSION)
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Relative humidity UR<85%
Installation
To be completed with polycarbonate end caps, mounting systems for surface or suspended application and terminal block for connection to the power line.
Notes
For angular configurations the L blind joint accessory is avaiable. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Regulations and Certifications
CE.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
| Code | Colour | Driver | |||
|---|---|---|---|---|---|
| A014MELW |  | ON-OFF |
L-shaped blind joint.
Sizes 818x818x80mm. For LOGICO EASY System 57.
Sizes 818x818x80mm. For LOGICO EASY System 57.
| Code | Colour | ||||
|---|---|---|---|---|---|
| A003M1W | |
End caps (2 pieces).
For LOGICO EASY System 57 - UGR16.
For LOGICO EASY System 57 - UGR16.
| Code | Colour | ||||
|---|---|---|---|---|---|
| A004W | |
Canopy with 5 poles terminal block.
Feeding cable not included.
| Code | |||||
|---|---|---|---|---|---|
| A006M |
Bracket for ceiling installation (2 pieces).
Two brackets needed for each lighting module.
For LOGICO EASY 57.
For LOGICO EASY 57.
| Code | |||||
|---|---|---|---|---|---|
| A007M |
Bracket with adjustment system for suspended installation (2 pieces).
Two brackets needed for each lighting module.
For LOGICO EASY 57.
For LOGICO EASY 57.
| Code | Version | ||||
|---|---|---|---|---|---|
| A008T | L=6m | ||||
| A008U | L=5m | ||||
| A008V | L=4m | ||||
| A008W | L=3m | ||||
| A008X | L=2m | ||||
| A008Y | L=1m | ||||
| A008Z | L=0,5m |
Suspension cable (2 pieces).
| Code | Version | ||||
|---|---|---|---|---|---|
| A009Z | 3 Poli ON-OFF |
Terminal block (plug/socket).
One for each power supply.
A009Z - For LOGICO EASY 37 | 57 | 100.
A009Z - For LOGICO EASY 37 | 57 | 100.
