Pendant luminaires

Logico Easy Stand Alone 57 - UGR16
Emergency

Code

T030BX830ELPW

Light colour
3000K
80
Light distribution
UGR16
Output
72W
8711lm
Power supply Control
220-240Vac
ON-OFF (EMERGENCY VERSION)
Colour
7.16
IP40
IK02
1 / 3
Prev
Next

Technical Data

Source
LED Engine made of linear LED boards Ra80.
Energy efficiency classC, D
Nominal power62W
Nominal flux8711lm
Colour rendering index80
Rf84
Rg95
CCT nominal3000K
Lifetime (L80/B10)100000h tq +25°C

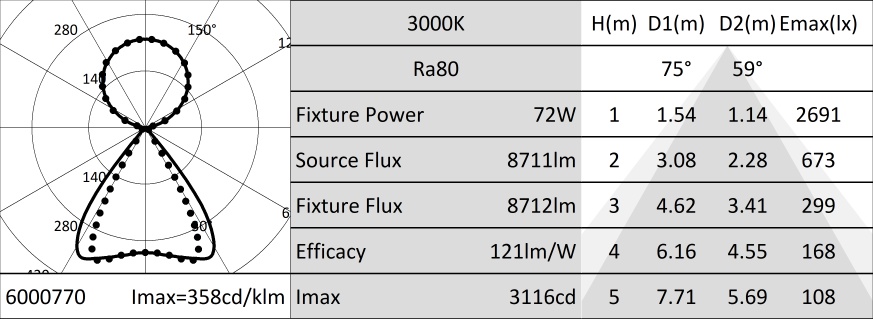

Illuminotechnical characteristics
Direct/indirect emission. Controlled light. UGR16 Optics: optical system made of lenses with differentiated facets for optimizing the direction of the luminous flux and cellular optics in white anti-glare polycarbonate (UGR<16 and L65<1500 cd/m² EN-12464-1).
EmissionDIRECT/INDIRECT
OpticCELLULAR
Optical efficiency100%
Fixture flux8711lm
Emergency fixture flux BLF21.5% (Direct emission)
Luminous efficacy121lm/W
Photobiological safetyCompliant with RG0 exempt risk group
Mechanical characteristics
Painted extruded aluminium body with 57mm section and polycarbonate end caps. Upper closing screen in translucent polycarbonate.
Colour and finishWhite
DimensionsL=2352mm
Weight7.16Kg
VersionLINEAR
Degree of protectionIP40
Mechanical ResistanceIK02
Electrical characteristics
Integrated electronic ON-OFF driver. Equipped with emergency pack - permanent emergency (1h autonomy and 24h recharge).
Fixture Power72W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF (EMERGENCY VERSION)
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Relative humidity UR<85%
Installation
To be completed with mounting systems for surface or suspended application.
Notes
Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Regulations and Certifications
CE.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.

Accessories

CodeColour
A004W
Canopy with 5 poles terminal block. Feeding cable not included.
Code
A007M
Bracket with adjustment system for suspended installation (2 pieces). Two brackets needed for each lighting module.

For LOGICO EASY 57.
CodeVersion
A008TL=6m
A008UL=5m
A008VL=4m
A008WL=3m
A008XL=2m
A008YL=1m
A008ZL=0,5m
Suspension cable (2 pieces).
