Track projectors
Ray 115
Lens
Code
T032MFL930CADB
Light colour
3000K
90
90
Light distribution
FL
26°
26°
Output
29.5W
2445lm
2445lm
Power supply
Control
220-240Vac
CASAMBI
CASAMBI
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classD
Nominal power26W
Nominal flux3054lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)>50000h tq +25°C

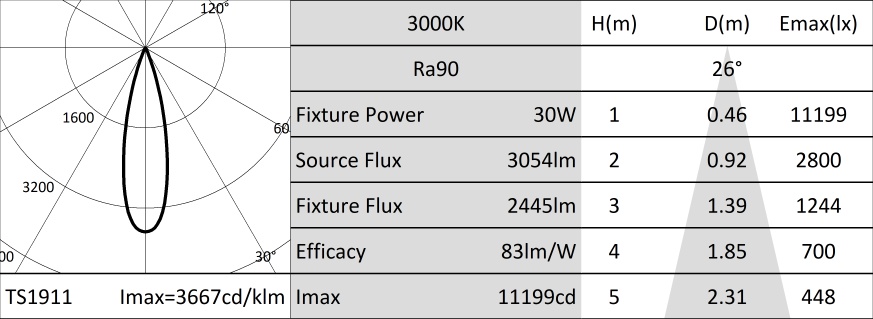

Illuminotechnical characteristics
Optical grade PMMA TIR lens. Interchangeable lenses available as accessories (excluding the Narrow Spot optic).
OpticLENS
Beam anglesFL
Optical efficiency80%
Fixture flux2445lm
Luminous efficacy83lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast aluminium body. Black painted polycarbonate front ring. Adjustable from 0° to -90° on the vertical plane and 359° on the horizontal plane. Mechanical beam locking system on the vertical plane and friction beam locking system on the horizontal plane. The centre of gravity always remains in axis with the track regardless of the aiming.
Colour and finishDeep black
Dimensions115
Weight1.2Kg
Degree of protectionIP20
Electrical characteristics
CASAMBI electronic driver integrated into the track adapter.
Fixture Power30W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlCASAMBI
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Electrified track mounting. Optical accessories that can be installed with a support ring are available.
Notes
Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
| Code | Colour | ||||
|---|---|---|---|---|---|
| A079 |  |
Black polycarbonate accessory holder ring.
1 / 2
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| 1T3143 | 80 |
Black painted anodized diffusive aluminium asymmetric screen.
Complete with blade light filter.
Ideal for a Wall Washer effect.
To be combined with spot and flood optics.
For RAY 115 versions with lens.
For RAY 115 versions with lens.
1 / 2
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| 1T1711 | 70 |
Anti-glare louver.
Black painted metal honeycomb structure.
To be completed with a dedicated holder ring A079. For RAY 115 versions with lens.
To be completed with a dedicated holder ring A079. For RAY 115 versions with lens.
1 / 2
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| 1T1708 | 70 |
Flat striped glass blade light refractive filter.
This makes the beam take on an oval shape and when combined with spotlights, the light blade appears more prominent.
To be completed with a dedicated holder ring A079. For RAY 115 versions with lens.
To be completed with a dedicated holder ring A079. For RAY 115 versions with lens.
1 / 2
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| 1T3142 | 80 |
Cut-off Tube.
Allows for the beam to be focused while removing the fall-off component.
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| A025 | 118 |
Adjustable barn doors flaps made of black painted steel.
| Code | Optic | Ø mm | |||
|---|---|---|---|---|---|
| A057SPL | SP 17° | 70 | |||
| A057MFL | FL 26° | 70 | |||
| A057FLL | FL 36° | 70 |
Interchangeable optical grade PMMA lenses.
Available in Spot and Flood beams.
The accessory in not compatible with RAY 115 NSL versions.
The accessory in not compatible with RAY 115 NSL versions.
