Track projectors
Ray 115
Reflector
Code
T032MWR940CADB
Light colour
4000K
90
90
Light distribution
MWFL
45°
45°
Output
41.4W
4448lm
4448lm
Power supply
Control
220-240Vac
CASAMBI
CASAMBI
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classE
Nominal power36W
Nominal flux5119lm
Colour rendering index90
Rf90
Rg98
CCT nominal4000K
Lifetime (L80/B10)>50000h tq +25°C

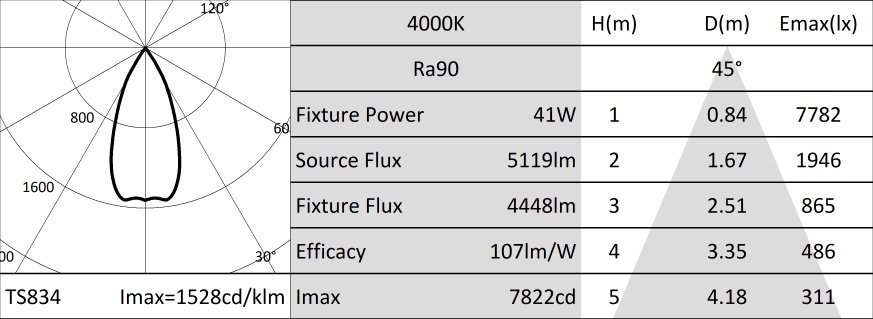

Illuminotechnical characteristics
Reflector with ellipsoidal facets in reflective anodised aluminium. Interchangeable reflectors available as accessories.
OpticREFLECTOR
Beam anglesMWFL
Optical efficiency87%
Fixture flux4448lm
Luminous efficacy107lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast aluminium body. Black painted polycarbonate front ring. Adjustable from 0° to -90° on the vertical plane and 359° on the horizontal plane. Mechanical beam locking system on the vertical plane and friction beam locking system on the horizontal plane. The centre of gravity always remains in axis with the track regardless of the aiming.
Colour and finishDeep black
Dimensions115
Weight1.2Kg
Degree of protectionIP20
Electrical characteristics
CASAMBI electronic driver integrated into the track adapter.
Fixture Power41W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlCASAMBI
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Electrified track mounting. Optical accessories that can be installed with a support ring are available.
Notes
Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
1 / 2
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| 1T3142 | 80 |
Cut-off Tube.
Allows for the beam to be focused while removing the fall-off component.
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| A025 | 118 |
Adjustable barn doors flaps made of black painted steel.
| Code | Optic | Ø mm | |||
|---|---|---|---|---|---|
| A057SPR | SP 14° | 80 | |||
| A057MFR | FL 25° | 80 | |||
| A057MWR | MWFL 45° | 80 |
Interchangeable anodised reflective aluminium reflectors.
Available in Spot, Flood and Medium Wide Flood beams.
