Track projectors
Ray 115
Reflector HO
Code
T033MWR930ELPW
Light colour
3000K
90
90

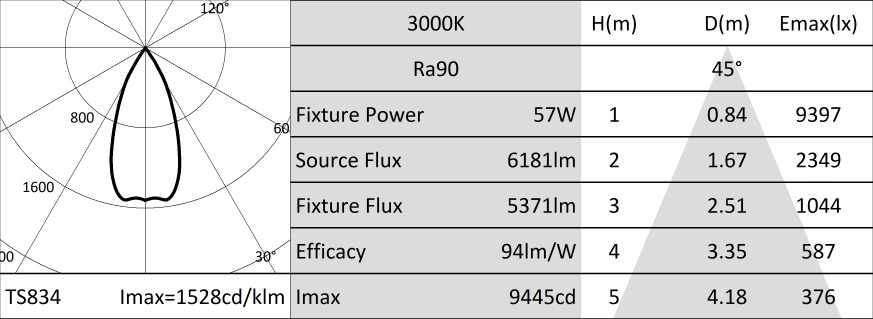

Light distribution
MWFL
45°
45°
Output
57W
5371lm
5371lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classE
Nominal power50W
Nominal flux6181lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
Reflector with ellipsoidal facets in reflective anodised aluminium. Interchangeable reflectors available as accessories.
OpticREFLECTOR
Beam anglesMWFL
Optical efficiency87%
Fixture flux5371lm
Luminous efficacy94lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast aluminium body. Black painted polycarbonate front ring. Adjustable from 0° to -90° on the vertical plane and 359° on the horizontal plane. Mechanical beam locking system on the vertical plane and friction beam locking system on the horizontal plane. The centre of gravity always remains in axis with the track regardless of the aiming.
Colour and finishPlaster white
Dimensions115
Weight1.2Kg
Degree of protectionIP20
Electrical characteristics
ON-OFF electronic driver integrated into the track adapter.
Fixture Power57W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
Ambient temperature0°C / +25°C
Installation
Electrified track mounting. Optical accessories that can be installed with a support ring are available.
Warranty
5 years.
Accessories
1 / 2
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| 1T3142 | 80 |
Cut-off Tube.
Allows for the beam to be focused while removing the fall-off component.
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| A025 | 118 |
Adjustable barn doors flaps made of black painted steel.
| Code | Optic | Ø mm | |||
|---|---|---|---|---|---|
| A057SPR | SP 14° | 80 | |||
| A057MFR | FL 25° | 80 | |||
| A057MWR | MWFL 45° | 80 |
Interchangeable anodised reflective aluminium reflectors.
Available in Spot, Flood and Medium Wide Flood beams.
