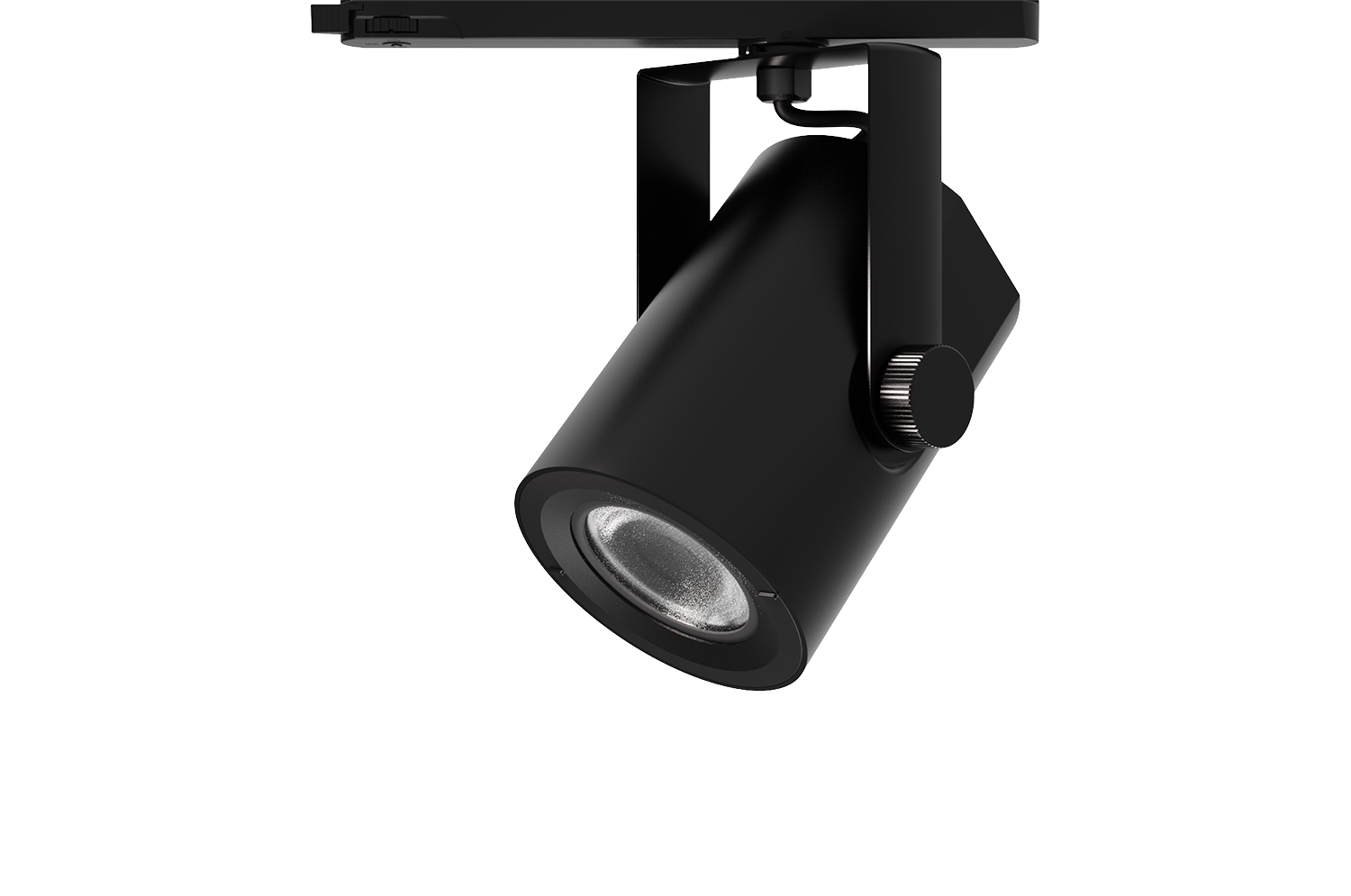

Track projectors
Ray 115 Zoom
DBS
Code
T034DBS930CADB
Light colour
3000K
90
90
Light distribution
Zoom DBS
18°-53°
18°-53°
Output
24.8W
1619-1740lm
1619-1740lm
Power supply
Control
220-240Vac
CASAMBI
CASAMBI
Colour
SP
FL
1 / 4
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classD
Nominal power22W
Nominal flux2691lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
ZOOM DBS (Dynamic Beam Shaper) version: for a controlled zoom effect with CASAMBI. Optic with a PMMA TIR lens and a liquid crystal lens.
OpticLENS

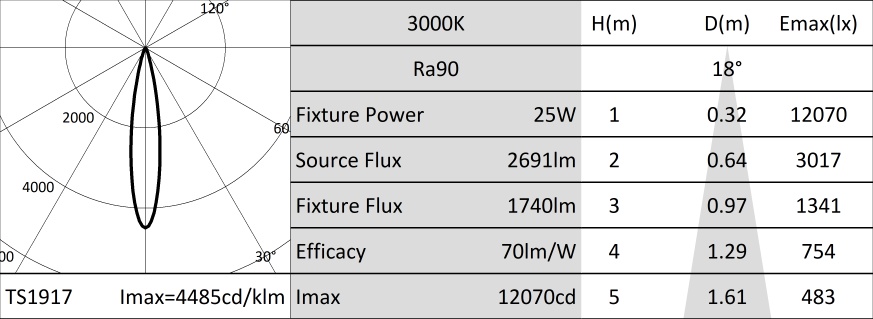

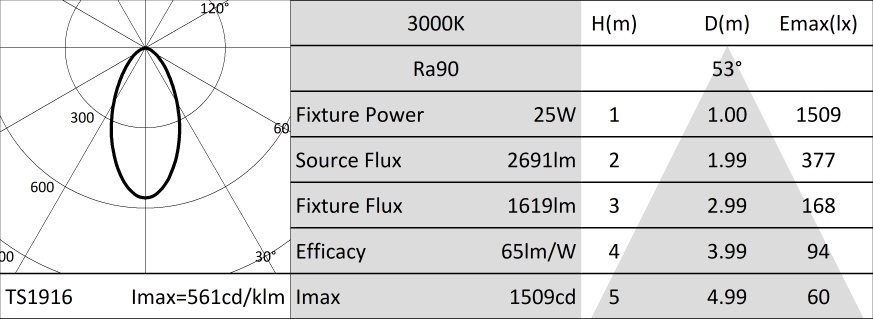

Beam anglesSP-WFL
Optical efficiencySP - 65%
FL - 60%
FL - 60%
Fixture fluxSP - 1740lm
FL - 1619lm
FL - 1619lm
Luminous efficacySP - 70lm/W
FL - 65lm/W
FL - 65lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast aluminium body. Black painted polycarbonate front ring. Adjustable from 0° to -90° on the vertical plane and 359° on the horizontal plane. Mechanical beam locking system on the vertical plane and friction beam locking system on the horizontal plane. The centre of gravity always remains in axis with the track regardless of the aiming.
Colour and finishDeep black
Dimensions115
Weight1.2Kg
VersionDBS
Degree of protectionIP20
Electrical characteristics
CASAMBI electronic driver integrated into the track adapter.
Fixture Power25W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlCASAMBI
Driver includedYES
Class FYES
Ambient temperature0°C / +25°C
Installation
Electrified track mounting.
Notes
Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
