Track projectors
Ray 115 Zoom
PRECISION
Code
T034ZMP930ELDB
Light colour
3000K
90
90
Light distribution
Zoom Precision
11°-31°
11°-31°
Output
28.5W
525-1187lm
525-1187lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
SP
FL
1 / 4
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classE
Nominal power25W
Nominal flux3214lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
ZOOM PRECISION: a classic system with the lens at a variable distance from the source. Structure in satin black anodised aluminium. Plano convex lens in optical glass, a highly reflective anodised aluminium reflector, a holographic diffusing filter.
OpticHYBRID

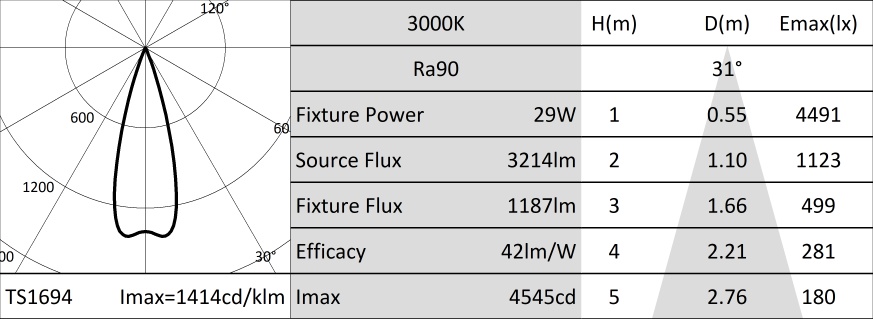

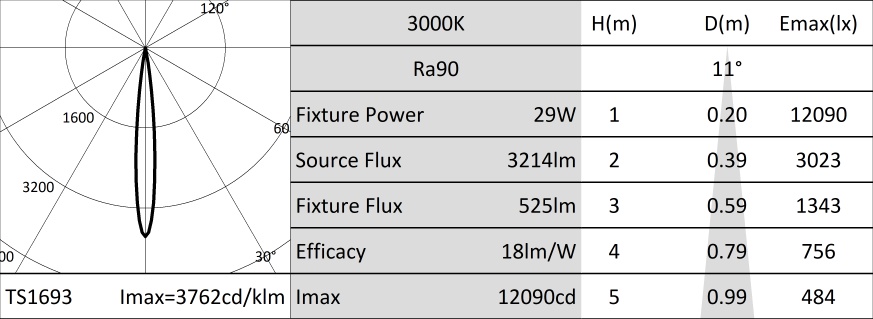

Beam anglesSP-FL
Optical efficiencySP - 16%
FL - 37%
FL - 37%
Fixture fluxSP - 525lm
FL - 1187lm
FL - 1187lm
Luminous efficacySP - 18lm/W
FL - 42lm/W
FL - 42lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics

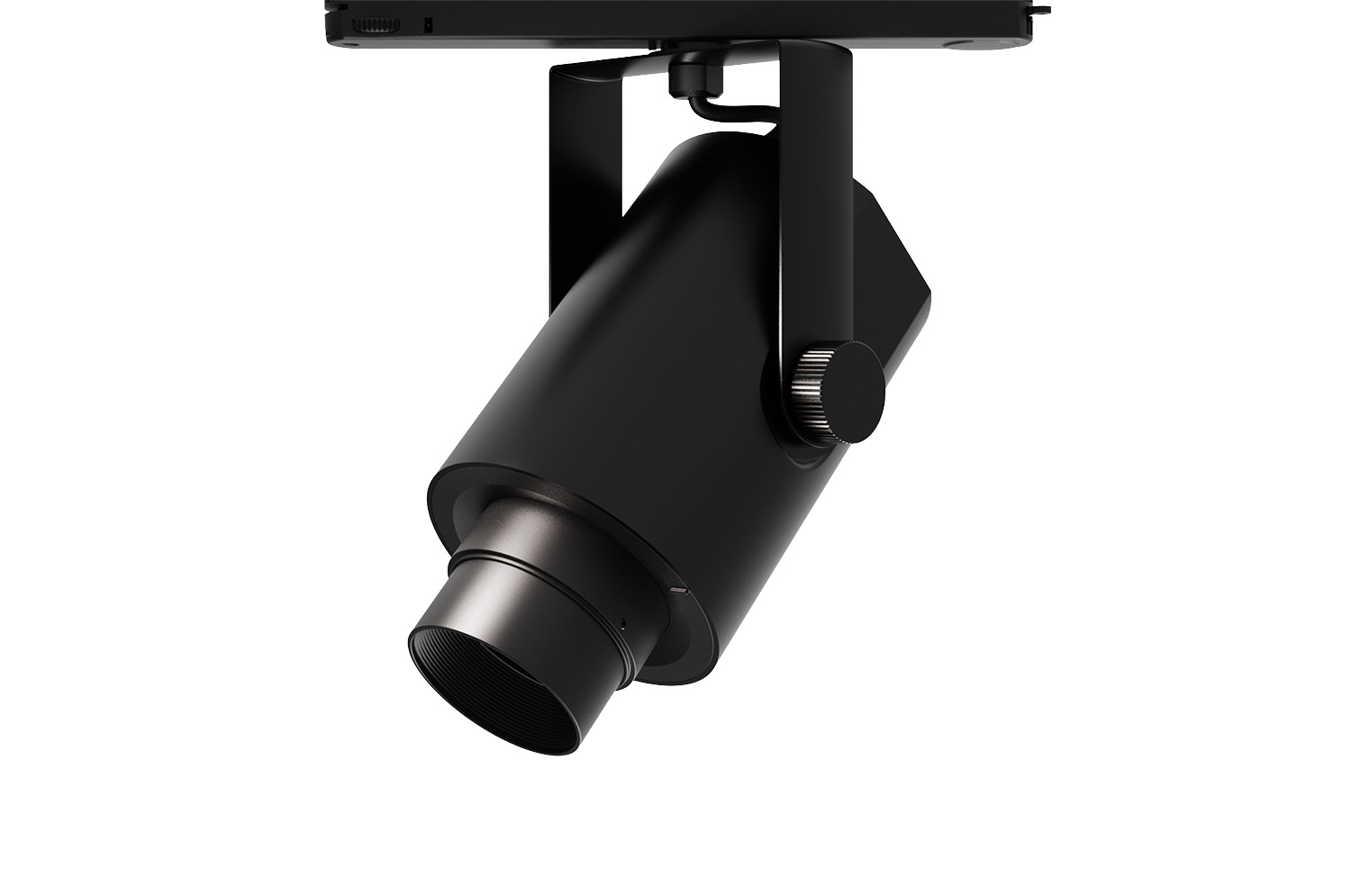

Painted die-cast aluminium body. Black painted polycarbonate front ring. Adjustable from 0° to -90° on the vertical plane and 359° on the horizontal plane. Mechanical beam locking system on the vertical plane and friction beam locking system on the horizontal plane. The centre of gravity always remains in axis with the track regardless of the aiming.
Colour and finishDeep black
Dimensions115
Weight1.2Kg
VersionZOOM PRECISION
Degree of protectionIP20
Electrical characteristics
ON-OFF electronic driver integrated into the track adapter.
Fixture Power29W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
Ambient temperature0°C / +25°C
Installation
Electrified track mounting.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
