Track projectors
Ray 115 Zoom
PRECISION
Code
T034ZMP940DADB
Light colour
4000K
90
90
Light distribution
Zoom Precision
11°-31°
11°-31°
Output
28.5W
557-1259lm
557-1259lm
Power supply
Control
220-240Vac
DALI
DALI
Colour

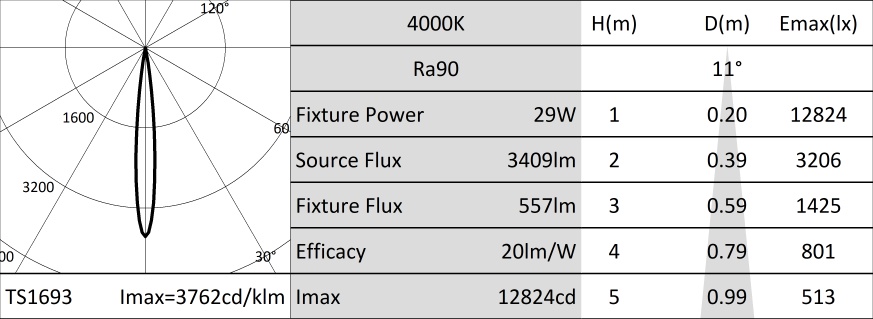

SP

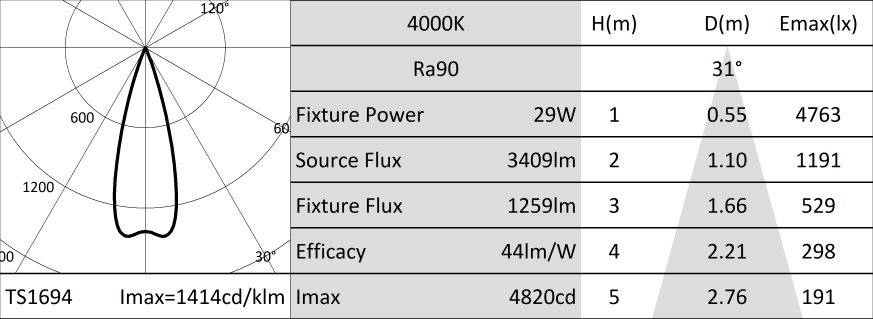

FL
1 / 4
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classD
Nominal power25W
Nominal flux3409lm
Colour rendering index90
Rf90
Rg98
CCT nominal4000K
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
ZOOM PRECISION: a classic system with the lens at a variable distance from the source. Structure in satin black anodised aluminium. Plano convex lens in optical glass, a highly reflective anodised aluminium reflector, a holographic diffusing filter.
OpticHYBRID
Beam anglesSP-FL
Optical efficiencySP - 16%
FL - 37%
FL - 37%
Fixture fluxSP - 557lm
FL - 1259lm
FL - 1259lm
Luminous efficacySP - 20lm/W
FL - 44lm/W
FL - 44lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast aluminium body. Black painted polycarbonate front ring. Adjustable from 0° to -90° on the vertical plane and 359° on the horizontal plane. Mechanical beam locking system on the vertical plane and friction beam locking system on the horizontal plane. The centre of gravity always remains in axis with the track regardless of the aiming.
Colour and finishDeep black
Dimensions115
Weight1.2Kg
VersionZOOM PRECISION
Degree of protectionIP20
Electrical characteristics
DALI electronic driver integrated into the track adapter.
Fixture Power29W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlDALI
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Electrified track mounting.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
