Track projectors
Ray 115 Zoom
SMART
Code
T034ZMS930DAPW
Light colour
3000K
90
90
Light distribution
Zoom Smart
16°-43°
16°-43°
Output
29.5W
2102-2170lm
2102-2170lm
Power supply
Control
220-240Vac
DALI
DALI
Colour
SP
FL
1 / 4
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classD
Nominal power26W
Nominal flux3054lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
ZOOM SMART version: optic composed of two PMMA elements working together, a fixed TIR primary lens and a secondary adjustable one. Rotation of the second lens of just 14° covers the zoom range between minimum and maximum opening.
OpticLENS
Beam anglesSP-MWFL
Optical efficiencySP - 71%
FL - 69%
FL - 69%

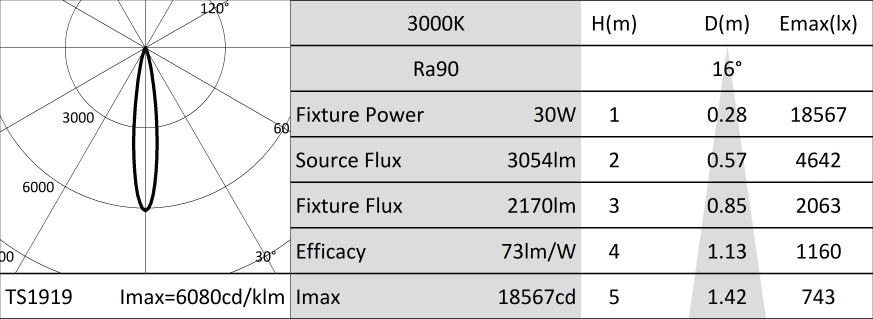

Fixture fluxSP - 2170lm

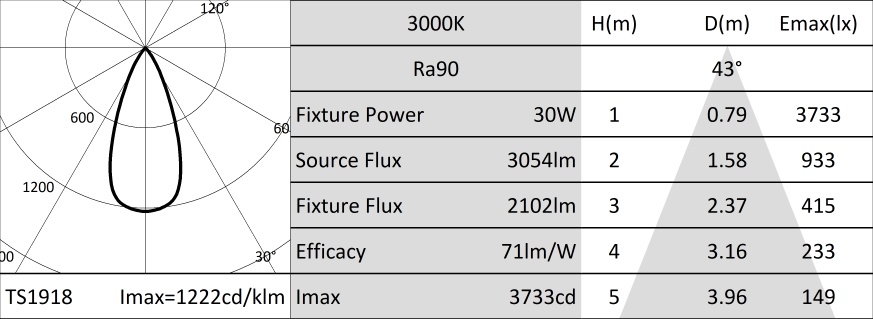

FL - 2102lm
FL - 2102lm
Luminous efficacySP - 74lm/W
FL - 71lm/W
FL - 71lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics

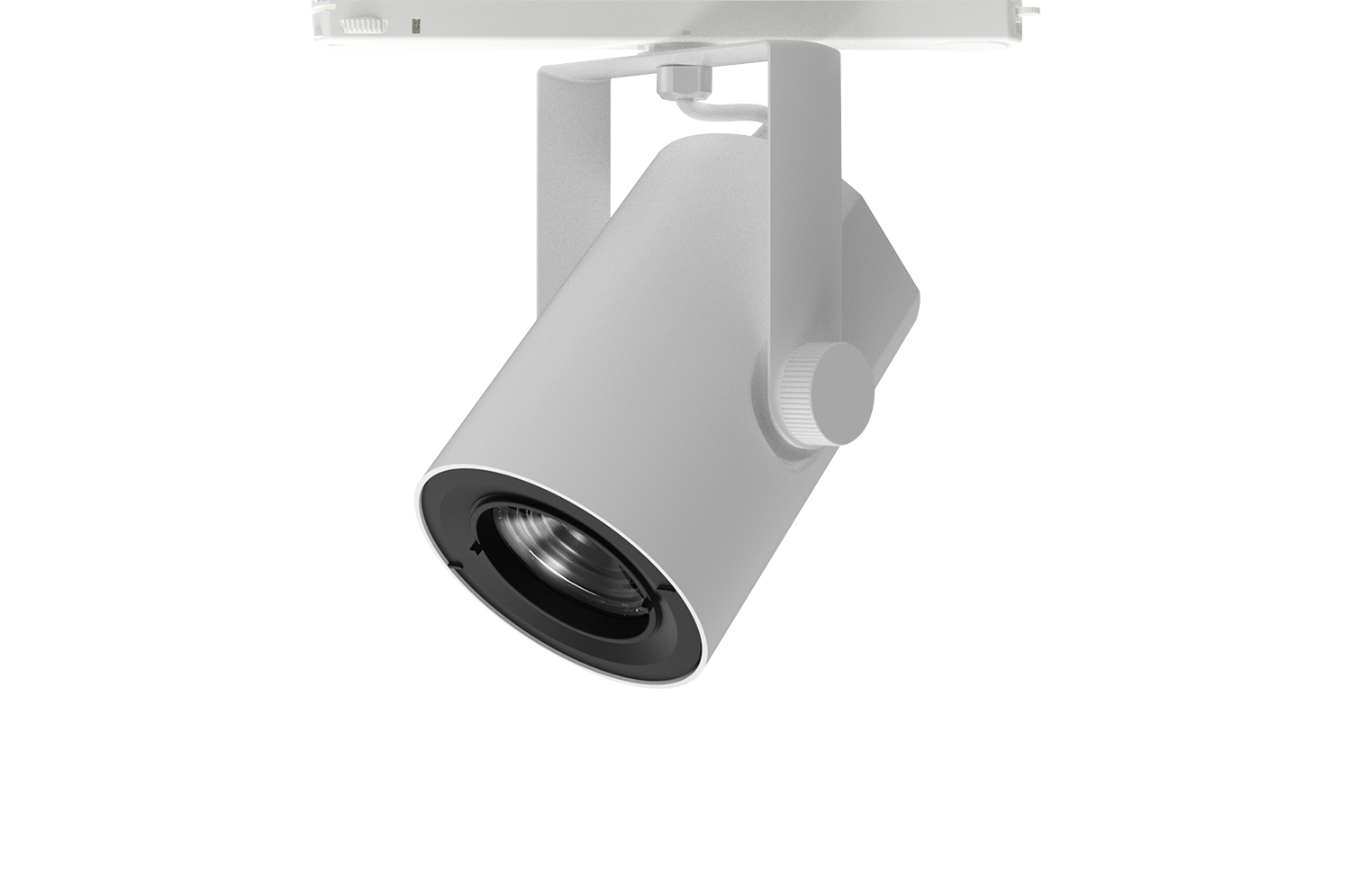

Painted die-cast aluminium body. Black painted polycarbonate front ring. Adjustable from 0° to -90° on the vertical plane and 359° on the horizontal plane. Mechanical beam locking system on the vertical plane and friction beam locking system on the horizontal plane. The centre of gravity always remains in axis with the track regardless of the aiming.
Colour and finishPlaster white
Dimensions115
Weight1.2Kg
VersionZOOM SMART
Degree of protectionIP20
Electrical characteristics
DALI electronic driver integrated into the track adapter.
Fixture Power30W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlDALI
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Electrified track mounting.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
