Track projectors
Ray 75
Reflector
Code
T035MWR930DADB
Light colour
3000K
90
90

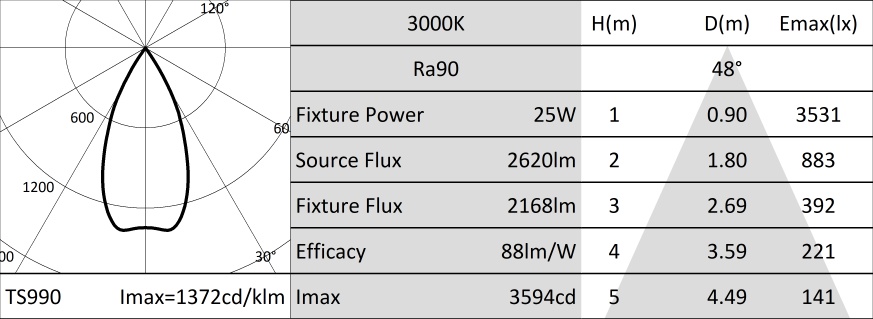

Light distribution
MWFL
48°
48°
Output
24.7W
2168lm
2168lm
Power supply
Control
220-240Vac
DALI
DALI
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classD
Nominal power21W
Nominal flux2620lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
Reflector with ellipsoidal facets in reflective anodised aluminium. Interchangeable reflectors available as accessories.
OpticREFLECTOR
Beam anglesMWFL
Optical efficiency83%
Fixture flux2168lm
Luminous efficacy88lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast aluminium body. Black painted polycarbonate front ring. Adjustable from 0° to -90° on the vertical plane and 359° on the horizontal plane. Mechanical beam locking system on the vertical plane and friction beam locking system on the horizontal plane. The centre of gravity always remains in axis with the track regardless of the aiming.
Colour and finishDeep black
Dimensions75
Weight0.53Kg
Degree of protectionIP20
Electrical characteristics
DALI electronic driver integrated into the track adapter.
Fixture Power25W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlDALI
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Electrified track mounting. Optical accessories that can be installed with a support ring are available.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
| Code | Optic | Ø mm | |||
|---|---|---|---|---|---|
| A056SPR | SP 17° | 52 | |||
| A056FLR | FL 31° | 52 | |||
| A056MWR | MWFL 48° | 52 |
Interchangeable anodised reflective aluminium reflectors.
Available in Spot, Flood and Medium Wide Flood beams.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A058PW |  | ||||
| A058DB |  |
Rigid support bracket for projectors with Eurostandard Plus track attachment.
For compatibility and use please refer to the assembly instructions for the projectors.
For installation of Ray 75 projectors on wall vertical tracks.
For installation of Ray 75 projectors on wall vertical tracks.
