Track projectors
Ray 75
Lens
Code
T035NSL930CAPW
Light colour
3000K
90
90
Light distribution
NSP
10°
10°
Output
10.7W
841lm
841lm
Power supply
Control
220-240Vac
CASAMBI
CASAMBI
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classF
Nominal power9,3W
Nominal flux957lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)>50000h tq +25°C

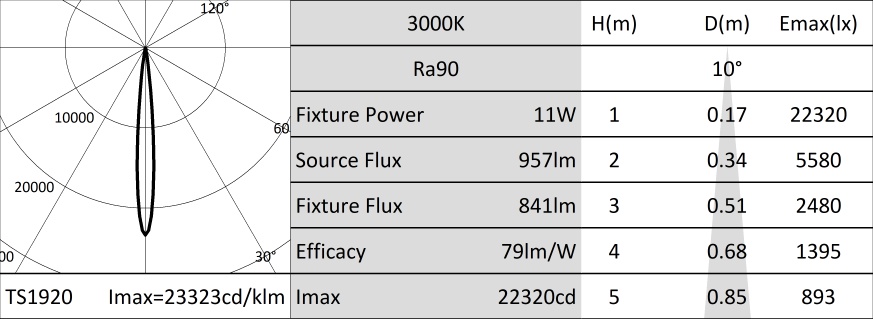

Illuminotechnical characteristics
Optical grade PMMA TIR lens. Interchangeable lenses available as accessories (excluding the Narrow Spot optic).
OpticLENS
Beam anglesNSP
Optical efficiency88%
Fixture flux841lm
Luminous efficacy79lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast aluminium body. Black painted polycarbonate front ring. Adjustable from 0° to -90° on the vertical plane and 359° on the horizontal plane. Mechanical beam locking system on the vertical plane and friction beam locking system on the horizontal plane. The centre of gravity always remains in axis with the track regardless of the aiming.
Colour and finishPlaster white
Dimensions75
Weight0.53Kg
Degree of protectionIP20
Electrical characteristics
CASAMBI electronic driver integrated into the track adapter.
Fixture Power11W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlCASAMBI
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Electrified track mounting. Optical accessories that can be installed with a support ring are available.
Notes
110-277Vac version available on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
1 / 2
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| 1T4325 | 50 |
Black painted anodized diffusive aluminium asymmetric screen.
Complete with blade light filter.
Ideal for a Wall Washer effect.
To be combined with spot and flood optics.
For RAY 75 versions with lens.
For RAY 75 versions with lens.
1 / 2
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| 1T4322 | 50 |
Anti-glare louver.
Black painted metal honeycomb structure.
Complete with holographic diffusion filter.
For RAY 75 versions with lens.
For RAY 75 versions with lens.
1 / 2
| Code | Ø mm | ||||
|---|---|---|---|---|---|
| 1T4721 | 50 |
PMMA holographic filter with blade effect to ovalize the light beam; more evident when combined with spot and flood optics.
For RAY 75 versions with lens.
For RAY 75 versions with lens.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| A058PW |  | ||||
| A058DB |  |
Rigid support bracket for projectors with Eurostandard Plus track attachment.
For compatibility and use please refer to the assembly instructions for the projectors.
For installation of Ray 75 projectors on wall vertical tracks.
For installation of Ray 75 projectors on wall vertical tracks.
