Track projectors
Ray 75
Lens
Code
T035SPL940ELDB
Light colour
4000K
90
90
Light distribution
SP
19°
19°
Output
18W
1861lm
1861lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classE
Nominal power16W
Nominal flux2247lm
Colour rendering index90
Rf90
Rg98
CCT nominal4000K
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
Optical grade PMMA TIR lens. Interchangeable lenses available as accessories (excluding the Narrow Spot optic).
OpticLENS

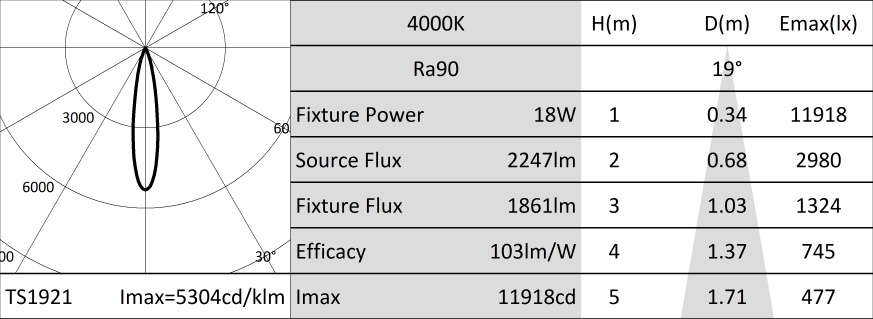

Beam anglesSP
Optical efficiency83%
Fixture flux1861lm
Luminous efficacy103lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast aluminium body. Black painted polycarbonate front ring. Adjustable from 0° to -90° on the vertical plane and 359° on the horizontal plane. Mechanical beam locking system on the vertical plane and friction beam locking system on the horizontal plane. The centre of gravity always remains in axis with the track regardless of the aiming.
Colour and finishDeep black
Dimensions75
Weight0.53Kg
Degree of protectionIP20
Electrical characteristics
ON-OFF electronic driver integrated into the track adapter.
Fixture Power18W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
Ambient temperature0°C / +25°C
Installation
Electrified track mounting. Optical accessories that can be installed with a support ring are available.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
