Track projectors
Ray 75 Zoom
DBS
Code
T036DBS940CADB
Light colour
4000K
90
90
Light distribution
Zoom DBS
17°-40°
17°-40°
Output
10.7W
593-641lm
593-641lm
Power supply
Control
220-240Vac
CASAMBI
CASAMBI
Colour
SP
FL
1 / 4
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classF
Nominal power9,3W
Nominal flux882lm
Colour rendering index90
Rf90
Rg98
CCT nominal4000K
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
ZOOM DBS (Dynamic Beam Shaper) version: for a controlled zoom effect with CASAMBI. Anodised reflective aluminium reflector optic, a liquid crystal lens, holographic diffusing filter.
OpticLENS

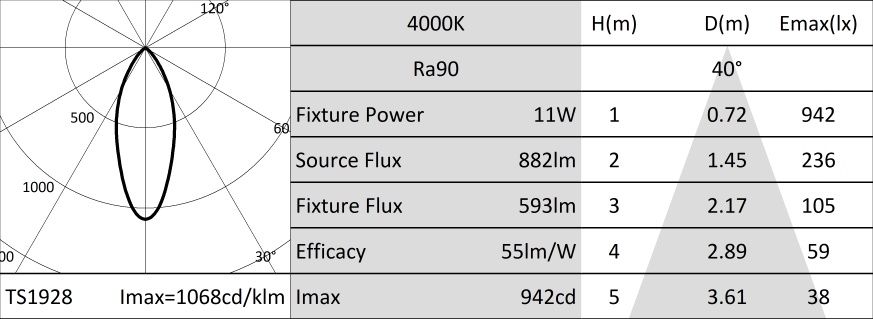

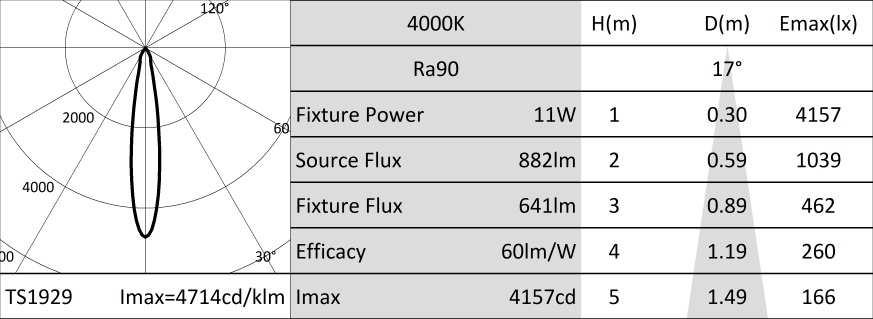

Beam anglesSP-FL
Optical efficiencySP - 73%
FL - 67%
FL - 67%
Fixture fluxSP - 641lm
FL - 593lm
FL - 593lm
Luminous efficacySP - 60lm/W
FL - 55lm/W
FL - 55lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics

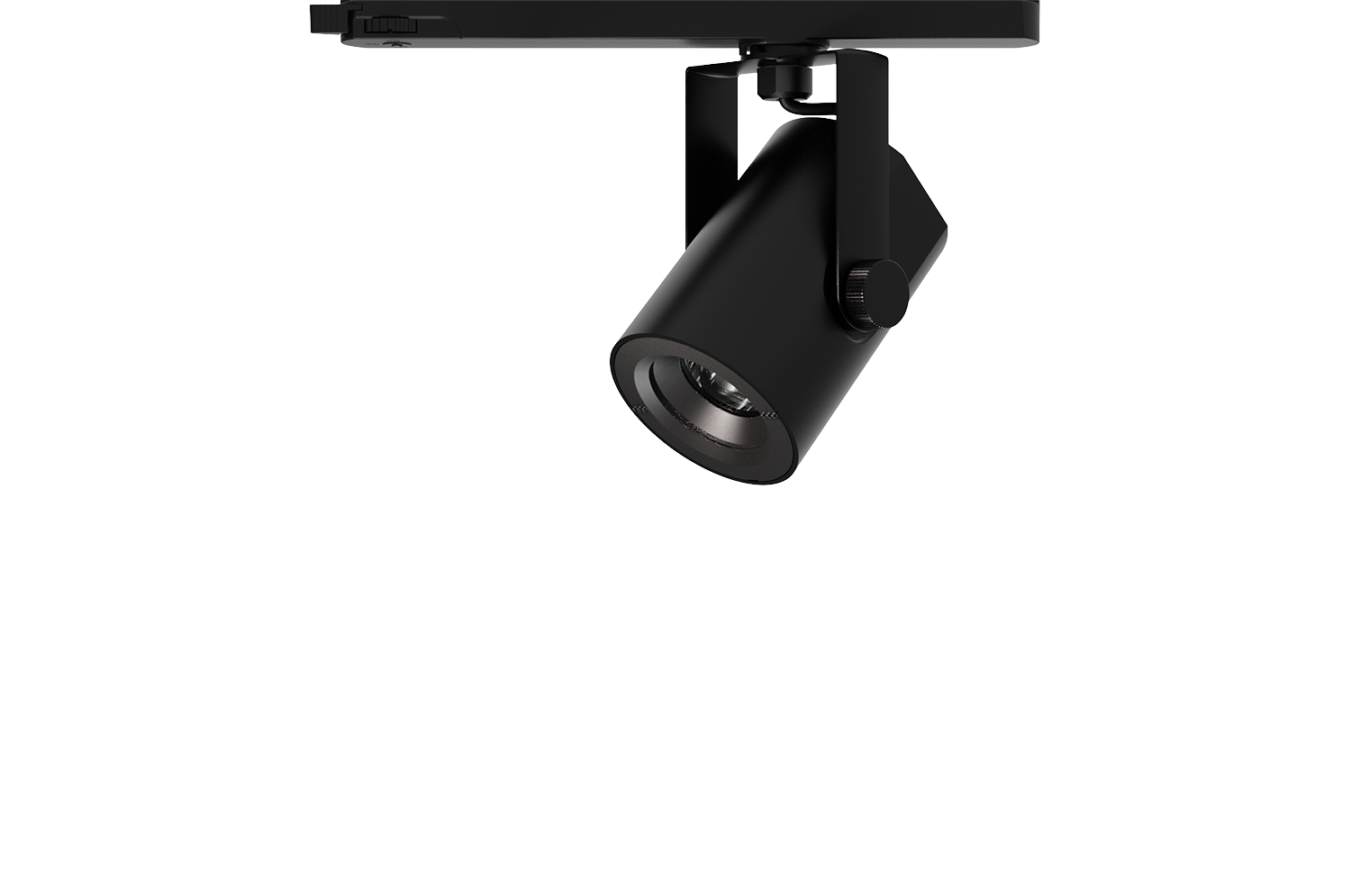

Painted die-cast aluminium body. Black painted polycarbonate front ring. Adjustable from 0° to -90° on the vertical plane and 359° on the horizontal plane. Mechanical beam locking system on the vertical plane and friction beam locking system on the horizontal plane. The centre of gravity always remains in axis with the track regardless of the aiming.
Colour and finishDeep black
Dimensions75
Weight0.53Kg
VersionZOOM DBS
Degree of protectionIP20
Electrical characteristics
CASAMBI electronic driver integrated into the track adapter.
Fixture Power11W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlCASAMBI
Driver includedYES
Class FYES
Ambient temperature0°C / +25°C
Installation
Electrified track mounting.
Notes
110-277Vac version available on request. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
