Track projectors
Ray 75 Zoom
PRECISION
Code
T036ZMP930DAPW
Light colour
3000K
90
90
Light distribution
Zoom Precision
9°-64°
9°-64°
Output
19.5W
404-1253lm
404-1253lm
Power supply
Control
220-240Vac
DALI
DALI
Colour

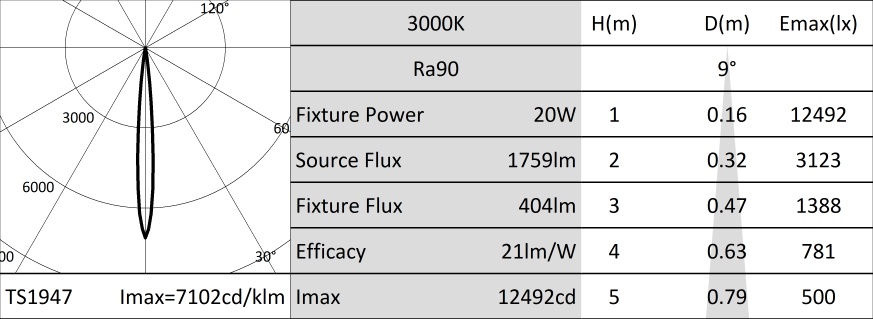

NSP

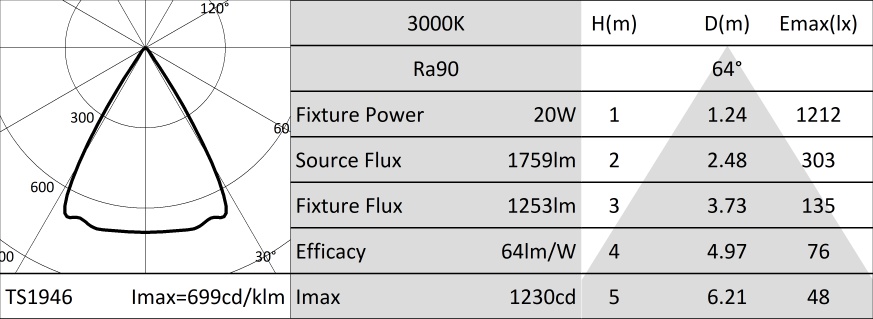

WFL
1 / 4
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classF
Nominal power17W
Nominal flux1759lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
ZOOM PRECISION version: a classic system with the lens at a variable distance from the source. Telescopic optics holders in black anti-reflective anodised aluminium. Plano convex lens in optical glass, highly reflective anodised aluminium reflector, PMMA front diffusor.
OpticHYBRID
Beam anglesNSP-WFL
Optical efficiencyNSP - 23%
WFL - 71%
WFL - 71%
Fixture fluxNSP - 404lm
WFL - 1253lm
WFL - 1253lm
Luminous efficacyNSP - 21lm/W
WFL - 64lm/W
WFL - 64lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Painted die-cast aluminium body. Black painted polycarbonate front ring. Adjustable from 0° to -90° on the vertical plane and 359° on the horizontal plane. Mechanical beam locking system on the vertical plane and friction beam locking system on the horizontal plane. The centre of gravity always remains in axis with the track regardless of the aiming.
Colour and finishPlaster white
Dimensions75
Weight0.53Kg
VersionZOOM PRECISION
Degree of protectionIP20
Electrical characteristics
DALI electronic driver integrated into the track adapter.
Fixture Power20W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlDALI
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Electrified track mounting.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
