Track projectors
Zeno 130
Code
T039NSI930ELPW
Light colour
3000K
90
90
Light distribution
NSP
9°
9°
Output
24.5W
1520lm
1520lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classD
Nominal power21W
Nominal flux2569lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)>50000h tq +25°C

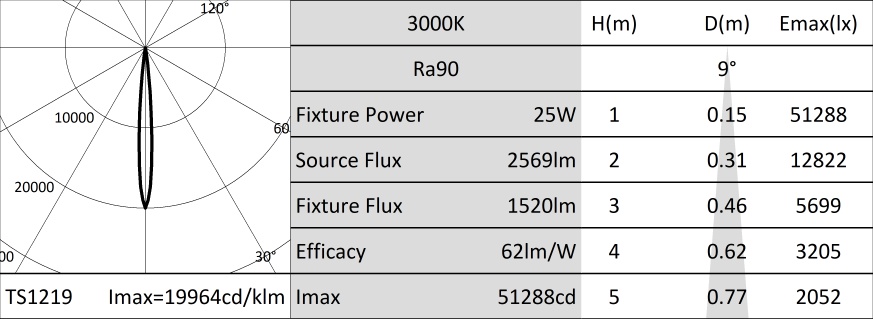

Illuminotechnical characteristics
Narrow Spot version with an indirect optic with LED module facing the reflector, dissipation with a heat-pipe, a highly reflective anodised aluminium parabolic reflector and a transparent PMMA holographic screen.
OpticINDIRECT
Beam anglesNSP
Optical efficiency59%
Fixture flux1520lm
Luminous efficacy62lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast painted aluminium optical unit. The optical unit can be adjusted from 0 to -90° on the vertical plane; and 355° on the horizontal plane with aiming blocking system.
Colour and finishPlaster white
Weight0.8Kg
Degree of protectionIP20
Electrical characteristics
ON-OFF electronic driver integrated into the track adapter.
Fixture Power25W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
Ambient temperature0°C / +25°C
Installation
Electrified track mounting. Mechanical and optic accessories available, to be installed with holder ring (necessary).
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
