Track projectors
Zeno 130
Code
T039SPL940ELPW
Light colour
4000K
90
90
Light distribution
SP
17°
17°
Output
29.4W
2732lm
2732lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classE
Nominal power26W
Nominal flux3243lm
Colour rendering index90
Rf90
Rg98
CCT nominal4000K
Lifetime (L80/B10)>50000h tq +25°C

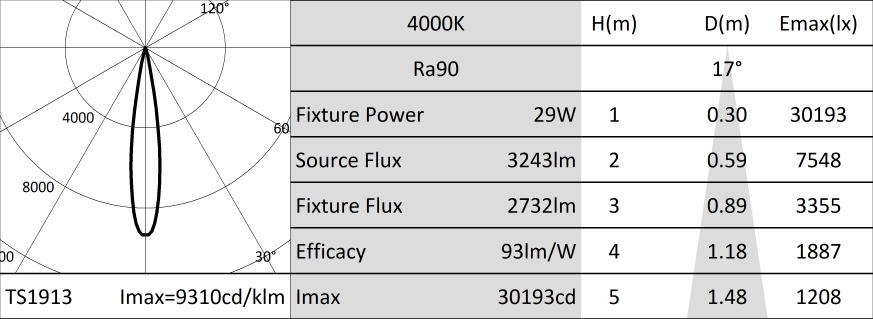

Illuminotechnical characteristics
Spot version with an optical grade PMMA TIR lens.
OpticLENS
Beam anglesSP
Optical efficiency84%
Fixture flux2732lm
Luminous efficacy93lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast painted aluminium optical unit. The optical unit can be adjusted from 0 to -90° on the vertical plane; and 355° on the horizontal plane with aiming blocking system.
Colour and finishPlaster white
Weight0.8Kg
Degree of protectionIP20
Electrical characteristics
ON-OFF electronic driver integrated into the track adapter.
Fixture Power29W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
Ambient temperature0°C / +25°C
Installation
Electrified track mounting. Mechanical and optic accessories available, to be installed with holder ring (necessary).
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
1 / 2
| Code |
|---|
| 1T6060 |
Blade of light filter.
Methacrylate holographic filter.
This makes the beam take on an oval shape and when combined with spotlights, the light blade appears more prominent.
To be completed with a dedicated holder ring.
It cannot be used with NSP and Wall Washer optics.
It cannot be used with NSP and Wall Washer optics.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T6061 |  |
Anti-glare louver.
Black lacquered aluminium honeycomb structure.
To be completed with a dedicated holder ring.
It cannot be used with NSP and Wall Washer optics.
It cannot be used with NSP and Wall Washer optics.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T6062 | |
Black painted steel cut-off.
To be completed with a dedicated holder ring.
It cannot be used with NSP and Wall Washer optics.
It cannot be used with NSP and Wall Washer optics.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T6063 | |
Black painted steel asymmetric cut-off.
To be completed with a dedicated holder ring.
It cannot be used with NSP and Wall Washer optics.
It cannot be used with NSP and Wall Washer optics.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T6064 | |
Adjustable barn doors flaps made of black painted steel.
To be completed with a dedicated holder ring.
They cannot be used with NSP and Wall Washer optics.
They cannot be used with NSP and Wall Washer optics.
1 / 2
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T6059 |  |
Black painted aluminium accessory holder ring.
