Track projectors
Zeno 180
HO
Code
T043SPH940ELPW
Light colour
4000K
90
90
Light distribution
SP
17°
17°
Output
56.7W
3679lm
3679lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra97 on request.
Energy efficiency classE
Nominal power49W
Nominal flux6510lm
Colour rendering index90
Rf90
Rg98
CCT nominal4000K
Lifetime (L80/B10)>50000h tq +25°C

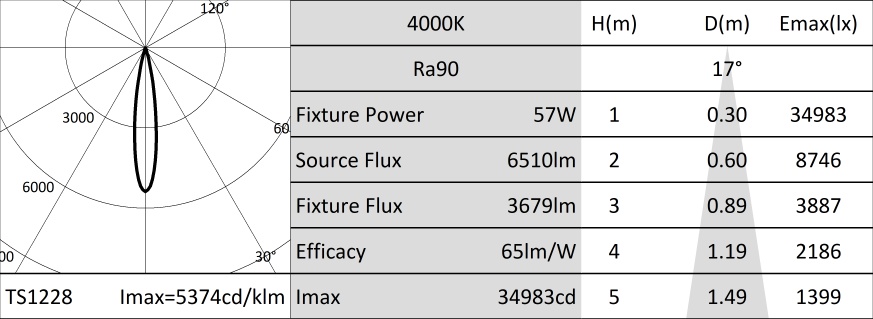

Illuminotechnical characteristics
Spot version with hybrid optics composed of a specular anodised aluminium reflector, an optical glass lens, a black anodised aluminium lens holder and a PMMA holographic screen.
OpticHYBRID
Beam anglesSP
Optical efficiency57%
Fixture flux3679lm
Luminous efficacy65lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast painted aluminium optical unit. The optical unit can be adjusted from 0 to -90° on the vertical plane; and 355° on the horizontal plane with aiming blocking system.
Colour and finishPlaster white
Weight1.5Kg
Degree of protectionIP20
Electrical characteristics
ON-OFF electronic driver integrated into the track adapter.
Fixture Power57W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
Ambient temperature0°C / +25°C
Installation
Electrified track mounting.
Warranty
5 years.
