Apparecchi da incasso a soffitto

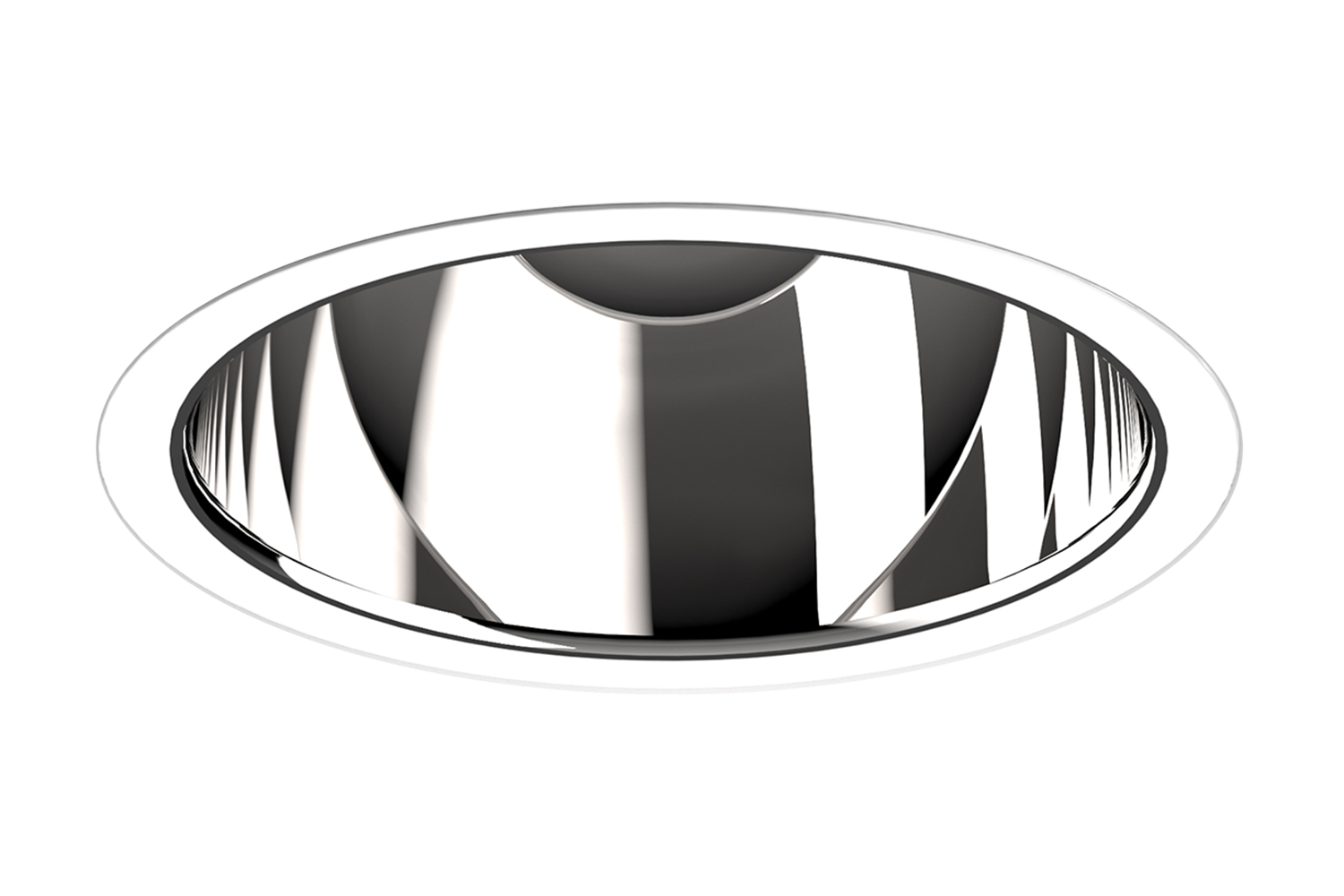

CCTEvo Downlight
Filtri
Filtri
Colore
Dimensione
Versione
CCT
CRI
Ottica
Tipo di ottica
Potenza apparecchio
W
W
Flusso apparecchio
lm
lm
Alimentazione
Controllo

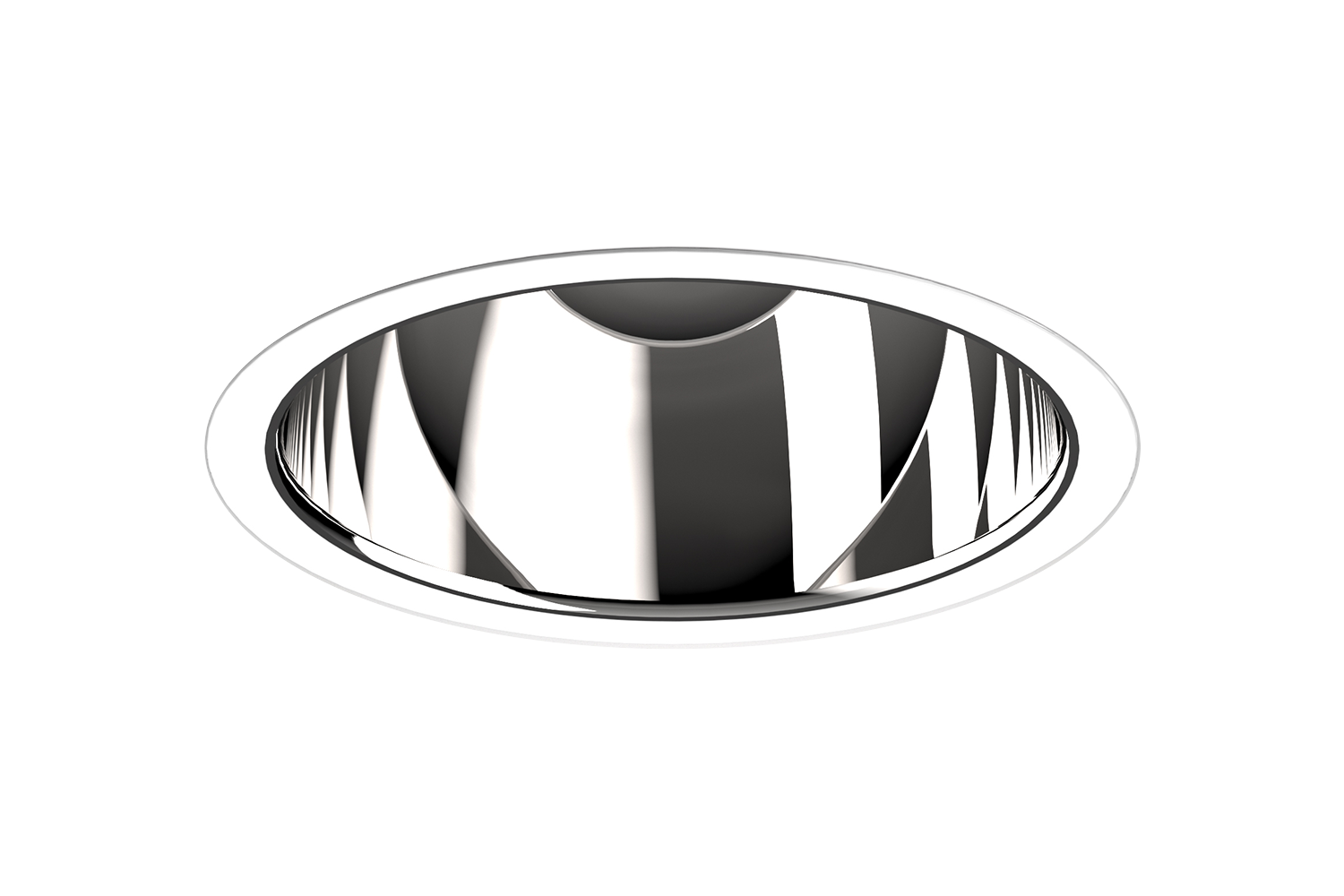

CCTEvo Downlight 214
WFL (UGR)
| Codice | Tonalità luce | Distribuzione luce | Output | Alimentazione Controllo | Colore | |
|---|---|---|---|---|---|---|
| 1T8219EL80 | 2700K 80 | WFL (UGR) 62° | 39,7W 4494lm | 220-240Vac ON-OFF |  |
Overview |
| 1T8222EL80 | 3000K 80 | WFL (UGR) 62° | 39,7W 4748lm | 220-240Vac ON-OFF | |
Overview |
| 1T8225EL80 | 3500K 80 | WFL (UGR) 62° | 39,7W 4856lm | 220-240Vac ON-OFF | |
Overview |
| 1T8228EL80 | 4000K 80 | WFL (UGR) 62° | 39,7W 4968lm | 220-240Vac ON-OFF | |
Overview |
| 1T8219DA80 | 2700K 80 | WFL (UGR) 62° | 39,7W 4494lm | 220-240Vac DALI | |
Overview |
| 1T8222DA80 | 3000K 80 | WFL (UGR) 62° | 39,7W 4748lm | 220-240Vac DALI | |
Overview |
| 1T8225DA80 | 3500K 80 | WFL (UGR) 62° | 39,7W 4856lm | 220-240Vac DALI | |
Overview |
| 1T8228DA80 | 4000K 80 | WFL (UGR) 62° | 39,7W 4968lm | 220-240Vac DALI | |
Overview |
| 1T8219EL | 2700K 90 | WFL (UGR) 62° | 39,7W 3919lm | 220-240Vac ON-OFF | |
Overview |
| 1T8222EL | 3000K 90 | WFL (UGR) 62° | 39,7W 4177lm | 220-240Vac ON-OFF | |
Overview |
| 1T8225EL | 3500K 90 | WFL (UGR) 62° | 39,7W 4258lm | 220-240Vac ON-OFF | |
Overview |
| 1T8228EL | 4000K 90 | WFL (UGR) 62° | 39,7W 4412lm | 220-240Vac ON-OFF | |
Overview |
| 1T8219DA | 2700K 90 | WFL (UGR) 62° | 39,7W 3919lm | 220-240Vac DALI | |
Overview |
| 1T8222DA | 3000K 90 | WFL (UGR) 62° | 39,7W 4177lm | 220-240Vac DALI | |
Overview |
| 1T8225DA | 3500K 90 | WFL (UGR) 62° | 39,7W 4258lm | 220-240Vac DALI | |
Overview |
| 1T8228DA | 4000K 90 | WFL (UGR) 62° | 39,7W 4412lm | 220-240Vac DALI | |
Overview |
| 1T8220EL80 | 2700K 80 | WFL (UGR) 62° | 54W 5846lm | 220-240Vac ON-OFF | |
Overview |
| 1T8223EL80 | 3000K 80 | WFL (UGR) 62° | 54W 6072lm | 220-240Vac ON-OFF | |
Overview |
| 1T8226EL80 | 3500K 80 | WFL (UGR) 62° | 54W 6211lm | 220-240Vac ON-OFF | |
Overview |
| 1T8229EL80 | 4000K 80 | WFL (UGR) 62° | 54W 6355lm | 220-240Vac ON-OFF | |
Overview |
| 1T8220DA80 | 2700K 80 | WFL (UGR) 62° | 54W 5846lm | 220-240Vac DALI | |
Overview |
| 1T8223DA80 | 3000K 80 | WFL (UGR) 62° | 54W 6072lm | 220-240Vac DALI | |
Overview |
| 1T8226DA80 | 3500K 80 | WFL (UGR) 62° | 54W 6211lm | 220-240Vac DALI | |
Overview |
| 1T8229DA80 | 4000K 80 | WFL (UGR) 62° | 54W 6355lm | 220-240Vac DALI | |
Overview |
| 1T8220EL | 2700K 90 | WFL (UGR) 62° | 54W 5013lm | 220-240Vac ON-OFF | |
Overview |
| 1T8223EL | 3000K 90 | WFL (UGR) 62° | 54W 5343lm | 220-240Vac ON-OFF | |
Overview |
| 1T8226EL | 3500K 90 | WFL (UGR) 62° | 54W 5446lm | 220-240Vac ON-OFF | |
Overview |
| 1T8229EL | 4000K 90 | WFL (UGR) 62° | 54W 5643lm | 220-240Vac ON-OFF | |
Overview |
| 1T8220DA | 2700K 90 | WFL (UGR) 62° | 54W 5013lm | 220-240Vac DALI | |
Overview |
| 1T8223DA | 3000K 90 | WFL (UGR) 62° | 54W 5343lm | 220-240Vac DALI | |
Overview |
| 1T8226DA | 3500K 90 | WFL (UGR) 62° | 54W 5446lm | 220-240Vac DALI | |
Overview |
| 1T8229DA | 4000K 90 | WFL (UGR) 62° | 54W 5643lm | 220-240Vac DALI | |
Overview |
22

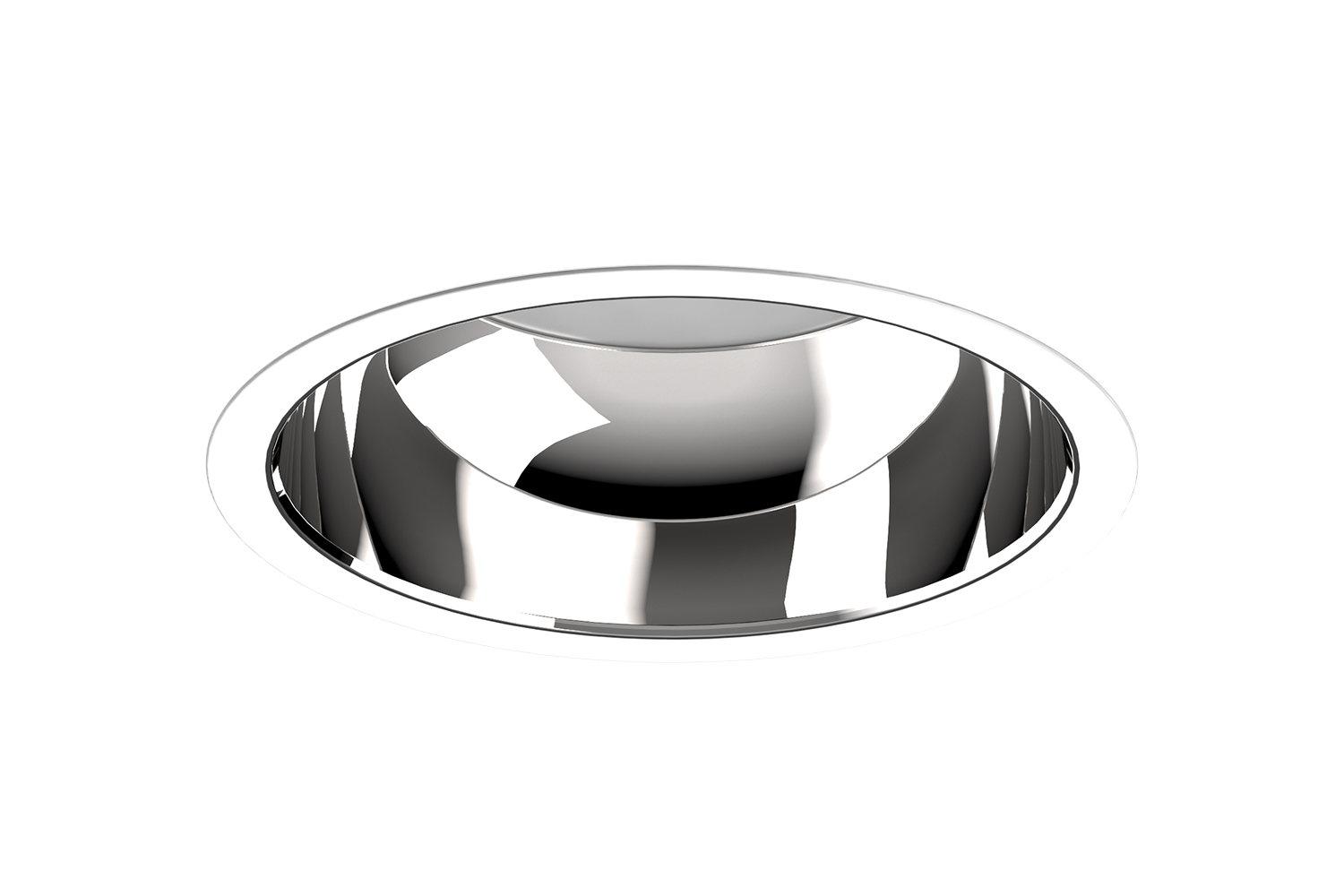

CCTEvo Downlight 214
VWFL
| Codice | Tonalità luce | Distribuzione luce | Output | Alimentazione Controllo | Colore | |
|---|---|---|---|---|---|---|
| 1T8231EL80 | 2700K 80 | VWFL 88° | 39,7W 4702lm | 220-240Vac ON-OFF | |
Overview |
| 1T8234EL80 | 3000K 80 | VWFL 88° | 39,7W 4884lm | 220-240Vac ON-OFF | |
Overview |
| 1T8237EL80 | 3500K 80 | VWFL 88° | 39,7W 4995lm | 220-240Vac ON-OFF | |
Overview |
| 1T8240EL80 | 4000K 80 | VWFL 88° | 39,7W 5110lm | 220-240Vac ON-OFF | |
Overview |
| 1T8231DA80 | 2700K 80 | VWFL 88° | 39,7W 4702lm | 220-240Vac DALI | |
Overview |
| 1T8234DA80 | 3000K 80 | VWFL 88° | 39,7W 4884lm | 220-240Vac DALI | |
Overview |
| 1T8237DA80 | 3500K 80 | VWFL 88° | 39,7W 4995lm | 220-240Vac DALI | |
Overview |
| 1T8240DA80 | 4000K 80 | VWFL 88° | 39,7W 5110lm | 220-240Vac DALI | |
Overview |
| 1T8231EL | 2700K 90 | VWFL 88° | 39,7W 4031lm | 220-240Vac ON-OFF | |
Overview |
| 1T8234EL | 3000K 90 | VWFL 88° | 39,7W 4297lm | 220-240Vac ON-OFF | |
Overview |
| 1T8237EL | 3500K 90 | VWFL 88° | 39,7W 4380lm | 220-240Vac ON-OFF | |
Overview |
| 1T8240EL | 4000K 90 | VWFL 88° | 39,7W 4538lm | 220-240Vac ON-OFF | |
Overview |
| 1T8231DA | 2700K 90 | VWFL 88° | 39,7W 4031lm | 220-240Vac DALI | |
Overview |
| 1T8234DA | 3000K 90 | VWFL 88° | 39,7W 4297lm | 220-240Vac DALI | |
Overview |
| 1T8237DA | 3500K 90 | VWFL 88° | 39,7W 4380lm | 220-240Vac DALI | |
Overview |
| 1T8240DA | 4000K 90 | VWFL 88° | 39,7W 4538lm | 220-240Vac DALI | |
Overview |
| 1T8232EL80 | 2700K 80 | VWFL 88° | 54W 6013lm | 220-240Vac ON-OFF | |
Overview |
| 1T8235EL80 | 3000K 80 | VWFL 88° | 54W 6246lm | 220-240Vac ON-OFF | |
Overview |
| 1T8238EL80 | 3500K 80 | VWFL 88° | 54W 6389lm | 220-240Vac ON-OFF | |
Overview |
| 1T8241EL80 | 4000K 80 | VWFL 88° | 54W 6536lm | 220-240Vac ON-OFF | |
Overview |
| 1T8232DA80 | 2700K 80 | VWFL 88° | 54W 6013lm | 220-240Vac DALI | |
Overview |
| 1T8235DA80 | 3000K 80 | VWFL 88° | 54W 6246lm | 220-240Vac DALI | |
Overview |
| 1T8238DA80 | 3500K 80 | VWFL 88° | 54W 6389lm | 220-240Vac DALI | |
Overview |
| 1T8241DA80 | 4000K 80 | VWFL 88° | 54W 6536lm | 220-240Vac DALI | |
Overview |
| 1T8232EL | 2700K 90 | VWFL 88° | 54W 5156lm | 220-240Vac ON-OFF | |
Overview |
| 1T8235EL | 3000K 90 | VWFL 88° | 54W 5495lm | 220-240Vac ON-OFF | |
Overview |
| 1T8238EL | 3500K 90 | VWFL 88° | 54W 5602lm | 220-240Vac ON-OFF | |
Overview |
| 1T8241EL | 4000K 90 | VWFL 88° | 54W 5805lm | 220-240Vac ON-OFF | |
Overview |
| 1T8232DA | 2700K 90 | VWFL 88° | 54W 5156lm | 220-240Vac DALI | |
Overview |
| 1T8235DA | 3000K 90 | VWFL 88° | 54W 5495lm | 220-240Vac DALI | |
Overview |
| 1T8238DA | 3500K 90 | VWFL 88° | 54W 5602lm | 220-240Vac DALI | |
Overview |
| 1T8241DA | 4000K 90 | VWFL 88° | 54W 5805lm | 220-240Vac DALI | |
Overview |
22
