1E3974EL

Technical Data

Source

Light module with high power and high efficiency Ra80 LED sources. Ra90 version available on request.

Energy efficiency classE

Nominal power2,1W

Nominal flux230lm

Colour rendering index80

Rf85

Rg96

CCT nominal3000K

Lifetime (L80/B10)>50000h tq +25°C

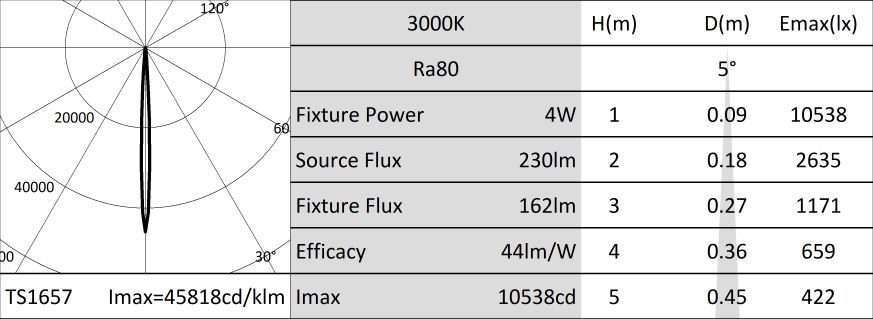

Illuminotechnical characteristics

NSP version: precision methacrylate lens and spreader filter.

OpticLENS

Beam anglesNSP

Optical efficiency71%

Fixture flux162lm

Luminous efficacy44lm/W

Photobiological safetyCompliant with RG1 low risk group

Mechanical characteristics

Painted die-cast anodised aluminium body and painted stainless steel mounting bracket. Tempered extra clear front glass.

Colour and finishFerrite

Weight1.45Kg

Degree of protectionIP66

Mechanical ResistanceIK10

Electrical characteristics

Version with integrated electronic ON-OFF power supply. Precabled with a 1.5m long feeding cable H07RN-F.

Fixture Power4W

Power supply220-240Vac 50/60Hz

Insulation ClassCLASS 1

Type of driver / ControlON-OFF

Driver includedYES

SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light

Ambient temperature-25°C / +35°C

Installation

Mounting bracket with aiming adjustability. Adjustable up to ±60° on the horizontal pane and +90°/-45° on the vertical plane.

Notes

Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture. It is possible to subject the product to Cataphoresis treatment on request. 110-277Vac version available on request.

Warranty

5 years.

Warning

Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
