Projectors
Dart Round
Filters
Filters
Colour
Dimension
CCT
CRI
Optic
Type of optic
Fixture Power
W
W
Fixture flux
lm
lm
Power supply
Control

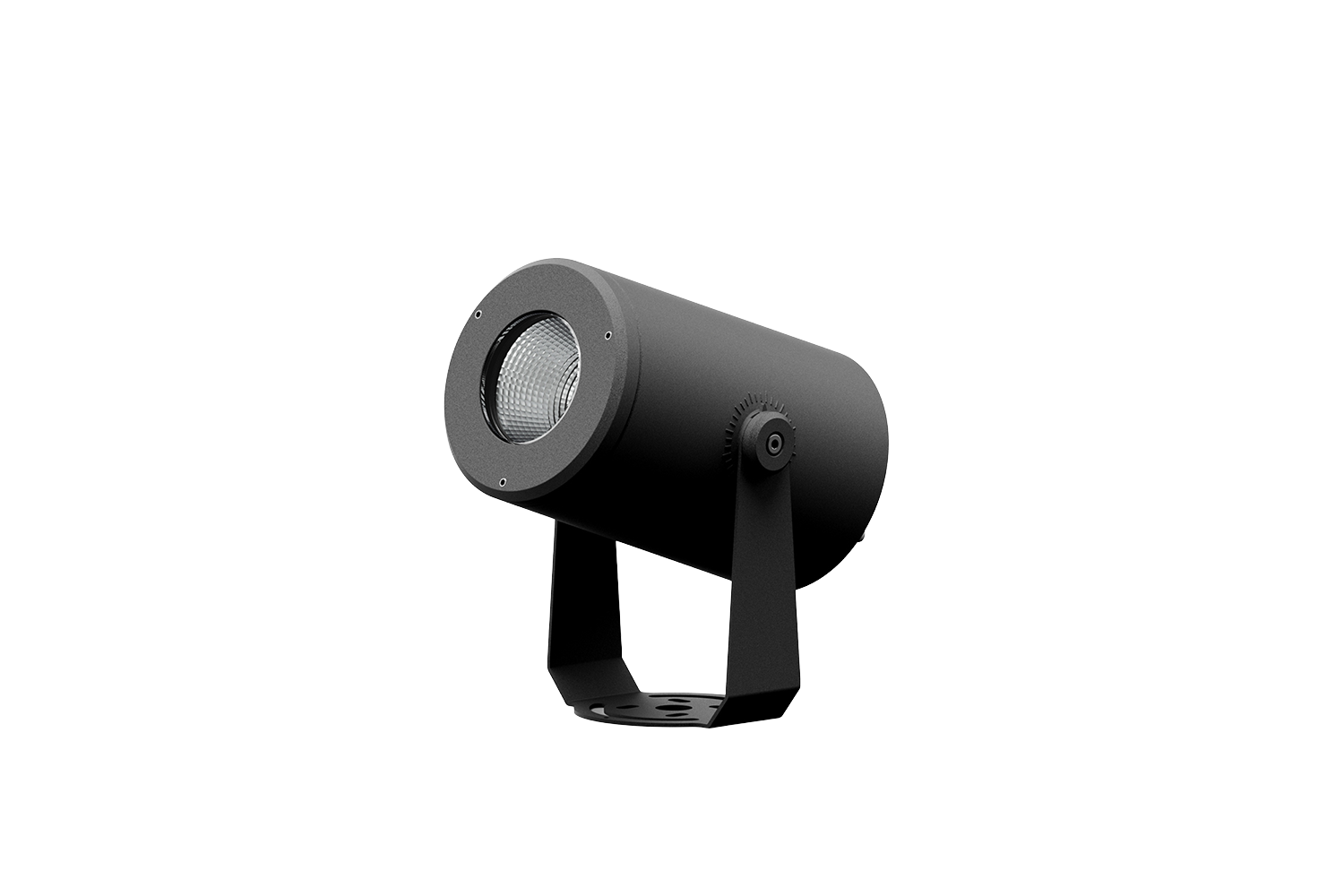

Dart Round Small Integrated driver
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| 1E3974EL | 3000K 80 | NSP 5° | 3.7W 162lm | 220-240Vac ON-OFF |  |
Overview |
| 1E3978EL | 4000K 80 | NSP 5° | 3.7W 175lm | 220-240Vac ON-OFF | |
Overview |
| 1E3975EL | 3000K 80 | SP 16° | 14.5W 1212lm | 220-240Vac ON-OFF | |
Overview |
| 1E3979EL | 4000K 80 | SP 16° | 14.5W 1282lm | 220-240Vac ON-OFF | |
Overview |
| 1E3975DA | 3000K 80 | SP 16° | 14.5W 1212lm | 220-240Vac DALI | |
Overview |
| 1E3979DA | 4000K 80 | SP 16° | 14.5W 1282lm | 220-240Vac DALI | |
Overview |
| 1E3976EL | 3000K 80 | FL 30° | 13.5W 1239lm | 220-240Vac ON-OFF | |
Overview |
| 1E3980EL | 4000K 80 | FL 30° | 13.5W 1249lm | 220-240Vac ON-OFF | |
Overview |
| 1E3976DA | 3000K 80 | FL 30° | 13.5W 1239lm | 220-240Vac DALI | |
Overview |
| 1E3980DA | 4000K 80 | FL 30° | 13.5W 1249lm | 220-240Vac DALI | |
Overview |
| 1E3977EL | 3000K 80 | MWFL 48° | 13.5W 1477lm | 220-240Vac ON-OFF | |
Overview |
| 1E3981EL | 4000K 80 | MWFL 48° | 13.5W 1489lm | 220-240Vac ON-OFF | |
Overview |
| 1E3977DA | 3000K 80 | MWFL 48° | 13.5W 1477lm | 220-240Vac DALI | |
Overview |
| 1E3981DA | 4000K 80 | MWFL 48° | 13.5W 1489lm | 220-240Vac DALI | |
Overview |
4

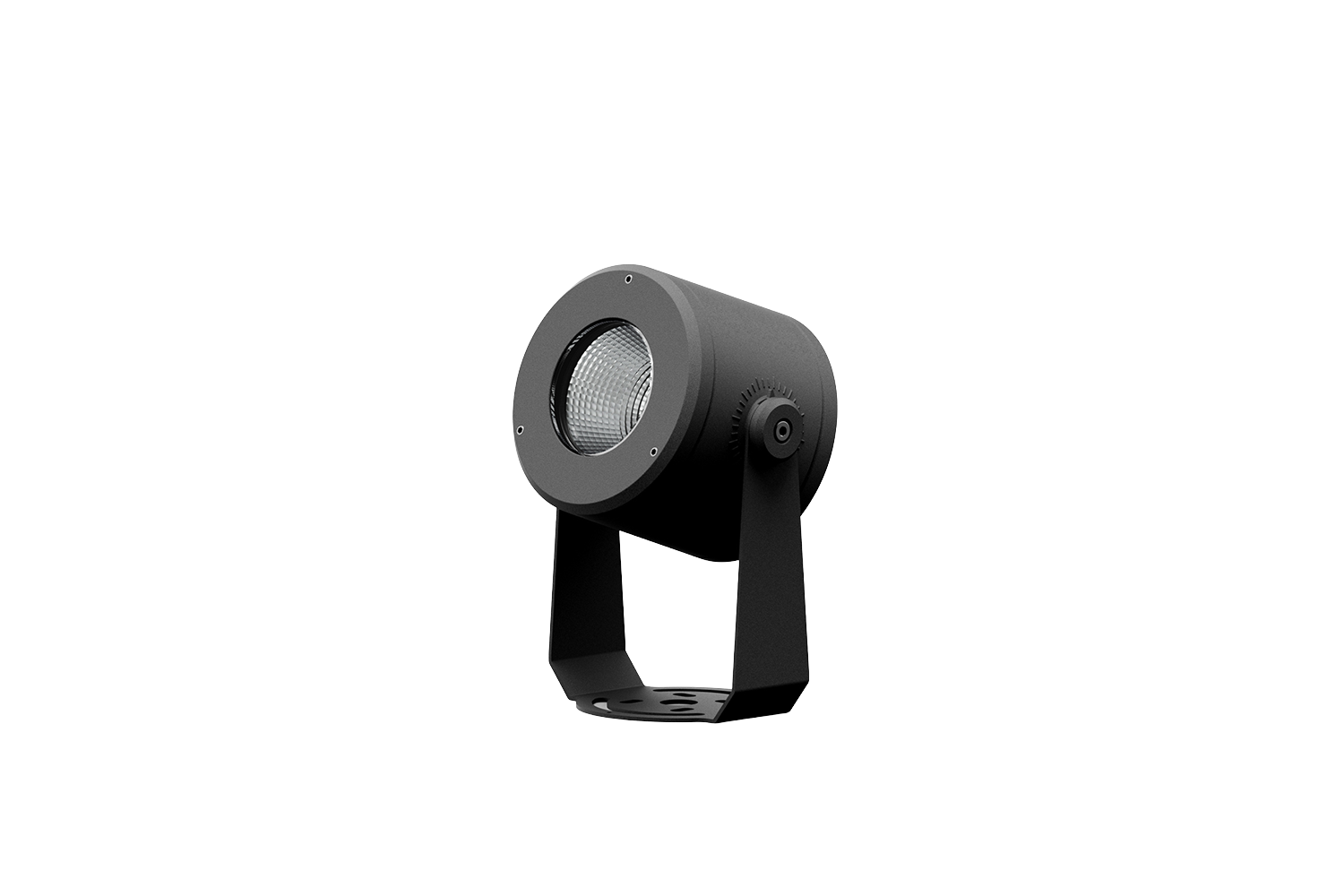

Dart Round Small Remote driver
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| 1E3966 | 3000K 80 | NSP 5° | 2.1W 162lm | 700mA | |
Overview |
| 1E3970 | 4000K 80 | NSP 5° | 2.1W 175lm | 700mA | |
Overview |
| 1E3967 | 3000K 80 | SP 16° | 14.8W 1342lm | 400mA | |
Overview |
| 1E3971 | 4000K 80 | SP 16° | 14.8W 1418lm | 400mA | |
Overview |
| 1E3968 | 3000K 80 | FL 30° | 13.6W 1403lm | 400mA | |
Overview |
| 1E3972 | 4000K 80 | FL 30° | 13.6W 1415lm | 400mA | |
Overview |
| 1E3969 | 3000K 80 | MWFL 48° | 13.6W 1672lm | 400mA | |
Overview |
| 1E3973 | 4000K 80 | MWFL 48° | 13.6W 1685lm | 400mA | |
Overview |
