Projectors
Volta
Code
1T4634
Light colour
3000K
80
80

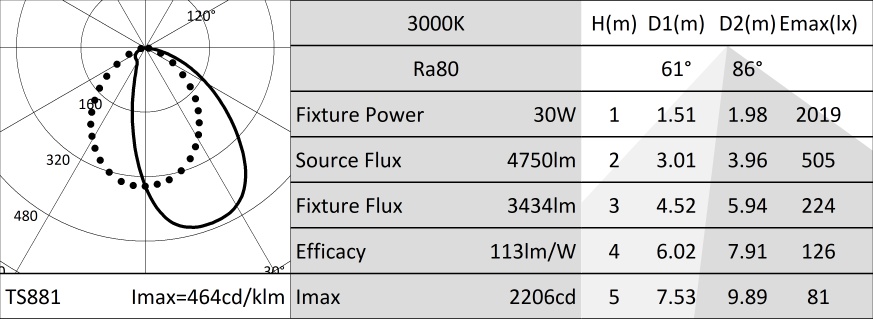

Light distribution
Asymmetrical
Output
21-30.4W
2351-3434lm
2351-3434lm
Power supply
Control
600/900mA
Colour
21W
33W
1 / 4
Technical Data
Concept
Professional adjustable LED projector for wall or cornice installation
Source
High efficiency Chip on Board LED Ra80.
Energy efficiency classD
Nominal power21/30W
Nominal fluxSee photometries
Colour rendering index80
Rf83
Rg96
CCT nominal3000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
The optical system is equipped with a pure aluminium high luminous efficacy reflector.
OpticASYM
Optical efficiency72%
Fixture flux21W - 2351lm
33W - 3434lm
33W - 3434lm
Luminous efficacy21W - 112lm/W
33W - 113lm/W
33W - 113lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Extruded anodized aluminium body, and die-cast powder coated aluminium optic unit and terminal. Passive heat sink cooling system. Ultra flat tempered glass protective screen. Stainless steel bracket predisposed for surface installation with screws and dowels (not provided). Adjustable optical unit +/-90 vertically with aiming system lockable using an Allen key.
Colour and finishFlorentine white
Weight2Kg
Degree of protectionIP66
Mechanical ResistanceIK09
Electrical characteristics
To be completed with IP20 electronic driver available inON-OFF and dimmable DALI version for indoor use; with IP68 electronic ON-OFF and dimmable DALI for outdoor use equipped with sealed connectors preset for mains connection. Pre-wired with a H07RN-F 2x1.5mm² cable for connection to a remote driver.
Fixture PowerSee photometries
Power supply600/900mA
Insulation ClassCLASS 3
Driver includedNO
Class FYES
Ambient temperature-25°C / +35°C
Notes
Casambi control system available using a dedicated accessory (only with DALI driver). 110-277Vac version available on request. Values related to the power consumption of the fixture do not take into account the consumption of the accessory driver, which depends on the choice of driver. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Non-replaceable light source.
Related codes
| Code | IP | Output current | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| 1T3625 | IP20 | 600mA | 110-240Vac | 32W | 160x35x83 |
| 1E2571 | IP68 | 600mA | 220-240Vac | max 43W | 106x26x53 |
| 1T2966 | IP20 | 900mA | 220-240Vac | max 50W | 160x35x83 |
| 1E2573 | IP68 | 900mA | 220-240Vac | max 50W | 127x31x80 |
Electronic ON-OFF power supply.
| Code | IP | Output current | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| 1T3627 | IP20 | 600mA | 110-240Vac | 32W | 160x35x83 |
| 1E2572 | IP68 | 600mA | 220-240Vac | max 43W | 106x26x53 |
| 1T2968 | IP20 | 900mA | 110-240Vac | max 50W | 160x35x83 |
| 1E2574 | IP68 | 900mA | 220-240Vac | max 50W | 150x40x148 |
DALI power supply.
Accessories
| Code | Colour | ||||
|---|---|---|---|---|---|
| 1T4640 |  |
Anti-glare.
PMMA holographic filter to reduce the beam angle, CNC machine anodised and powder coated aluminium frame.
To be used with ASY and ELLIPTICAL optics.
To be used with ASY and ELLIPTICAL optics.
1 / 2
| Code |
|---|
| 1T5349 |
IP20 wireless control unit with DALI interface.
It generates a local DALI2 bus, enhabling a direct connection to a DALI interface LED driver.
The module can only be used in a closed system and cannot be connected to an existing DALI network.
The module is wireless controlled using a Casambi app for smartphones and tablets using Bluetooth 5.0 technology.
The devices automatically create an adaptive, robust, and reliable wireless mesh network, allowing for the easy and efficient management of a high number of fixtures.
The control unit is preset to the DALI 1CH profile, maning the device can control a single DALI driver with broadcast commands.
In addition to the DALI broadcast, other operating modes are available, such as:
- Button (normally open)
- Control unit 0/1-10V
- Control unit DALI Tunable White DT8
- Presence sensor
1 / 2
| Code |
|---|
| 2T0131 |
IP20 Extender for wireless control of LED driver with dimming DALI (or 1-10V) interface based on Casambi technology.
It has a DALI2 output with the capacity to control up to 40 lighting fixtures.
With the addition of a further external BUS DALI power supply it is possible to control up to 64 fixtures.
IP20 Extender is preset to the DALI broadcast profile, meaning all the luminaires connected to it are dimmable at the same level.
In addition to the DALI broadcast other operating modes are available, such as:
- EXTENDER DALI 8CH
- EXTENDER DALI Tunable White
- EXTENDER 0/1-10V
- EXTENDER DALI 4CH
- EXTENDER DALI DT8 Tunable White
1 / 2
| Code |
|---|
| 1E4369 |
IP67 Extender for wireless control of LED driver with dimming DALI interface based on Casambi technology.
It has a DALI2 output with the capacity to control up to 40 lighting fixtures.
With the addition of a further external BUS DALI power supply it is possible to control up to 64 fixtures.
IP67 Extender is preset to the DALI broadcast profile, meaning all the luminaires connected to it are dimmable at the same level.
In addition to the DALI broadcast other operating modes are available, such as:
- EXTENDER DALI 8CH
- EXTENDER DALI Tunable White
- EXTENDER DALI 4CH
- EXTENDER DALI DT8 Tunable White
