Ceiling luminaires
Oz Stand Alone - Ceiling Luminaire
Large 3x - 153x53mm
Code
1T7903EL
Light colour
3000K
90
90
Light distribution
SP
19°
19°
Output
20.3W
1854lm
1854lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classF
Nominal power18W
Nominal flux2373lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

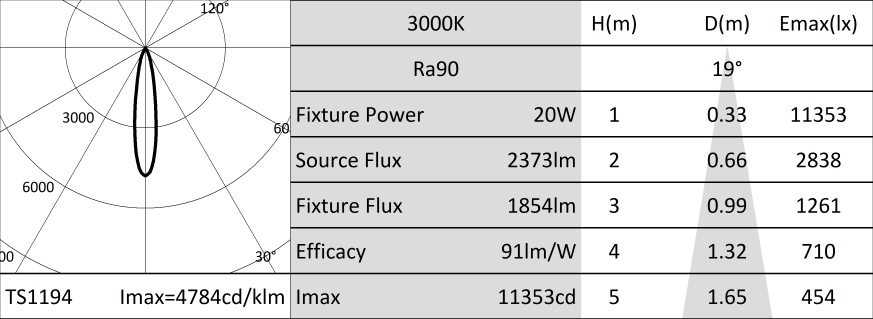

Illuminotechnical characteristics
SP optic. Anodised aluminium reflector and black polycarbonate frame. The light is suitable for installation in work environments UGR<17 (EN12464-1).
OpticREFLECTOR
Beam anglesSP
Optical efficiency78%
Fixture flux1854lm
Luminous efficacy91lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted die-cast aluminium body. 153x53mm version.
Colour and finishDeep black
DimensionsAxB=153x53mm
Weight0.7Kg
Version3X
Degree of protectionIP20
Electrical characteristics
Electronic ON-OFF driver integrated in the body of the fixture.
Fixture Power20W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Polycarbonate mounting system for ceiling installation.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
