Ceiling luminaires
Oz Stand Alone - Ceiling Luminaire
Large 5x - 253x53mm
Code
1T7937EL
Light colour
4000K
90
90
Light distribution
MWFL
50°
50°
Output
32.9W
3644lm
3644lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Concept
LED ceiling fixtures
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classE
Nominal power29W
Nominal flux4710lm
Colour rendering index90
Rf90
Rg98
CCT nominal4000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

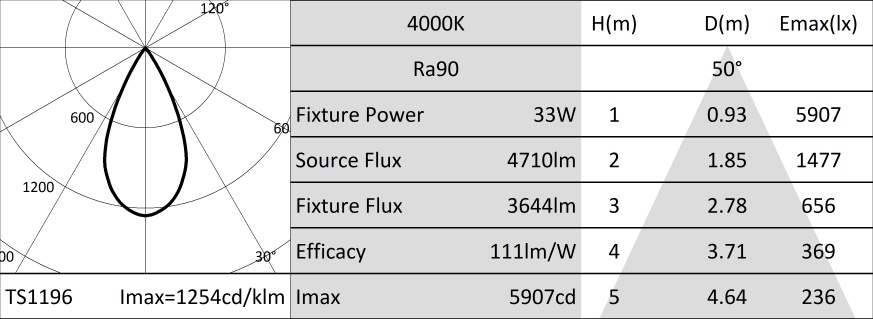

Illuminotechnical characteristics
MWFL optic. Anodised aluminium reflector and black polycarbonate frame. The light is suitable for installation in work environments UGR<17 (EN12464-1).
OpticREFLECTOR
Beam anglesMWFL
Optical efficiency77%
Fixture flux3644lm
Luminous efficacy111lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted die-cast aluminium body. 253x53mm version.
Colour and finishDeep black
DimensionsAxB=253x53mm
Weight1Kg
Version5X
Degree of protectionIP20
Electrical characteristics
Electronic ON-OFF driver integrated in the body of the fixture.
Fixture Power33W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Polycarbonate mounting system for ceiling installation.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
