Recessed luminaires
CCTEvo Wall Washer 160
Code
1T8319EL
Light colour
3000K
90
90
Light distribution
Wall Washer
Output
34.6W
2917lm
2917lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classE
Nominal power31W
Nominal flux4211lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
Lifetime (L80/B10)>50000h tq +25°C

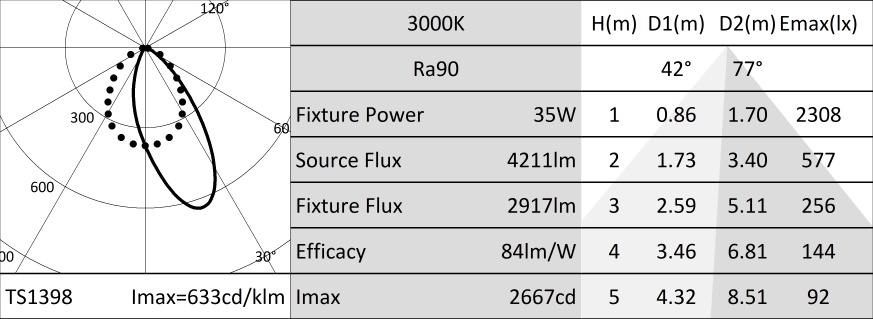

Illuminotechnical characteristics
WW Optic: a highly reflective pre-anodised aluminium asymmetric reflector, a holographic acrylic diffuser screen and thermoplastic load-bearing elements.
OpticWALL WASHER
Optical efficiency69%
Fixture flux2917lm
Luminous efficacy84lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast black painted anodised aluminium heat sink. Black thermoplastic material structure and a white painted cut-off front. Silicone sealing kit for water and dust protection. Trim version with an integrated white ring.
Colour and finishPlaster white
Weight0.8Kg
VersionTRIM
Degree of protectionIP20 for recessed part
Degree of protectionIP54 for exposed part
Electrical characteristics
Integrated electronic ON-OFF driver.
Fixture Power35W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Quick tool-free mounting system for false ceiling installation from 0.5 to 30mm.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
| Code | L mm | ||||
|---|---|---|---|---|---|
| 1T9606 | 2500 |
Anti-fall safety cable to secure the body of the appliance to the building structure.
