Recessed luminaires
CCTEvo Wall Washer
Filters
Filters
Colour
Dimension
Version
CCT
CRI
Optic
Type of optic
Fixture Power
W
W
Fixture flux
lm
lm
Power supply
Control

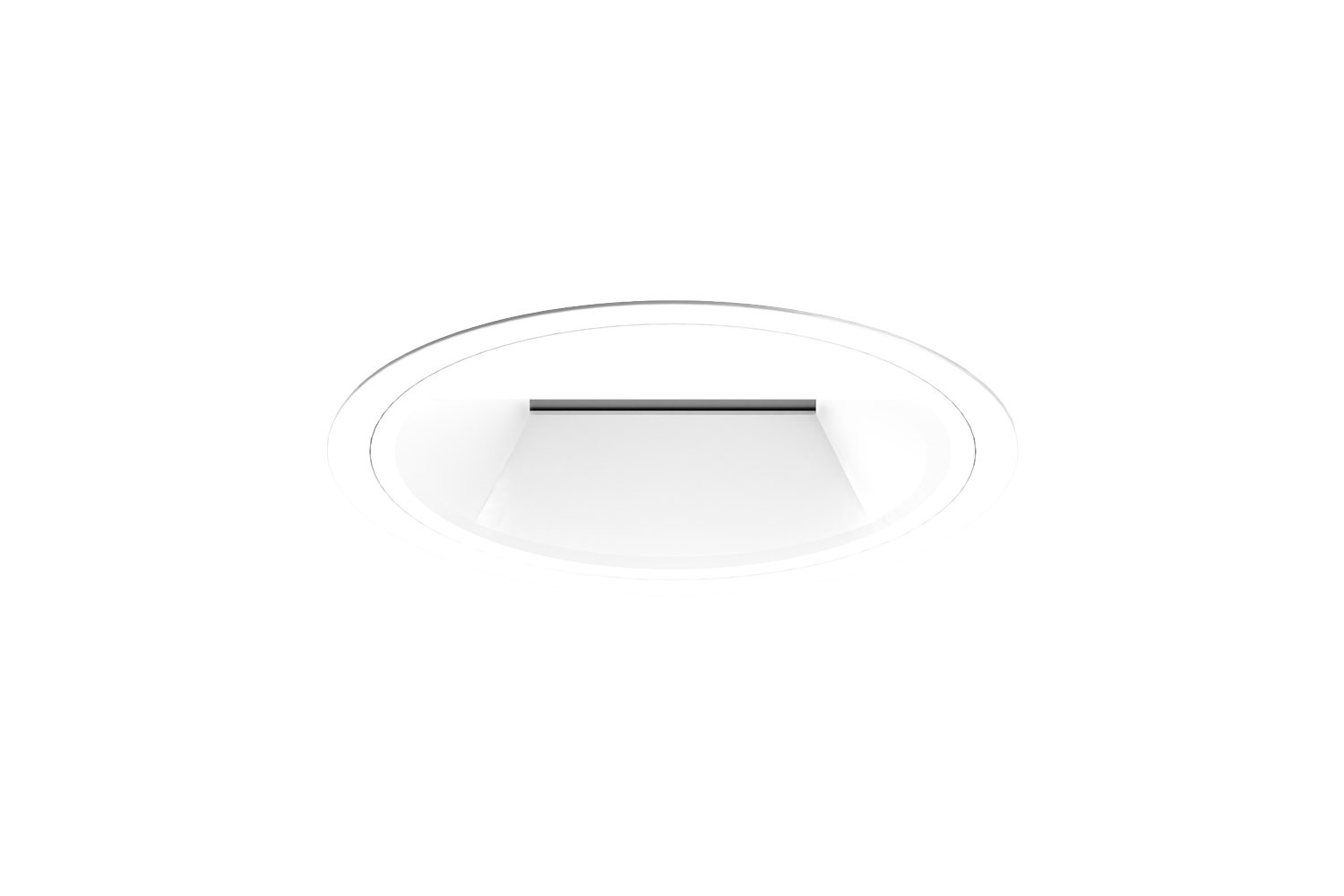

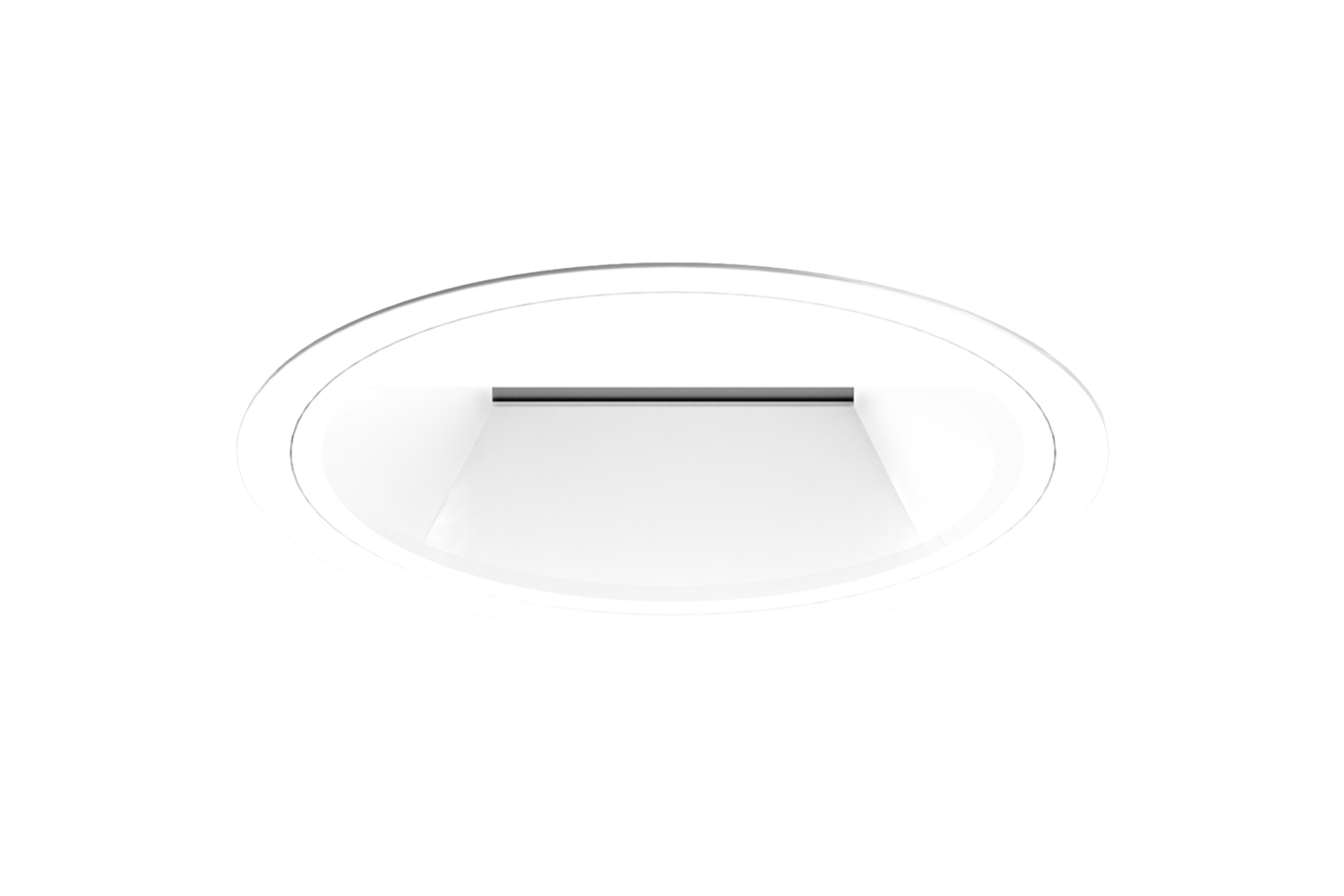

CCTEvo Wall Washer 160
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| 1T8315EL80 | 2700K 80 | Wall Washer | 24W 2206lm | 220-240Vac ON-OFF |  |
Overview |
| 1T8318EL80 | 3000K 80 | Wall Washer | 24W 2291lm | 220-240Vac ON-OFF | |
Overview |
| 1T8321EL80 | 3500K 80 | Wall Washer | 24W 2344lm | 220-240Vac ON-OFF | |
Overview |
| 1T8324EL80 | 4000K 80 | Wall Washer | 24W 2398lm | 220-240Vac ON-OFF | |
Overview |
| 1T8315DA80 | 2700K 80 | Wall Washer | 24W 2206lm | 220-240Vac DALI | |
Overview |
| 1T8318DA80 | 3000K 80 | Wall Washer | 24W 2291lm | 220-240Vac DALI | |
Overview |
| 1T8321DA80 | 3500K 80 | Wall Washer | 24W 2344lm | 220-240Vac DALI | |
Overview |
| 1T8324DA80 | 4000K 80 | Wall Washer | 24W 2398lm | 220-240Vac DALI | |
Overview |
| 1T8315EL | 2700K 90 | Wall Washer | 24W 1884lm | 220-240Vac ON-OFF | |
Overview |
| 1T8318EL | 3000K 90 | Wall Washer | 24W 2008lm | 220-240Vac ON-OFF | |
Overview |
| 1T8321EL | 3500K 90 | Wall Washer | 24W 2050lm | 220-240Vac ON-OFF | |
Overview |
| 1T8324EL | 4000K 90 | Wall Washer | 24W 2129lm | 220-240Vac ON-OFF | |
Overview |
| 1T8315DA | 2700K 90 | Wall Washer | 24W 1884lm | 220-240Vac DALI | |
Overview |
| 1T8318DA | 3000K 90 | Wall Washer | 24W 2008lm | 220-240Vac DALI | |
Overview |
| 1T8321DA | 3500K 90 | Wall Washer | 24W 2050lm | 220-240Vac DALI | |
Overview |
| 1T8324DA | 4000K 90 | Wall Washer | 24W 2129lm | 220-240Vac DALI | |
Overview |
| 1T8316EL80 | 2700K 80 | Wall Washer | 34.6W 3177lm | 220-240Vac ON-OFF | |
Overview |
| 1T8319EL80 | 3000K 80 | Wall Washer | 34.6W 3352lm | 220-240Vac ON-OFF | |
Overview |
| 1T8322EL80 | 3500K 80 | Wall Washer | 34.6W 3371lm | 220-240Vac ON-OFF | |
Overview |
| 1T8325EL80 | 4000K 80 | Wall Washer | 34.6W 3392lm | 220-240Vac ON-OFF | |
Overview |
| 1T8316DA80 | 2700K 80 | Wall Washer | 34.6W 3177lm | 220-240Vac DALI | |
Overview |
| 1T8319DA80 | 3000K 80 | Wall Washer | 34.6W 3352lm | 220-240Vac DALI | |
Overview |
| 1T8322DA80 | 3500K 80 | Wall Washer | 34.6W 3371lm | 220-240Vac DALI | |
Overview |
| 1T8325DA80 | 4000K 80 | Wall Washer | 34.6W 3392lm | 220-240Vac DALI | |
Overview |
| 1T8316EL | 2700K 90 | Wall Washer | 34.6W 2732lm | 220-240Vac ON-OFF | |
Overview |
| 1T8319EL | 3000K 90 | Wall Washer | 34.6W 2917lm | 220-240Vac ON-OFF | |
Overview |
| 1T8322EL | 3500K 90 | Wall Washer | 34.6W 2935lm | 220-240Vac ON-OFF | |
Overview |
| 1T8325EL | 4000K 90 | Wall Washer | 34.6W 3134lm | 220-240Vac ON-OFF | |
Overview |
| 1T8316DA | 2700K 90 | Wall Washer | 34.6W 2732lm | 220-240Vac DALI | |
Overview |
| 1T8319DA | 3000K 90 | Wall Washer | 34.6W 2917lm | 220-240Vac DALI | |
Overview |
| 1T8322DA | 3500K 90 | Wall Washer | 34.6W 2935lm | 220-240Vac DALI | |
Overview |
| 1T8325DA | 4000K 90 | Wall Washer | 34.6W 3134lm | 220-240Vac DALI | |
Overview |
