Recessed luminaires
CCTEvo Wall Washer
Filters
Filters
Colour
Dimension
Version
CCT
CRI
Optic
Type of optic
Fixture flux
lm
lm
Power supply
Control

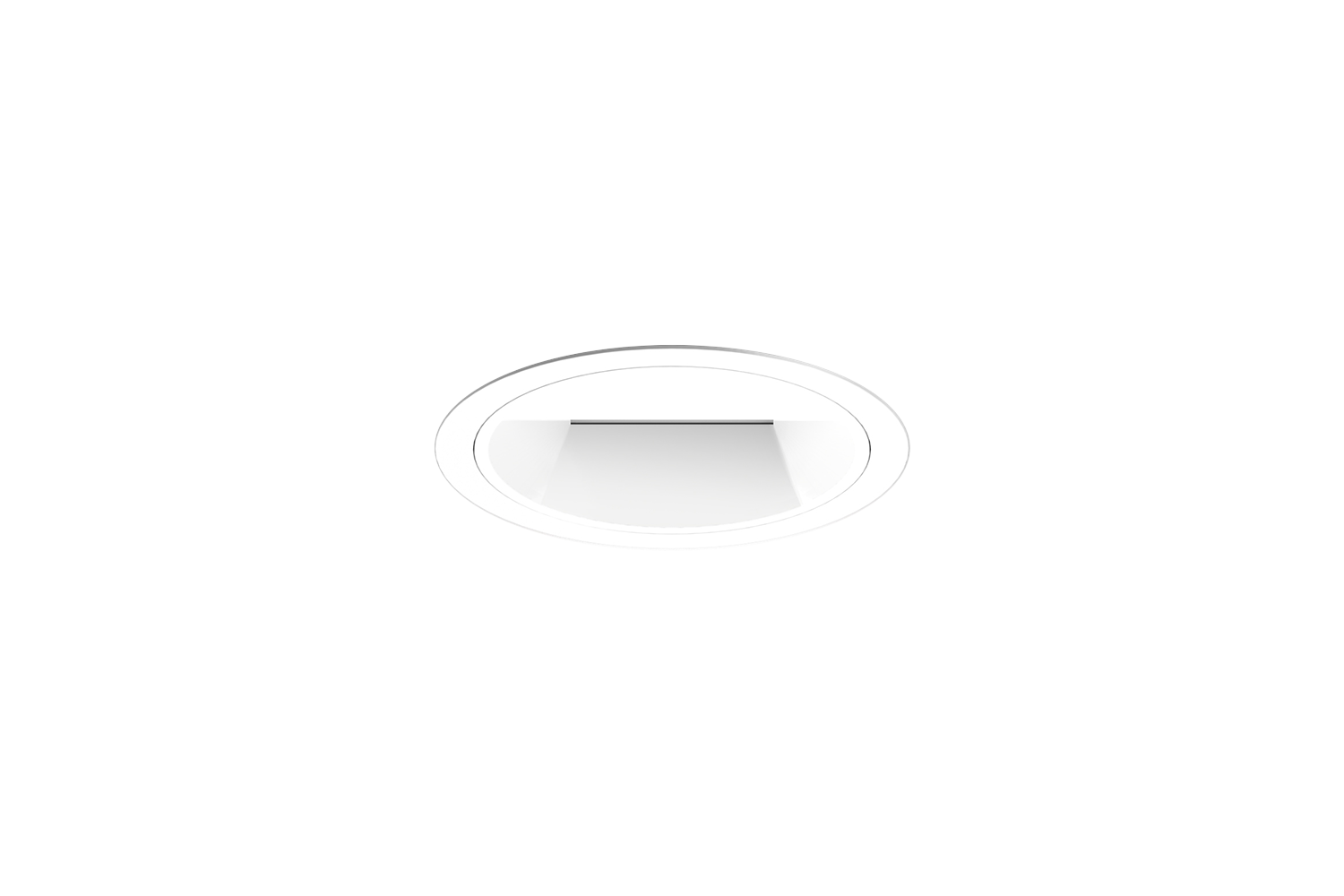

CCTEvo Wall Washer 105
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| 1T8415EL | 2700K 90 | Wall Washer | 18.2W 1094lm | 220-240Vac ON-OFF |  |
Overview |
| 1T8417EL | 3000K 90 | Wall Washer | 18.2W 1166lm | 220-240Vac ON-OFF | |
Overview |
| 1T8419EL | 3500K 90 | Wall Washer | 18.2W 1211lm | 220-240Vac ON-OFF | |
Overview |
| 1T8421EL | 4000K 90 | Wall Washer | 18.2W 1260lm | 220-240Vac ON-OFF | |
Overview |
| 1T8439EL | 2700K 90 | Wall Washer | 18.2W 1094lm | 220-240Vac ON-OFF |  |
Overview |
| 1T8441EL | 3000K 90 | Wall Washer | 18.2W 1166lm | 220-240Vac ON-OFF | |
Overview |
| 1T8443EL | 3500K 90 | Wall Washer | 18.2W 1211lm | 220-240Vac ON-OFF | |
Overview |
| 1T8445EL | 4000K 90 | Wall Washer | 18.2W 1260lm | 220-240Vac ON-OFF | |
Overview |
| 1T8415DA | 2700K 90 | Wall Washer | 18.2W 1094lm | 220-240Vac DALI | |
Overview |
| 1T8417DA | 3000K 90 | Wall Washer | 18.2W 1166lm | 220-240Vac DALI | |
Overview |
| 1T8419DA | 3500K 90 | Wall Washer | 18.2W 1211lm | 220-240Vac DALI | |
Overview |
| 1T8421DA | 4000K 90 | Wall Washer | 18.2W 1260lm | 220-240Vac DALI | |
Overview |
| 1T8439DA | 2700K 90 | Wall Washer | 18.2W 1094lm | 220-240Vac DALI | |
Overview |
| 1T8441DA | 3000K 90 | Wall Washer | 18.2W 1166lm | 220-240Vac DALI | |
Overview |
| 1T8443DA | 3500K 90 | Wall Washer | 18.2W 1211lm | 220-240Vac DALI | |
Overview |
| 1T8445DA | 4000K 90 | Wall Washer | 18.2W 1260lm | 220-240Vac DALI | |
Overview |
6

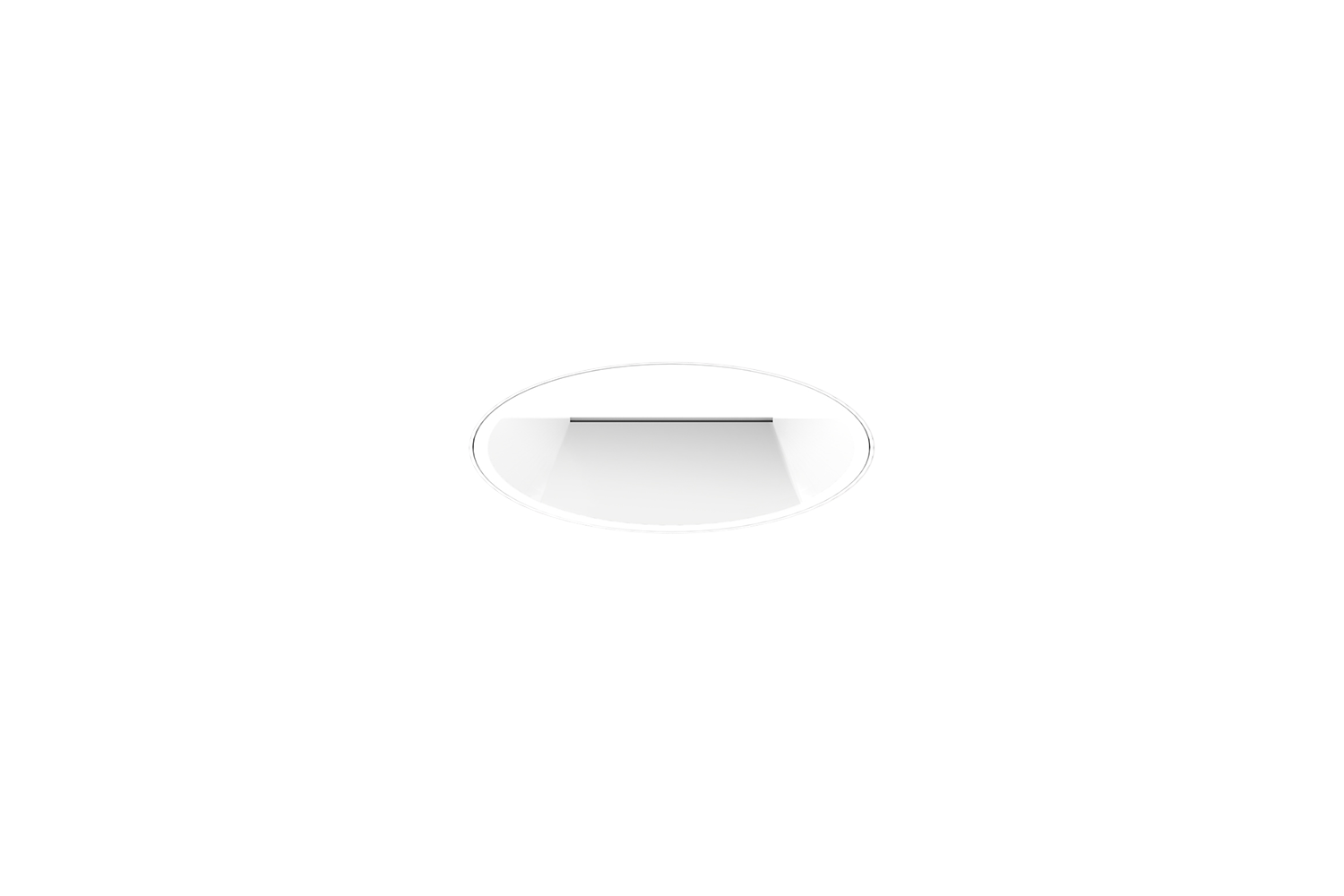

CCTEvo Wall Washer 105 Trimless
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| 1T8415ELTR | 2700K 90 | Wall Washer | 18.2W 1094lm | 220-240Vac ON-OFF | |
Overview |
| 1T8417ELTR | 3000K 90 | Wall Washer | 18.2W 1166lm | 220-240Vac ON-OFF | |
Overview |
| 1T8419ELTR | 3500K 90 | Wall Washer | 18.2W 1211lm | 220-240Vac ON-OFF | |
Overview |
| 1T8421ELTR | 4000K 90 | Wall Washer | 18.2W 1260lm | 220-240Vac ON-OFF | |
Overview |
| 1T8439ELTR | 2700K 90 | Wall Washer | 18.2W 1094lm | 220-240Vac ON-OFF | |
Overview |
| 1T8441ELTR | 3000K 90 | Wall Washer | 18.2W 1166lm | 220-240Vac ON-OFF | |
Overview |
| 1T8443ELTR | 3500K 90 | Wall Washer | 18.2W 1211lm | 220-240Vac ON-OFF | |
Overview |
| 1T8445ELTR | 4000K 90 | Wall Washer | 18.2W 1260lm | 220-240Vac ON-OFF | |
Overview |
| 1T8415DATR | 2700K 90 | Wall Washer | 18.2W 1094lm | 220-240Vac DALI | |
Overview |
| 1T8417DATR | 3000K 90 | Wall Washer | 18.2W 1166lm | 220-240Vac DALI | |
Overview |
| 1T8419DATR | 3500K 90 | Wall Washer | 18.2W 1211lm | 220-240Vac DALI | |
Overview |
| 1T8421DATR | 4000K 90 | Wall Washer | 18.2W 1260lm | 220-240Vac DALI | |
Overview |
| 1T8439DATR | 2700K 90 | Wall Washer | 18.2W 1094lm | 220-240Vac DALI | |
Overview |
| 1T8441DATR | 3000K 90 | Wall Washer | 18.2W 1166lm | 220-240Vac DALI | |
Overview |
| 1T8443DATR | 3500K 90 | Wall Washer | 18.2W 1211lm | 220-240Vac DALI | |
Overview |
| 1T8445DATR | 4000K 90 | Wall Washer | 18.2W 1260lm | 220-240Vac DALI | |
Overview |
6
