Recessed luminaires
CCTEvo Wall Washer 105
Trimless
Code
1T8443ELTR
Light colour
3500K
90
90
Light distribution
Wall Washer
Output
18.2W
1211lm
1211lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90. Ra80 on request.
Energy efficiency classE
Nominal power16W
Nominal flux2141lm
Colour rendering index90
Rf91
Rg100
CCT nominal3500K
Lifetime (L80/B10)>50000h tq +25°C

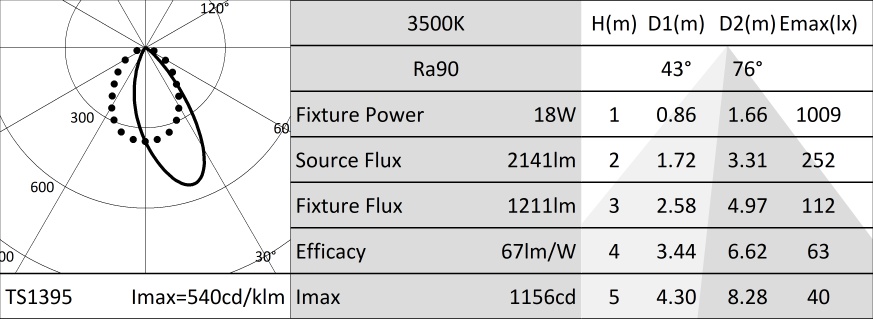

Illuminotechnical characteristics
WW Optic: a highly reflective pre-anodised aluminium asymmetric reflector, a holographic acrylic diffuser screen and thermoplastic load-bearing elements.
OpticWALL WASHER
Optical efficiency57%
Fixture flux1211lm
Luminous efficacy67lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Die-cast black painted anodised aluminium heat sink. Black thermoplastic material structure and a black painted cut-off front. Silicone sealing kit for water and dust protection. Trimless version with a load-bearing element for installation and finishing in plasterboard.
Colour and finishDeep black
Weight0.54Kg
VersionTRIMLESS
Degree of protectionIP20 for recessed part
Degree of protectionIP54 for exposed part
Electrical characteristics
Integrated electronic ON-OFF driver.
Fixture Power18W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Quick tool-free mounting system for false ceiling installation from 0.5 to 30mm.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
Accessories
| Code | L mm | ||||
|---|---|---|---|---|---|
| 1T9606 | 2500 |
Anti-fall safety cable to secure the body of the appliance to the building structure.
