Ceiling luminaires
Oz Stand Alone - Ceiling Luminaire
Large 5x - 253x53mm
Code
1T8943EL
Light colour
3000K
90
90
Light distribution
Elliptical Longitudinal
58° / 25°
58° / 25°
Output
20.5W
1835lm
1835lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Concept
LED ceiling fixtures
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classF
Nominal power18W
Nominal flux2550lm
Colour rendering index90
Rf92
Rg101
CCT nominal3000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C

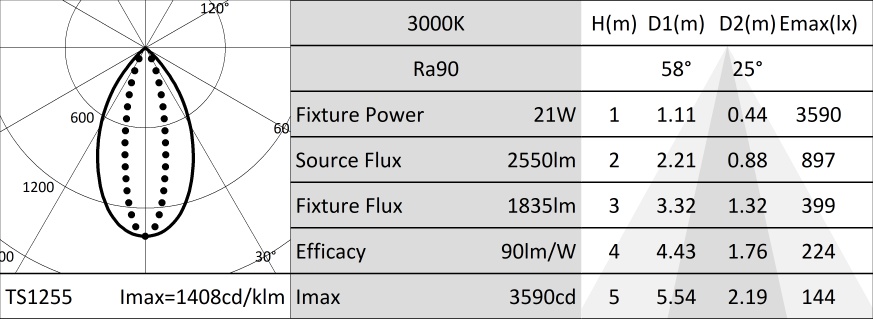

Illuminotechnical characteristics
ELL optic. Anodised aluminium reflector, a holographic filter and a black polycarbonate frame. The fixture is suitable for installation in workplaces UGR<13/22 (EN12464-1).
OpticREFLECTOR
Beam anglesELL
Optical efficiency72%
Fixture flux1835lm
Luminous efficacy90lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. 253x53mm version.
Colour and finishPlaster white
DimensionsAxB=253x53mm
Weight1Kg
Version5X
Degree of protectionIP20
Electrical characteristics
Electronic ON-OFF driver integrated in the body of the fixture.
Fixture Power21W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Polycarbonate mounting system for ceiling installation.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
