Oz Stand Alone - Ceiling Luminaire
Large 5x - 253x53mm
Code
1T8961EL
Light colour
4000K
90
90

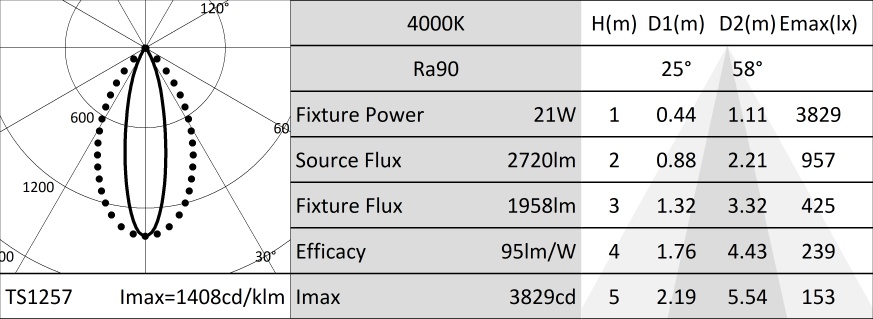

Light distribution
Elliptical Transverse
25° / 58°
25° / 58°
Output
20.5W
1958lm
1958lm
Power supply
Control
220-240Vac
ON-OFF
ON-OFF
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classF
Nominal power18W
Nominal flux2720lm
Colour rendering index90
Rf90
Rg98
CCT nominal4000K
SDCM2
Lifetime (L80/B10)>50000h tq +25°C
Illuminotechnical characteristics
ELT optic. Anodised aluminium reflector, a holographic filter and a black polycarbonate frame. The fixture is suitable for installation in workplaces UGR<22/13 (EN12464-1).
OpticREFLECTOR
Beam anglesELT
Optical efficiency72%
Fixture flux1958lm
Luminous efficacy95lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Black painted die-cast aluminium body. 253x53mm version.
Colour and finishDeep black
DimensionsAxB=253x53mm
Weight1Kg
Version5X
Degree of protectionIP20
Electrical characteristics
Electronic ON-OFF driver integrated in the body of the fixture.
Fixture Power21W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 1
Type of driver / ControlON-OFF
Driver includedYES
Class FYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Installation
Polycarbonate mounting system for ceiling installation.
Notes
110-277Vac version available on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Replaceable control gear by a professional.
