Track projectors
Capsule Ø 60
Code
1TD0002EL
Light colour
4000K
90
90
Light distribution
Multioptic
18°, 39°
18°, 39°
Output
20.2W
2158-2224lm
2158-2224lm
Power supply
Control
Control
220-240Vac
ON-OFF
ON-OFF
Colour
SP
FL
1 / 4
Technical Data
Concept
Adjustable LED projector.
Source
High efficiency Chip on Board LED Ra90.
Energy efficiency classC
Nominal power18W
Nominal flux2488lm
Colour rendering index90
CCT nominal4000K
Lifetime (L80/B10)56000h tq +25°C
Lifetime (L90/B10)56000h tq +25°C
Illuminotechnical characteristics
Optical unit equipped with a FL lens inside the product and an interchangeable SP lens.
OpticMultioptic
Beam anglesSP, FL

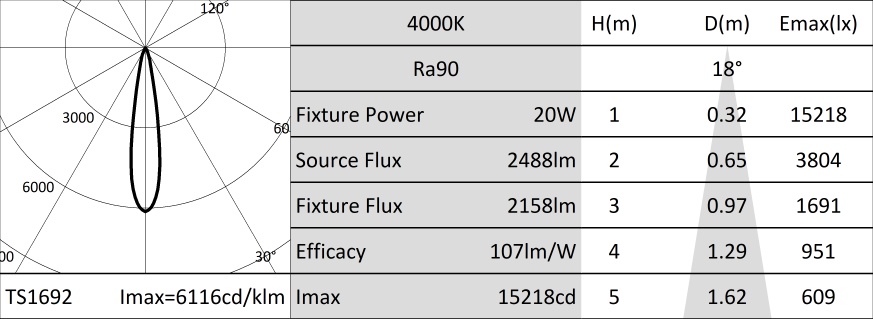

Optical efficiencySP - 86.74%

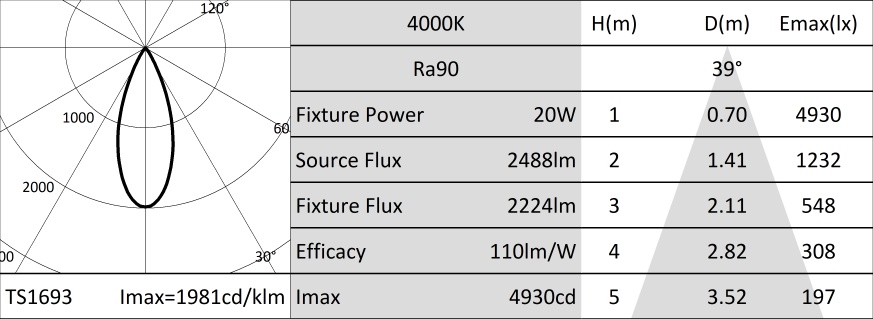

FL - 89.4%
FL - 89.4%
Fixture fluxSP - 2158lm
FL - 2224lm
FL - 2224lm
Luminous efficacySP - 107lm/W
FL - 110lm/W
FL - 110lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
White painted die-cast aluminium body. Optical frame adjustable from 0° to 90° on the vertical plane, 355° on the horizontal plane.
Colour and finishWhite
DimensionsØxH 60x128mm
Weight0.43Kg
Version6
Degree of protectionIP20
Electrical characteristics
Integrated electronic power supply.
Fixture Power20.2W
Power supply220-240Vac 50/60Hz
Insulation ClassCLASS 2
Type of driver / ControlON-OFF
Driver includedYES
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature0°C / +25°C
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Replaceable (LED only) light source by a professional.
Replaceable control gear by a professional.
