Keplero Quantum 90 Fixed
Code
E032OPL840ACB
Light colour
4000K
80
80
Light distribution
Opal
Output
2.3W
197lm
197lm
Power supply
Control
Control
24Vdc
Colour
1 / 3
Technical Data
Concept
Recessed professional projector with a fixed optical unit.
Source
High Power LED. 4000K (Ra80) colour temperature.
Energy efficiency class
Nominal power2W
Nominal flux307lm
Colour rendering index80
CCT nominal4000K
Lifetime (L80/B10)100000h tq +25°C
Lifetime (L90/B10)96000h tq +25°C

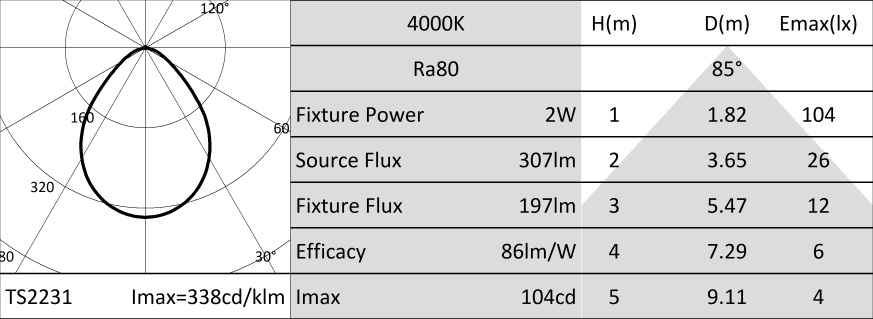

Illuminotechnical characteristics
Optical system made of a MC-PET high reflectance white reflector and a double holographic diffusive filter.
OpticOpal
Beam anglesOP
Optical efficiency64.18%
Fixture flux197lm
Luminous efficacy86lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Aluminium body made by CNC machinining process and treated with black anodizing. Ultra flat decorative ring with a flared edge, made of brushed stainless steel (AISI 316) in a copper bronze finish. Anti-slip glass for public pedestrian areas.
Colour and finishCopper bronze
DimensionsØxH 90x70mm
Weight0.6Kg
VersionAnti-slip glass
Degree of protectionIP66,IP67,IP68
Mechanical ResistanceIK10
Electrical characteristics
24Vdc power supply. ON-OFF or DALI2 remote driver to be ordered separately. Precabled with 1,5m 2x0,5mm² cable. Casambi control system available via accessory (for products with DALI2 driver only).
Fixture Power2.3W
Power supply24Vdc
Insulation ClassCLASS 3
Driver includedNO
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
In-ground installation by a reinforced nylon sleeve, to be ordered separately. Sleeves are available for flush or trim installation. 20kN resistance to static load. Wall/ceiling installation by the accessory mounting systems.
Notes
IP68: the fixture is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h). All the Keplero Quantum 90 versions (except all-glass versions) meet the drive-over and walk-over requirements set out in the EN 60598-2-13 standard. Low temperatures on the glass make them suitable even for installation in "special areas", such as spaces for children. It features the "Waterblock Smart" technical solution which involves resin-sealing the connection cables to minimize the risk of moisture rising into the fixture.
Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Replaceable (LED only) light source by a professional.
Non-replaceable control gear.
Related codes
1 / 2
| Code | P | H | L | ||
|---|---|---|---|---|---|
| A124 | 219mm | 126mm | 219mm |
Reinforced nylon installation sleeve.
The sleeve is designed for the trim installation of the fixture.
Complete with a cover element to protect the recessed housing during concrete pouring.
AxB 219x219 H. 126
1 / 2
| Code | Colour | P | H | L | |
|---|---|---|---|---|---|
| A125CB | | 219mm | 127mm | 219mm |
Reinforced nylon installation sleeve.
The sleeve is designed for the flush installation of the fixture.
Complete with a cover element to protect the recessed housing during concrete pouring.
AxB 219x219 H. 127
| Code | |||||
|---|---|---|---|---|---|
| A127 |
Steel spring kit for wall and ceiling installations.
| Code | IP | Output voltage | Power supply | Power | LxHxP |
|---|---|---|---|---|---|
| A134EL | IP67 | 24Vdc | 220-240Vac | 60W MAX | 171x37x62mm |
| A137EL | IP67 | 24Vdc | 220-240Vac | 150W MAX | 228x39x68mm |
Electronic ON-OFF power supply.
| Code | IP | Output voltage | Power supply | Power | LxHxP |
|---|---|---|---|---|---|
| A134D2 | IP67 | 24Vdc | 220-240Vac | 60W MAX | 150x35x53mm |
| A136D2 | IP67 | 24Vdc | 220-240Vac | 120W MAX | 191x38x63mm |
DALI2 power supply.
Accessories
| Code | |||||
|---|---|---|---|---|---|
| 1E2493 |
Linear connection box IP68.
4 poles max. wire section 2.5mm².
Cable diameter range from 7 to 12mm.
| Code | |||||
|---|---|---|---|---|---|
| 1E2494 |
Multiple connection box IP68.
1 IN - 3 OUT 4 poles max. wire section 2.5mm².
Cable diameter range from 6 to 12mm.
| Code | |||||
|---|---|---|---|---|---|
| 1E3305 |
Tightening wrench for the connector kit.
