In-ground luminaires
Keplero Quantum
Filters
Filters
Colour
Dimension
Version
CCT
CRI
Optic
Type of optic
Fixture Power
W
W
Fixture flux
lm
lm
Power supply
Keplero Quantum 90 Fixed
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E032SPL922CSS | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc |  |
Overview |
| E032SPL922CCB | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc |  |
Overview |
| E032SPL922CEB | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc |  |
Overview |
| E032SPL922ASS | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc | |
Overview |
| E032SPL922ACB | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc | |
Overview |
| E032SPL922AEB | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc | |
Overview |
| E032SPL827CSS | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E032SPL827CCB | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E032SPL827CEB | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E032SPL827ASS | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E032SPL827ACB | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E032SPL827AEB | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E032SPL830CSS | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E032SPL830CCB | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E032SPL830CEB | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E032SPL830ASS | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E032SPL830ACB | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E032SPL830AEB | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E032SPL840CSS | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E032SPL840CCB | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E032SPL840CEB | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E032SPL840ASS | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E032SPL840ACB | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E032SPL840AEB | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E032MFL922CSS | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E032MFL922CCB | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E032MFL922CEB | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E032MFL922ASS | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E032MFL922ACB | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E032MFL922AEB | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E032MFL827CSS | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E032MFL827CCB | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E032MFL827CEB | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E032MFL827ASS | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E032MFL827ACB | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E032MFL827AEB | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E032MFL830CSS | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E032MFL830CCB | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E032MFL830CEB | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E032MFL830ASS | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E032MFL830ACB | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E032MFL830AEB | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E032MFL840CSS | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E032MFL840CCB | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E032MFL840CEB | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E032MFL840ASS | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E032MFL840ACB | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E032MFL840AEB | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E032FLL922CSS | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E032FLL922CCB | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E032FLL922CEB | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E032FLL922ASS | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E032FLL922ACB | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E032FLL922AEB | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E032FLL827CSS | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E032FLL827CCB | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E032FLL827CEB | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E032FLL827ASS | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E032FLL827ACB | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E032FLL827AEB | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E032FLL830CSS | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E032FLL830CCB | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E032FLL830CEB | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E032FLL830ASS | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E032FLL830ACB | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E032FLL830AEB | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E032FLL840CSS | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
| E032FLL840CCB | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
| E032FLL840CEB | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
| E032FLL840ASS | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
| E032FLL840ACB | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
| E032FLL840AEB | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
| E032WFL922CSS | 2200K 90 | WFL 57° | 10.3W 697lm | 24Vdc | |
Overview |
| E032WFL922CCB | 2200K 90 | WFL 57° | 10.3W 697lm | 24Vdc | |
Overview |
| E032WFL922CEB | 2200K 90 | WFL 57° | 10.3W 697lm | 24Vdc | |
Overview |
| E032WFL922ASS | 2200K 90 | WFL 57° | 10.3W 697lm | 24Vdc | |
Overview |
| E032WFL922ACB | 2200K 90 | WFL 57° | 10.3W 697lm | 24Vdc | |
Overview |
| E032WFL922AEB | 2200K 90 | WFL 57° | 10.3W 697lm | 24Vdc | |
Overview |
| E032WFL827CSS | 2700K 80 | WFL 57° | 10.3W 919lm | 24Vdc | |
Overview |
| E032WFL827CCB | 2700K 80 | WFL 57° | 10.3W 919lm | 24Vdc | |
Overview |
| E032WFL827CEB | 2700K 80 | WFL 57° | 10.3W 919lm | 24Vdc | |
Overview |
| E032WFL827ASS | 2700K 80 | WFL 57° | 10.3W 919lm | 24Vdc | |
Overview |
| E032WFL827ACB | 2700K 80 | WFL 57° | 10.3W 919lm | 24Vdc | |
Overview |
| E032WFL827AEB | 2700K 80 | WFL 57° | 10.3W 919lm | 24Vdc | |
Overview |
| E032WFL830CSS | 3000K 80 | WFL 57° | 10.3W 974lm | 24Vdc | |
Overview |
| E032WFL830CCB | 3000K 80 | WFL 57° | 10.3W 974lm | 24Vdc | |
Overview |
| E032WFL830CEB | 3000K 80 | WFL 57° | 10.3W 974lm | 24Vdc | |
Overview |
| E032WFL830ASS | 3000K 80 | WFL 57° | 10.3W 974lm | 24Vdc | |
Overview |
| E032WFL830ACB | 3000K 80 | WFL 57° | 10.3W 974lm | 24Vdc | |
Overview |
| E032WFL830AEB | 3000K 80 | WFL 57° | 10.3W 974lm | 24Vdc | |
Overview |
| E032WFL840CSS | 4000K 80 | WFL 57° | 10.3W 1011lm | 24Vdc | |
Overview |
| E032WFL840CCB | 4000K 80 | WFL 57° | 10.3W 1011lm | 24Vdc | |
Overview |
| E032WFL840CEB | 4000K 80 | WFL 57° | 10.3W 1011lm | 24Vdc | |
Overview |
| E032WFL840ASS | 4000K 80 | WFL 57° | 10.3W 1011lm | 24Vdc | |
Overview |
| E032WFL840ACB | 4000K 80 | WFL 57° | 10.3W 1011lm | 24Vdc | |
Overview |
| E032WFL840AEB | 4000K 80 | WFL 57° | 10.3W 1011lm | 24Vdc | |
Overview |
| E032WWL922CSS | 2200K 90 | Wall Washer | 9.8W 549lm | 24Vdc | |
Overview |
| E032WWL922CCB | 2200K 90 | Wall Washer | 9.8W 549lm | 24Vdc | |
Overview |
| E032WWL922CEB | 2200K 90 | Wall Washer | 9.8W 549lm | 24Vdc | |
Overview |
| E032WWL922ASS | 2200K 90 | Wall Washer | 9.8W 549lm | 24Vdc | |
Overview |
| E032WWL922ACB | 2200K 90 | Wall Washer | 9.8W 549lm | 24Vdc | |
Overview |
| E032WWL922AEB | 2200K 90 | Wall Washer | 9.8W 549lm | 24Vdc | |
Overview |
| E032WWL827CSS | 2700K 80 | Wall Washer | 9.8W 724lm | 24Vdc | |
Overview |
| E032WWL827CCB | 2700K 80 | Wall Washer | 9.8W 724lm | 24Vdc | |
Overview |
| E032WWL827CEB | 2700K 80 | Wall Washer | 9.8W 724lm | 24Vdc | |
Overview |
| E032WWL827ASS | 2700K 80 | Wall Washer | 9.8W 724lm | 24Vdc | |
Overview |
| E032WWL827ACB | 2700K 80 | Wall Washer | 9.8W 724lm | 24Vdc | |
Overview |
| E032WWL827AEB | 2700K 80 | Wall Washer | 9.8W 724lm | 24Vdc | |
Overview |
| E032WWL830CSS | 3000K 80 | Wall Washer | 9.8W 765lm | 24Vdc | |
Overview |
| E032WWL830CCB | 3000K 80 | Wall Washer | 9.8W 765lm | 24Vdc | |
Overview |
| E032WWL830CEB | 3000K 80 | Wall Washer | 9.8W 765lm | 24Vdc | |
Overview |
| E032WWL830ASS | 3000K 80 | Wall Washer | 9.8W 765lm | 24Vdc | |
Overview |
| E032WWL830ACB | 3000K 80 | Wall Washer | 9.8W 765lm | 24Vdc | |
Overview |
| E032WWL830AEB | 3000K 80 | Wall Washer | 9.8W 765lm | 24Vdc | |
Overview |
| E032WWL840CSS | 4000K 80 | Wall Washer | 9.8W 796lm | 24Vdc | |
Overview |
| E032WWL840CCB | 4000K 80 | Wall Washer | 9.8W 796lm | 24Vdc | |
Overview |
| E032WWL840CEB | 4000K 80 | Wall Washer | 9.8W 796lm | 24Vdc | |
Overview |
| E032WWL840ASS | 4000K 80 | Wall Washer | 9.8W 796lm | 24Vdc | |
Overview |
| E032WWL840ACB | 4000K 80 | Wall Washer | 9.8W 796lm | 24Vdc | |
Overview |
| E032WWL840AEB | 4000K 80 | Wall Washer | 9.8W 796lm | 24Vdc | |
Overview |
| E032OPL822CSS | 2200K 80 | Opal | 2.3W 162lm | 24Vdc | |
Overview |
| E032OPL822CCB | 2200K 80 | Opal | 2.3W 162lm | 24Vdc | |
Overview |
| E032OPL822CEB | 2200K 80 | Opal | 2.3W 162lm | 24Vdc | |
Overview |
| E032OPL822ASS | 2200K 80 | Opal | 2.3W 162lm | 24Vdc | |
Overview |
| E032OPL822ACB | 2200K 80 | Opal | 2.3W 162lm | 24Vdc | |
Overview |
| E032OPL822AEB | 2200K 80 | Opal | 2.3W 162lm | 24Vdc | |
Overview |
| E032OPL827CSS | 2700K 80 | Opal | 2.3W 183lm | 24Vdc | |
Overview |
| E032OPL827CCB | 2700K 80 | Opal | 2.3W 183lm | 24Vdc | |
Overview |
| E032OPL827CEB | 2700K 80 | Opal | 2.3W 183lm | 24Vdc | |
Overview |
| E032OPL827ASS | 2700K 80 | Opal | 2.3W 183lm | 24Vdc | |
Overview |
| E032OPL827ACB | 2700K 80 | Opal | 2.3W 183lm | 24Vdc | |
Overview |
| E032OPL827AEB | 2700K 80 | Opal | 2.3W 183lm | 24Vdc | |
Overview |
| E032OPL830CSS | 3000K 80 | Opal | 2.3W 187lm | 24Vdc | |
Overview |
| E032OPL830CCB | 3000K 80 | Opal | 2.3W 187lm | 24Vdc | |
Overview |
| E032OPL830CEB | 3000K 80 | Opal | 2.3W 187lm | 24Vdc | |
Overview |
| E032OPL830ASS | 3000K 80 | Opal | 2.3W 187lm | 24Vdc | |
Overview |
| E032OPL830ACB | 3000K 80 | Opal | 2.3W 187lm | 24Vdc | |
Overview |
| E032OPL830AEB | 3000K 80 | Opal | 2.3W 187lm | 24Vdc | |
Overview |
| E032OPL840CSS | 4000K 80 | Opal | 2.3W 197lm | 24Vdc | |
Overview |
| E032OPL840CCB | 4000K 80 | Opal | 2.3W 197lm | 24Vdc | |
Overview |
| E032OPL840CEB | 4000K 80 | Opal | 2.3W 197lm | 24Vdc | |
Overview |
| E032OPL840ASS | 4000K 80 | Opal | 2.3W 197lm | 24Vdc | |
Overview |
| E032OPL840ACB | 4000K 80 | Opal | 2.3W 197lm | 24Vdc | |
Overview |
| E032OPL840AEB | 4000K 80 | Opal | 2.3W 197lm | 24Vdc | |
Overview |
134

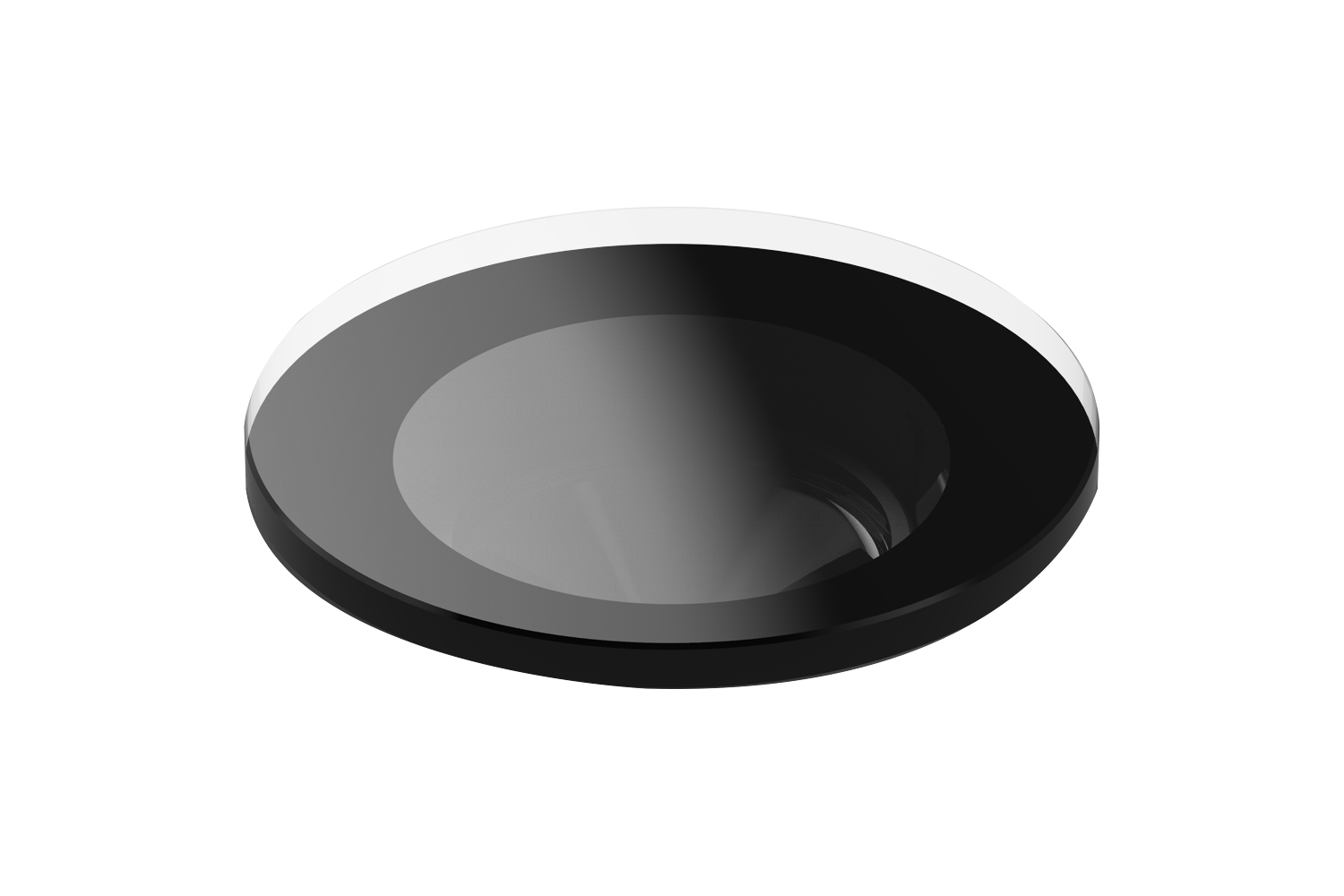

Keplero Quantum 90 Fixed AG
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E033SPL922C | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc |  |
Overview |
| E033SPL922A | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc | |
Overview |
| E033SPL827C | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E033SPL827A | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E033SPL830C | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E033SPL830A | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E033SPL840C | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E033SPL840A | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E033MFL922C | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E033MFL922A | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E033MFL827C | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E033MFL827A | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E033MFL830C | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E033MFL830A | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E033MFL840C | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E033MFL840A | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E033FLL922C | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E033FLL922A | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E033FLL827C | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E033FLL827A | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E033FLL830C | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E033FLL830A | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E033FLL840C | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
| E033FLL840A | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
| E033WFL922C | 2200K 90 | WFL 57° | 10.3W 697lm | 24Vdc | |
Overview |
| E033WFL922A | 2200K 90 | WFL 57° | 10.3W 697lm | 24Vdc | |
Overview |
| E033WFL827C | 2700K 80 | WFL 57° | 10.3W 919lm | 24Vdc | |
Overview |
| E033WFL827A | 2700K 80 | WFL 57° | 10.3W 919lm | 24Vdc | |
Overview |
| E033WFL830C | 3000K 80 | WFL 57° | 10.3W 974lm | 24Vdc | |
Overview |
| E033WFL830A | 3000K 80 | WFL 57° | 10.3W 974lm | 24Vdc | |
Overview |
| E033WFL840C | 4000K 80 | WFL 57° | 10.3W 1011lm | 24Vdc | |
Overview |
| E033WFL840A | 4000K 80 | WFL 57° | 10.3W 1011lm | 24Vdc | |
Overview |
| E033WWL922C | 2200K 90 | Wall Washer | 9.8W 549lm | 24Vdc | |
Overview |
| E033WWL922A | 2200K 90 | Wall Washer | 9.8W 549lm | 24Vdc | |
Overview |
| E033WWL827C | 2700K 80 | Wall Washer | 9.8W 724lm | 24Vdc | |
Overview |
| E033WWL827A | 2700K 80 | Wall Washer | 9.8W 724lm | 24Vdc | |
Overview |
| E033WWL830C | 3000K 80 | Wall Washer | 9.8W 765lm | 24Vdc | |
Overview |
| E033WWL830A | 3000K 80 | Wall Washer | 9.8W 765lm | 24Vdc | |
Overview |
| E033WWL840C | 4000K 80 | Wall Washer | 9.8W 796lm | 24Vdc | |
Overview |
| E033WWL840A | 4000K 80 | Wall Washer | 9.8W 796lm | 24Vdc | |
Overview |
| E033OPL822C | 2200K 80 | Opal | 2.3W 162lm | 24Vdc | |
Overview |
| E033OPL822A | 2200K 80 | Opal | 2.3W 162lm | 24Vdc | |
Overview |
| E033OPL827C | 2700K 80 | Opal | 2.3W 183lm | 24Vdc | |
Overview |
| E033OPL827A | 2700K 80 | Opal | 2.3W 183lm | 24Vdc | |
Overview |
| E033OPL830C | 3000K 80 | Opal | 2.3W 187lm | 24Vdc | |
Overview |
| E033OPL830A | 3000K 80 | Opal | 2.3W 187lm | 24Vdc | |
Overview |
| E033OPL840C | 4000K 80 | Opal | 2.3W 197lm | 24Vdc | |
Overview |
| E033OPL840A | 4000K 80 | Opal | 2.3W 197lm | 24Vdc | |
Overview |
38

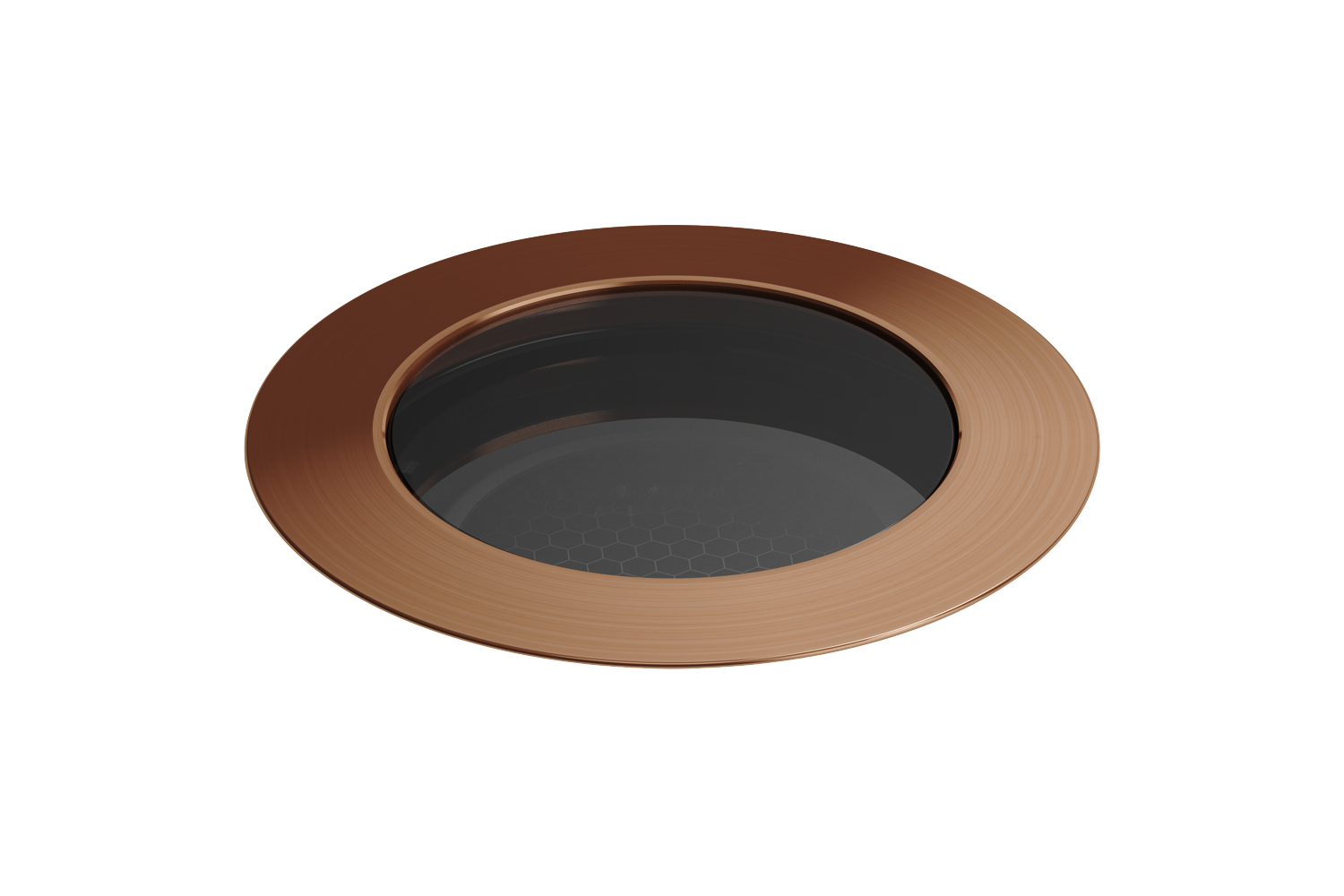

Keplero Quantum 90 Fixed Comfort
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E034SPL922CSS | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E034SPL922CCB | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E034SPL922CEB | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E034SPL922ASS | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E034SPL922ACB | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E034SPL922AEB | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E034SPL827CSS | 2700K 80 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E034SPL827CCB | 2700K 80 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E034SPL827CEB | 2700K 80 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E034SPL827ASS | 2700K 80 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E034SPL827ACB | 2700K 80 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E034SPL827AEB | 2700K 80 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E034SPL830CSS | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E034SPL830CCB | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E034SPL830CEB | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E034SPL830ASS | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E034SPL830ACB | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E034SPL830AEB | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E034SPL840CSS | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E034SPL840CCB | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E034SPL840CEB | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E034SPL840ASS | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E034SPL840ACB | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E034SPL840AEB | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E034FLL922CSS | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E034FLL922CCB | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E034FLL922CEB | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E034FLL922ASS | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E034FLL922ACB | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E034FLL922AEB | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E034FLL827CSS | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E034FLL827CCB | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E034FLL827CEB | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E034FLL827ASS | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E034FLL827ACB | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E034FLL827AEB | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E034FLL830CSS | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E034FLL830CCB | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E034FLL830CEB | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E034FLL830ASS | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E034FLL830ACB | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E034FLL830AEB | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E034FLL840CSS | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
| E034FLL840CCB | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
| E034FLL840CEB | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
| E034FLL840ASS | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
| E034FLL840ACB | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
| E034FLL840AEB | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
38

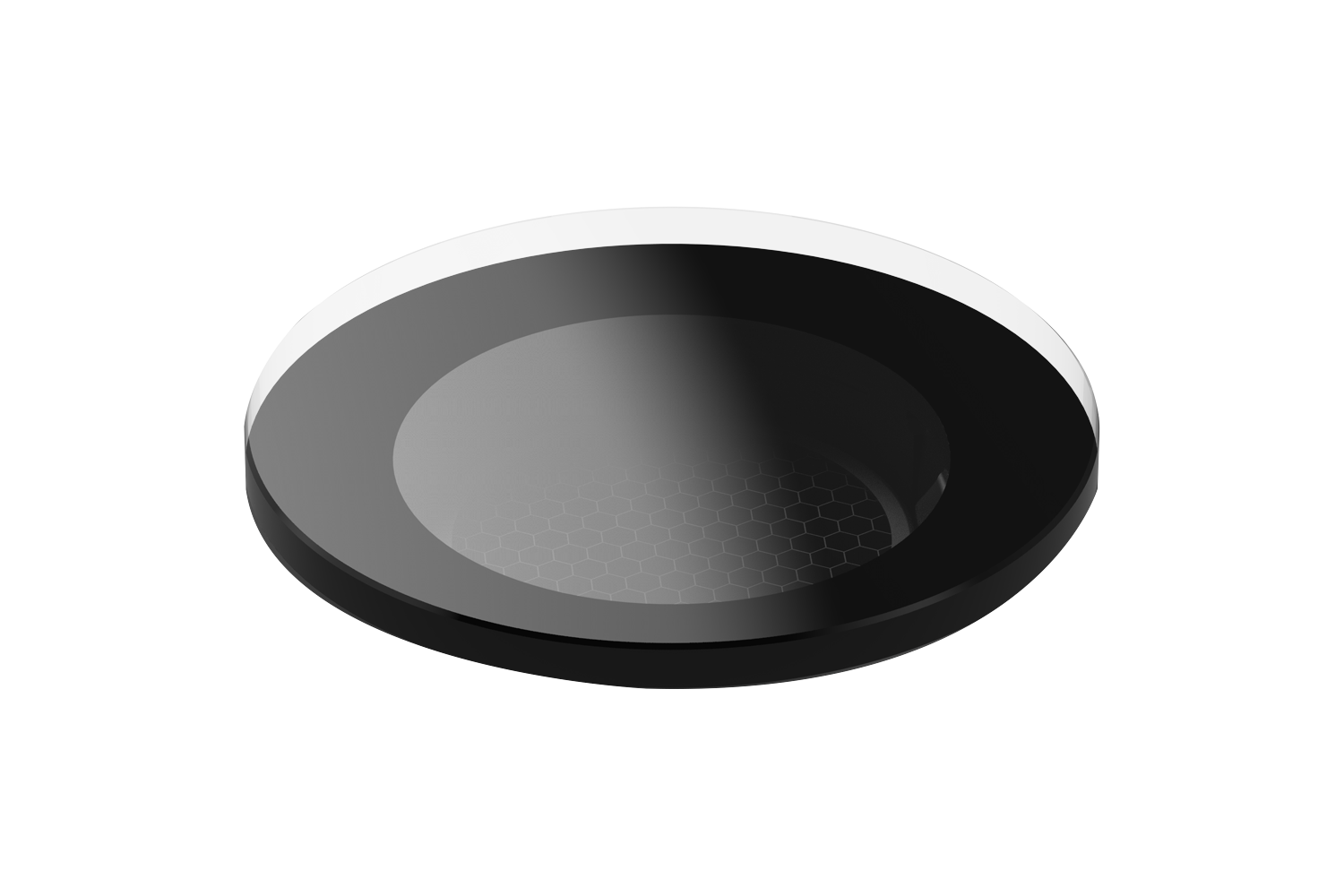

Keplero Quantum 90 Fixed Comfort AG
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E035SPL922C | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E035SPL922A | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E035SPL827C | 2700K 80 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E035SPL827A | 2700K 90 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E035SPL830C | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E035SPL830A | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E035SPL840C | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E035SPL840A | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E035FLL922C | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E035FLL922A | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E035FLL827C | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E035FLL827A | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E035FLL830C | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E035FLL830A | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E035FLL840C | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
| E035FLL840A | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
6
Keplero Quantum 90 Fixed Oval
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E036SPL922CSS | 2200K 90 | Elliptical 60° / 15° | 10.3W 684lm | 24Vdc | |
Overview |
| E036SPL922CCB | 2200K 90 | Elliptical 60° / 15° | 10.3W 684lm | 24Vdc | |
Overview |
| E036SPL922CEB | 2200K 90 | Elliptical 60° / 15° | 10.3W 684lm | 24Vdc | |
Overview |
| E036SPL922ASS | 2200K 90 | Elliptical 60° / 15° | 10.3W 684lm | 24Vdc | |
Overview |
| E036SPL922ACB | 2200K 90 | Elliptical 60° / 15° | 10.3W 684lm | 24Vdc | |
Overview |
| E036SPL922AEB | 2200K 90 | Elliptical 60° / 15° | 10.3W 684lm | 24Vdc | |
Overview |
| E036SPL827CSS | 2700K 80 | Elliptical 60° / 15° | 10.3W 902lm | 24Vdc | |
Overview |
| E036SPL827CCB | 2700K 80 | Elliptical 60° / 15° | 10.3W 902lm | 24Vdc | |
Overview |
| E036SPL827CEB | 2700K 80 | Elliptical 60° / 15° | 10.3W 902lm | 24Vdc | |
Overview |
| E036SPL827ASS | 2700K 80 | Elliptical 60° / 15° | 10.3W 902lm | 24Vdc | |
Overview |
| E036SPL827ACB | 2700K 80 | Elliptical 60° / 15° | 10.3W 902lm | 24Vdc | |
Overview |
| E036SPL827AEB | 2700K 80 | Elliptical 60° / 15° | 10.3W 902lm | 24Vdc | |
Overview |
| E036SPL830CSS | 3000K 80 | Elliptical 60° / 15° | 10.3W 957lm | 24Vdc | |
Overview |
| E036SPL830CCB | 3000K 80 | Elliptical 60° / 15° | 10.3W 957lm | 24Vdc | |
Overview |
| E036SPL830CEB | 3000K 80 | Elliptical 60° / 15° | 10.3W 957lm | 24Vdc | |
Overview |
| E036SPL830ASS | 3000K 80 | Elliptical 60° / 15° | 10.3W 957lm | 24Vdc | |
Overview |
| E036SPL830ACB | 3000K 80 | Elliptical 60° / 15° | 10.3W 957lm | 24Vdc | |
Overview |
| E036SPL830AEB | 3000K 80 | Elliptical 60° / 15° | 10.3W 957lm | 24Vdc | |
Overview |
| E036SPL840CSS | 4000K 80 | Elliptical 60° / 15° | 10.3W 993lm | 24Vdc | |
Overview |
| E036SPL840CCB | 4000K 80 | Elliptical 60° / 15° | 10.3W 993lm | 24Vdc | |
Overview |
| E036SPL840CEB | 4000K 80 | Elliptical 60° / 15° | 10.3W 993lm | 24Vdc | |
Overview |
| E036SPL840ASS | 4000K 80 | Elliptical 60° / 15° | 10.3W 993lm | 24Vdc | |
Overview |
| E036SPL840ACB | 4000K 80 | Elliptical 60° / 15° | 10.3W 993lm | 24Vdc | |
Overview |
| E036SPL840AEB | 4000K 80 | Elliptical 60° / 15° | 10.3W 993lm | 24Vdc | |
Overview |
| E036FLL922CSS | 2200K 90 | Elliptical 69° / 31° | 10.3W 682lm | 24Vdc | |
Overview |
| E036FLL922CCB | 2200K 90 | Elliptical 69° / 31° | 10.3W 682lm | 24Vdc | |
Overview |
| E036FLL922CEB | 2200K 90 | Elliptical 69° / 31° | 10.3W 682lm | 24Vdc | |
Overview |
| E036FLL922ASS | 2200K 90 | Elliptical 69° / 31° | 10.3W 682lm | 24Vdc | |
Overview |
| E036FLL922ACB | 2200K 90 | Elliptical 69° / 31° | 10.3W 682lm | 24Vdc | |
Overview |
| E036FLL922AEB | 2200K 90 | Elliptical 69° / 31° | 10.3W 682lm | 24Vdc | |
Overview |
| E036FLL827CSS | 2700K 80 | Elliptical 69° / 31° | 10.3W 899lm | 24Vdc | |
Overview |
| E036FLL827CCB | 2700K 80 | Elliptical 69° / 31° | 10.3W 899lm | 24Vdc | |
Overview |
| E036FLL827CEB | 2700K 80 | Elliptical 69° / 31° | 10.3W 899lm | 24Vdc | |
Overview |
| E036FLL827ASS | 2700K 80 | Elliptical 69° / 31° | 10.3W 899lm | 24Vdc | |
Overview |
| E036FLL827ACB | 2700K 80 | Elliptical 69° / 31° | 10.3W 899lm | 24Vdc | |
Overview |
| E036FLL827AEB | 2700K 80 | Elliptical 69° / 31° | 10.3W 899lm | 24Vdc | |
Overview |
| E036FLL830CSS | 3000K 80 | Elliptical 69° / 31° | 10.3W 953lm | 24Vdc | |
Overview |
| E036FLL830CCB | 3000K 80 | Elliptical 69° / 31° | 10.3W 953lm | 24Vdc | |
Overview |
| E036FLL830CEB | 3000K 80 | Elliptical 69° / 31° | 10.3W 953lm | 24Vdc | |
Overview |
| E036FLL830ASS | 3000K 80 | Elliptical 69° / 31° | 10.3W 953lm | 24Vdc | |
Overview |
| E036FLL830ACB | 3000K 80 | Elliptical 69° / 31° | 10.3W 953lm | 24Vdc | |
Overview |
| E036FLL830AEB | 3000K 80 | Elliptical 69° / 31° | 10.3W 953lm | 24Vdc | |
Overview |
| E036FLL840CSS | 4000K 80 | Elliptical 69° / 31° | 10.3W 989lm | 24Vdc | |
Overview |
| E036FLL840CCB | 4000K 80 | Elliptical 69° / 31° | 10.3W 989lm | 24Vdc | |
Overview |
| E036FLL840CEB | 4000K 80 | Elliptical 69° / 31° | 10.3W 989lm | 24Vdc | |
Overview |
| E036FLL840ASS | 4000K 80 | Elliptical 69° / 31° | 10.3W 989lm | 24Vdc | |
Overview |
| E036FLL840ACB | 4000K 80 | Elliptical 69° / 31° | 10.3W 989lm | 24Vdc | |
Overview |
| E036FLL840AEB | 4000K 80 | Elliptical 69° / 31° | 10.3W 989lm | 24Vdc | |
Overview |
38
Keplero Quantum 90 Fixed Oval AG
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E037SPL922C | 2200K 90 | Elliptical 60° / 15° | 10.3W 684lm | 24Vdc | |
Overview |
| E037SPL922A | 2200K 90 | Elliptical 60° / 15° | 10.3W 684lm | 24Vdc | |
Overview |
| E037SPL827C | 2700K 80 | Elliptical 60° / 15° | 10.3W 902lm | 24Vdc | |
Overview |
| E037SPL827A | 2700K 80 | Elliptical 60° / 15° | 10.3W 902lm | 24Vdc | |
Overview |
| E037SPL830C | 3000K 80 | Elliptical 60° / 15° | 10.3W 957lm | 24Vdc | |
Overview |
| E037SPL830A | 3000K 80 | Elliptical 60° / 15° | 10.3W 957lm | 24Vdc | |
Overview |
| E037SPL840C | 4000K 80 | Elliptical 60° / 15° | 10.3W 993lm | 24Vdc | |
Overview |
| E037SPL840A | 4000K 80 | Elliptical 60° / 15° | 10.3W 993lm | 24Vdc | |
Overview |
| E037FLL922C | 2200K 90 | Elliptical 69° / 31° | 10.3W 682lm | 24Vdc | |
Overview |
| E037FLL922A | 2200K 90 | Elliptical 69° / 31° | 10.3W 682lm | 24Vdc | |
Overview |
| E037FLL827C | 2700K 80 | Elliptical 69° / 31° | 10.3W 899lm | 24Vdc | |
Overview |
| E037FLL827A | 2700K 80 | Elliptical 69° / 31° | 10.3W 899lm | 24Vdc | |
Overview |
| E037FLL830C | 3000K 80 | Elliptical 69° / 31° | 10.3W 953lm | 24Vdc | |
Overview |
| E037FLL830A | 3000K 80 | Elliptical 69° / 31° | 10.3W 953lm | 24Vdc | |
Overview |
| E037FLL840C | 4000K 80 | Elliptical 69° / 31° | 10.3W 989lm | 24Vdc | |
Overview |
| E037FLL840A | 4000K 80 | Elliptical 69° / 31° | 10.3W 989lm | 24Vdc | |
Overview |
6

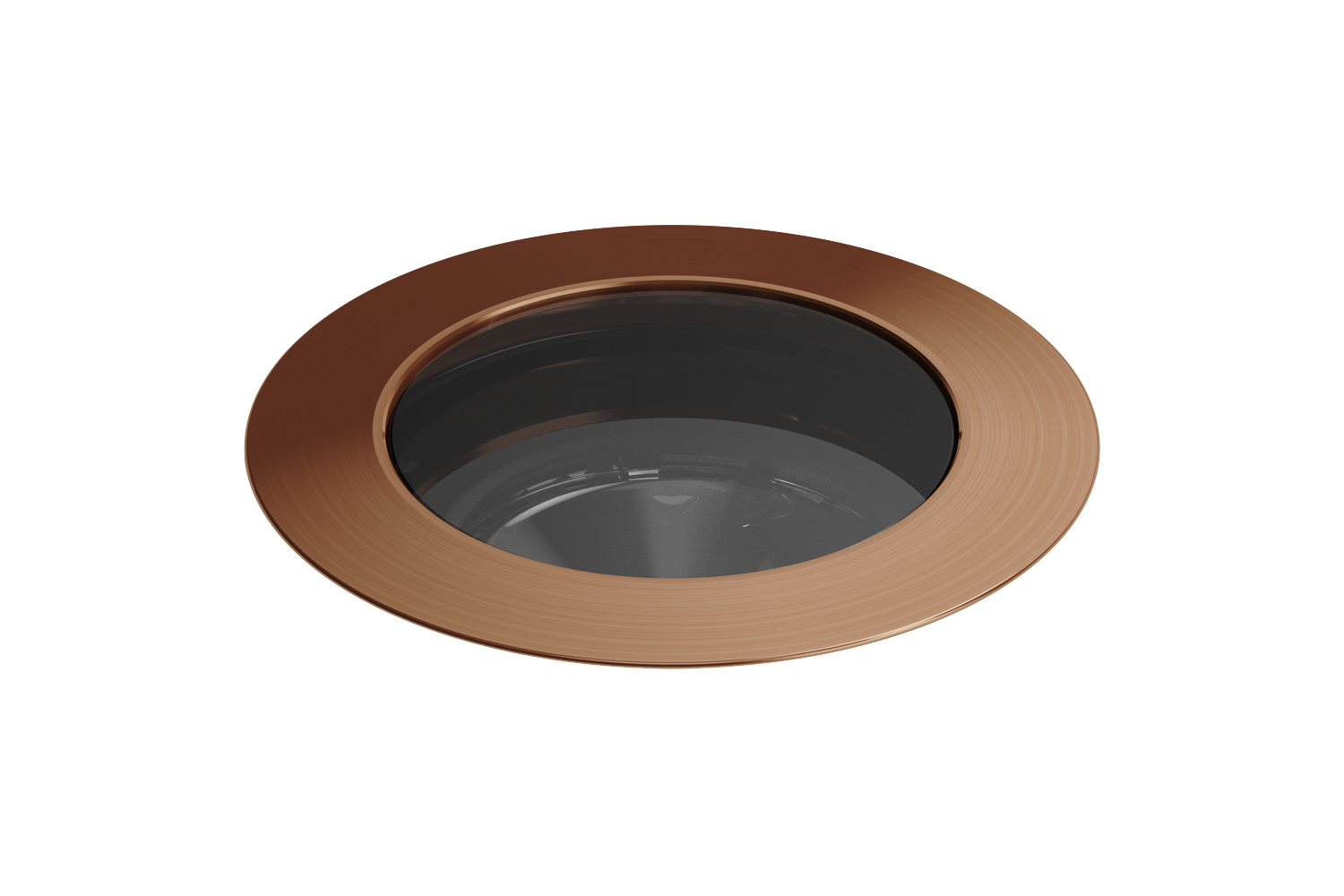

Keplero Quantum 90 Adjustable
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E040NSL922CSS | 2200K 90 | NSP 9° | 5W 299lm | 24Vdc | |
Overview |
| E040NSL922CCB | 2200K 90 | NSP 9° | 5W 299lm | 24Vdc | |
Overview |
| E040NSL922CEB | 2200K 90 | NSP 9° | 5W 299lm | 24Vdc | |
Overview |
| E040NSL922ASS | 2200K 90 | NSP 9° | 5W 299lm | 24Vdc | |
Overview |
| E040NSL922ACB | 2200K 90 | NSP 9° | 5W 299lm | 24Vdc | |
Overview |
| E040NSL922AEB | 2200K 90 | NSP 9° | 5W 299lm | 24Vdc | |
Overview |
| E040NSL827CSS | 2700K 80 | NSP 9° | 5W 359lm | 24Vdc | |
Overview |
| E040NSL827CCB | 2700K 80 | NSP 9° | 5W 359lm | 24Vdc | |
Overview |
| E040NSL827CEB | 2700K 80 | NSP 9° | 5W 359lm | 24Vdc | |
Overview |
| E040NSL827ASS | 2700K 80 | NSP 9° | 5W 359lm | 24Vdc | |
Overview |
| E040NSL827ACB | 2700K 80 | NSP 9° | 5W 359lm | 24Vdc | |
Overview |
| E040NSL827AEB | 2700K 80 | NSP 9° | 5W 359lm | 24Vdc | |
Overview |
| E040NSL830CSS | 3000K 80 | NSP 9° | 5W 367lm | 24Vdc | |
Overview |
| E040NSL830CCB | 3000K 80 | NSP 9° | 5W 367lm | 24Vdc | |
Overview |
| E040NSL830CEB | 3000K 80 | NSP 9° | 5W 367lm | 24Vdc | |
Overview |
| E040NSL830ASS | 3000K 80 | NSP 9° | 5W 367lm | 24Vdc | |
Overview |
| E040NSL830ACB | 3000K 80 | NSP 9° | 5W 367lm | 24Vdc | |
Overview |
| E040NSL830AEB | 3000K 80 | NSP 9° | 5W 367lm | 24Vdc | |
Overview |
| E040NSL840CSS | 4000K 80 | NSP 9° | 5W 392lm | 24Vdc | |
Overview |
| E040NSL840CCB | 4000K 80 | NSP 9° | 5W 392lm | 24Vdc | |
Overview |
| E040NSL840CEB | 4000K 80 | NSP 9° | 5W 392lm | 24Vdc | |
Overview |
| E040NSL840ASS | 4000K 80 | NSP 9° | 5W 392lm | 24Vdc | |
Overview |
| E040NSL840ACB | 4000K 80 | NSP 9° | 5W 392lm | 24Vdc | |
Overview |
| E040NSL840AEB | 4000K 80 | NSP 9° | 5W 392lm | 24Vdc | |
Overview |
| E040SPL922CSS | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc | |
Overview |
| E040SPL922CCB | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc | |
Overview |
| E040SPL922CEB | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc | |
Overview |
| E040SPL922ASS | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc | |
Overview |
| E040SPL922ACB | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc | |
Overview |
| E040SPL922AEB | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc | |
Overview |
| E040SPL827CSS | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E040SPL827CCB | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E040SPL827CEB | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E040SPL827ASS | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E040SPL827ACB | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E040SPL827AEB | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E040SPL830CSS | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E040SPL830CCB | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E040SPL830CEB | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E040SPL830ASS | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E040SPL830ACB | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E040SPL830AEB | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E040SPL840CSS | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E040SPL840CCB | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E040SPL840CEB | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E040SPL840ASS | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E040SPL840ACB | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E040SPL840AEB | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E040MFL922CSS | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E040MFL922CCB | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E040MFL922CEB | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E040MFL922ASS | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E040MFL922ACB | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E040MFL922AEB | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E040MFL827CSS | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E040MFL827CCB | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E040MFL827CEB | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E040MFL827ASS | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E040MFL827ACB | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E040MFL827AEB | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E040MFL830CSS | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E040MFL830CCB | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E040MFL830CEB | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E040MFL830ASS | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E040MFL830ACB | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E040MFL830AEB | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E040MFL840CSS | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E040MFL840CCB | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E040MFL840CEB | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E040MFL840ASS | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E040MFL840ACB | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E040MFL840AEB | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E040FLL922CSS | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E040FLL922CCB | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E040FLL922CEB | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E040FLL922ASS | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E040FLL922ACB | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E040FLL922AEB | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E040FLL827CSS | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E040FLL827CCB | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E040FLL827CEB | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E040FLL827ASS | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E040FLL827ACB | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E040FLL827AEB | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E040FLL830CSS | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E040FLL830CCB | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E040FLL830CEB | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E040FLL830ASS | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E040FLL830ACB | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E040FLL830AEB | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E040FLL840CSS | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
| E040FLL840CCB | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
| E040FLL840CEB | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
| E040FLL840ASS | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
| E040FLL840ACB | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
| E040FLL840AEB | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
86
Keplero Quantum 90 Adjustable AG
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E041NSL922C | 2200K 90 | NSP 9° | 5W 299lm | 24Vdc | |
Overview |
| E041NSL922A | 2200K 90 | NSP 9° | 5W 299lm | 24Vdc | |
Overview |
| E041NSL827C | 2700K 80 | NSP 9° | 5W 359lm | 24Vdc | |
Overview |
| E041NSL827A | 2700K 80 | NSP 9° | 5W 359lm | 24Vdc | |
Overview |
| E041NSL830C | 3000K 80 | NSP 9° | 5W 367lm | 24Vdc | |
Overview |
| E041NSL830A | 3000K 80 | NSP 9° | 5W 367lm | 24Vdc | |
Overview |
| E041NSL840C | 4000K 80 | NSP 9° | 5W 392lm | 24Vdc | |
Overview |
| E041NSL840A | 4000K 80 | NSP 9° | 5W 392lm | 24Vdc | |
Overview |
| E041SPL922C | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc | |
Overview |
| E041SPL922A | 2200K 90 | SP 15° | 10.3W 793lm | 24Vdc | |
Overview |
| E041SPL827C | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E041SPL827A | 2700K 80 | SP 15° | 10.3W 1046lm | 24Vdc | |
Overview |
| E041SPL830C | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E041SPL830A | 3000K 80 | SP 15° | 10.3W 1109lm | 24Vdc | |
Overview |
| E041SPL840C | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E041SPL840A | 4000K 80 | SP 15° | 10.3W 1151lm | 24Vdc | |
Overview |
| E041MFL922C | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E041MFL922A | 2200K 90 | FL 24° | 10.3W 713lm | 24Vdc | |
Overview |
| E041MFL827C | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E041MFL827A | 2700K 80 | FL 24° | 10.3W 940lm | 24Vdc | |
Overview |
| E041MFL830C | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E041MFL830A | 3000K 80 | FL 24° | 10.3W 996lm | 24Vdc | |
Overview |
| E041MFL840C | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E041MFL840A | 4000K 80 | FL 24° | 10.3W 1034lm | 24Vdc | |
Overview |
| E041FLL922C | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E041FLL922A | 2200K 90 | FL 34° | 10.3W 754lm | 24Vdc | |
Overview |
| E041FLL827C | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E041FLL827A | 2700K 80 | FL 34° | 10.3W 994lm | 24Vdc | |
Overview |
| E041FLL830C | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E041FLL830A | 3000K 80 | FL 34° | 10.3W 1054lm | 24Vdc | |
Overview |
| E041FLL840C | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
| E041FLL840A | 4000K 80 | FL 34° | 10.3W 1094lm | 24Vdc | |
Overview |
22
Keplero Quantum 90 Adjustable Comfort
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E042NSL922CSS | 2200K 90 | NSP 9° | 5W 236lm | 24Vdc | |
Overview |
| E042NSL922CCB | 2200K 90 | NSP 9° | 5W 236lm | 24Vdc | |
Overview |
| E042NSL922CEB | 2200K 90 | NSP 9° | 5W 236lm | 24Vdc | |
Overview |
| E042NSL922ASS | 2200K 90 | NSP 9° | 5W 236lm | 24Vdc | |
Overview |
| E042NSL922ACB | 2200K 90 | NSP 9° | 5W 236lm | 24Vdc | |
Overview |
| E042NSL922AEB | 2200K 90 | NSP 9° | 5W 236lm | 24Vdc | |
Overview |
| E042NSL827CSS | 2700K 80 | NSP 9° | 5W 283lm | 24Vdc | |
Overview |
| E042NSL827CCB | 2700K 80 | NSP 9° | 5W 283lm | 24Vdc | |
Overview |
| E042NSL827CEB | 2700K 80 | NSP 9° | 5W 283lm | 24Vdc | |
Overview |
| E042NSL827ASS | 2700K 80 | NSP 9° | 5W 283lm | 24Vdc | |
Overview |
| E042NSL827ACB | 2700K 80 | NSP 9° | 5W 283lm | 24Vdc | |
Overview |
| E042NSL827AEB | 2700K 80 | NSP 9° | 5W 283lm | 24Vdc | |
Overview |
| E042NSL830CSS | 3000K 80 | NSP 9° | 5W 289lm | 24Vdc | |
Overview |
| E042NSL830CCB | 3000K 80 | NSP 9° | 5W 289lm | 24Vdc | |
Overview |
| E042NSL830CEB | 3000K 80 | NSP 9° | 5W 289lm | 24Vdc | |
Overview |
| E042NSL830ASS | 3000K 80 | NSP 9° | 5W 289lm | 24Vdc | |
Overview |
| E042NSL830ACB | 3000K 80 | NSP 9° | 5W 289lm | 24Vdc | |
Overview |
| E042NSL830AEB | 3000K 80 | NSP 9° | 5W 289lm | 24Vdc | |
Overview |
| E042NSL840CSS | 4000K 80 | NSP 9° | 5W 308lm | 24Vdc | |
Overview |
| E042NSL840CCB | 4000K 80 | NSP 9° | 5W 308lm | 24Vdc | |
Overview |
| E042NSL840CEB | 4000K 80 | NSP 9° | 5W 308lm | 24Vdc | |
Overview |
| E042NSL840ASS | 4000K 80 | NSP 9° | 5W 308lm | 24Vdc | |
Overview |
| E042NSL840ACB | 4000K 80 | NSP 9° | 5W 308lm | 24Vdc | |
Overview |
| E042NSL840AEB | 4000K 80 | NSP 9° | 5W 308lm | 24Vdc | |
Overview |
| E042SPL922CSS | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E042SPL922CCB | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E042SPL922CEB | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E042SPL922ASS | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E042SPL922ACB | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E042SPL922AEB | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E042SPL827CSS | 2700K 80 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E042SPL827CCB | 2700K 80 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E042SPL827CEB | 2700K 80 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E042SPL827ASS | 2700K 80 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E042SPL827ACB | 2700K 80 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E042SPL827AEB | 2700K 80 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E042SPL830CSS | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E042SPL830CCB | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E042SPL830CEB | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E042SPL830ASS | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E042SPL830ACB | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E042SPL830AEB | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E042SPL840CSS | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E042SPL840CCB | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E042SPL840CEB | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E042SPL840ASS | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E042SPL840ACB | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E042SPL840AEB | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E042FLL922CSS | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E042FLL922CCB | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E042FLL922CEB | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E042FLL922ASS | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E042FLL922ACB | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E042FLL922AEB | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E042FLL827CSS | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E042FLL827CCB | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E042FLL827CEB | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E042FLL827ASS | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E042FLL827ACB | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E042FLL827AEB | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E042FLL830CSS | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E042FLL830CCB | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E042FLL830CEB | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E042FLL830ASS | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E042FLL830ACB | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E042FLL830AEB | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E042FLL840CSS | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
| E042FLL840CCB | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
| E042FLL840CEB | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
| E042FLL840ASS | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
| E042FLL840ACB | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
| E042FLL840AEB | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
62
Keplero Quantum 90 Adjustable Comfort AG
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E043NSL922C | 2200K 90 | NSP 9° | 5W 236lm | 24Vdc | |
Overview |
| E043NSL922A | 2200K 90 | NSP 9° | 5W 236lm | 24Vdc | |
Overview |
| E043NSL827C | 2700K 80 | NSP 9° | 5W 283lm | 24Vdc | |
Overview |
| E043NSL827A | 2700K 90 | NSP 9° | 5W 283lm | 24Vdc | |
Overview |
| E043NSL830C | 3000K 80 | NSP 9° | 5W 289lm | 24Vdc | |
Overview |
| E043NSL830A | 3000K 80 | NSP 9° | 5W 289lm | 24Vdc | |
Overview |
| E043NSL840C | 4000K 80 | NSP 9° | 5W 308lm | 24Vdc | |
Overview |
| E043NSL840A | 4000K 80 | NSP 9° | 5W 308lm | 24Vdc | |
Overview |
| E043SPL922C | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E043SPL922A | 2200K 90 | SP 13° | 10.3W 573lm | 24Vdc | |
Overview |
| E043SPL827C | 2700K 80 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E043SPL827A | 2700K 90 | SP 13° | 10.3W 756lm | 24Vdc | |
Overview |
| E043SPL830C | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E043SPL830A | 3000K 80 | SP 13° | 10.3W 801lm | 24Vdc | |
Overview |
| E043SPL840C | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E043SPL840A | 4000K 80 | SP 13° | 10.3W 832lm | 24Vdc | |
Overview |
| E043FLL922C | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E043FLL922A | 2200K 90 | FL 28° | 10.3W 424lm | 24Vdc | |
Overview |
| E043FLL827C | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E043FLL827A | 2700K 80 | FL 28° | 10.3W 559lm | 24Vdc | |
Overview |
| E043FLL830C | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E043FLL830A | 3000K 80 | FL 28° | 10.3W 593lm | 24Vdc | |
Overview |
| E043FLL840C | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
| E043FLL840A | 4000K 80 | FL 28° | 10.3W 615lm | 24Vdc | |
Overview |
14
