Keplero Quantum

In-ground luminaires

Join the Quantum leap!

NEW

Keplero Quantum inherits the reliability, robustness and outstanding versatility that have made the Keplero in-ground recessed luminaires an icon of the Targetti collection.

All enclosed in three compact sizes, with various installation options, cutting-edge performances and refined design: a true quantum leap!

Available sizes

Ø 60mm

Ø 90mm

Ø 130mm

Colour temperatures

2200K Ra90

2700K Ra80

3000K Ra80

4000K Ra80

RGBW 3000K

Finishes

Stainless Steel

Copper bronze

Eclipse black

All Glass

Control systems

On-Off

DALI

DMX

Degree of protection

Resistance

IK10

Drive-over capacity

2000Kg static load
Compliant with EN 60598-2-13

Installation

Inground recessed

Wall recessed

Ceiling recessed

Three sizes, multiple versions

The Keplero Quantum range includes three product sizes with particularly compact dimensions, ideal for any type of project.

Sizes

ø130mm
h 94mm

Versions:

Zoom,
Adjustable,
Fix,
Wall Washer,
Opal,
Oval

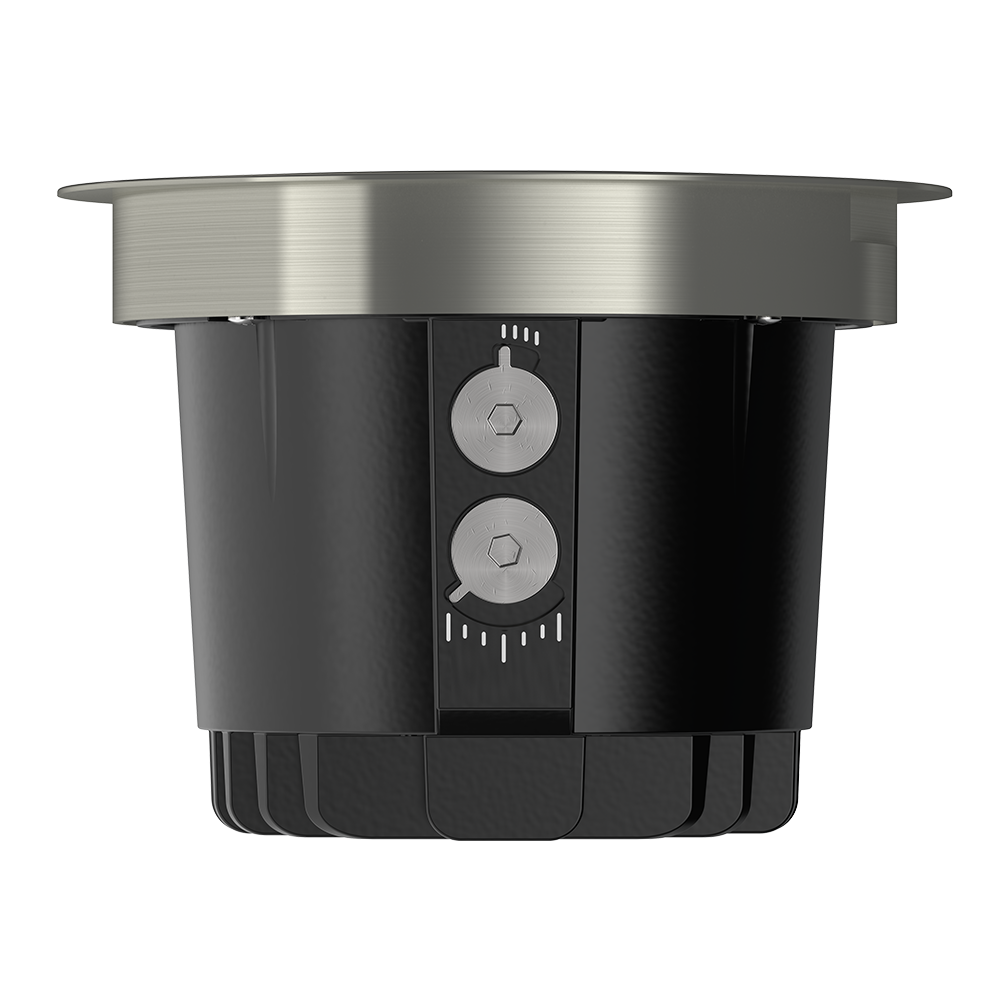

Quantum 130

Sizes

ø90mm
h 70mm

Versions:

Adjustable,
Fix,
Wall Washer,
Opal,
Oval

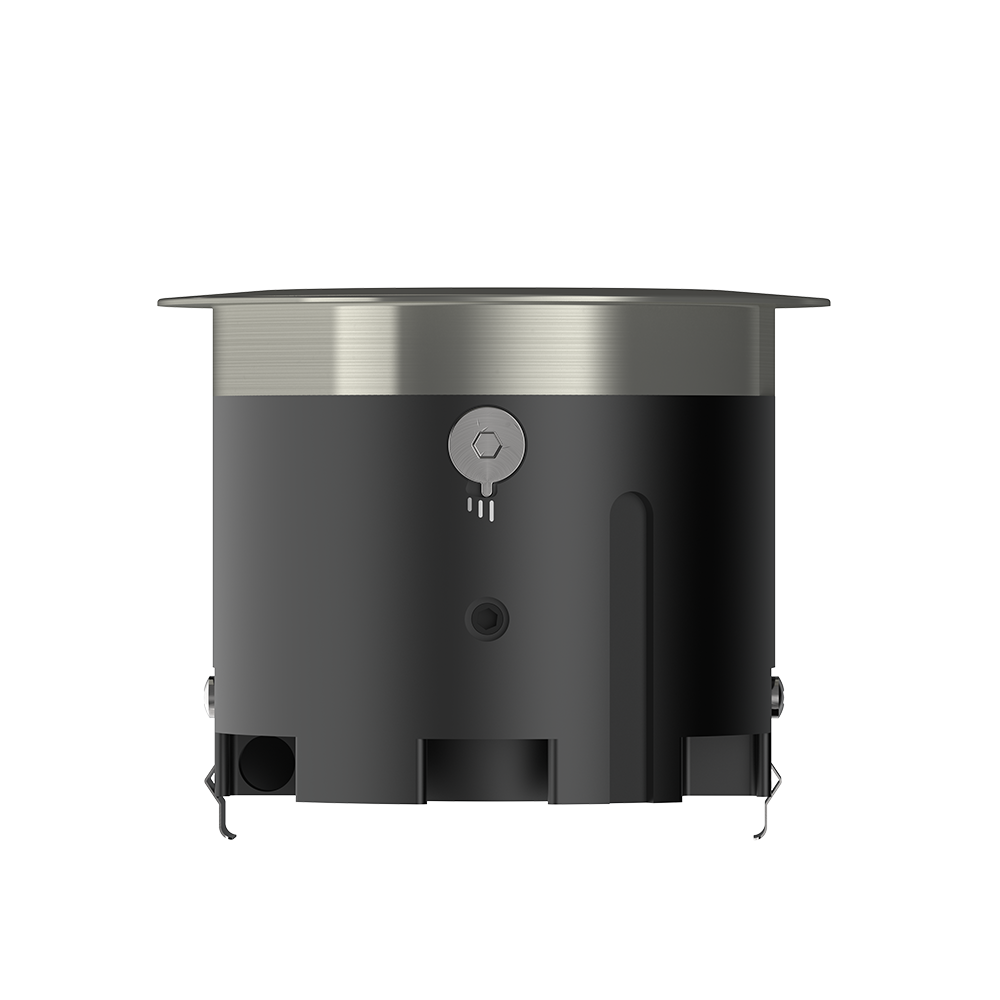

Quantum 90

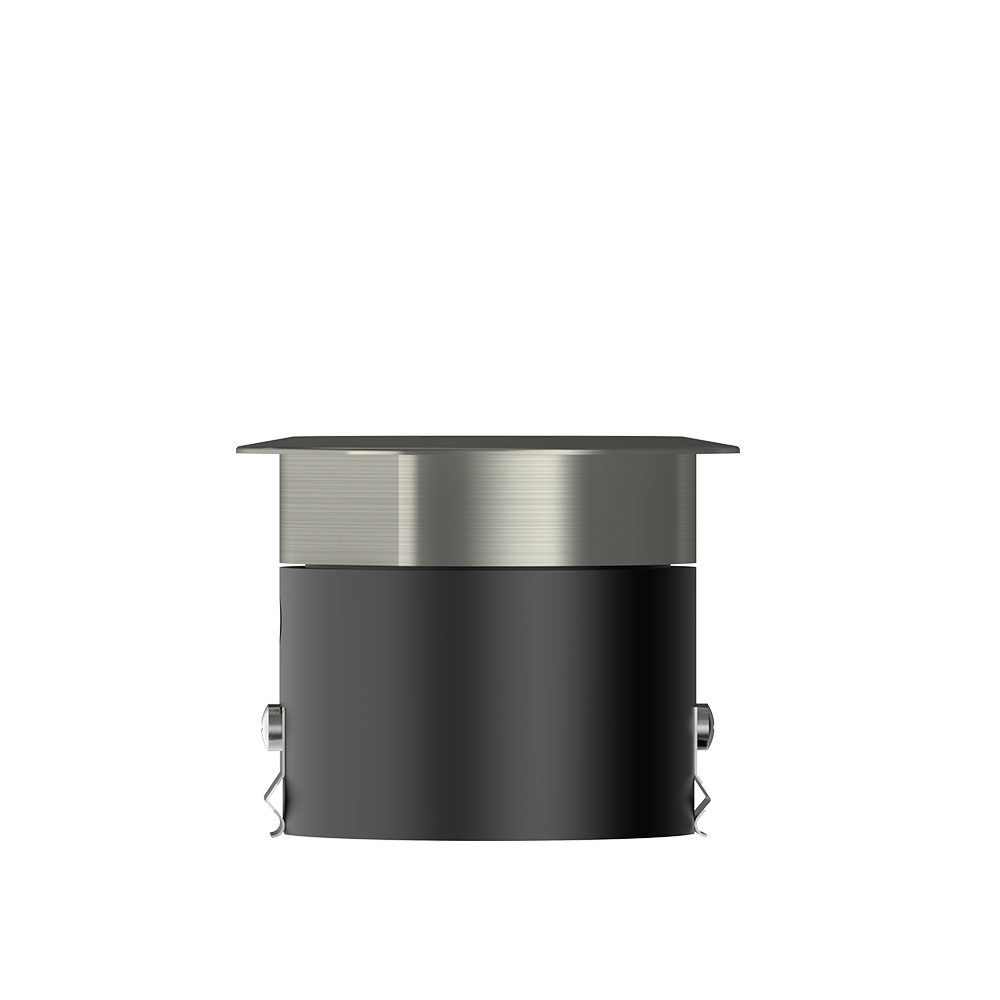

Sizes

ø60mm
h 47/49mm

Versions:

Fix, Wall Washer, Opal

Quantum 60

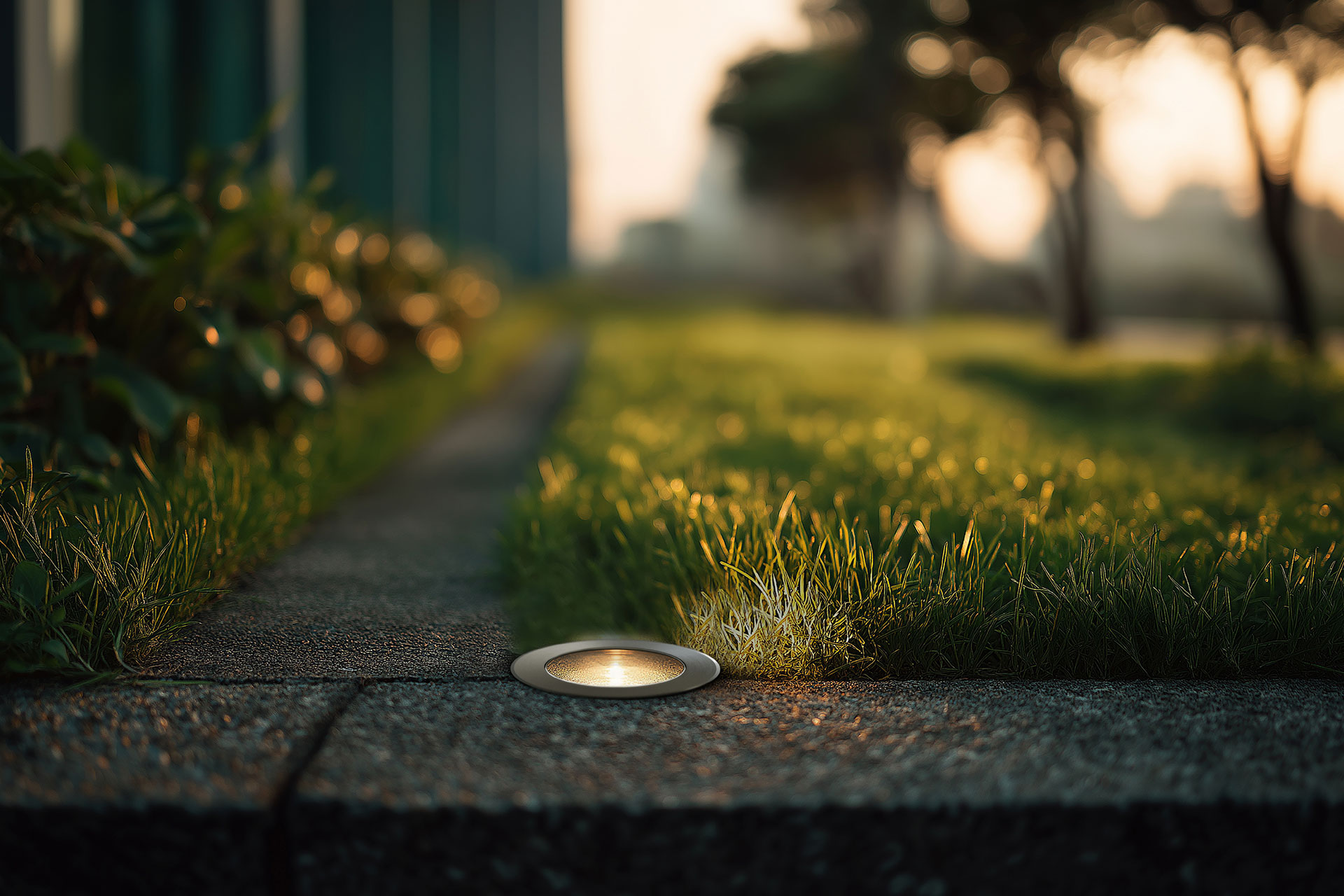

Small yet powerful

Its compact size makes it easy to use even in complex context or where space is limited, offering great flexibility and a clean, orderly result consistent with the project vision.
The reduced size delivers high performance: efficiency, optical precision and light quality come together in a surprisingly small luminaire capable of outstanding performance.

Durable and waterproof

Keplero Quantum is synonymous with robustness and absolute reliability: each product is factory-sealed to ensure flawless performance over time, without ever requiring access to internal components, not even during installation or aiming.

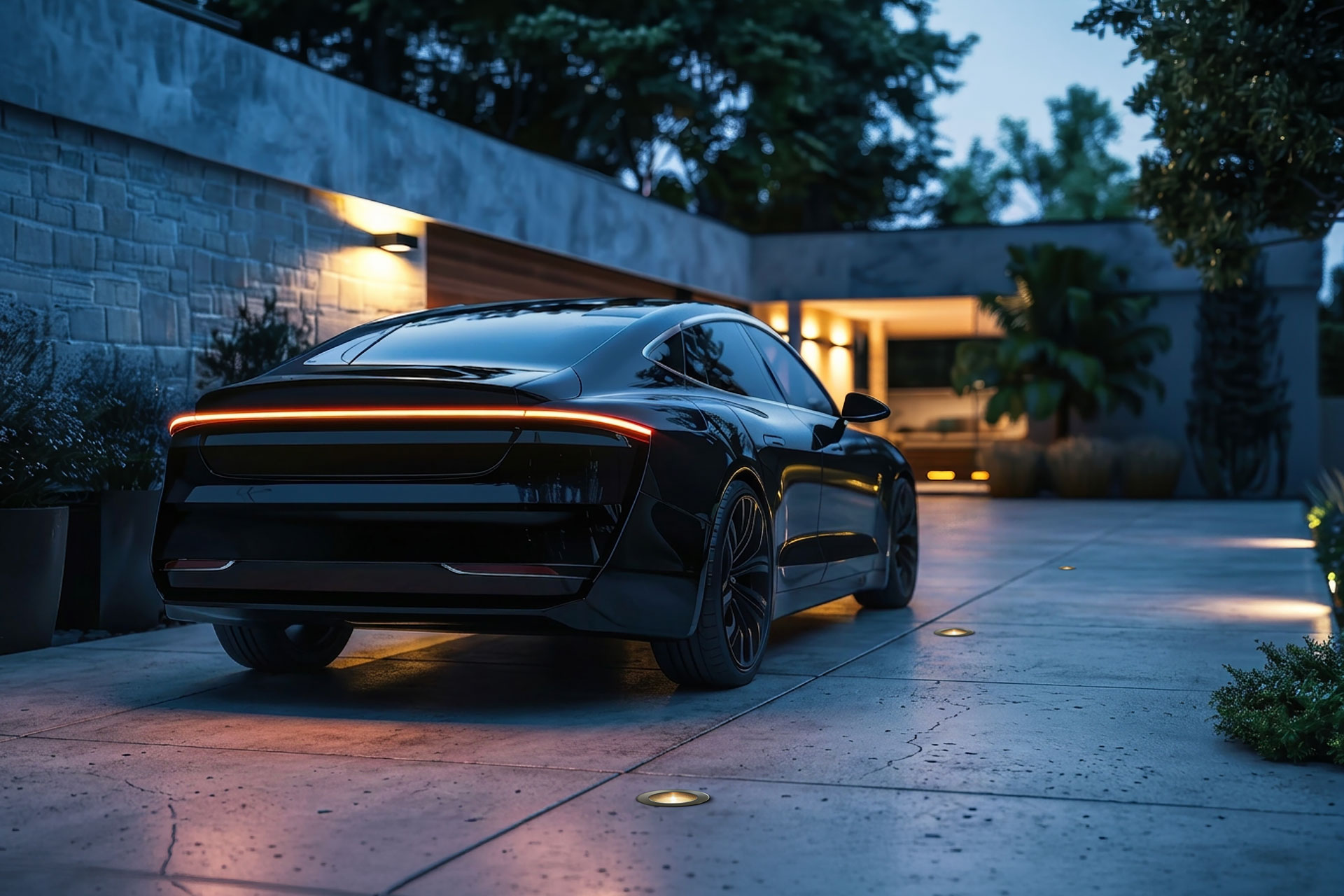

Safely Drive-over

Suitability for installation in drive-over areas represents a real design advantage. Keplero Quantum combines strength, safety and maximum integration, without any functional compromise. The fixtures are designed and tested to ensure reliable performance even in areas subject to vehicle traffic (compliant with EN 60598-2-13; resistant to static loads of up to 2000 kg).

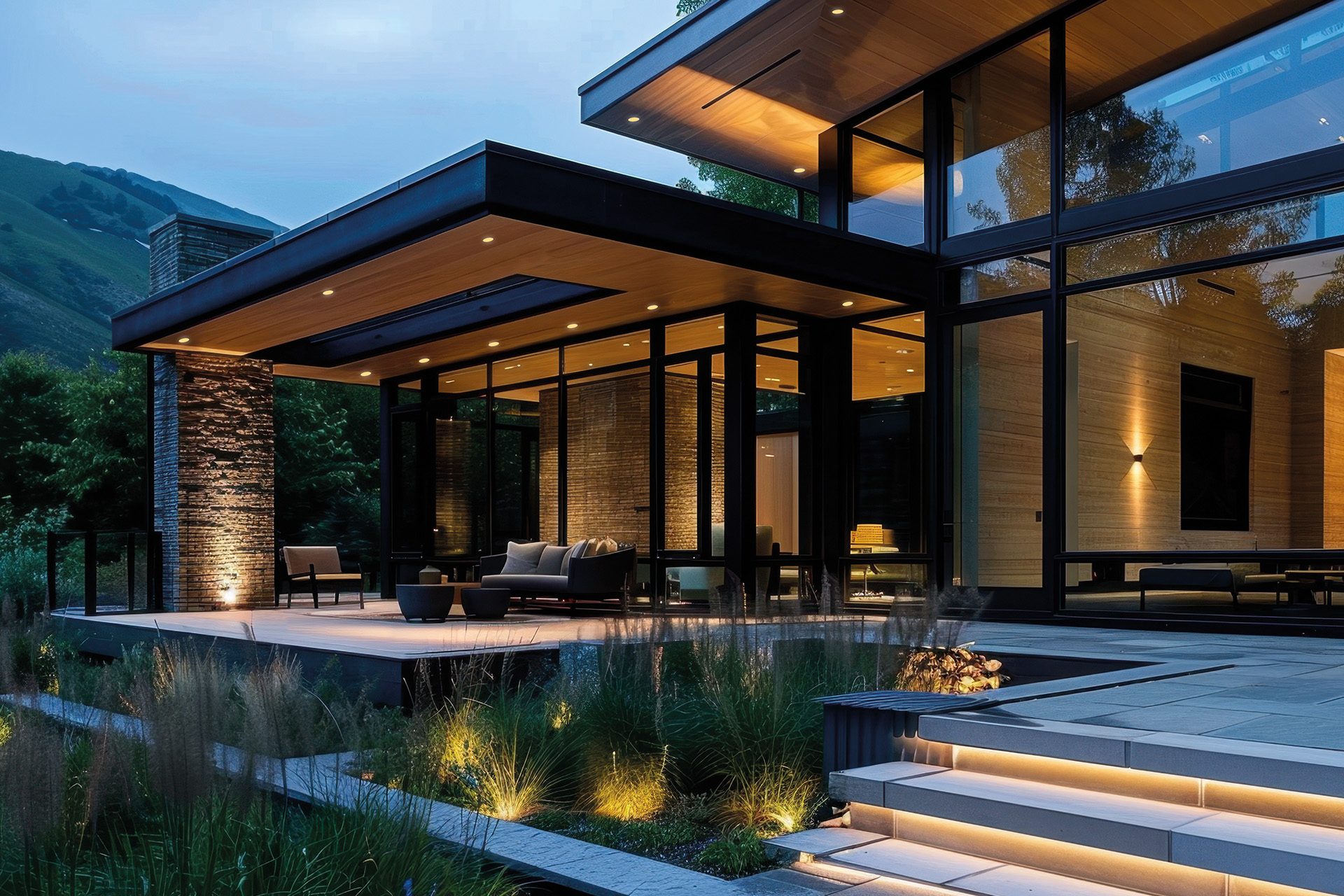

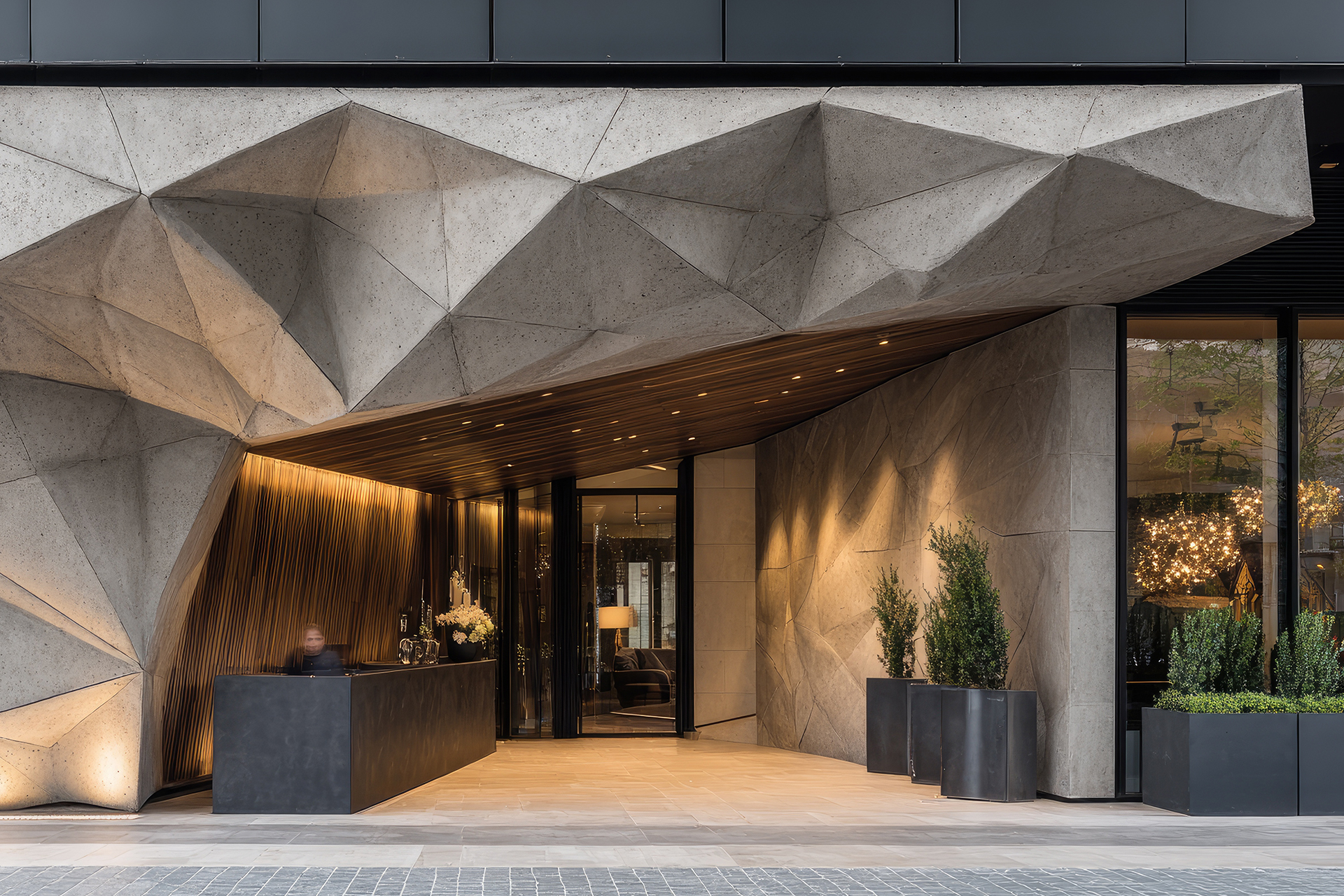

Total design freedom

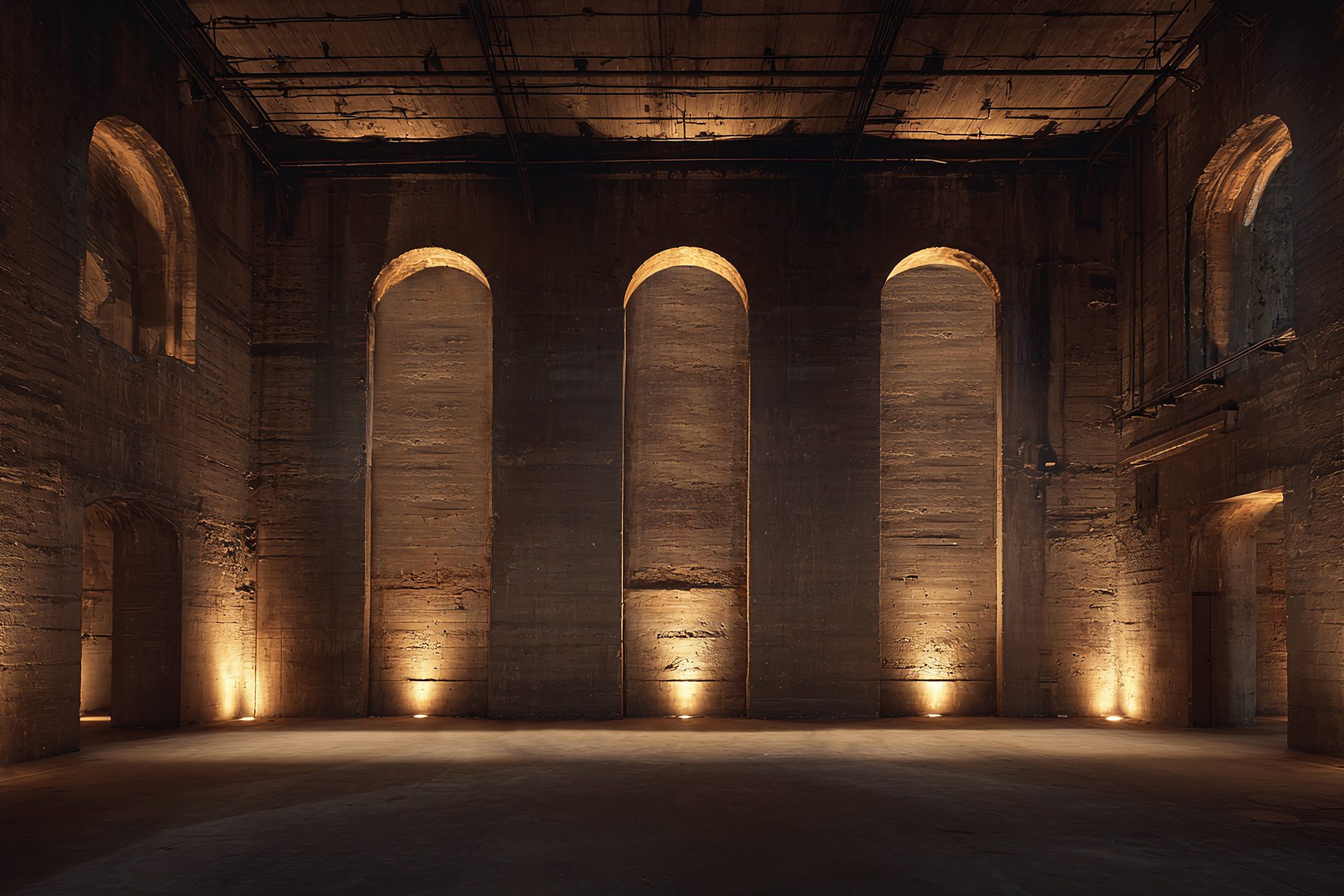

Keplero Quantum is not just a recessed fixture. It is a versatile lighting tool that offers complete design freedom: it can create uplight effects when recessed into the floor, downlight effects when installed on the ceiling, or serve as a discreet step marker when integrated into a wall.

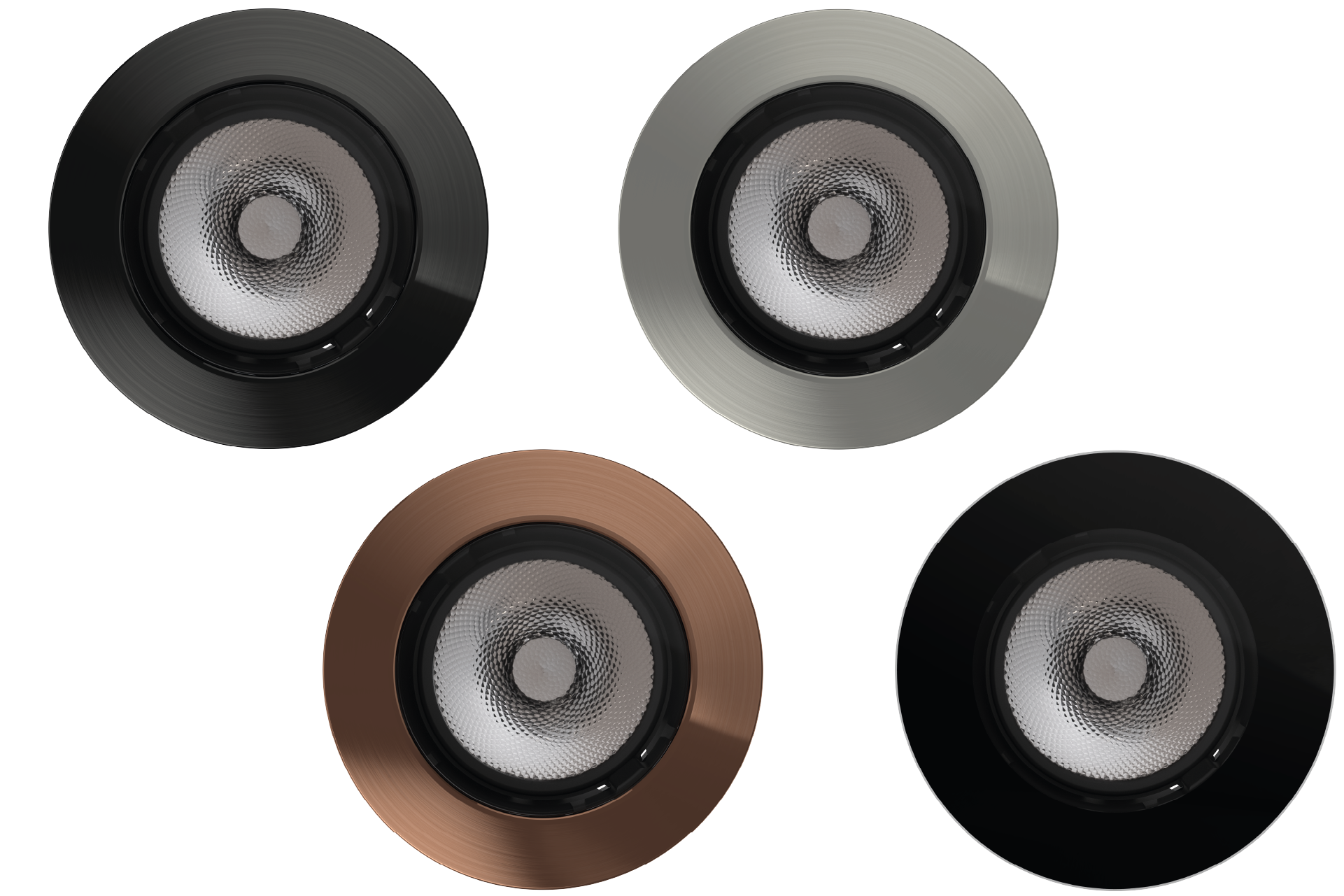

Four finishes, maximum versatility

The Keplero Quantum range offers four finishes designed to ensure maximum design flexibility. Decorative rings are available in Stainless Steel, Eclipse Black, and Burnished Copper variants.
Completing the range is the refined ‘all-glass’ version, ideal for seamless integration and an effect of absolute visual cleanliness.

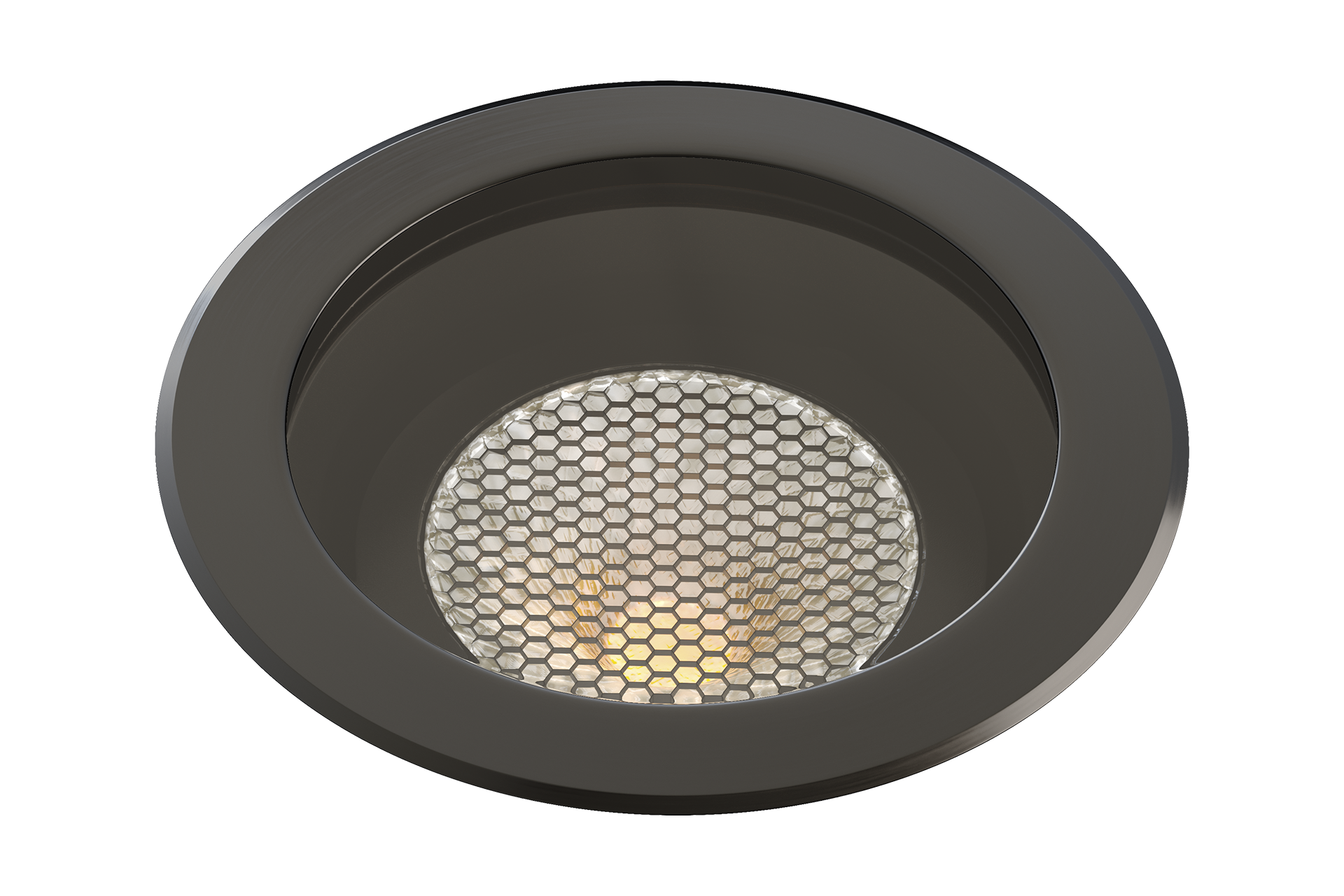

Absolute comfort

Available with either fixed or adjustable optical systems, the Comfort versions incorporate a honeycomb grid that ensures optimal glare control, guaranteeing maximum visual comfort.

Versions

Various optical solutions designed to shape the light, modulating its character and depth.

	Zoom	Adjustable	Fixed	Wall Washer	Opal	Oval
Quantum 130
Quantum 90
Quantum 60

1 / 3

1 / 2

Keplero Quantum 60

1 / 2

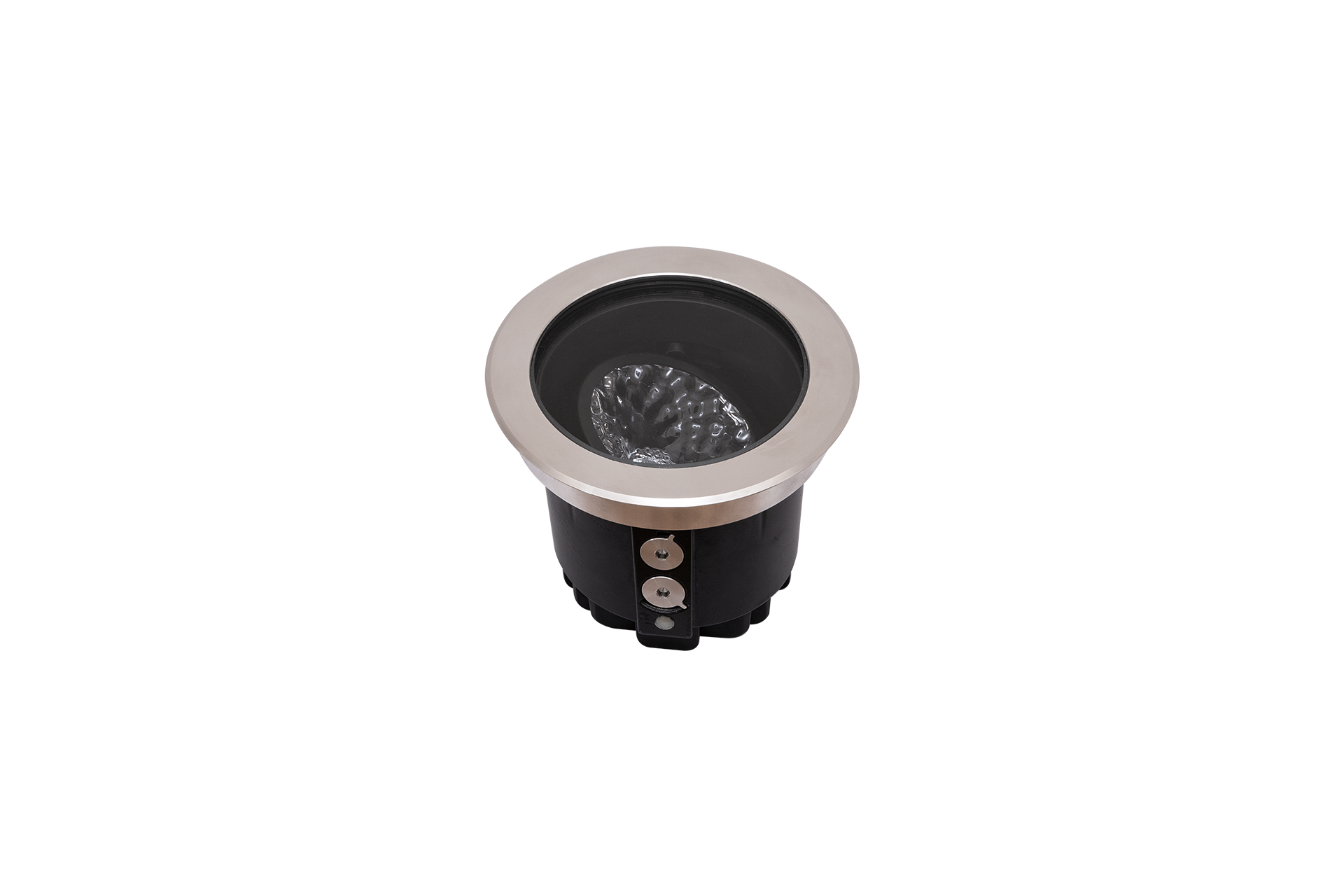

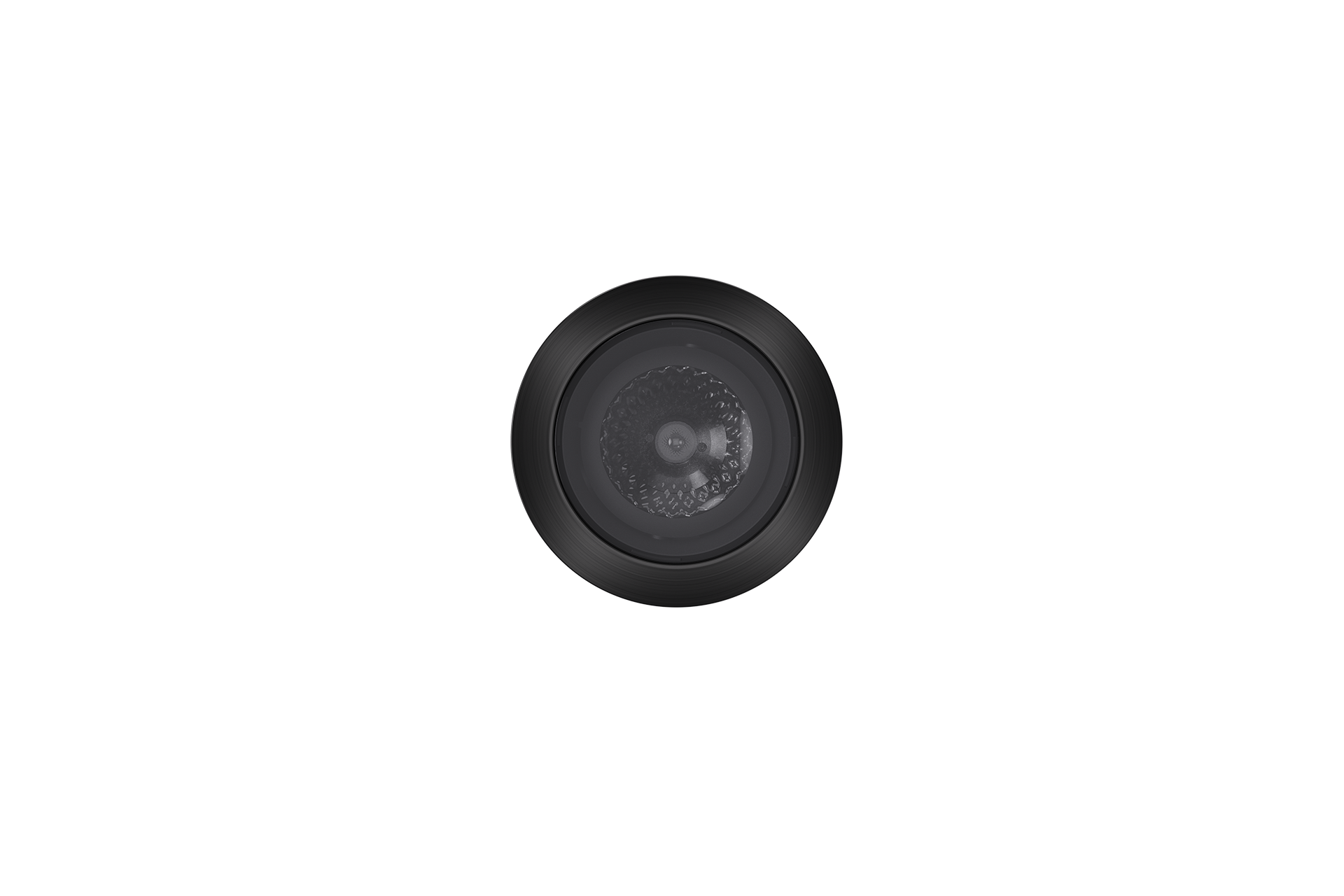

Zoom

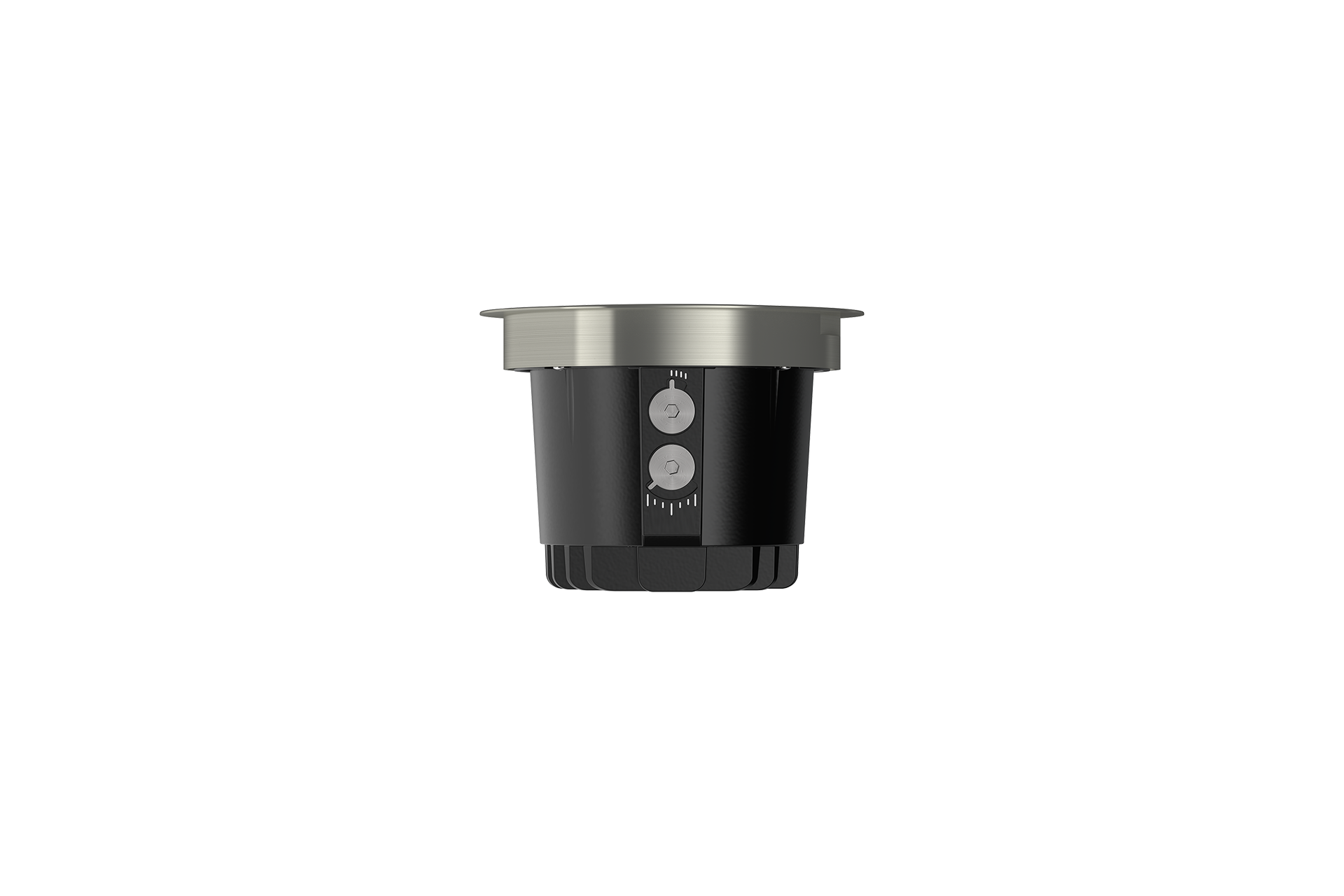

A completely renewed dynamic optical system. It allows modulation of the beam angle directly from the outside: the graduated scale adjustment system, located on the side of the fixture, enables a smooth transition from Spot 17° to Medium Wide Flood 42°. A second element also allows tilting of the optical unit up to 20°, offering wide freedom in lighting design.

Zoom

Adjustable

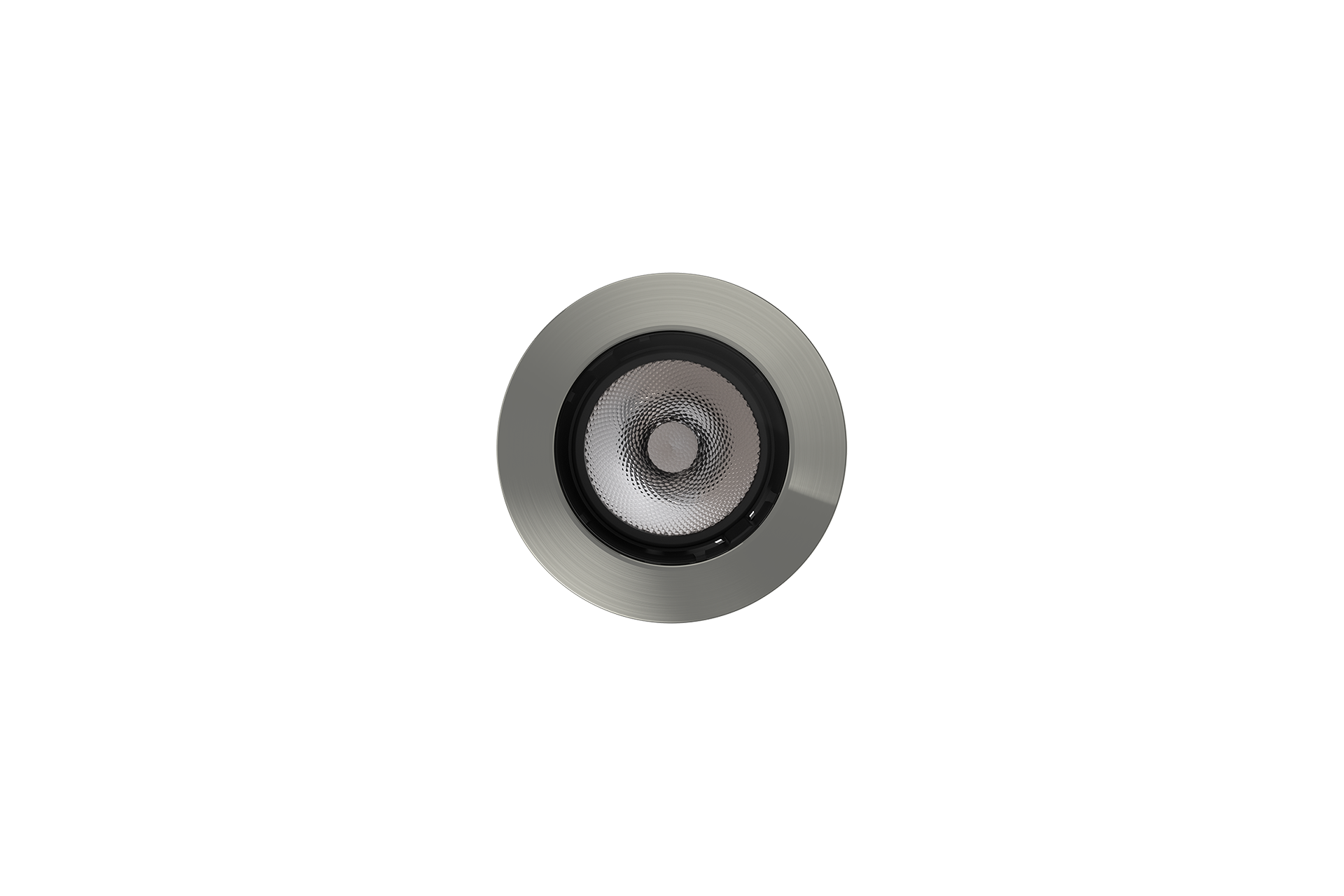

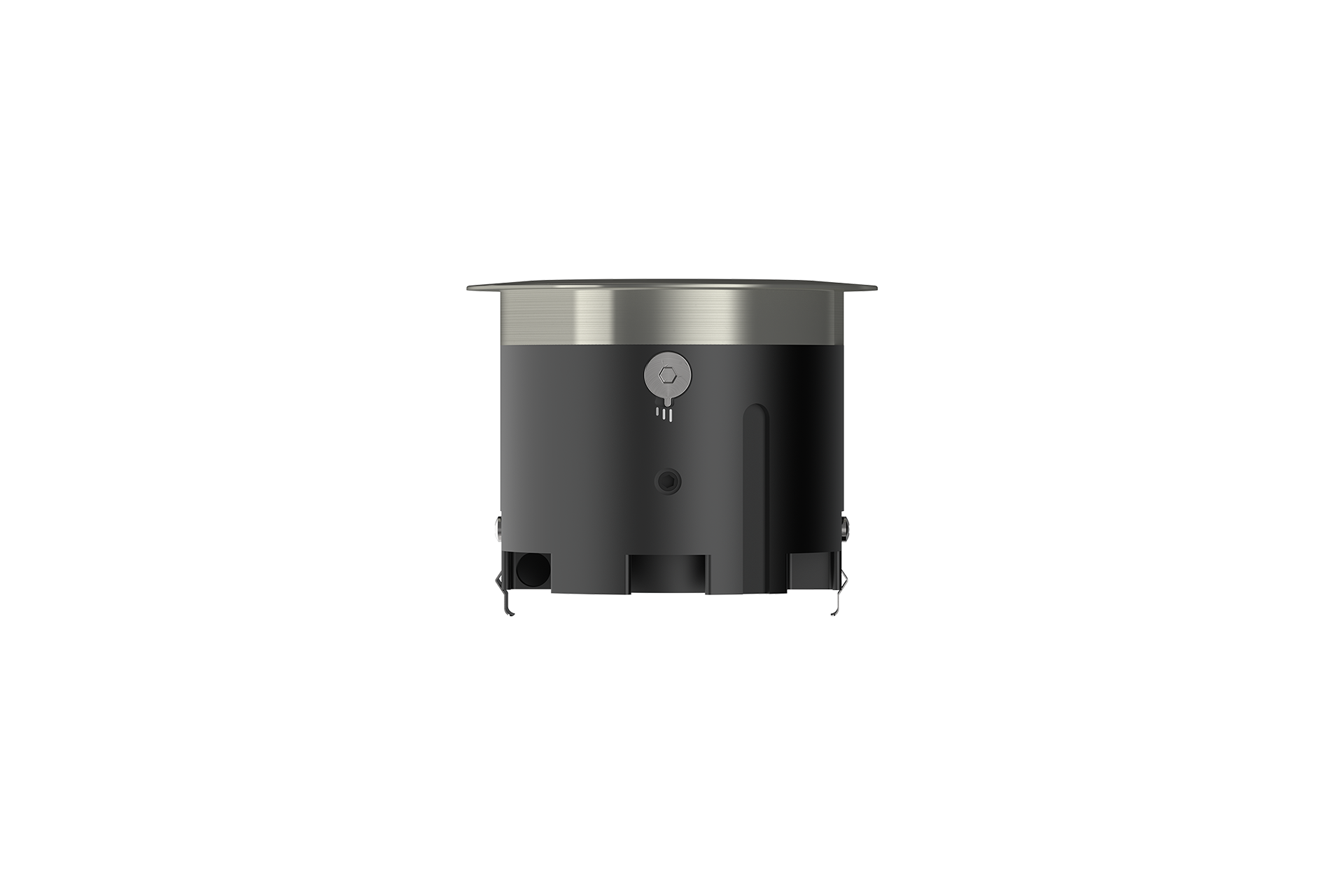

Keplero Quantum 130 and Keplero Quantum 90 can be equipped with an adjustable optical system. The side adjustment key, integrated into the fixture body, allows the optical unit to tilt up to 15° or 20°, providing great flexibility in directing the light beam.

Adjustable

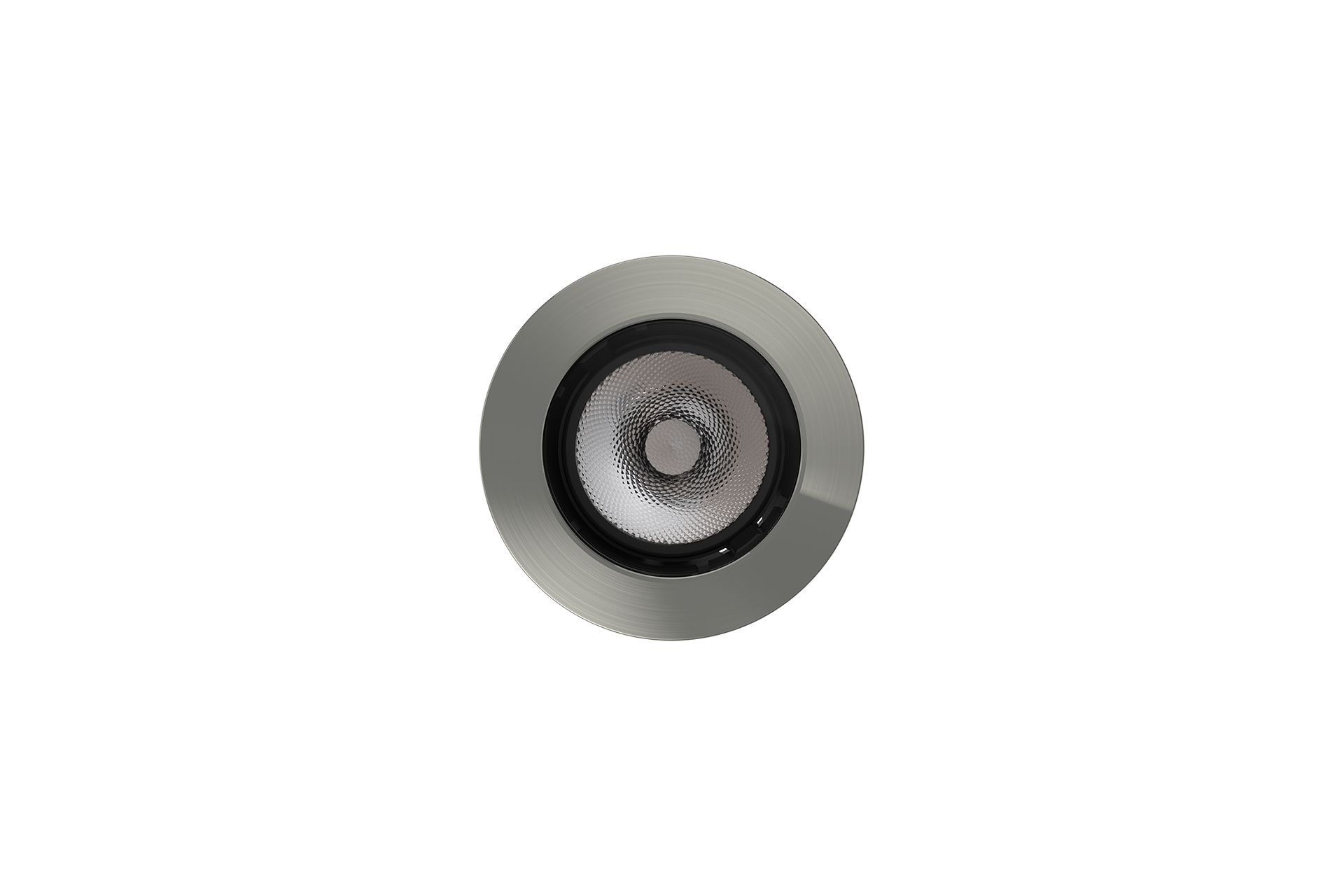

Fix

Available in all three sizes, the fixed-optic versions provide symmetrical light distributions, with beam angles ranging from Narrow Spot to Wide Flood.

Fix

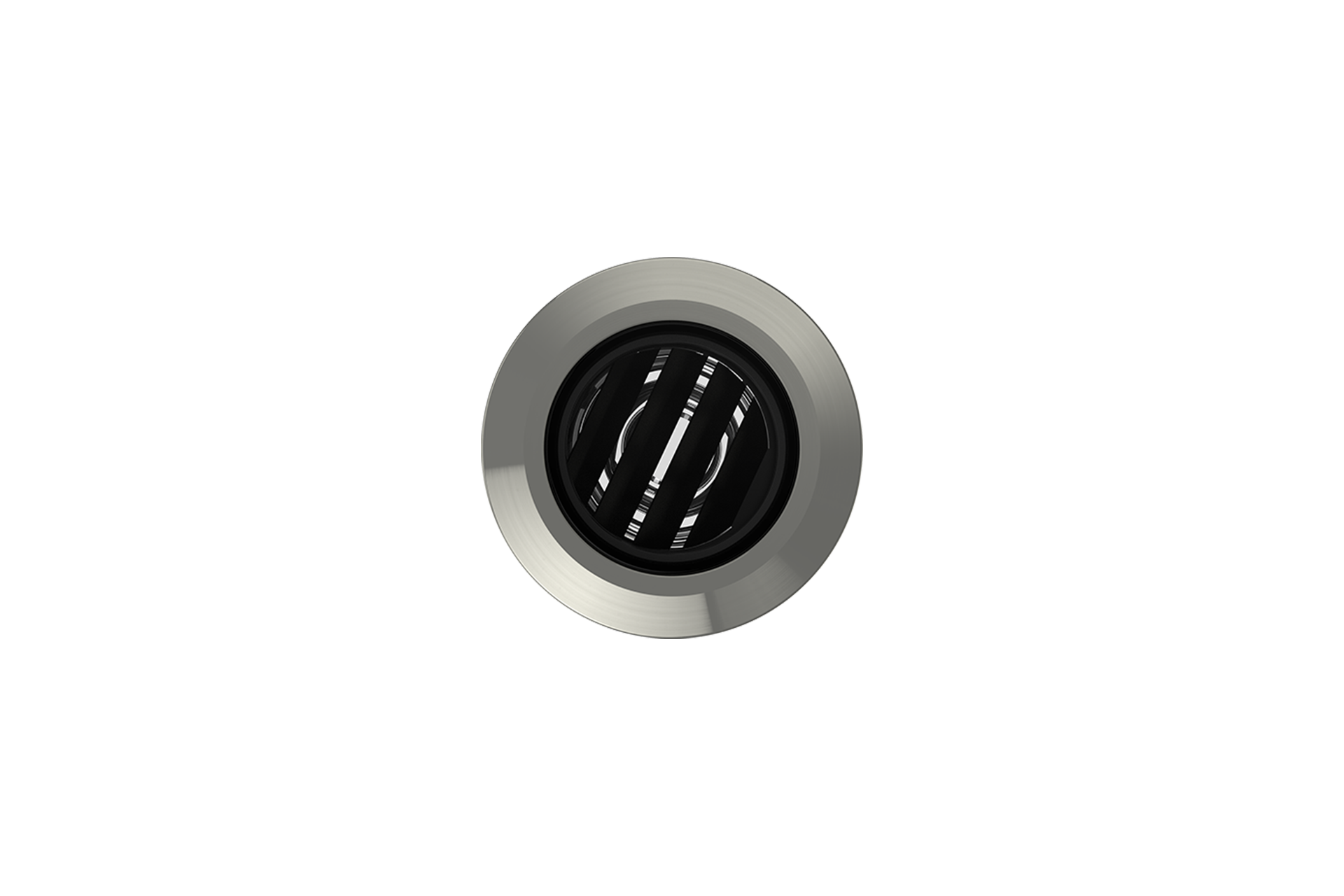

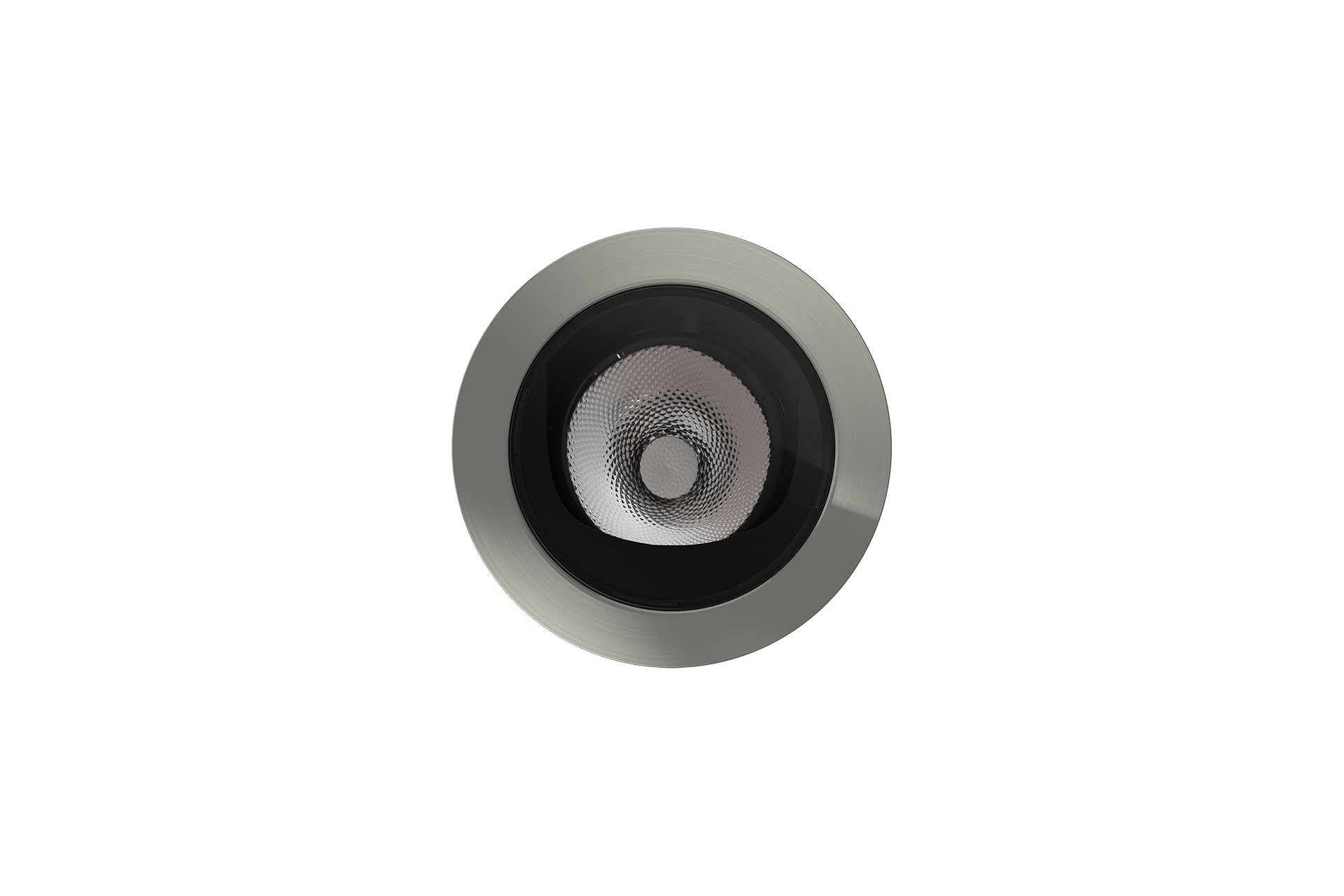

Wall Washer

Ideal for wall, ceiling, or in-ground installations, Wall Washer versions provide, depending on the installation, a wide and uniform light effect on vertical surfaces or the floor.

Wall Washer

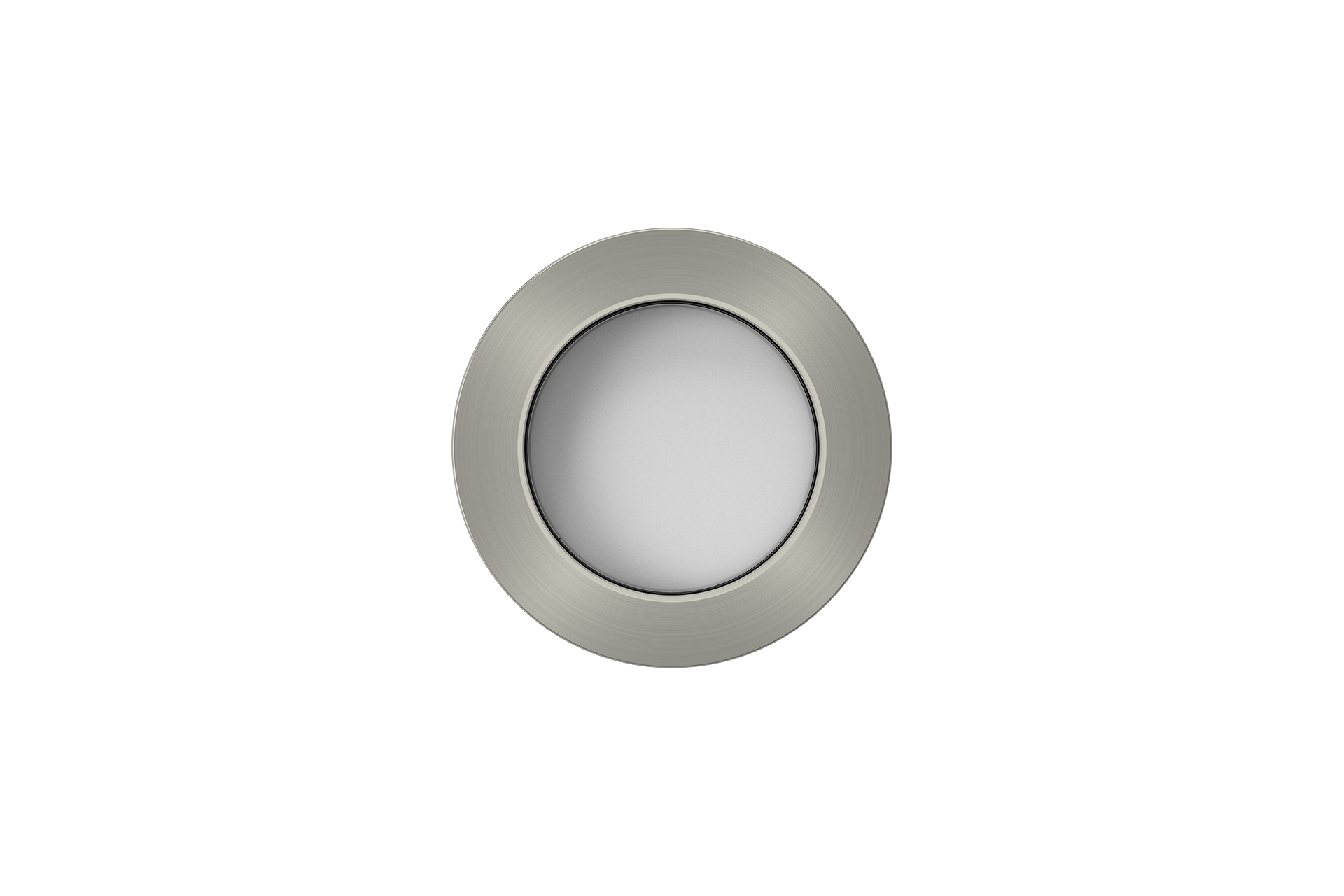

Opal

For broad and comfortable illumination, all three sizes of Keplero Quantum can be equipped with the Opal optical system, which completely shields the light source.

Opal

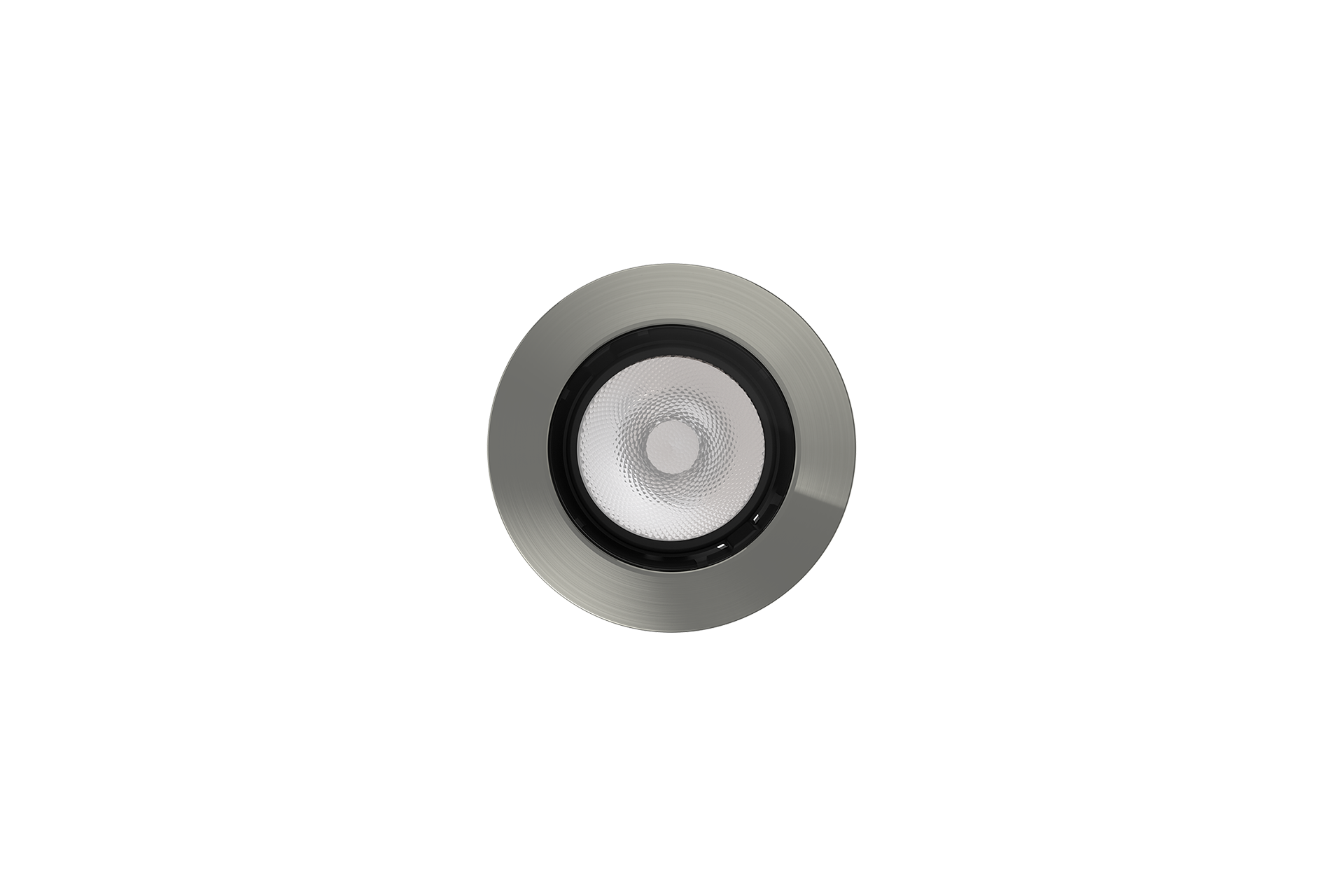

Oval

Oval versions generate elliptical light beams, ideal for precise and controlled illumination of elements with predominantly horizontal or vertical development.

Oval

Reliability and adjustability

Adjustable and Zoom versions allow the light output to be adjusted directly from the outside of the product.
Adjustment keys on the side of the fixture enable modulation of the beam angle and tilting of the optical unit up to 20° using a hex key. Convenient graduated scales around the adjustment keys make it easy to replicate settings across multiple fixtures.

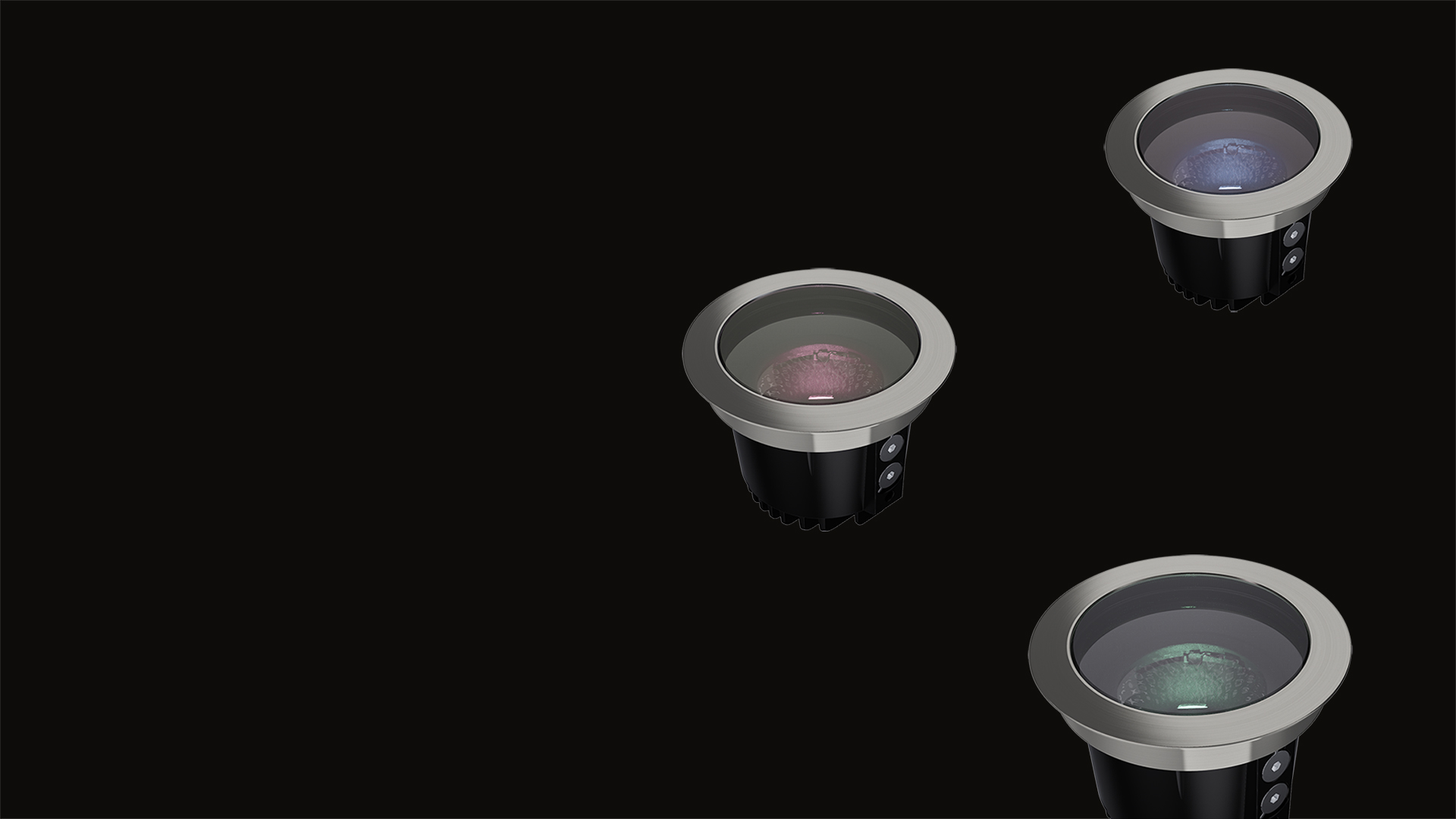

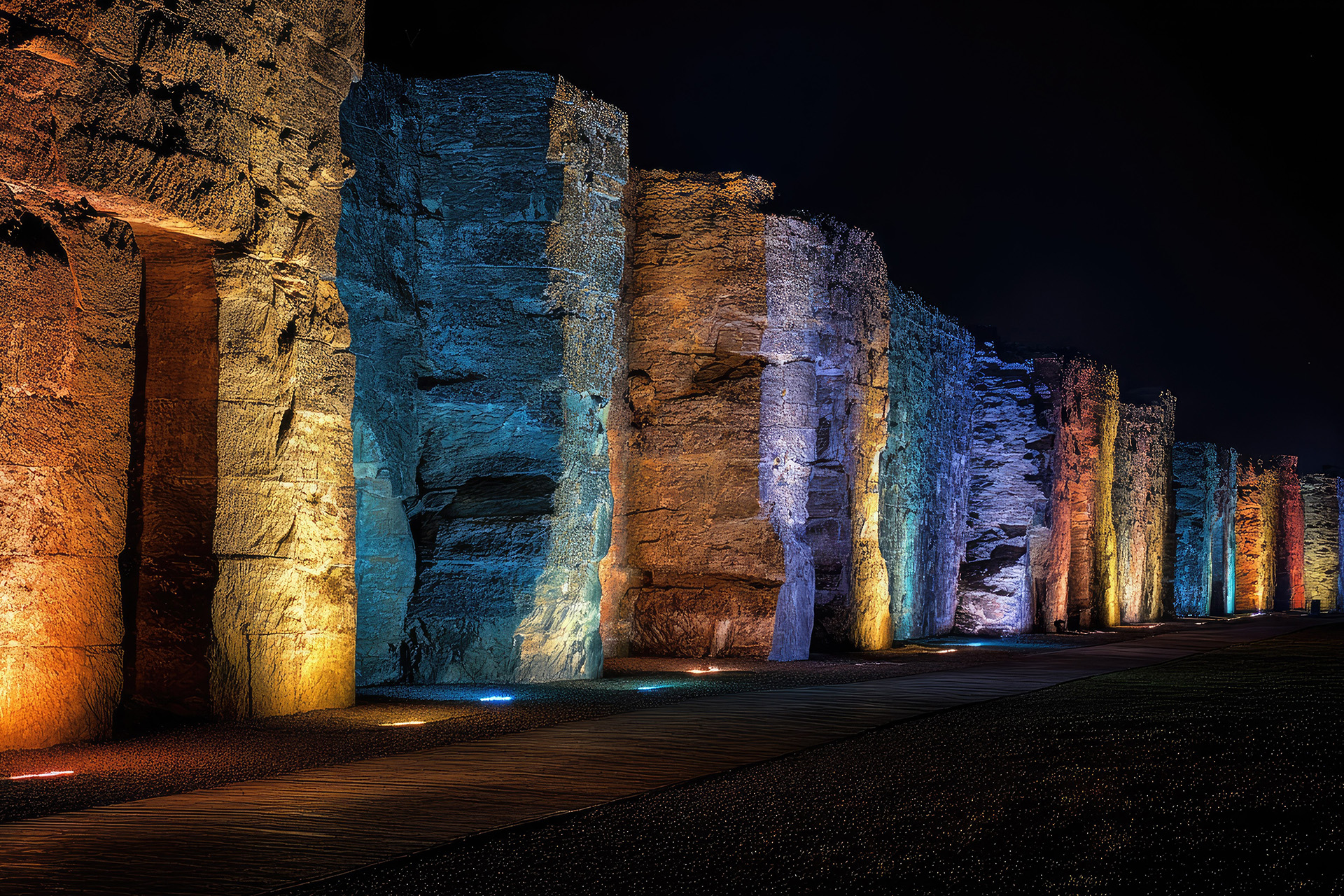

Light and color

Keplero Quantum RGBW color-light versions feature technology that allows perfect color mixing within each individual chip, producing a uniform, high-quality result where the perception of the primary colors composing the emitted light is completely eliminated.

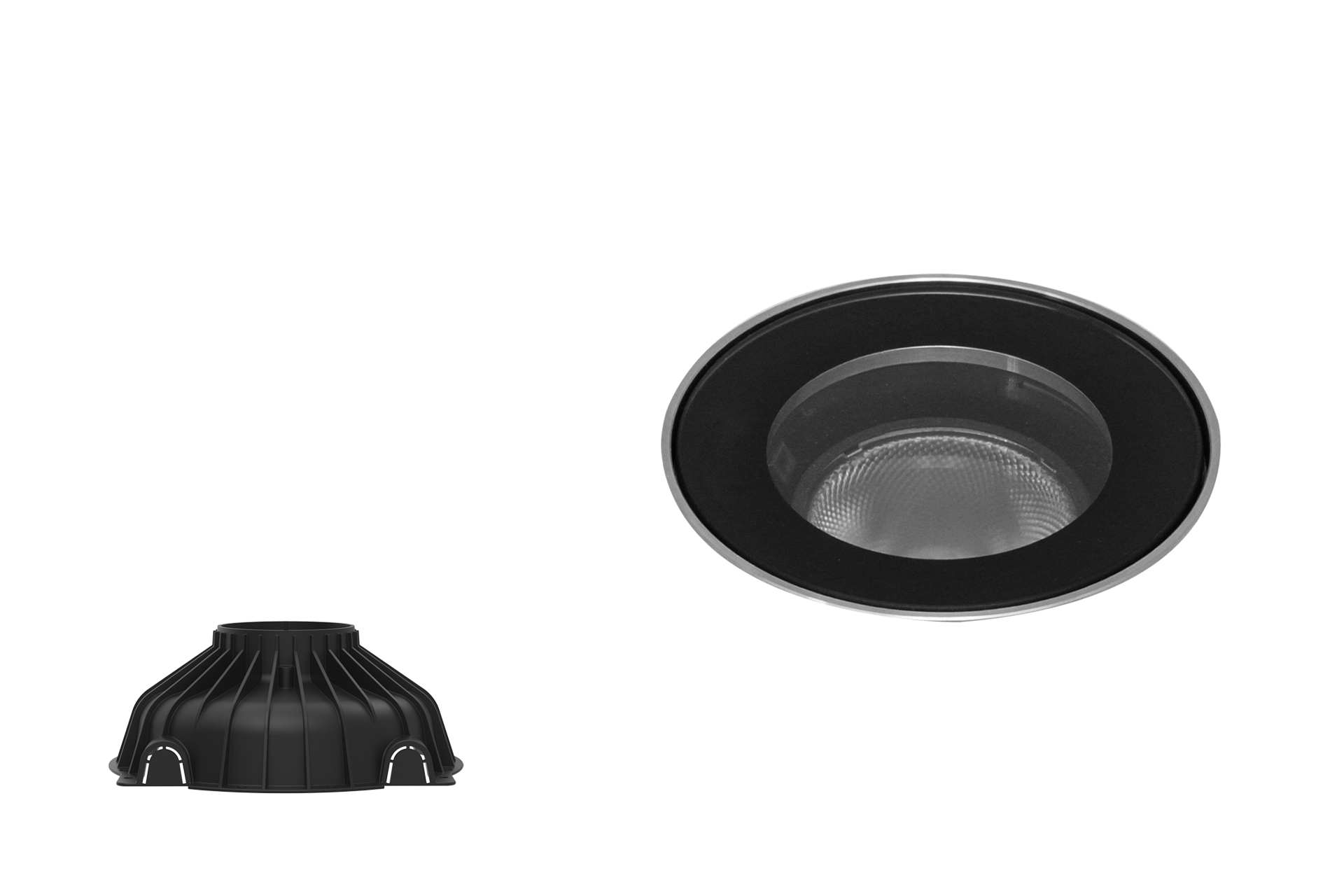

Installation versatility

Keplero Quantum offers a wide range of installation solutions. Dedicated sleeves allow optimal floor recessed installation, while practical accessory springs enable wall and ceiling mounting, further expanding the system’s application possibilities.

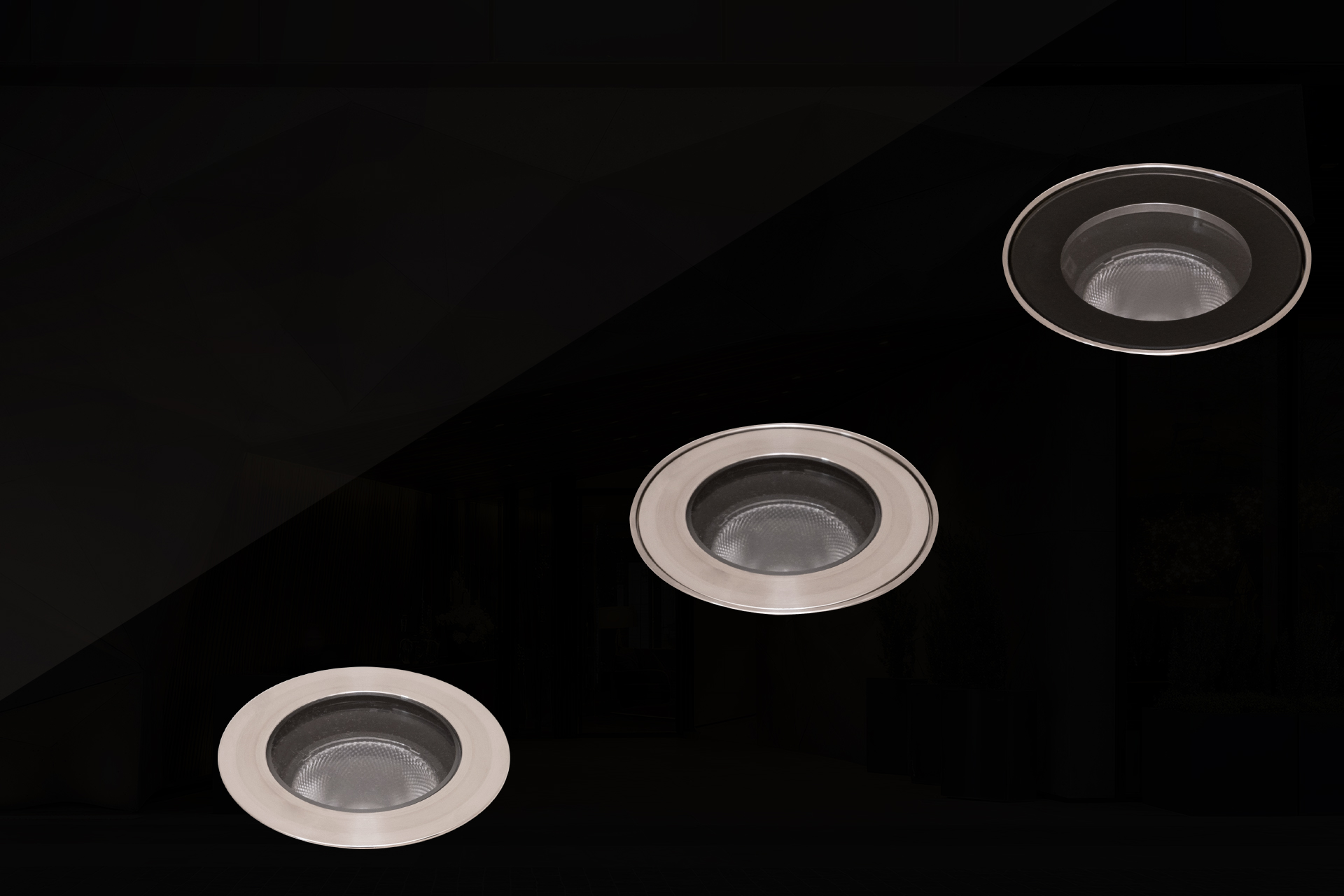

For floor recessed installation, it is possible to choose between a trim or a flush installation with a recessed ring in the same color as the fixture. The ‘All-glass’ versions are suitable for flush installation, completed with a special black steel protective ring for maximum integration.

Wall and Ceiling

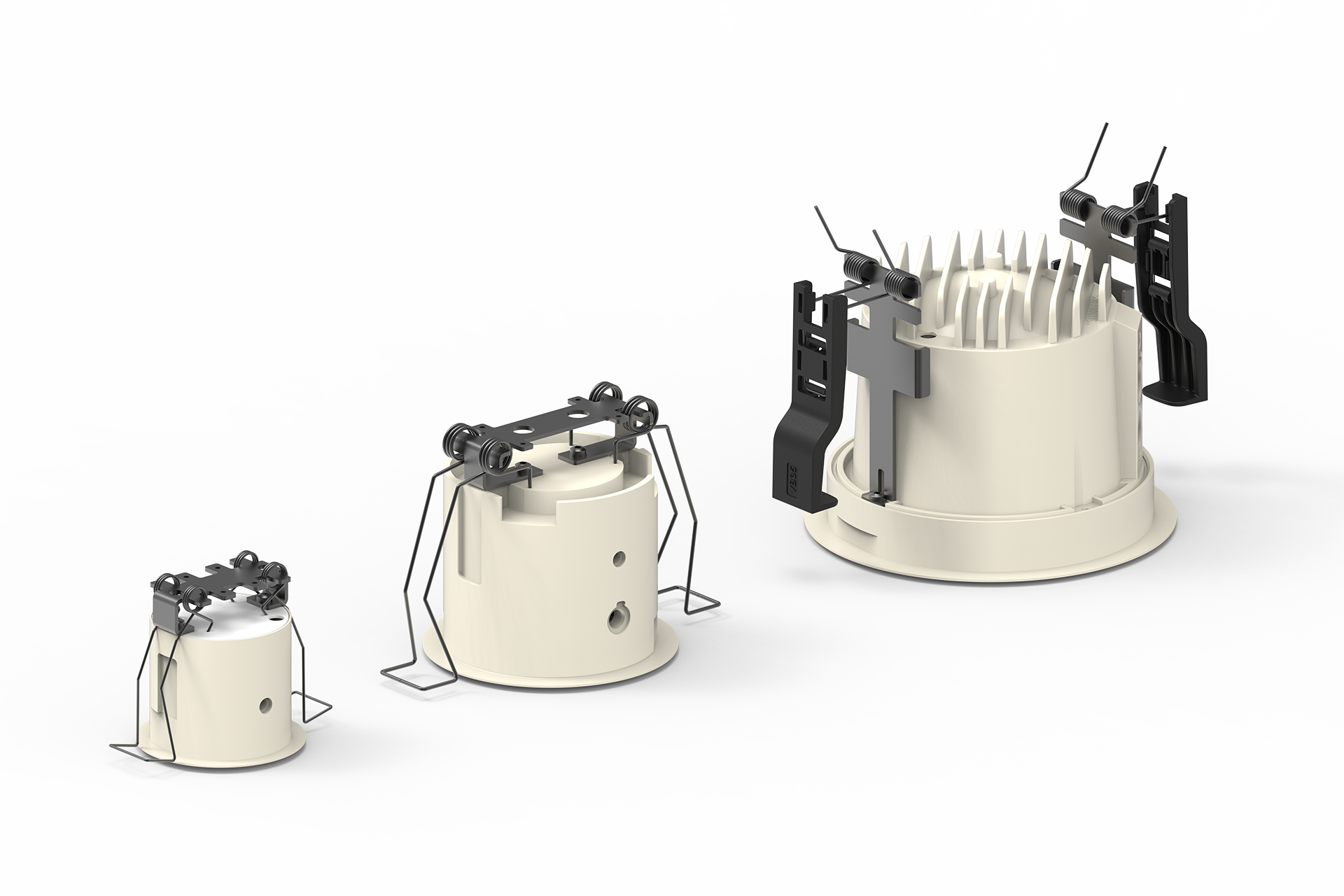

For versions equipped with a metal finishing ring only, dedicated accessory springs also allow wall or ceiling mounting, further expanding the application possibilities of the system.

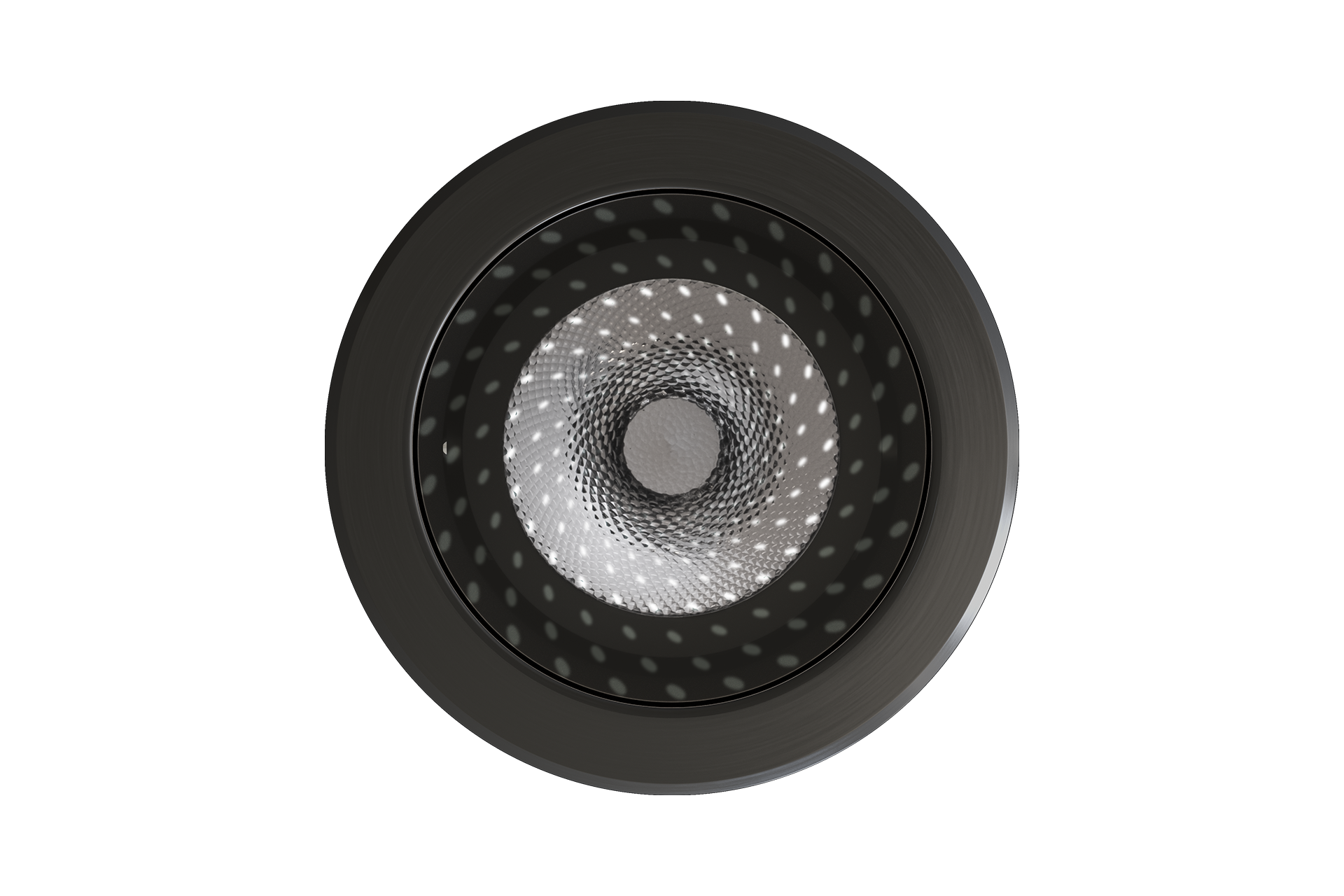

Perfect for pedestrian areas

All Keplero Quantum versions can be chosen with extra-clear or with anti-slip screen printing glass compliant with DIN 51130 R 13.
The anti-slip screen printing glass makes the fixtures suitable for public area installation.

Products family

Keplero Quantum

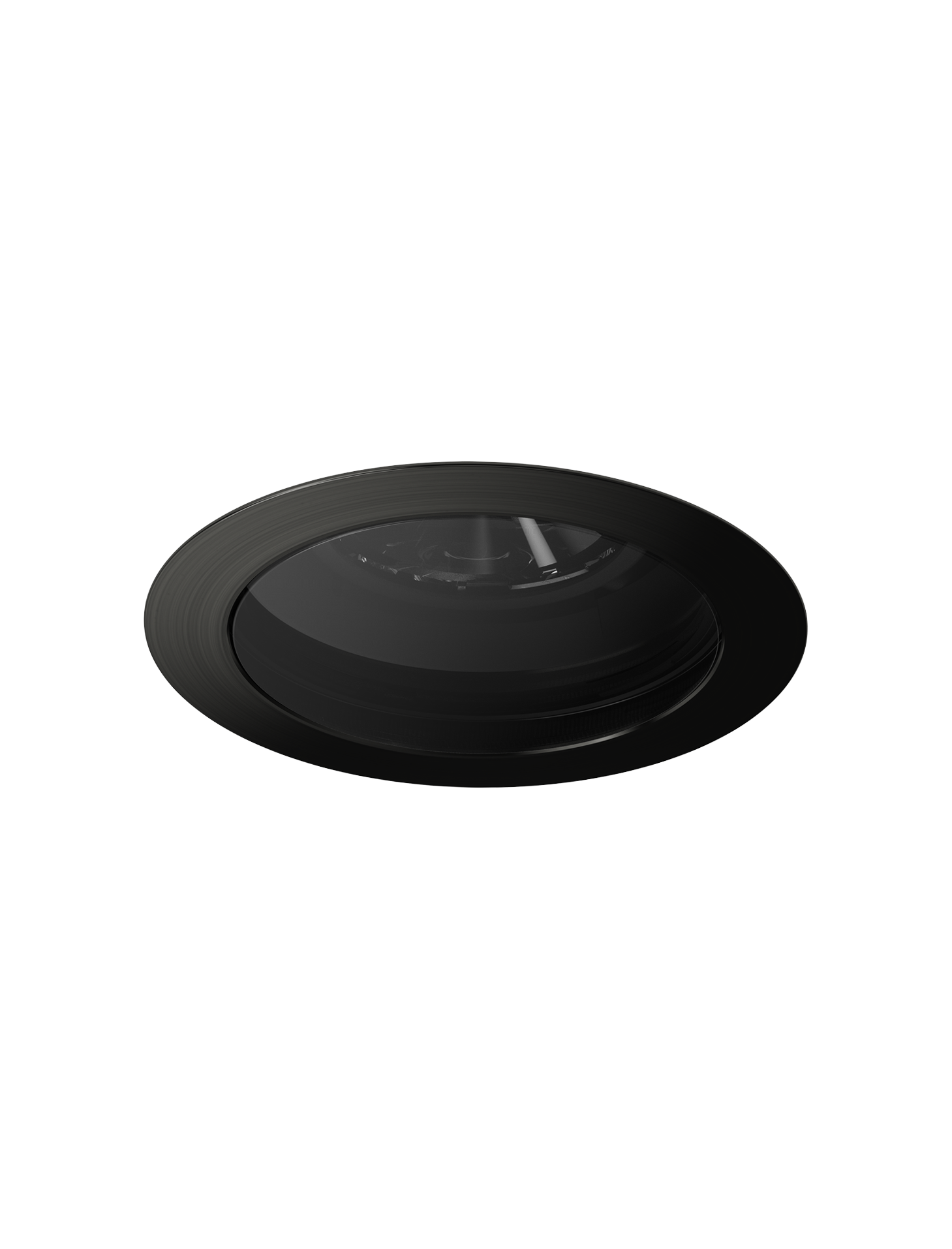

Recessed ceiling luminaires

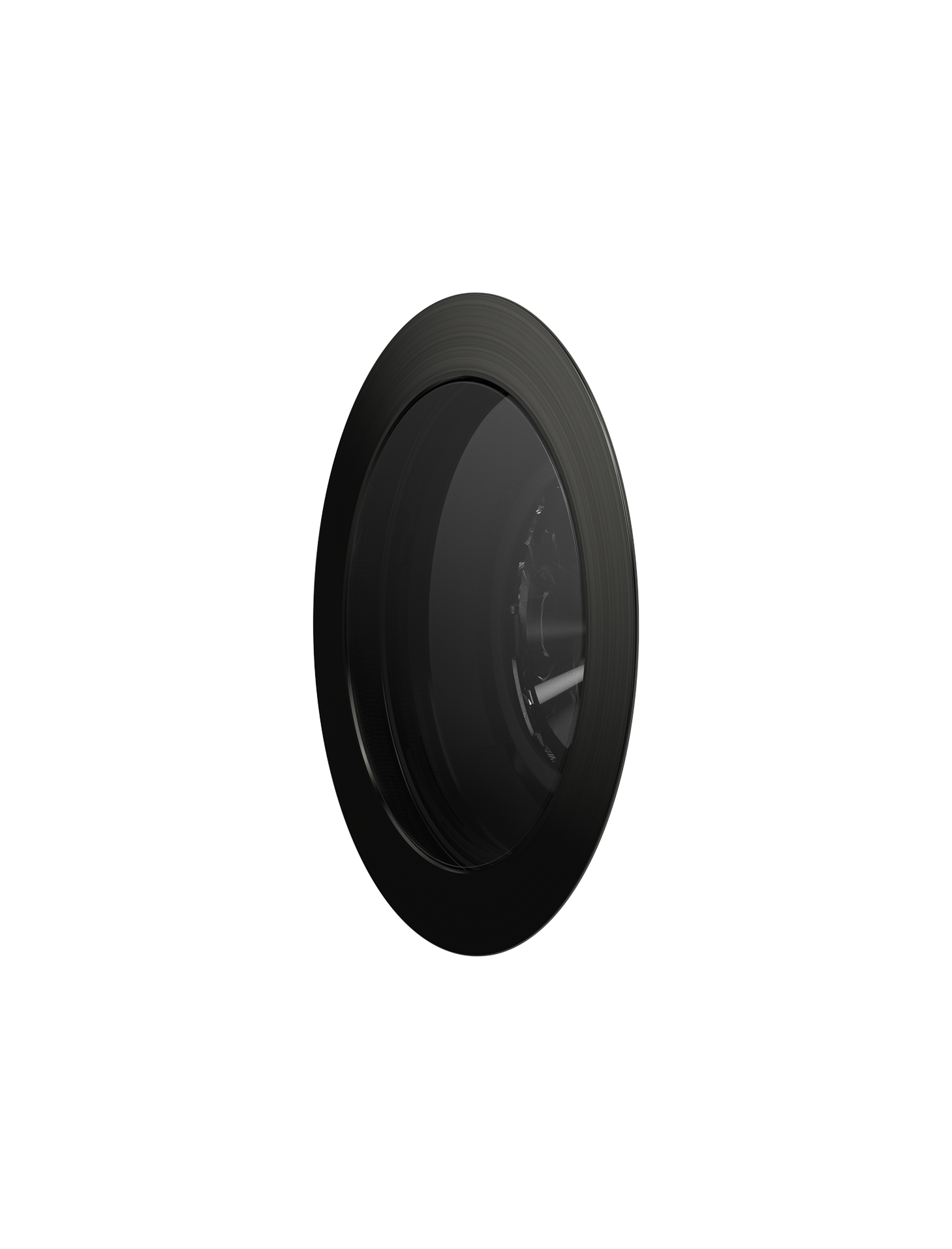

Keplero Quantum
