In-ground luminaires
Keplero Quantum 90
Fixed Oval
Code
E036SPL827ACB
Light colour
2700K
80
80
Light distribution
Elliptical
60° / 15°
60° / 15°
Output
10.3W
902lm
902lm
Power supply
Control
24Vdc
Colour
1 / 3
Technical Data
Concept
Recessed professional projector with a fixed optical unit
Source
High efficiency Chip on Board LED. 2700K (Ra80) colour temperature.
Energy efficiency classC
Nominal power9,3W
Nominal flux1282lm
Colour rendering index80
Rf80
Rg97
CCT nominal2700K
Illuminotechnical characteristics
Optical grade PMMA lens and holographic diffusing filter. Oval versions with holographic filter for elliptical light emission.
OpticLENS

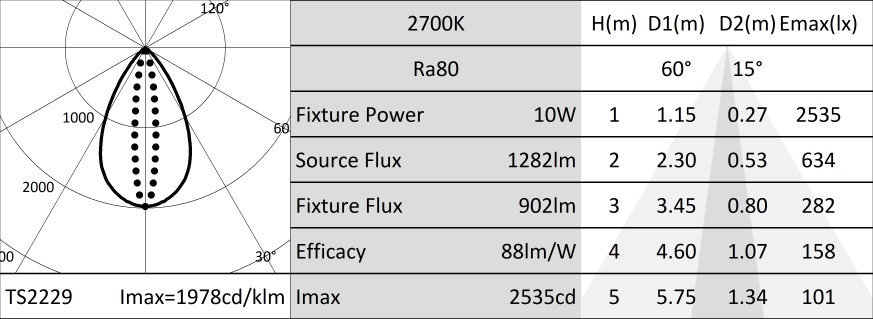

Beam anglesOV (SP-WFL)
Optical efficiency70%
Fixture flux902lm
Luminous efficacy88lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Aluminium body made by CNC machinining process and treated with black anodizing. Ultra flat decorative ring with a flared edge, made of brushed stainless steel (AISI 316) in a copper bronze finish. Anti-slip glass for public pedestrian areas.
Colour and finishCopper bronze
VersionANTI-SLIP GLASS
Degree of protectionIP66,IP67,IP68
Mechanical ResistanceIK10
Electrical characteristics
24Vdc power supply. ON-OFF or DALI2 remote driver to be ordered separately. Precabled with 1,5m 2x0,5mm² cable. Casambi control system available via accessory (for products with DALI2 driver only).
Fixture Power10W
Power supply24Vdc
Insulation ClassCLASS 3
Driver includedNO
Class FYES
Ambient temperature-25°C / +35°C
Installation
In-ground installation by a reinforced nylon sleeve, to be ordered separately. Sleeves are available for flush or trim installation. 20kN resistance to static load. Wall/ceiling installation by the accessory mounting systems.
Notes
IP68: the fixture is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h). All the Keplero Quantum 90 versions (except all-glass versions) meet the drive-over and walk-over requirements set out in the EN 60598-2-13 standard. Low temperatures on the glass make them suitable even for installation in "special areas", such as spaces for children. It features the "Waterblock Smart" technical solution which involves resin-sealing the connection cables to minimize the risk of moisture rising into the fixture. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Non-replaceable control gear.
Related codes
1 / 2
| Code | L mm | H mm | P mm | ||
|---|---|---|---|---|---|
| A124 | 219 | 126 | 219 |
Reinforced nylon installation sleeve.
The sleeve is designed for the trim installation of the fixture.
Complete with a cover element to protect the recessed housing during concrete pouring.
AxB 219x219 H. 126
1 / 2
| Code | L mm | H mm | P mm | Colour | |
|---|---|---|---|---|---|
| A125CB | 219 | 127 | 219 |  |
Reinforced nylon installation sleeve.
The sleeve is designed for the flush installation of the fixture.
Complete with a cover element to protect the recessed housing during concrete pouring.
AxB 219x219 H. 127
| Code |
|---|
| A127 |
Steel spring kit for wall and ceiling installations.
| Code | Dimensions LxHxP mm | Power | Power supply | Output voltage | IP |
|---|---|---|---|---|---|
| A134EL | 171x37x62 | 60W MAX | 220-240Vac | 24Vdc | IP67 |
| A137EL | 228x39x68 | 150W MAX | 220-240Vac | 24Vdc | IP67 |
Electronic ON-OFF power supply.
| Code | Dimensions LxHxP mm | Power | Power supply | Output voltage | IP |
|---|---|---|---|---|---|
| A134D2 | 150x35x53 | 60W MAX | 220-240Vac | 24Vdc | IP67 |
| A136D2 | 191x38x63 | 120W MAX | 220-240Vac | 24Vdc | IP67 |
DALI2 power supply.
Accessories
| Code |
|---|
| 1E2493 |
Linear connection box IP68.
4 poles max. wire section 2.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E2494 |
Multiple connection box IP68.
1 IN - 3 OUT 4 poles max. wire section 2.5mm².
Cable diameter range from 6 to 12mm.
| Code |
|---|
| 1E3305 |
Tightening wrench for the connector kit.
