In-ground luminaires
Keplero Quantum 90
Adjustable AG
Code
E041SPL922C
Light colour
2200K
90
90
Light distribution
SP
15°
15°
Output
10.3W
793lm
793lm
Power supply
Control
24Vdc
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED. 2200K (Ra90) colour temperature.
Energy efficiency classE
Nominal power9,3W
Nominal flux972lm
Colour rendering index90
Rf91
Rg101
CCT nominal2200K
Illuminotechnical characteristics
Optical grade PMMA lens and holographic diffusing filter. Adjustability of the optical unit up to 15° on the vertical plane. Tilting of the optical unit made through external regulation without opening the product.
OpticLENS

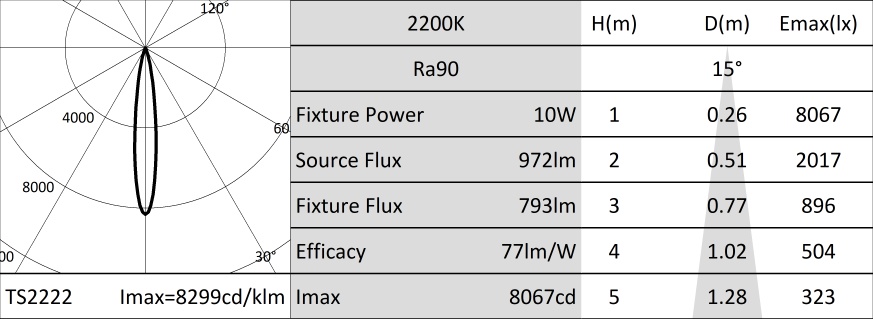

Beam anglesSP
Optical efficiency82%
Fixture flux793lm
Luminous efficacy77lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics

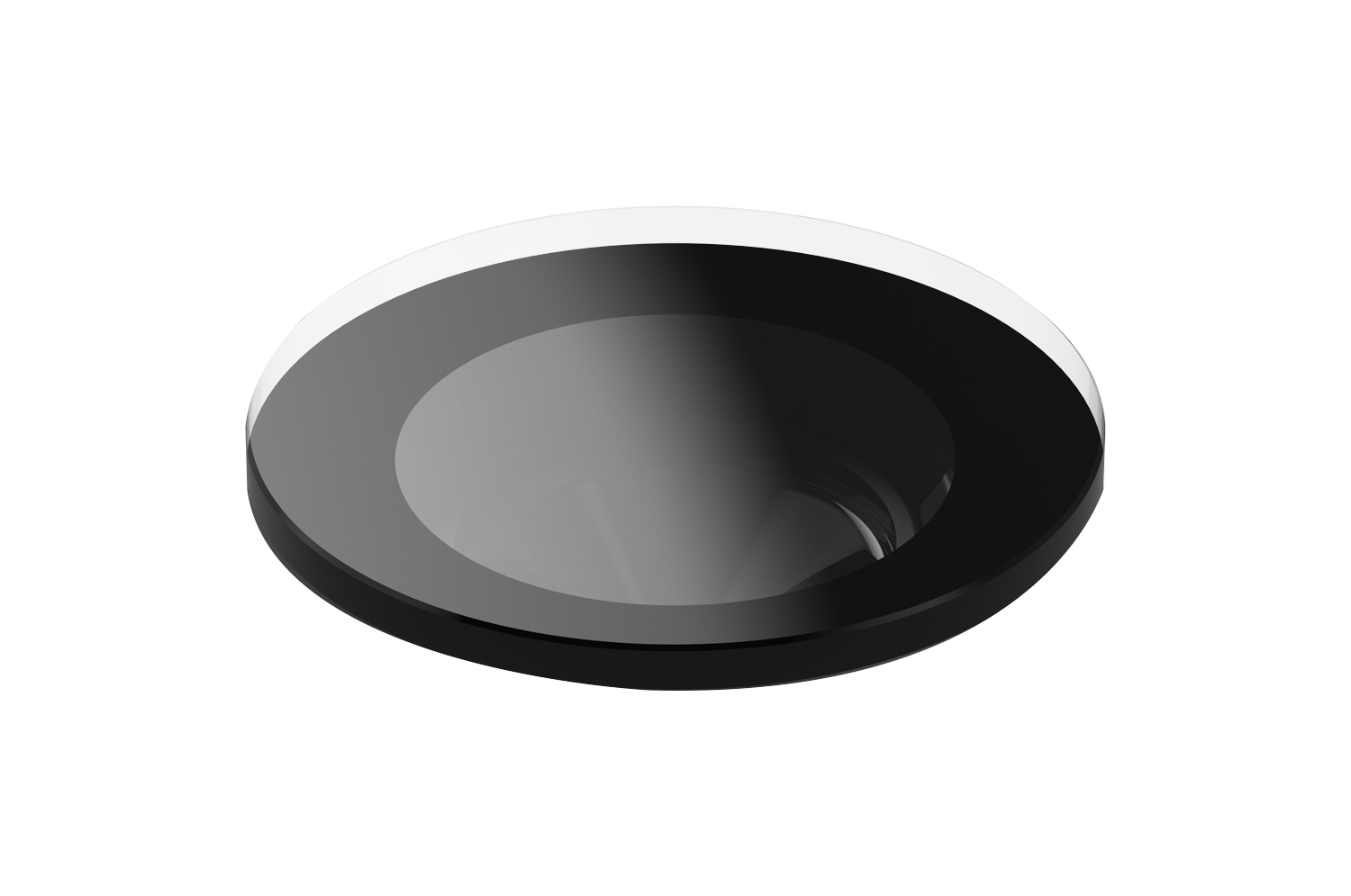

Aluminium body made by CNC machinining process and treated with black anodizing. All-glass version. Extra clear protective glass.
Colour and finishAll-glass
VersionCLEAR GLASS
Degree of protectionIP66,IP67,IP68
Mechanical ResistanceIK10
Electrical characteristics
24Vdc power supply. ON-OFF or DALI2 remote driver to be ordered separately. Precabled with 1,5m 2x0,5mm² cable. Casambi control system available via accessory (for products with DALI2 driver only).
Fixture Power10W
Power supply24Vdc
Insulation ClassCLASS 3
Driver includedNO
Class FYES
Ambient temperature-25°C / +35°C
Installation
In-ground installation by a reinforced nylon sleeve, to be ordered separately. Sleeve available for flush installation. 20kN resistance to static load.
Notes
IP68: the fixture is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h). All the Keplero Quantum 90 all-glass versions meet the walk-over requirements set out in the EN 60598-2-13 standard. Low temperatures on the glass make them suitable even for installation in "special areas", such as spaces for children. It features the "Waterblock Smart" technical solution which involves resin-sealing the connection cables to minimize the risk of moisture rising into the fixture. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Non-replaceable control gear.
Related codes
1 / 2
| Code | Colour | P mm | H mm | L mm | |
|---|---|---|---|---|---|
| A126SS |  | 219 | 133 | 219 | |
| A126CB |  | 219 | 133 | 219 | |
| A126EB |  | 219 | 133 | 219 |
Reinforced nylon installation sleeve.
The sleeve is designed for the flush installation of All-glass versions.
Complete with a cover element to protect the recessed housing during concrete pouring.
AxB 219x219 H. 133
| Code | IP | Output voltage | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| A134EL | IP67 | 24Vdc | 220-240Vac | 60W MAX | 171x37x62 |
| A137EL | IP67 | 24Vdc | 220-240Vac | 150W MAX | 228x39x68 |
Electronic ON-OFF power supply.
| Code | IP | Output voltage | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| A134D2 | IP67 | 24Vdc | 220-240Vac | 60W MAX | 150x35x53 |
| A136D2 | IP67 | 24Vdc | 220-240Vac | 120W MAX | 191x38x63 |
DALI2 power supply.
Accessories
| Code |
|---|
| 1E2493 |
Linear connection box IP68.
4 poles max. wire section 2.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E2494 |
Multiple connection box IP68.
1 IN - 3 OUT 4 poles max. wire section 2.5mm².
Cable diameter range from 6 to 12mm.
| Code |
|---|
| 1E3305 |
Tightening wrench for the connector kit.
