In-ground luminaires
Keplero Quantum
Filters
Filters
Colour
Dimension
Version
CCT
CRI
Optic
Type of optic
Fixture Power
W
W
Fixture flux
lm
lm
Power supply

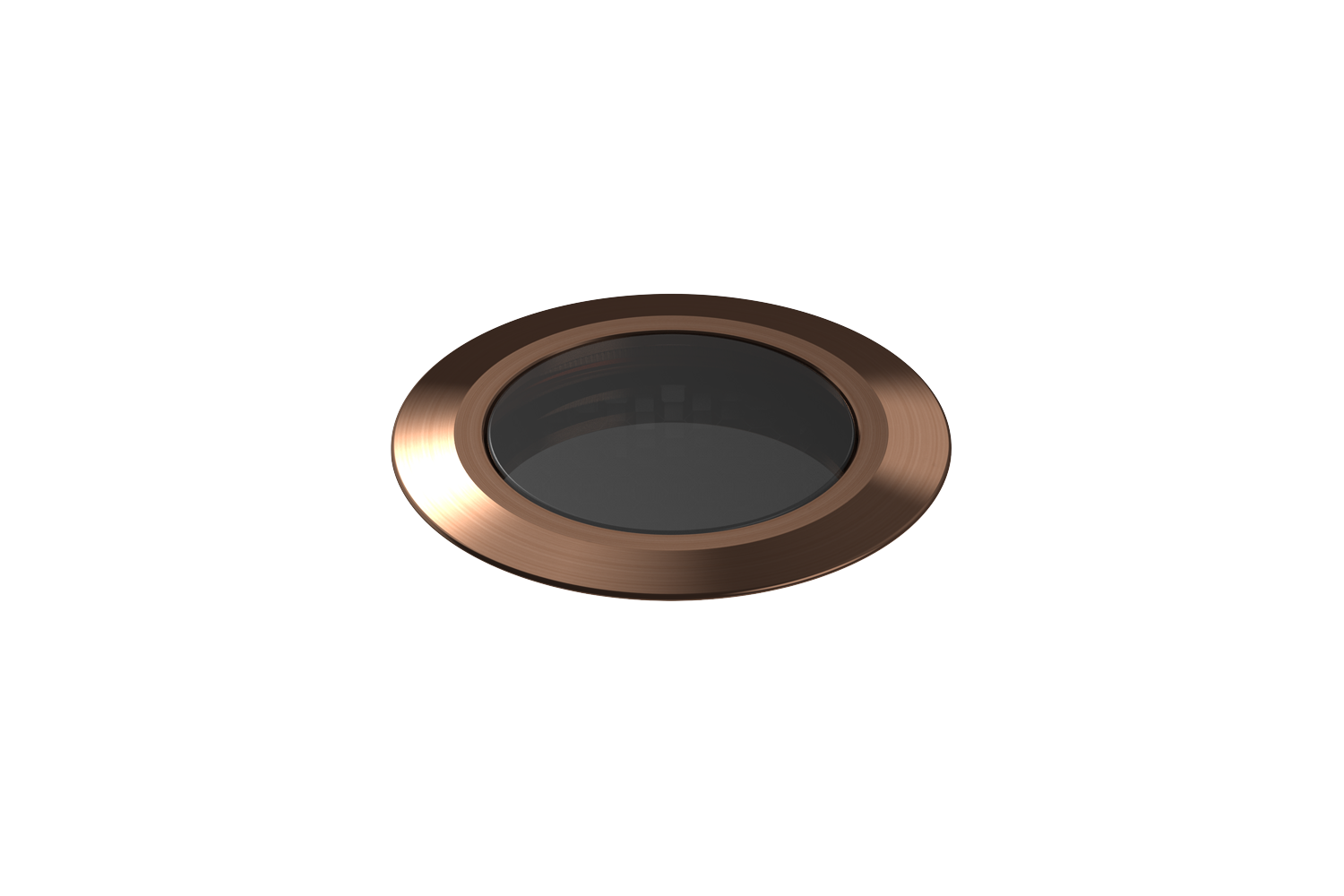

Keplero Quantum 60 Fixed
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E044NSL822CSS | 2200K 80 | NSP 7° | 2.3W 177lm | 24Vdc |  |
Overview |
| E044NSL822CCB | 2200K 80 | NSP 7° | 2.3W 177lm | 24Vdc |  |
Overview |
| E044NSL822CEB | 2200K 80 | NSP 7° | 2.3W 177lm | 24Vdc |  |
Overview |
| E044NSL822ASS | 2200K 80 | NSP 7° | 2.3W 177lm | 24Vdc | |
Overview |
| E044NSL822ACB | 2200K 80 | NSP 7° | 2.3W 177lm | 24Vdc | |
Overview |
| E044NSL822AEB | 2200K 80 | NSP 7° | 2.3W 177lm | 24Vdc | |
Overview |
| E044NSL827CSS | 2700K 80 | NSP 7° | 2.3W 200lm | 24Vdc | |
Overview |
| E044NSL827CCB | 2700K 80 | NSP 7° | 2.3W 200lm | 24Vdc | |
Overview |
| E044NSL827CEB | 2700K 80 | NSP 7° | 2.3W 200lm | 24Vdc | |
Overview |
| E044NSL827ASS | 2700K 80 | NSP 7° | 2.3W 200lm | 24Vdc | |
Overview |
| E044NSL827ACB | 2700K 80 | NSP 7° | 2.3W 200lm | 24Vdc | |
Overview |
| E044NSL827AEB | 2700K 80 | NSP 7° | 2.3W 200lm | 24Vdc | |
Overview |
| E044NSL830CSS | 3000K 80 | NSP 7° | 2.3W 204lm | 24Vdc | |
Overview |
| E044NSL830CCB | 3000K 80 | NSP 7° | 2.3W 204lm | 24Vdc | |
Overview |
| E044NSL830CEB | 3000K 80 | NSP 7° | 2.3W 204lm | 24Vdc | |
Overview |
| E044NSL830ASS | 3000K 80 | NSP 7° | 2.3W 204lm | 24Vdc | |
Overview |
| E044NSL830ACB | 3000K 80 | NSP 7° | 2.3W 204lm | 24Vdc | |
Overview |
| E044NSL830AEB | 3000K 80 | NSP 7° | 2.3W 204lm | 24Vdc | |
Overview |
| E044NSL840CSS | 4000K 80 | NSP 7° | 2.3W 215lm | 24Vdc | |
Overview |
| E044NSL840CCB | 4000K 80 | NSP 7° | 2.3W 215lm | 24Vdc | |
Overview |
| E044NSL840CEB | 4000K 80 | NSP 7° | 2.3W 215lm | 24Vdc | |
Overview |
| E044NSL840ASS | 4000K 80 | NSP 7° | 2.3W 215lm | 24Vdc | |
Overview |
| E044NSL840ACB | 4000K 80 | NSP 7° | 2.3W 215lm | 24Vdc | |
Overview |
| E044NSL840AEB | 4000K 80 | NSP 7° | 2.3W 215lm | 24Vdc | |
Overview |
| E044SPL922CSS | 2200K 90 | SP 17° | 4.7W 300lm | 24Vdc | |
Overview |
| E044SPL922CCB | 2200K 90 | SP 17° | 4.7W 300lm | 24Vdc | |
Overview |
| E044SPL922CEB | 2200K 90 | SP 17° | 4.7W 300lm | 24Vdc | |
Overview |
| E044SPL922ASS | 2200K 90 | SP 17° | 4.7W 300lm | 24Vdc | |
Overview |
| E044SPL922ACB | 2200K 90 | SP 17° | 4.7W 300lm | 24Vdc | |
Overview |
| E044SPL922AEB | 2200K 90 | SP 17° | 4.7W 300lm | 24Vdc | |
Overview |
| E044SPL827CSS | 2700K 80 | SP 17° | 4.7W 396lm | 24Vdc | |
Overview |
| E044SPL827CCB | 2700K 80 | SP 17° | 4.7W 396lm | 24Vdc | |
Overview |
| E044SPL827CEB | 2700K 80 | SP 17° | 4.7W 396lm | 24Vdc | |
Overview |
| E044SPL827ASS | 2700K 80 | SP 17° | 4.7W 396lm | 24Vdc | |
Overview |
| E044SPL827ACB | 2700K 80 | SP 17° | 4.7W 396lm | 24Vdc | |
Overview |
| E044SPL827AEB | 2700K 80 | SP 17° | 4.7W 396lm | 24Vdc | |
Overview |
| E044SPL830CSS | 3000K 80 | SP 17° | 4.7W 419lm | 24Vdc | |
Overview |
| E044SPL830CCB | 3000K 80 | SP 17° | 4.7W 419lm | 24Vdc | |
Overview |
| E044SPL830CEB | 3000K 80 | SP 17° | 4.7W 419lm | 24Vdc | |
Overview |
| E044SPL830ASS | 3000K 80 | SP 17° | 4.7W 419lm | 24Vdc | |
Overview |
| E044SPL830ACB | 3000K 80 | SP 17° | 4.7W 419lm | 24Vdc | |
Overview |
| E044SPL830AEB | 3000K 80 | SP 17° | 4.7W 419lm | 24Vdc | |
Overview |
| E044SPL840CSS | 4000K 80 | SP 17° | 4.7W 435lm | 24Vdc | |
Overview |
| E044SPL840CCB | 4000K 80 | SP 17° | 4.7W 435lm | 24Vdc | |
Overview |
| E044SPL840CEB | 4000K 80 | SP 17° | 4.7W 435lm | 24Vdc | |
Overview |
| E044SPL840ASS | 4000K 80 | SP 17° | 4.7W 435lm | 24Vdc | |
Overview |
| E044SPL840ACB | 4000K 80 | SP 17° | 4.7W 435lm | 24Vdc | |
Overview |
| E044SPL840AEB | 4000K 80 | SP 17° | 4.7W 435lm | 24Vdc | |
Overview |
| E044FLL922CSS | 2200K 90 | FL 34° | 4.7W 288lm | 24Vdc | |
Overview |
| E044FLL922CCB | 2200K 90 | FL 34° | 4.7W 288lm | 24Vdc | |
Overview |
| E044FLL922CEB | 2200K 90 | FL 34° | 4.7W 288lm | 24Vdc | |
Overview |
| E044FLL922ASS | 2200K 90 | FL 34° | 4.7W 288lm | 24Vdc | |
Overview |
| E044FLL922ACB | 2200K 90 | FL 34° | 4.7W 288lm | 24Vdc | |
Overview |
| E044FLL922AEB | 2200K 90 | FL 34° | 4.7W 288lm | 24Vdc | |
Overview |
| E044FLL827CSS | 2700K 80 | FL 34° | 4.7W 380lm | 24Vdc | |
Overview |
| E044FLL827CCB | 2700K 80 | FL 34° | 4.7W 380lm | 24Vdc | |
Overview |
| E044FLL827CEB | 2700K 80 | FL 34° | 4.7W 380lm | 24Vdc | |
Overview |
| E044FLL827ASS | 2700K 80 | FL 34° | 4.7W 380lm | 24Vdc | |
Overview |
| E044FLL827ACB | 2700K 80 | FL 34° | 4.7W 380lm | 24Vdc | |
Overview |
| E044FLL827AEB | 2700K 80 | FL 34° | 4.7W 380lm | 24Vdc | |
Overview |
| E044FLL830CSS | 3000K 80 | FL 34° | 4.7W 402lm | 24Vdc | |
Overview |
| E044FLL830CCB | 3000K 80 | FL 34° | 4.7W 402lm | 24Vdc | |
Overview |
| E044FLL830CEB | 3000K 80 | FL 34° | 4.7W 402lm | 24Vdc | |
Overview |
| E044FLL830ASS | 3000K 80 | FL 34° | 4.7W 402lm | 24Vdc | |
Overview |
| E044FLL830ACB | 3000K 80 | FL 34° | 4.7W 402lm | 24Vdc | |
Overview |
| E044FLL830AEB | 3000K 80 | FL 34° | 4.7W 402lm | 24Vdc | |
Overview |
| E044FLL840CSS | 4000K 80 | FL 34° | 4.7W 417lm | 24Vdc | |
Overview |
| E044FLL840CCB | 4000K 80 | FL 34° | 4.7W 417lm | 24Vdc | |
Overview |
| E044FLL840CEB | 4000K 80 | FL 34° | 4.7W 417lm | 24Vdc | |
Overview |
| E044FLL840ASS | 4000K 80 | FL 34° | 4.7W 417lm | 24Vdc | |
Overview |
| E044FLL840ACB | 4000K 80 | FL 34° | 4.7W 417lm | 24Vdc | |
Overview |
| E044FLL840AEB | 4000K 80 | FL 34° | 4.7W 417lm | 24Vdc | |
Overview |
| E044MWL922CSS | 2200K 90 | MWFL 50° | 4.7W 266lm | 24Vdc | |
Overview |
| E044MWL922CCB | 2200K 90 | MWFL 50° | 4.7W 266lm | 24Vdc | |
Overview |
| E044MWL922CEB | 2200K 90 | MWFL 50° | 4.7W 266lm | 24Vdc | |
Overview |
| E044MWL922ASS | 2200K 90 | MWFL 50° | 4.7W 266lm | 24Vdc | |
Overview |
| E044MWL922ACB | 2200K 90 | MWFL 50° | 4.7W 266lm | 24Vdc | |
Overview |
| E044MWL922AEB | 2200K 90 | MWFL 50° | 4.7W 266lm | 24Vdc | |
Overview |
| E044MWL827CSS | 2700K 80 | MWFL 50° | 4.7W 351lm | 24Vdc | |
Overview |
| E044MWL827CCB | 2700K 80 | MWFL 50° | 4.7W 351lm | 24Vdc | |
Overview |
| E044MWL827CEB | 2700K 80 | MWFL 50° | 4.7W 351lm | 24Vdc | |
Overview |
| E044MWL827ASS | 2700K 80 | MWFL 50° | 4.7W 351lm | 24Vdc | |
Overview |
| E044MWL827ACB | 2700K 80 | MWFL 50° | 4.7W 351lm | 24Vdc | |
Overview |
| E044MWL827AEB | 2700K 80 | MWFL 50° | 4.7W 351lm | 24Vdc | |
Overview |
| E044MWL830CSS | 3000K 80 | MWFL 50° | 4.7W 371lm | 24Vdc | |
Overview |
| E044MWL830CCB | 3000K 80 | MWFL 50° | 4.7W 371lm | 24Vdc | |
Overview |
| E044MWL830CEB | 3000K 80 | MWFL 50° | 4.7W 371lm | 24Vdc | |
Overview |
| E044MWL830ASS | 3000K 80 | MWFL 50° | 4.7W 371lm | 24Vdc | |
Overview |
| E044MWL830ACB | 3000K 80 | MWFL 50° | 4.7W 371lm | 24Vdc | |
Overview |
| E044MWL830AEB | 3000K 80 | MWFL 50° | 4.7W 371lm | 24Vdc | |
Overview |
| E044MWL840CSS | 4000K 80 | MWFL 50° | 4.7W 385lm | 24Vdc | |
Overview |
| E044MWL840CCB | 4000K 80 | MWFL 50° | 4.7W 385lm | 24Vdc | |
Overview |
| E044MWL840CEB | 4000K 80 | MWFL 50° | 4.7W 385lm | 24Vdc | |
Overview |
| E044MWL840ASS | 4000K 80 | MWFL 50° | 4.7W 385lm | 24Vdc | |
Overview |
| E044MWL840ACB | 4000K 80 | MWFL 50° | 4.7W 385lm | 24Vdc | |
Overview |
| E044MWL840AEB | 4000K 80 | MWFL 50° | 4.7W 385lm | 24Vdc | |
Overview |
| E044WWL922CSS | 2200K 90 | Wall Washer | 4.7W 50lm | 24Vdc | |
Overview |
| E044WWL922CCB | 2200K 90 | Wall Washer | 4.7W 50lm | 24Vdc | |
Overview |
| E044WWL922CEB | 2200K 90 | Wall Washer | 4.7W 50lm | 24Vdc | |
Overview |
| E044WWL922ASS | 2200K 90 | Wall Washer | 4.7W 50lm | 24Vdc | |
Overview |
| E044WWL922ACB | 2200K 90 | Wall Washer | 4.7W 50lm | 24Vdc | |
Overview |
| E044WWL922AEB | 2200K 90 | Wall Washer | 4.7W 50lm | 24Vdc | |
Overview |
| E044WWL827CSS | 2700K 80 | Wall Washer | 4.7W 65lm | 24Vdc | |
Overview |
| E044WWL827CCB | 2700K 80 | Wall Washer | 4.7W 65lm | 24Vdc | |
Overview |
| E044WWL827CEB | 2700K 80 | Wall Washer | 4.7W 65lm | 24Vdc | |
Overview |
| E044WWL827ASS | 2700K 80 | Wall Washer | 4.7W 65lm | 24Vdc | |
Overview |
| E044WWL827ACB | 2700K 80 | Wall Washer | 4.7W 65lm | 24Vdc | |
Overview |
| E044WWL827AEB | 2700K 80 | Wall Washer | 4.7W 65lm | 24Vdc | |
Overview |
| E044WWL830CSS | 3000K 80 | Wall Washer | 4.7W 69lm | 24Vdc | |
Overview |
| E044WWL830CCB | 3000K 80 | Wall Washer | 4.7W 69lm | 24Vdc | |
Overview |
| E044WWL830CEB | 3000K 80 | Wall Washer | 4.7W 69lm | 24Vdc | |
Overview |
| E044WWL830ASS | 3000K 80 | Wall Washer | 4.7W 69lm | 24Vdc | |
Overview |
| E044WWL830ACB | 3000K 80 | Wall Washer | 4.7W 69lm | 24Vdc | |
Overview |
| E044WWL830AEB | 3000K 80 | Wall Washer | 4.7W 69lm | 24Vdc | |
Overview |
| E044WWL840CSS | 4000K 80 | Wall Washer | 4.7W 72lm | 24Vdc | |
Overview |
| E044WWL840CCB | 4000K 80 | Wall Washer | 4.7W 72lm | 24Vdc | |
Overview |
| E044WWL840CEB | 4000K 80 | Wall Washer | 4.7W 72lm | 24Vdc | |
Overview |
| E044WWL840ASS | 4000K 80 | Wall Washer | 4.7W 72lm | 24Vdc | |
Overview |
| E044WWL840ACB | 4000K 80 | Wall Washer | 4.7W 72lm | 24Vdc | |
Overview |
| E044WWL840AEB | 4000K 80 | Wall Washer | 4.7W 72lm | 24Vdc | |
Overview |
| E044OPL822CSS | 2200K 80 | Opal | 1.6W 138lm | 24Vdc | |
Overview |
| E044OPL822CCB | 2200K 80 | Opal | 1.6W 138lm | 24Vdc | |
Overview |
| E044OPL822CEB | 2200K 80 | Opal | 1.6W 138lm | 24Vdc | |
Overview |
| E044OPL822ASS | 2200K 80 | Opal | 1.6W 138lm | 24Vdc | |
Overview |
| E044OPL822ACB | 2200K 80 | Opal | 1.6W 138lm | 24Vdc | |
Overview |
| E044OPL822AEB | 2200K 80 | Opal | 1.6W 138lm | 24Vdc | |
Overview |
| E044OPL827CSS | 2700K 80 | Opal | 1.6W 156lm | 24Vdc | |
Overview |
| E044OPL827CCB | 2700K 80 | Opal | 1.6W 156lm | 24Vdc | |
Overview |
| E044OPL827CEB | 2700K 80 | Opal | 1.6W 156lm | 24Vdc | |
Overview |
| E044OPL827ASS | 2700K 80 | Opal | 1.6W 156lm | 24Vdc | |
Overview |
| E044OPL827ACB | 2700K 80 | Opal | 1.6W 156lm | 24Vdc | |
Overview |
| E044OPL827AEB | 2700K 80 | Opal | 1.6W 156lm | 24Vdc | |
Overview |
| E044OPL830CSS | 3000K 80 | Opal | 1.6W 160lm | 24Vdc | |
Overview |
| E044OPL830CCB | 3000K 80 | Opal | 1.6W 160lm | 24Vdc | |
Overview |
| E044OPL830CEB | 3000K 80 | Opal | 1.6W 160lm | 24Vdc | |
Overview |
| E044OPL830ASS | 3000K 80 | Opal | 1.6W 160lm | 24Vdc | |
Overview |
| E044OPL830ACB | 3000K 80 | Opal | 1.6W 160lm | 24Vdc | |
Overview |
| E044OPL830AEB | 3000K 80 | Opal | 1.6W 160lm | 24Vdc | |
Overview |
| E044OPL840CSS | 4000K 80 | Opal | 1.6W 169lm | 24Vdc | |
Overview |
| E044OPL840CCB | 4000K 80 | Opal | 1.6W 169lm | 24Vdc | |
Overview |
| E044OPL840CEB | 4000K 80 | Opal | 1.6W 169lm | 24Vdc | |
Overview |
| E044OPL840ASS | 4000K 80 | Opal | 1.6W 169lm | 24Vdc | |
Overview |
| E044OPL840ACB | 4000K 80 | Opal | 1.6W 169lm | 24Vdc | |
Overview |
| E044OPL840AEB | 4000K 80 | Opal | 1.6W 169lm | 24Vdc | |
Overview |
134

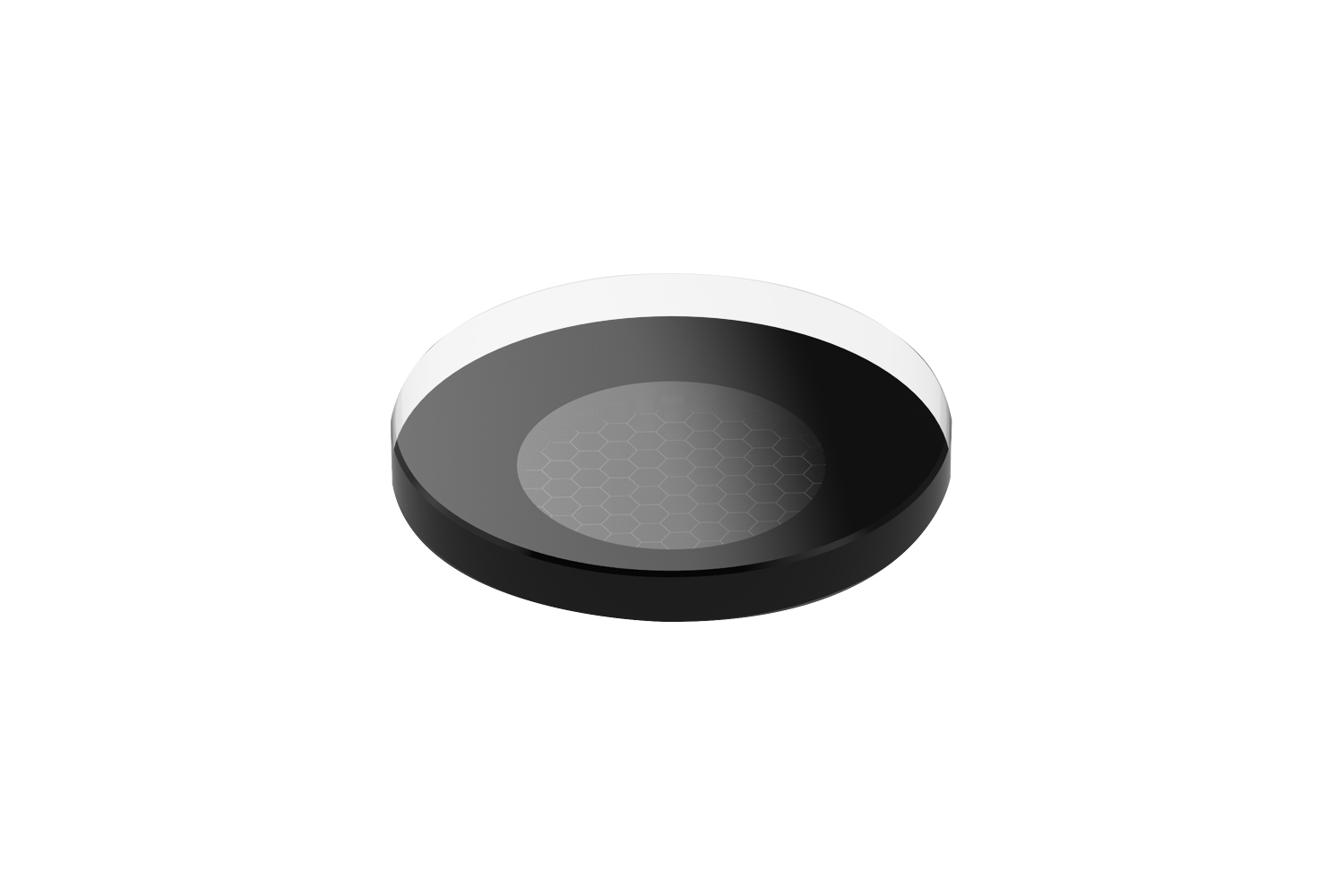

Keplero Quantum 60 Fixed AG
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E045NSL822C | 2200K 80 | NSP 7° | 2.3W 177lm | 24Vdc |  |
Overview |
| E045NSL822A | 2200K 80 | NSP 7° | 2.3W 177lm | 24Vdc | |
Overview |
| E045NSL827C | 2700K 80 | NSP 7° | 2.3W 200lm | 24Vdc | |
Overview |
| E045NSL827A | 2700K 80 | NSP 7° | 2.3W 200lm | 24Vdc | |
Overview |
| E045NSL830C | 3000K 80 | NSP 7° | 2.3W 204lm | 24Vdc | |
Overview |
| E045NSL830A | 3000K 80 | NSP 7° | 2.3W 204lm | 24Vdc | |
Overview |
| E045NSL840C | 4000K 80 | NSP 7° | 2.3W 215lm | 24Vdc | |
Overview |
| E045NSL840A | 4000K 80 | NSP 7° | 2.3W 215lm | 24Vdc | |
Overview |
| E045SPL922C | 2200K 90 | SP 17° | 4.7W 300lm | 24Vdc | |
Overview |
| E045SPL922A | 2200K 90 | SP 17° | 4.7W 300lm | 24Vdc | |
Overview |
| E045SPL827C | 2700K 80 | SP 17° | 4.7W 396lm | 24Vdc | |
Overview |
| E045SPL827A | 2700K 80 | SP 17° | 4.7W 396lm | 24Vdc | |
Overview |
| E045SPL830C | 3000K 80 | SP 17° | 4.7W 419lm | 24Vdc | |
Overview |
| E045SPL830A | 3000K 80 | SP 17° | 4.7W 419lm | 24Vdc | |
Overview |
| E045SPL840C | 4000K 80 | SP 17° | 4.7W 435lm | 24Vdc | |
Overview |
| E045SPL840A | 4000K 80 | SP 17° | 4.7W 435lm | 24Vdc | |
Overview |
| E045FLL922C | 2200K 90 | FL 34° | 4.7W 288lm | 24Vdc | |
Overview |
| E045FLL922A | 2200K 90 | FL 34° | 4.7W 288lm | 24Vdc | |
Overview |
| E045FLL827C | 2700K 80 | FL 34° | 4.7W 380lm | 24Vdc | |
Overview |
| E045FLL827A | 2700K 80 | FL 34° | 4.7W 380lm | 24Vdc | |
Overview |
| E045FLL830C | 3000K 80 | FL 34° | 4.7W 402lm | 24Vdc | |
Overview |
| E045FLL830A | 3000K 80 | FL 34° | 4.7W 402lm | 24Vdc | |
Overview |
| E045FLL840C | 4000K 80 | FL 34° | 4.7W 417lm | 24Vdc | |
Overview |
| E045FLL840A | 4000K 80 | FL 34° | 4.7W 417lm | 24Vdc | |
Overview |
| E045MWL922C | 2200K 90 | MWFL 50° | 4.7W 266lm | 24Vdc | |
Overview |
| E045MWL922A | 2200K 90 | MWFL 50° | 4.7W 266lm | 24Vdc | |
Overview |
| E045MWL827C | 2700K 80 | MWFL 50° | 4.7W 351lm | 24Vdc | |
Overview |
| E045MWL827A | 2700K 80 | MWFL 50° | 4.7W 351lm | 24Vdc | |
Overview |
| E045MWL830C | 3000K 80 | MWFL 50° | 4.7W 371lm | 24Vdc | |
Overview |
| E045MWL830A | 3000K 80 | MWFL 50° | 4.7W 371lm | 24Vdc | |
Overview |
| E045MWL840C | 4000K 80 | MWFL 50° | 4.7W 385lm | 24Vdc | |
Overview |
| E045MWL840A | 4000K 80 | MWFL 50° | 4.7W 385lm | 24Vdc | |
Overview |
| E045WWL922C | 2200K 90 | Wall Washer | 4.7W 50lm | 24Vdc | |
Overview |
| E045WWL922A | 2200K 90 | Wall Washer | 4.7W 50lm | 24Vdc | |
Overview |
| E045WWL827C | 2200K 90 | Wall Washer | 4.7W 65lm | 24Vdc | |
Overview |
| E045WWL827A | 2200K 90 | Wall Washer | 4.7W 65lm | 24Vdc | |
Overview |
| E045WWL830C | 2200K 90 | Wall Washer | 4.7W 69lm | 24Vdc | |
Overview |
| E045WWL830A | 2200K 90 | Wall Washer | 4.7W 69lm | 24Vdc | |
Overview |
| E045WWL840C | 2700K 80 | Wall Washer | 4.7W 72lm | 24Vdc | |
Overview |
| E045WWL840A | 2700K 80 | Wall Washer | 4.7W 72lm | 24Vdc | |
Overview |
| E045OPL822C | 2200K 80 | Opal | 1.6W 138lm | 24Vdc | |
Overview |
| E045OPL822A | 2200K 80 | Opal | 1.6W 138lm | 24Vdc | |
Overview |
| E045OPL827C | 2700K 80 | Opal | 1.6W 156lm | 24Vdc | |
Overview |
| E045OPL827A | 2700K 80 | Opal | 1.6W 156lm | 24Vdc | |
Overview |
| E045OPL830C | 3000K 80 | Opal | 1.6W 160lm | 24Vdc | |
Overview |
| E045OPL830A | 3000K 80 | Opal | 1.6W 160lm | 24Vdc | |
Overview |
| E045OPL840C | 4000K 80 | Opal | 1.6W 169lm | 24Vdc | |
Overview |
| E045OPL840A | 4000K 80 | Opal | 1.6W 169lm | 24Vdc | |
Overview |
38
Keplero Quantum 60 Fixed Comfort
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E046SPL922CSS | 2200K 90 | SP 16° | 4.7W 228lm | 24Vdc | |
Overview |
| E046SPL922CCB | 2200K 90 | SP 16° | 4.7W 228lm | 24Vdc | |
Overview |
| E046SPL922CEB | 2200K 90 | SP 16° | 4.7W 228lm | 24Vdc | |
Overview |
| E046SPL922ASS | 2200K 90 | SP 16° | 4.7W 228lm | 24Vdc | |
Overview |
| E046SPL922ACB | 2200K 90 | SP 16° | 4.7W 228lm | 24Vdc | |
Overview |
| E046SPL922AEB | 2200K 90 | SP 16° | 4.7W 228lm | 24Vdc | |
Overview |
| E046SPL827CSS | 2700K 80 | SP 16° | 4.7W 301lm | 24Vdc | |
Overview |
| E046SPL827CCB | 2700K 80 | SP 16° | 4.7W 301lm | 24Vdc | |
Overview |
| E046SPL827CEB | 2700K 80 | SP 16° | 4.7W 301lm | 24Vdc | |
Overview |
| E046SPL827ASS | 2700K 80 | SP 16° | 4.7W 301lm | 24Vdc | |
Overview |
| E046SPL827ACB | 2700K 80 | SP 16° | 4.7W 301lm | 24Vdc | |
Overview |
| E046SPL827AEB | 2700K 80 | SP 16° | 4.7W 301lm | 24Vdc | |
Overview |
| E046SPL830CSS | 3000K 80 | SP 16° | 4.7W 319lm | 24Vdc | |
Overview |
| E046SPL830CCB | 3000K 80 | SP 16° | 4.7W 319lm | 24Vdc | |
Overview |
| E046SPL830CEB | 3000K 80 | SP 16° | 4.7W 319lm | 24Vdc | |
Overview |
| E046SPL830ASS | 3000K 80 | SP 16° | 4.7W 319lm | 24Vdc | |
Overview |
| E046SPL830ACB | 3000K 80 | SP 16° | 4.7W 319lm | 24Vdc | |
Overview |
| E046SPL830AEB | 3000K 80 | SP 16° | 4.7W 319lm | 24Vdc | |
Overview |
| E046SPL840CSS | 4000K 80 | SP 16° | 4.7W 331lm | 24Vdc | |
Overview |
| E046SPL840CCB | 4000K 80 | SP 16° | 4.7W 331lm | 24Vdc | |
Overview |
| E046SPL840CEB | 4000K 80 | SP 16° | 4.7W 331lm | 24Vdc | |
Overview |
| E046SPL840ASS | 4000K 80 | SP 16° | 4.7W 331lm | 24Vdc | |
Overview |
| E046SPL840ACB | 4000K 80 | SP 16° | 4.7W 331lm | 24Vdc | |
Overview |
| E046SPL840AEB | 4000K 80 | SP 16° | 4.7W 331lm | 24Vdc | |
Overview |
| E046FLL922CSS | 2200K 90 | FL 30° | 4.7W 183lm | 24Vdc | |
Overview |
| E046FLL922CCB | 2200K 90 | FL 30° | 4.7W 183lm | 24Vdc | |
Overview |
| E046FLL922CEB | 2200K 90 | FL 30° | 4.7W 183lm | 24Vdc | |
Overview |
| E046FLL922ASS | 2200K 90 | FL 30° | 4.7W 183lm | 24Vdc | |
Overview |
| E046FLL922ACB | 2200K 90 | FL 30° | 4.7W 183lm | 24Vdc | |
Overview |
| E046FLL922AEB | 2200K 90 | FL 30° | 4.7W 183lm | 24Vdc | |
Overview |
| E046FLL827CSS | 2700K 80 | FL 30° | 4.7W 242lm | 24Vdc | |
Overview |
| E046FLL827CCB | 2700K 80 | FL 30° | 4.7W 242lm | 24Vdc | |
Overview |
| E046FLL827CEB | 2700K 80 | FL 30° | 4.7W 242lm | 24Vdc | |
Overview |
| E046FLL827ASS | 2700K 80 | FL 30° | 4.7W 242lm | 24Vdc | |
Overview |
| E046FLL827ACB | 2700K 80 | FL 30° | 4.7W 242lm | 24Vdc | |
Overview |
| E046FLL827AEB | 2700K 80 | FL 30° | 4.7W 242lm | 24Vdc | |
Overview |
| E046FLL830CSS | 3000K 80 | FL 30° | 4.7W 256lm | 24Vdc | |
Overview |
| E046FLL830CCB | 3000K 80 | FL 30° | 4.7W 256lm | 24Vdc | |
Overview |
| E046FLL830CEB | 3000K 80 | FL 30° | 4.7W 256lm | 24Vdc | |
Overview |
| E046FLL830ASS | 3000K 80 | FL 30° | 4.7W 256lm | 24Vdc | |
Overview |
| E046FLL830ACB | 3000K 80 | FL 30° | 4.7W 256lm | 24Vdc | |
Overview |
| E046FLL830AEB | 3000K 80 | FL 30° | 4.7W 256lm | 24Vdc | |
Overview |
| E046FLL840CSS | 4000K 80 | FL 30° | 4.7W 265lm | 24Vdc | |
Overview |
| E046FLL840CCB | 4000K 80 | FL 30° | 4.7W 265lm | 24Vdc | |
Overview |
| E046FLL840CEB | 4000K 80 | FL 30° | 4.7W 265lm | 24Vdc | |
Overview |
| E046FLL840ASS | 4000K 80 | FL 30° | 4.7W 265lm | 24Vdc | |
Overview |
| E046FLL840ACB | 4000K 80 | FL 30° | 4.7W 265lm | 24Vdc | |
Overview |
| E046FLL840AEB | 4000K 80 | FL 30° | 4.7W 265lm | 24Vdc | |
Overview |
38
Keplero Quantum 60 Fixed Comfort AG
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E047SPL922C | 2200K 90 | SP 16° | 4.7W 228lm | 24Vdc | |
Overview |
| E047SPL922A | 2200K 90 | SP 16° | 4.7W 228lm | 24Vdc | |
Overview |
| E047SPL827C | 2700K 80 | SP 16° | 4.7W 301lm | 24Vdc | |
Overview |
| E047SPL827A | 2700K 80 | SP 16° | 4.7W 301lm | 24Vdc | |
Overview |
| E047SPL830C | 3000K 80 | SP 16° | 4.7W 319lm | 24Vdc | |
Overview |
| E047SPL830A | 3000K 80 | SP 16° | 4.7W 319lm | 24Vdc | |
Overview |
| E047SPL840C | 4000K 80 | SP 16° | 4.7W 331lm | 24Vdc | |
Overview |
| E047SPL840A | 4000K 80 | SP 16° | 4.7W 331lm | 24Vdc | |
Overview |
| E047FLL922C | 2200K 90 | FL 30° | 4.7W 183lm | 24Vdc | |
Overview |
| E047FLL922A | 2200K 90 | FL 30° | 4.7W 183lm | 24Vdc | |
Overview |
| E047FLL827C | 2700K 80 | FL 30° | 4.7W 242lm | 24Vdc | |
Overview |
| E047FLL827A | 2700K 80 | FL 30° | 4.7W 242lm | 24Vdc | |
Overview |
| E047FLL830C | 3000K 80 | FL 30° | 4.7W 256lm | 24Vdc | |
Overview |
| E047FLL830A | 3000K 80 | FL 30° | 4.7W 256lm | 24Vdc | |
Overview |
| E047FLL840C | 4000K 80 | FL 30° | 4.7W 265lm | 24Vdc | |
Overview |
| E047FLL840A | 4000K 80 | FL 30° | 4.7W 265lm | 24Vdc | |
Overview |
6
Keplero Quantum 60 Fixed Oval
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E048SPL922CSS | 2200K 90 | Elliptical 17° / 60° | 4.7W 284lm | 24Vdc | |
Overview |
| E048SPL922CCB | 2200K 90 | Elliptical 17° / 60° | 4.7W 284lm | 24Vdc | |
Overview |
| E048SPL922CEB | 2200K 90 | Elliptical 17° / 60° | 4.7W 284lm | 24Vdc | |
Overview |
| E048SPL922ASS | 2200K 90 | Elliptical 17° / 60° | 4.7W 284lm | 24Vdc | |
Overview |
| E048SPL922ACB | 2200K 90 | Elliptical 17° / 60° | 4.7W 284lm | 24Vdc | |
Overview |
| E048SPL922AEB | 2200K 90 | Elliptical 17° / 60° | 4.7W 284lm | 24Vdc | |
Overview |
| E048SPL827CSS | 2700K 80 | Elliptical 17° / 60° | 4.7W 375lm | 24Vdc | |
Overview |
| E048SPL827CCB | 2700K 80 | Elliptical 17° / 60° | 4.7W 375lm | 24Vdc | |
Overview |
| E048SPL827CEB | 2700K 80 | Elliptical 17° / 60° | 4.7W 375lm | 24Vdc | |
Overview |
| E048SPL827ASS | 2700K 80 | Elliptical 17° / 60° | 4.7W 375lm | 24Vdc | |
Overview |
| E048SPL827ACB | 2700K 80 | Elliptical 17° / 60° | 4.7W 375lm | 24Vdc | |
Overview |
| E048SPL827AEB | 2700K 80 | Elliptical 17° / 60° | 4.7W 375lm | 24Vdc | |
Overview |
| E048SPL830CSS | 3000K 80 | Elliptical 17° / 60° | 4.7W 396lm | 24Vdc | |
Overview |
| E048SPL830CCB | 3000K 80 | Elliptical 17° / 60° | 4.7W 396lm | 24Vdc | |
Overview |
| E048SPL830CEB | 3000K 80 | Elliptical 17° / 60° | 4.7W 396lm | 24Vdc | |
Overview |
| E048SPL830ASS | 3000K 80 | Elliptical 17° / 60° | 4.7W 396lm | 24Vdc | |
Overview |
| E048SPL830ACB | 3000K 80 | Elliptical 17° / 60° | 4.7W 396lm | 24Vdc | |
Overview |
| E048SPL830AEB | 3000K 80 | Elliptical 17° / 60° | 4.7W 396lm | 24Vdc | |
Overview |
| E048SPL840CSS | 4000K 80 | Elliptical 17° / 60° | 4.7W 411lm | 24Vdc | |
Overview |
| E048SPL840CCB | 4000K 80 | Elliptical 17° / 60° | 4.7W 411lm | 24Vdc | |
Overview |
| E048SPL840CEB | 4000K 80 | Elliptical 17° / 60° | 4.7W 411lm | 24Vdc | |
Overview |
| E048SPL840ASS | 4000K 80 | Elliptical 17° / 60° | 4.7W 411lm | 24Vdc | |
Overview |
| E048SPL840ACB | 4000K 80 | Elliptical 17° / 60° | 4.7W 411lm | 24Vdc | |
Overview |
| E048SPL840AEB | 4000K 80 | Elliptical 17° / 60° | 4.7W 411lm | 24Vdc | |
Overview |
| E048FLL922CSS | 2200K 90 | Elliptical 32° / 68° | 4.7W 226lm | 24Vdc | |
Overview |
| E048FLL922CCB | 2200K 90 | Elliptical 32° / 68° | 4.7W 226lm | 24Vdc | |
Overview |
| E048FLL922CEB | 2200K 90 | Elliptical 32° / 68° | 4.7W 226lm | 24Vdc | |
Overview |
| E048FLL922ASS | 2200K 90 | Elliptical 32° / 68° | 4.7W 226lm | 24Vdc | |
Overview |
| E048FLL922ACB | 2200K 90 | Elliptical 32° / 68° | 4.7W 226lm | 24Vdc | |
Overview |
| E048FLL922AEB | 2200K 90 | Elliptical 32° / 68° | 4.7W 226lm | 24Vdc | |
Overview |
| E048FLL827CSS | 2700K 80 | Elliptical 32° / 68° | 4.7W 299lm | 24Vdc | |
Overview |
| E048FLL827CCB | 2700K 80 | Elliptical 32° / 68° | 4.7W 299lm | 24Vdc | |
Overview |
| E048FLL827CEB | 2700K 80 | Elliptical 32° / 68° | 4.7W 299lm | 24Vdc | |
Overview |
| E048FLL827ASS | 2700K 80 | Elliptical 32° / 68° | 4.7W 299lm | 24Vdc | |
Overview |
| E048FLL827ACB | 2700K 80 | Elliptical 32° / 68° | 4.7W 299lm | 24Vdc | |
Overview |
| E048FLL827AEB | 2700K 80 | Elliptical 32° / 68° | 4.7W 299lm | 24Vdc | |
Overview |
| E048FLL830CSS | 3000K 80 | Elliptical 32° / 68° | 4.7W 316lm | 24Vdc | |
Overview |
| E048FLL830CCB | 3000K 80 | Elliptical 32° / 68° | 4.7W 316lm | 24Vdc | |
Overview |
| E048FLL830CEB | 3000K 80 | Elliptical 32° / 68° | 4.7W 316lm | 24Vdc | |
Overview |
| E048FLL830ASS | 3000K 80 | Elliptical 32° / 68° | 4.7W 316lm | 24Vdc | |
Overview |
| E048FLL830ACB | 3000K 80 | Elliptical 32° / 68° | 4.7W 316lm | 24Vdc | |
Overview |
| E048FLL830AEB | 3000K 80 | Elliptical 32° / 68° | 4.7W 316lm | 24Vdc | |
Overview |
| E048FLL840CSS | 4000K 80 | Elliptical 32° / 68° | 4.7W 328lm | 24Vdc | |
Overview |
| E048FLL840CCB | 4000K 80 | Elliptical 32° / 68° | 4.7W 328lm | 24Vdc | |
Overview |
| E048FLL840CEB | 4000K 80 | Elliptical 32° / 68° | 4.7W 328lm | 24Vdc | |
Overview |
| E048FLL840ASS | 4000K 80 | Elliptical 32° / 68° | 4.7W 328lm | 24Vdc | |
Overview |
| E048FLL840ACB | 4000K 80 | Elliptical 32° / 68° | 4.7W 328lm | 24Vdc | |
Overview |
| E048FLL840AEB | 4000K 80 | Elliptical 32° / 68° | 4.7W 328lm | 24Vdc | |
Overview |
| E048GVL922CSS | 2200K 90 | Elliptical 21° / 106° | 4.7W 222lm | 24Vdc | |
Overview |
| E048GVL922CCB | 2200K 90 | Elliptical 21° / 106° | 4.7W 222lm | 24Vdc | |
Overview |
| E048GVL922CEB | 2200K 90 | Elliptical 21° / 106° | 4.7W 222lm | 24Vdc | |
Overview |
| E048GVL922ASS | 2200K 90 | Elliptical 21° / 106° | 4.7W 222lm | 24Vdc | |
Overview |
| E048GVL922ACB | 2200K 90 | Elliptical 21° / 106° | 4.7W 222lm | 24Vdc | |
Overview |
| E048GVL922AEB | 2200K 90 | Elliptical 21° / 106° | 4.7W 222lm | 24Vdc | |
Overview |
| E048GVL827CSS | 2700K 80 | Elliptical 21° / 106° | 4.7W 293lm | 24Vdc | |
Overview |
| E048GVL827CCB | 2700K 80 | Elliptical 21° / 106° | 4.7W 293lm | 24Vdc | |
Overview |
| E048GVL827CEB | 2700K 80 | Elliptical 21° / 106° | 4.7W 293lm | 24Vdc | |
Overview |
| E048GVL827ASS | 2700K 80 | Elliptical 21° / 106° | 4.7W 293lm | 24Vdc | |
Overview |
| E048GVL827ACB | 2700K 80 | Elliptical 21° / 106° | 4.7W 293lm | 24Vdc | |
Overview |
| E048GVL827AEB | 2700K 80 | Elliptical 21° / 106° | 4.7W 293lm | 24Vdc | |
Overview |
| E048GVL830CSS | 3000K 80 | Elliptical 21° / 106° | 4.7W 310lm | 24Vdc | |
Overview |
| E048GVL830CCB | 3000K 80 | Elliptical 21° / 106° | 4.7W 310lm | 24Vdc | |
Overview |
| E048GVL830CEB | 3000K 80 | Elliptical 21° / 106° | 4.7W 310lm | 24Vdc | |
Overview |
| E048GVL830ASS | 3000K 80 | Elliptical 21° / 106° | 4.7W 310lm | 24Vdc | |
Overview |
| E048GVL830ACB | 3000K 80 | Elliptical 21° / 106° | 4.7W 310lm | 24Vdc | |
Overview |
| E048GVL830AEB | 3000K 80 | Elliptical 21° / 106° | 4.7W 310lm | 24Vdc | |
Overview |
| E048GVL840CSS | 4000K 80 | Elliptical 21° / 106° | 4.7W 322lm | 24Vdc | |
Overview |
| E048GVL840CCB | 4000K 80 | Elliptical 21° / 106° | 4.7W 322lm | 24Vdc | |
Overview |
| E048GVL840CEB | 4000K 80 | Elliptical 21° / 106° | 4.7W 322lm | 24Vdc | |
Overview |
| E048GVL840ASS | 4000K 80 | Elliptical 21° / 106° | 4.7W 322lm | 24Vdc | |
Overview |
| E048GVL840ACB | 4000K 80 | Elliptical 21° / 106° | 4.7W 322lm | 24Vdc | |
Overview |
| E048GVL840AEB | 4000K 80 | Elliptical 21° / 106° | 4.7W 322lm | 24Vdc | |
Overview |
62
Keplero Quantum 60 Fixed Oval AG
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| E049SPL922C | 4000K 80 | Elliptical 17° / 60° | 4.7W 411lm | 24Vdc | |
Overview |
| E049SPL922A | 4000K 80 | Elliptical 17° / 60° | 4.7W 411lm | 24Vdc | |
Overview |
| E049SPL827C | 2200K 90 | Elliptical 17° / 60° | 4.7W 284lm | 24Vdc | |
Overview |
| E049SPL827A | 2200K 90 | Elliptical 17° / 60° | 4.7W 284lm | 24Vdc | |
Overview |
| E049SPL830C | 2700K 80 | Elliptical 17° / 60° | 4.7W 375lm | 24Vdc | |
Overview |
| E049SPL830A | 2700K 80 | Elliptical 17° / 60° | 4.7W 375lm | 24Vdc | |
Overview |
| E049SPL840C | 3000K 80 | Elliptical 17° / 60° | 4.7W 396lm | 24Vdc | |
Overview |
| E049SPL840A | 3000K 80 | Elliptical 17° / 60° | 4.7W 396lm | 24Vdc | |
Overview |
| E049FLL922C | 2200K 90 | Elliptical 32° / 68° | 4.7W 226lm | 24Vdc | |
Overview |
| E049FLL922A | 2200K 90 | Elliptical 32° / 68° | 4.7W 226lm | 24Vdc | |
Overview |
| E049FLL827C | 2700K 80 | Elliptical 32° / 68° | 4.7W 299lm | 24Vdc | |
Overview |
| E049FLL827A | 2700K 80 | Elliptical 32° / 68° | 4.7W 299lm | 24Vdc | |
Overview |
| E049FLL830C | 3000K 80 | Elliptical 32° / 68° | 4.7W 316lm | 24Vdc | |
Overview |
| E049FLL830A | 3000K 80 | Elliptical 32° / 68° | 4.7W 316lm | 24Vdc | |
Overview |
| E049FLL840C | 4000K 80 | Elliptical 32° / 68° | 4.7W 328lm | 24Vdc | |
Overview |
| E049FLL840A | 4000K 80 | Elliptical 32° / 68° | 4.7W 328lm | 24Vdc | |
Overview |
| E049GVL922C | 2200K 90 | Elliptical 21° / 106° | 4.7W 222lm | 24Vdc | |
Overview |
| E049GVL922A | 2200K 90 | Elliptical 21° / 106° | 4.7W 222lm | 24Vdc | |
Overview |
| E049GVL827C | 2700K 80 | Elliptical 21° / 106° | 4.7W 293lm | 24Vdc | |
Overview |
| E049GVL827A | 2700K 80 | Elliptical 21° / 106° | 4.7W 293lm | 24Vdc | |
Overview |
| E049GVL830C | 3000K 80 | Elliptical 21° / 106° | 4.7W 310lm | 24Vdc | |
Overview |
| E049GVL830A | 3000K 80 | Elliptical 21° / 106° | 4.7W 310lm | 24Vdc | |
Overview |
| E049GVL840C | 4000K 80 | Elliptical 21° / 106° | 4.7W 322lm | 24Vdc | |
Overview |
| E049GVL840A | 4000K 80 | Elliptical 21° / 106° | 4.7W 322lm | 24Vdc | |
Overview |
14
