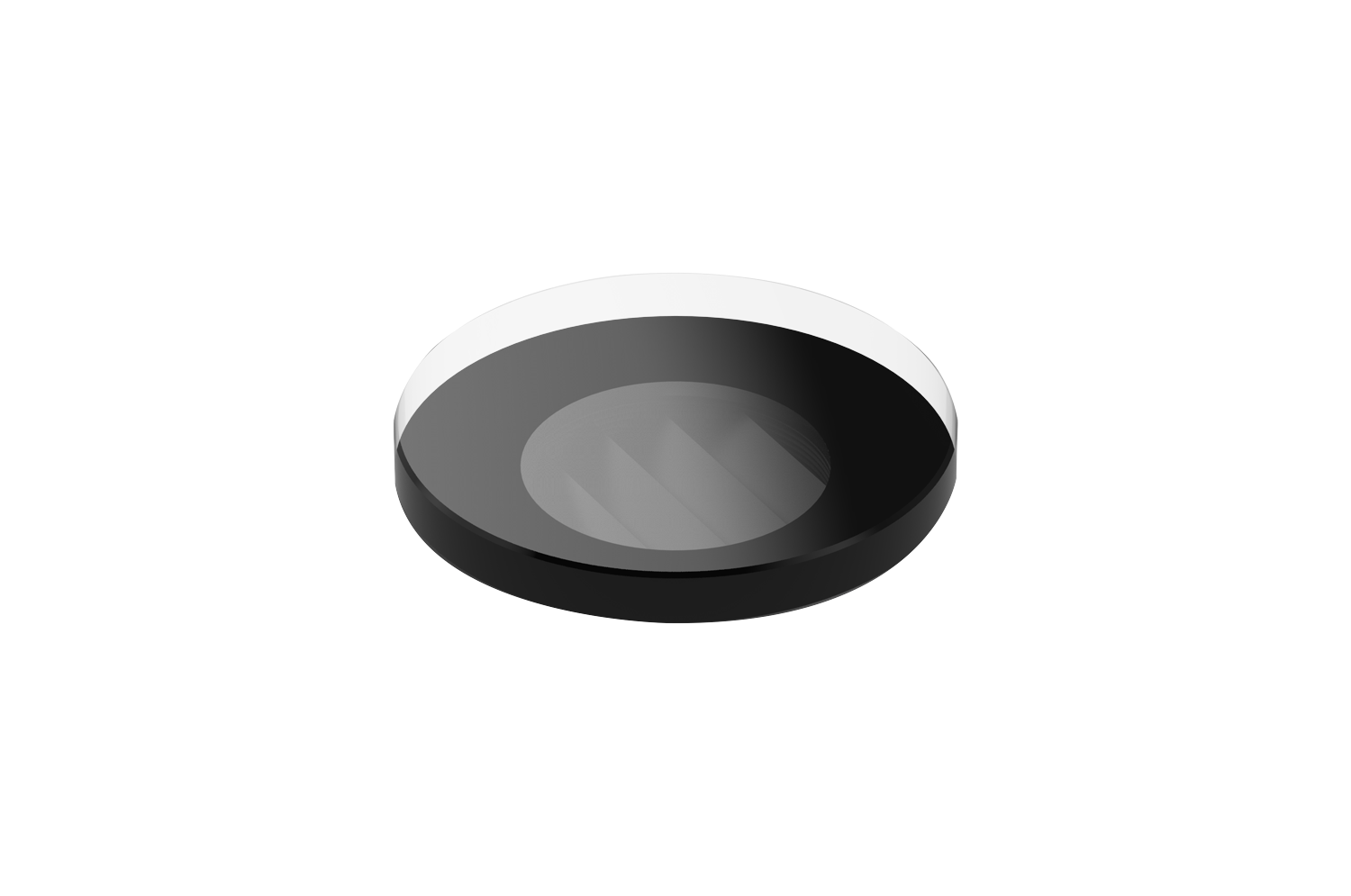

Keplero Quantum 60 Fixed AG
Code
E045WWL830C
Light colour
2200K
90
90
Light distribution
Wall Washer
Output
4.7W
69lm
69lm
Power supply
Control
Control
24Vdc
Colour
1 / 3
Technical Data
Concept
Recessed professional projector with a fixed optical unit.
Source
High efficiency Chip on Board LED. 3000K (Ra80) colour temperature.
Energy efficiency classD
Nominal power4,2W
Nominal flux592lm
Colour rendering index90
Rf84
Rg97
CCT nominal2200K
Lifetime (L80/B10)56000h tq +25°C
Lifetime (L90/B10)56000h tq +25°C

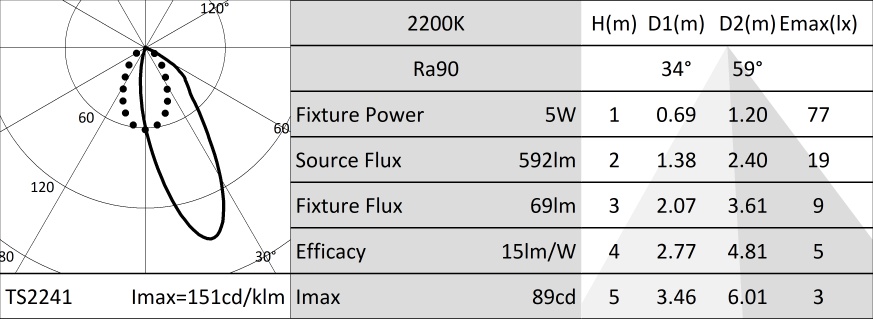

Illuminotechnical characteristics
Optical grade PMMA lens, holographic diffusing filter and internal grid with inclined louvers.
OpticWall Washer
Beam anglesWW
Optical efficiency11.69%
Fixture flux69lm
Luminous efficacy15lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Aluminium body made by CNC machinining process and treated with black anodizing. All-glass version. Extra clear protective glass.
Colour and finishAll-glass
DimensionsØxH 60x49mm
Weight0.25Kg
VersionExtra-clear glass
Degree of protectionIP66,IP67,IP68
Mechanical ResistanceIK10
Electrical characteristics
24Vdc power supply. ON-OFF, DALI2 remote driver to be ordered separately. Precabled with 1,5m 2x0,5mm² cable. Casambi control system available via accessory (for products with DALI2 driver only).
Fixture Power4.7W
Power supply24Vdc
Insulation ClassCLASS 3
Driver includedNO
SAFE FLICKERPstLM=<1 and SVM=<0.4 (IEC TR 61547-1 and IEC TR 63158), to ensure a more comfortable and safe light
Ambient temperature-25°C / +35°C
Installation
In-ground installation by a reinforced nylon sleeve, to be ordered separately. The sleeve is pre-set for flush installation. 20kN resistance to static load.
Notes
IP68: the fixture is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h). All the Keplero Quantum 60 all-glass versions meet the walk-over requirements set out in the EN 60598-2-13 standard. Low temperatures on the glass make them suitable even for installation in "special areas", such as spaces for children. It features the "Waterblock Smart" technical solution which involves resin-sealing the connection cables to minimize the risk of moisture rising into the fixture.
Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life.
Replaceable (LED only) light source by a professional.
Non-replaceable control gear.
Related codes
1 / 2
| Code | Colour | P | H | L | |
|---|---|---|---|---|---|
| A131SS |  | 190mm | 108mm | 190mm | |
| A131CB |  | 190mm | 108mm | 190mm | |
| A131EB |  | 190mm | 108mm | 190mm |
Reinforced nylon installation sleeve.
The sleeve is designed for the flush installation of All-glass versions.
Complete with a cover element to protect the recessed housing during concrete pouring.
AxB 190x190 H. 108
| Code | IP | Output voltage | Power supply | Power | LxHxP |
|---|---|---|---|---|---|
| A134EL | IP67 | 24Vdc | 220-240Vac | 60W MAX | 171x37x62mm |
| A137EL | IP67 | 24Vdc | 220-240Vac | 150W MAX | 228x39x68mm |
Electronic ON-OFF power supply.
| Code | IP | Output voltage | Power supply | Power | LxHxP |
|---|---|---|---|---|---|
| A134D2 | IP67 | 24Vdc | 220-240Vac | 60W MAX | 150x35x53mm |
| A136D2 | IP67 | 24Vdc | 220-240Vac | 120W MAX | 191x38x63mm |
DALI2 power supply.
Accessories
| Code | |||||
|---|---|---|---|---|---|
| 1E2493 |
Linear connection box IP68.
4 poles max. wire section 2.5mm².
Cable diameter range from 7 to 12mm.
| Code | |||||
|---|---|---|---|---|---|
| 1E2494 |
Multiple connection box IP68.
1 IN - 3 OUT 4 poles max. wire section 2.5mm².
Cable diameter range from 6 to 12mm.
| Code | |||||
|---|---|---|---|---|---|
| 1E3305 |
Tightening wrench for the connector kit.
