In-ground luminaires
Keplero Quantum 60
Fixed Oval
Code
E048SPL922ASS
Light colour
2200K
90
90

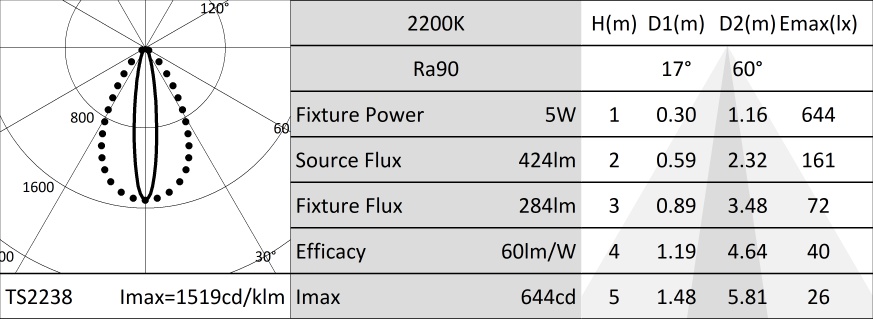

Light distribution
Elliptical
17° / 60°
17° / 60°
Output
4.7W
284lm
284lm
Power supply
Control
24Vdc
Colour
1 / 3
Technical Data
Source
High efficiency Chip on Board LED. 2200K (Ra90) colour temperature.
Energy efficiency classF
Nominal power4,2W
Nominal flux424lm
Colour rendering index90
Rf91
Rg101
CCT nominal2200K
Illuminotechnical characteristics
Optical grade PMMA lens and holographic diffusing filter. Oval versions with holographic filter for elliptical light emission.
OpticLENS
Beam anglesOV (SP-WFL)
Optical efficiency67%
Fixture flux284lm
Luminous efficacy60lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Aluminium body made by CNC machinining process and treated with black anodizing. Ultra flat decorative ring with a flared edge, made of brushed stainless steel (AISI 316) in a natural finish. Anti-slip glass for public pedestrian areas.
Colour and finishBrushed stainless steel
VersionANTI-SLIP GLASS
Degree of protectionIP66,IP67,IP68
Mechanical ResistanceIK10
Electrical characteristics
24Vdc power supply. ON-OFF, DALI2 remote driver to be ordered separately. Precabled with 1,5m 2x0,5mm² cable. Casambi control system available via accessory (for products with DALI2 driver only).
Fixture Power5W
Power supply24Vdc
Insulation ClassCLASS 3
Driver includedNO
Class FYES
Ambient temperature-25°C / +35°C
Installation
In-ground installation by a reinforced nylon sleeve, to be ordered separately. Sleeves are available for flush or trim installation. 20kN resistance to static load. Wall/ceiling installation by the accessory mounting systems.
Notes
IP68: the fixture is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h). All the Keplero Quantum 60 versions (except all-glass versions) meet the drive-over and walk-over requirements set out in the EN 60598-2-13 standard. Low temperatures on the glass make them suitable even for installation in "special areas", such as spaces for children. It features the "Waterblock Smart" technical solution which involves resin-sealing the connection cables to minimize the risk of moisture rising into the fixture. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Non-replaceable control gear.
Related codes
1 / 2
| Code | P mm | H mm | L mm | ||
|---|---|---|---|---|---|
| A129 | 190 | 100 | 190 |
Reinforced nylon installation sleeve.
The sleeve is designed for the trim installation of the fixture.
Complete with a cover element to protect the recessed housing during concrete pouring.
AxB 190x190 H. 100
1 / 2
| Code | Colour | P mm | H mm | L mm | |
|---|---|---|---|---|---|
| A130SS |  | 190 | 101 | 190 |
Reinforced nylon installation sleeve.
The sleeve is designed for the flush installation of the fixture.
Complete with a cover element to protect the recessed housing during concrete pouring.
AxB 190x190 H. 101
| Code |
|---|
| A132 |
Steel spring kit for wall and ceiling installations.
| Code | IP | Output voltage | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| A134EL | IP67 | 24Vdc | 220-240Vac | 60W MAX | 171x37x62 |
| A137EL | IP67 | 24Vdc | 220-240Vac | 150W MAX | 228x39x68 |
Electronic ON-OFF power supply.
| Code | IP | Output voltage | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| A134D2 | IP67 | 24Vdc | 220-240Vac | 60W MAX | 150x35x53 |
| A136D2 | IP67 | 24Vdc | 220-240Vac | 120W MAX | 191x38x63 |
DALI2 power supply.
Accessories
| Code |
|---|
| 1E2493 |
Linear connection box IP68.
4 poles max. wire section 2.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E2494 |
Multiple connection box IP68.
1 IN - 3 OUT 4 poles max. wire section 2.5mm².
Cable diameter range from 6 to 12mm.
| Code |
|---|
| 1E3305 |
Tightening wrench for the connector kit.
