In-ground luminaires

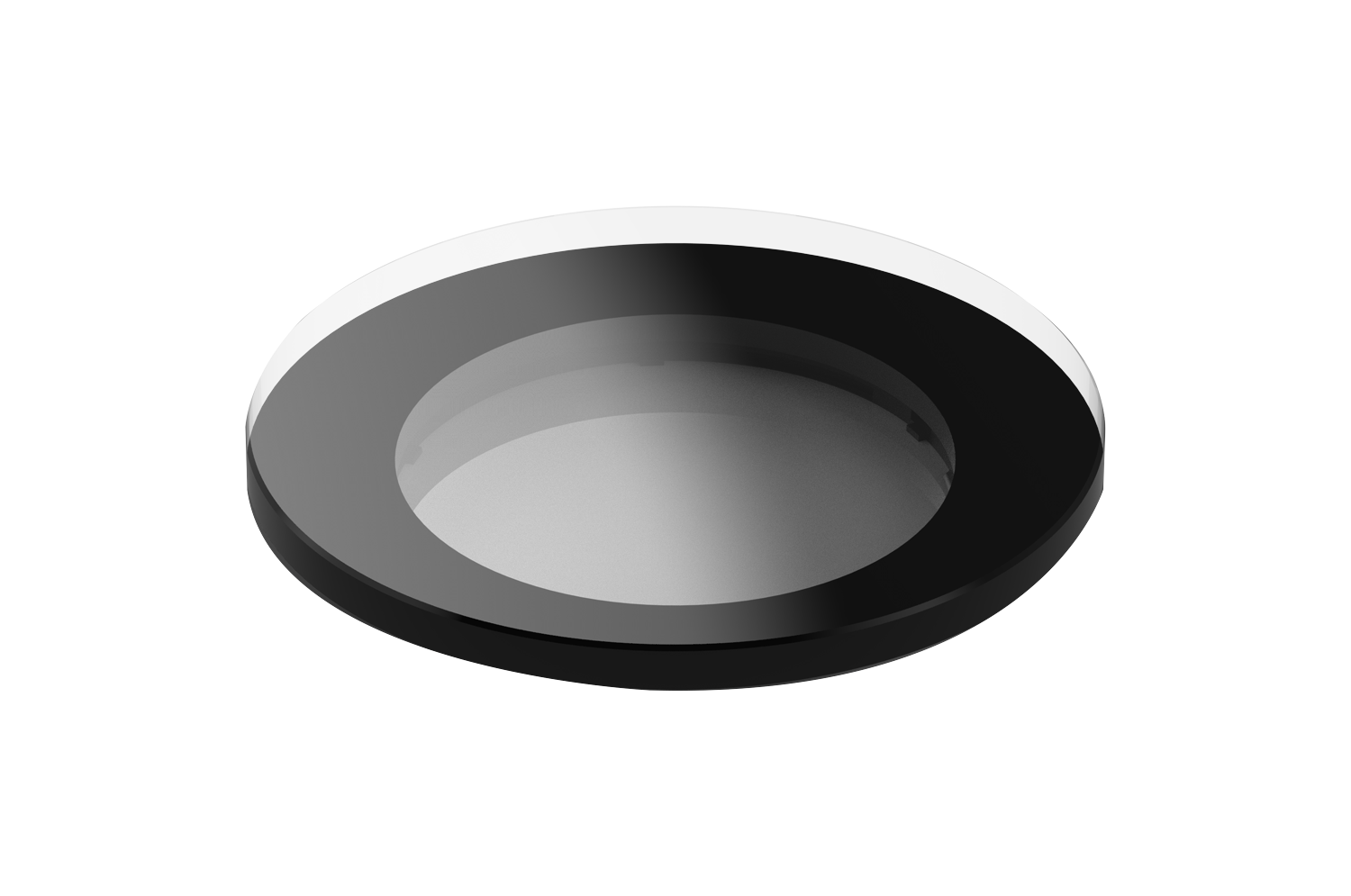

Keplero Quantum 90
Fixed AG
Code
E033OPL830C
Light colour
3000K
80
80
Light distribution
Opal
Output
2.3W
187lm
187lm
Power supply
Control
24Vdc
Colour
1 / 3
Technical Data
Source
High Power LED. 3000K (Ra80) colour temperature.
Nominal power2W
Nominal flux291lm
Colour rendering index80
CCT nominal3000K

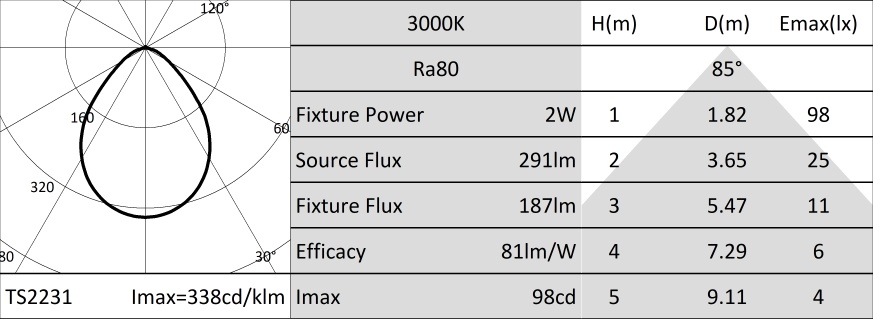

Illuminotechnical characteristics
Optical system made of a MC-PET high reflectance white reflector and a double holographic diffusive filter.
OpticOPAL
Beam anglesOP
Optical efficiency64%
Fixture flux187lm
Luminous efficacy81lm/W
Photobiological safetyCompliant with RG1 low risk group
Mechanical characteristics
Aluminium body made by CNC machinining process and treated with black anodizing. All-glass version. Extra clear protective glass.
Colour and finishAll-glass
VersionCLEAR GLASS
Degree of protectionIP66,IP67,IP68
Mechanical ResistanceIK10
Electrical characteristics
24Vdc power supply. ON-OFF or DALI2 remote driver to be ordered separately. Precabled with 1,5m 2x0,5mm² cable. Casambi control system available via accessory (for products with DALI2 driver only).
Fixture Power2W
Power supply24Vdc
Insulation ClassCLASS 3
Driver includedNO
Class FYES
Ambient temperature-25°C / +35°C
Installation
In-ground installation by a reinforced nylon sleeve, to be ordered separately. Sleeve available for flush installation. 20kN resistance to static load.
Notes
IP68: the fixture is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 1.5 metres (max.1h). All the Keplero Quantum 90 all-glass versions meet the walk-over requirements set out in the EN 60598-2-13 standard. Low temperatures on the glass make them suitable even for installation in "special areas", such as spaces for children. It features the "Waterblock Smart" technical solution which involves resin-sealing the connection cables to minimize the risk of moisture rising into the fixture. Commissioning of the control system via free APP; the intervention of a specialist technician can be quoted on request.
Warranty
5 years.
Warning
Luminaire designed for disposal/recycling at end-of-life. Replaceable (LED only) light source by a professional. Non-replaceable control gear.
Related codes
1 / 2
| Code | Colour | P mm | H mm | L mm | |
|---|---|---|---|---|---|
| A126SS |  | 219 | 133 | 219 | |
| A126CB |  | 219 | 133 | 219 | |
| A126EB |  | 219 | 133 | 219 |
Reinforced nylon installation sleeve.
The sleeve is designed for the flush installation of All-glass versions.
Complete with a cover element to protect the recessed housing during concrete pouring.
AxB 219x219 H. 133
| Code | IP | Output voltage | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| A134EL | IP67 | 24Vdc | 220-240Vac | 60W MAX | 171x37x62 |
| A137EL | IP67 | 24Vdc | 220-240Vac | 150W MAX | 228x39x68 |
Electronic ON-OFF power supply.
| Code | IP | Output voltage | Power supply | Power | Dimensions LxHxP mm |
|---|---|---|---|---|---|
| A134D2 | IP67 | 24Vdc | 220-240Vac | 60W MAX | 150x35x53 |
| A136D2 | IP67 | 24Vdc | 220-240Vac | 120W MAX | 191x38x63 |
DALI2 power supply.
Accessories
| Code |
|---|
| 1E2493 |
Linear connection box IP68.
4 poles max. wire section 2.5mm².
Cable diameter range from 7 to 12mm.
| Code |
|---|
| 1E2494 |
Multiple connection box IP68.
1 IN - 3 OUT 4 poles max. wire section 2.5mm².
Cable diameter range from 6 to 12mm.
| Code |
|---|
| 1E3305 |
Tightening wrench for the connector kit.
