Oz
Ceiling luminaires
Light freedom
OZ was born from the desire for freedom. It brings light everywhere with extreme simplicity and total lightness.
Lines transforming spaces
OZ is a precise and defined pencil mark, a thin modular element capable of taking on infinite configurations.
Magnetic attraction
The light units have a magnetic fixing system. This makes it possible to attach and detach the unit from the power track at any point extremely easily and simply.
Every element in the system is independent and can be positioned anywhere on the power track, to provide light where and when it is needed.
Versatile, intuitive and easy to install
It makes it possible to create free geometries for ceiling or wall installations.
- The power-track is the heart of the system, an advanced 6 mm thick conductive track that winds through space carrying a 48 V current on which light units can be attached.
Light modules
OZ light units arise from the concept of modularity. There are two basic modules, one double the size of the other - SMALL and LARGE - from which the entire range of lighting modules equipping the system were developed: fixed modules, adjustable modules, multiple modules, linear modules, Wall Washer modules.
Small
Fixed and adjustable
25x25mm
3W
from 146lm to 159lm
SP - FL - MWFL
DBS
25x25mm
3W
from 146lm to 159lm
SP - FL - MWFL
DBS
Large
Fixed and adjustable
50x50mm
8W
from 641 to 806lm
SP, FL, MWFL
DBS
50x50mm
8W
from 641 to 806lm
SP, FL, MWFL
DBS
Single
Small
25x125mm
8W
from 484lm to 527lm
SP - FL - MWFL
Large
50x150mm
19W
from 1645lm to 1896lm
SP - FL - MWFL
25x125mm
8W
from 484lm to 527lm
SP - FL - MWFL
Large
50x150mm
19W
from 1645lm to 1896lm
SP - FL - MWFL

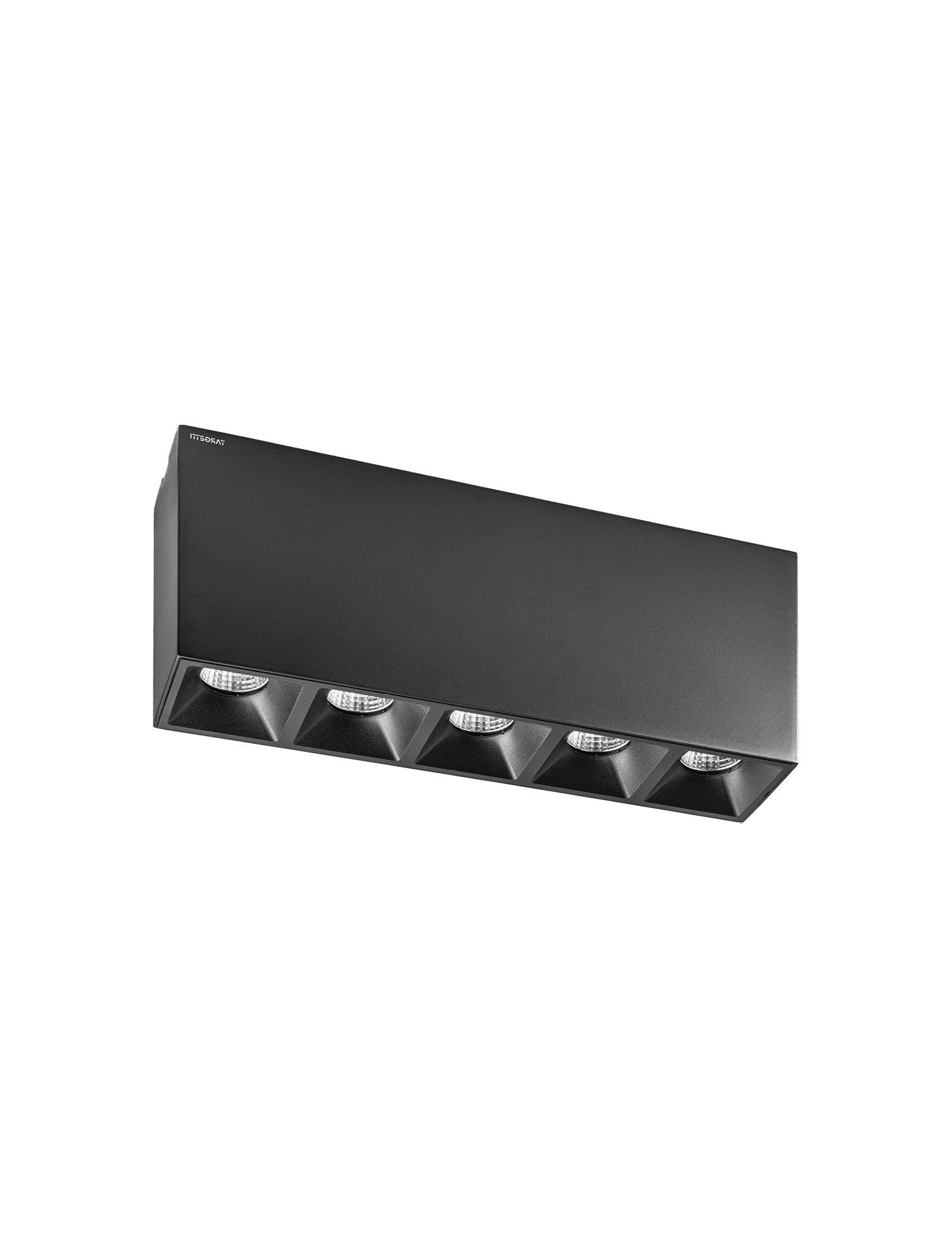

Multiple
Small
25x125mm
8W
from 399lm to 453lm
Wall Washer
Large
50x150mm
19W
from 1677lm to 1774lm
Wall Washer
25x125mm
8W
from 399lm to 453lm
Wall Washer
Large
50x150mm
19W
from 1677lm to 1774lm
Wall Washer
Wall Washer
Small L=569mm
25x569mm
13W
from 868lm to 979lm
VWFL
Small L=869mm
25x869mm
20W
from 1303lm to 1469lm
VWFL
25x569mm
13W
from 868lm to 979lm
VWFL
Small L=869mm
25x869mm
20W
from 1303lm to 1469lm
VWFL
Linear
Maximum Flexibility
The single and multiple light units are equipped with Ra90 LEDs and different optical systems for precise and defined lighting effects.
Wall Washer
The Wall Washer optical system is designed to obtain uniform light distribution on the wall without creating hierarchies on the elements located on the vertical planes.
The optimal ratio between the height of the space and the distance of the track from the wall is 1:4.
The optimal ratio between the height of the space and the distance of the track from the wall is 1:4.
15°
[{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_15.png","grado":15,"label":15},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_16.png","grado":16,"label":16},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_17.png","grado":17,"label":17},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_18.png","grado":18,"label":18},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_19.png","grado":19,"label":19},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_20.png","grado":20,"label":20},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_21.png","grado":21,"label":21},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_22.png","grado":22,"label":22},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_23.png","grado":23,"label":23},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_24.png","grado":24,"label":24},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_25.png","grado":25,"label":25},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_26.png","grado":26,"label":26},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_27.png","grado":27,"label":27},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_28.png","grado":28,"label":28},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_29.png","grado":29,"label":29},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_30.png","grado":30,"label":30},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_31.png","grado":31,"label":31},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_32.png","grado":32,"label":32},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_33.png","grado":33,"label":33},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_34.png","grado":34,"label":34},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_35.png","grado":35,"label":35},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_36.png","grado":36,"label":36},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_37.png","grado":37,"label":37},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_38.png","grado":38,"label":38},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_39.png","grado":39,"label":39},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_40.png","grado":40,"label":40},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_41.png","grado":41,"label":41},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_42.png","grado":42,"label":42},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_43.png","grado":43,"label":43},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_44.png","grado":44,"label":44},{"src":"\/media\/2026\/family\/intro\/lightEmission\/LightEmission_45.png","grado":45,"label":45}]
DBS Dynamic Beam Shaper
variable beam from SP to MWFL in the same light unit
Versions with DBS – Dynamic Beam Shaper – optic system for single light units that allow to digitally adjust the beam angle from 15° to 45° through the Casambi app downloadable on Android or iOS smartphones.
An elegant, flexible and scalable modular system
Thanks to its only 6 mm thickness, the power track of the OZ system allows to draw ambitious geometries and discreetly and elegantly follow walls, corners, and edges.
The power tracks connect to each other with various types of magnetic joints, allowing for the creation of unprecedented light geometries.
The adjustable connector makes it possible to connect the power tracks with great flexibility: every connector can connect from 2 to 8 powertracks to create free angles between the "streight-lines" (minimum 45° angle).
On existing false ceilings, it is possible to recess only the power track using a specific profile that affects only the plasterboard panel and not the metal frame.
