CAPSULE
Concept

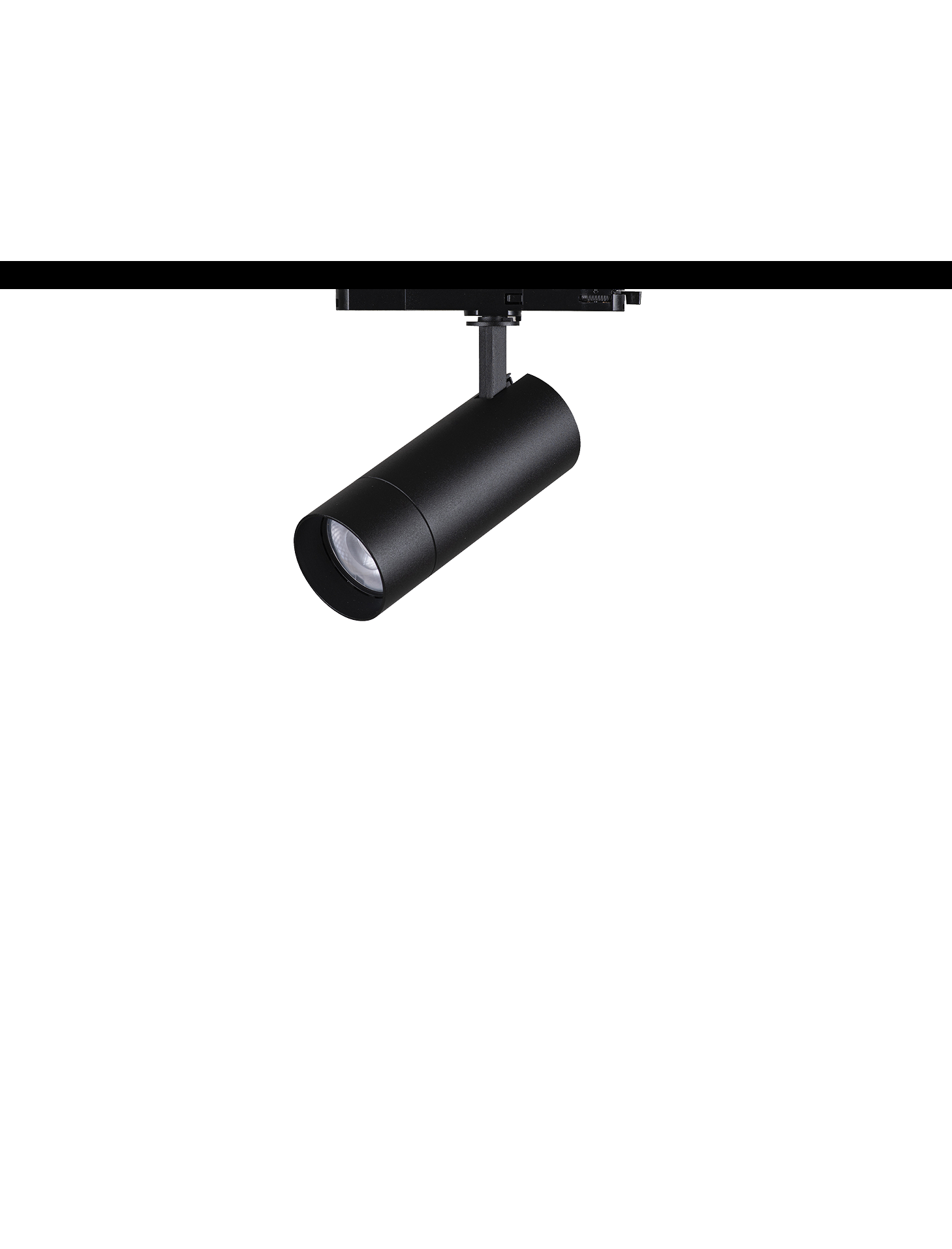

Adjustable LED projector.Material
Black or white painted die-cast aluminium body.
Optical frame adjustable from 0° to 90° on the vertical plane, 355° on the horizontal plane.Source
High efficiency Ra90 LED Chip on Board.Optic
Optical unit equipped with a MWFL (ø60)/FL (ø70) lens inside the product and an interchangeable SP lens.Power Supply
Integrated electronic power supply.Notes
ø70 version: lens optic with 24° opening available as an accessory.
Adjustable LED projector.Material
Black or white painted die-cast aluminium body.
Optical frame adjustable from 0° to 90° on the vertical plane, 355° on the horizontal plane.Source
High efficiency Ra90 LED Chip on Board.Optic
Optical unit equipped with a MWFL (ø60)/FL (ø70) lens inside the product and an interchangeable SP lens.Power Supply
Integrated electronic power supply.Notes
ø70 version: lens optic with 24° opening available as an accessory.
Reset selections
CAPSULE Ø 60
0.43
IP20
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED
3000K
18W
90
SP-MWFL
LENS
White
6
Ø 60mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP20
YES
LED
4000K
18W
90
SP-MWFL
LENS
White
6
Ø 60mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP20
YES
LED
3000K
18W
90
SP-MWFL
LENS
Black
6
Ø 60mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP20
YES
LED
4000K
18W
90
SP-MWFL
LENS
Black
6
Ø 60mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP20
YES
Code
1TD0001EL
1TD0002EL
1TD0003EL
1TD0004EL
CAPSULE Ø 70
0.68
IP20
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED
3000K
31W
90
SP-FL
LENS
White
7
Ø 70mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP20
YES
LED
4000K
31W
90
SP-FL
LENS
White
7
Ø 70mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP20
YES
LED
3000K
31W
90
SP-FL
LENS
Black
7
Ø 70mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP20
YES
LED
4000K
31W
90
SP-FL
LENS
Black
7
Ø 70mm
220-240Vac 50/60Hz
ELECTRONIC
YES
CLASS 1
IP20
YES
Code
1TD0005EL
1TD0006EL
1TD0007EL
1TD0008EL
