CATIRPEL
Form
Follower
Follower
Form
Follower
Follower
"The Catirpel morphs into the form of a caterpillar in a tree, our fixtures weave into the surroundings, casting an enchanting spell of versatility.”
Hervé Descottes
L’Observatoire International
L’Observatoire International
"The Catirpel morphs into the form of a caterpillar in a tree, our fixtures weave into the surroundings, casting an enchanting spell of versatility.”
Hervé Descottes
L’Observatoire International
L’Observatoire International
Versatile and flexible. It wraps sinuously around every surface.
Versatile and flexible. It wraps sinuously around every surface.
It adapts naturally to curved surfaces.
It adapts naturally to curved surfaces.
Designed in collaboration with the lighting design firm L’Observatoire International, Catirpel is a modular projector system for outdoor lighting designed for all projects that require greater installation flexibility and accurate beam aim control.
Designed to adapt perfectly in environments where the support surface is curved, non-planar or uneven, it is the ideal solution to light architecture and landscapes.
Designed to adapt perfectly in environments where the support surface is curved, non-planar or uneven, it is the ideal solution to light architecture and landscapes.
1x - 1 projector
3x - 3 projectors
5x - 5 projectors
Narrow Spot
Spot
Flood
Medium Wide Flood
Grazing
2400K (NSP versions excluded)
2700K
3000K
4000K

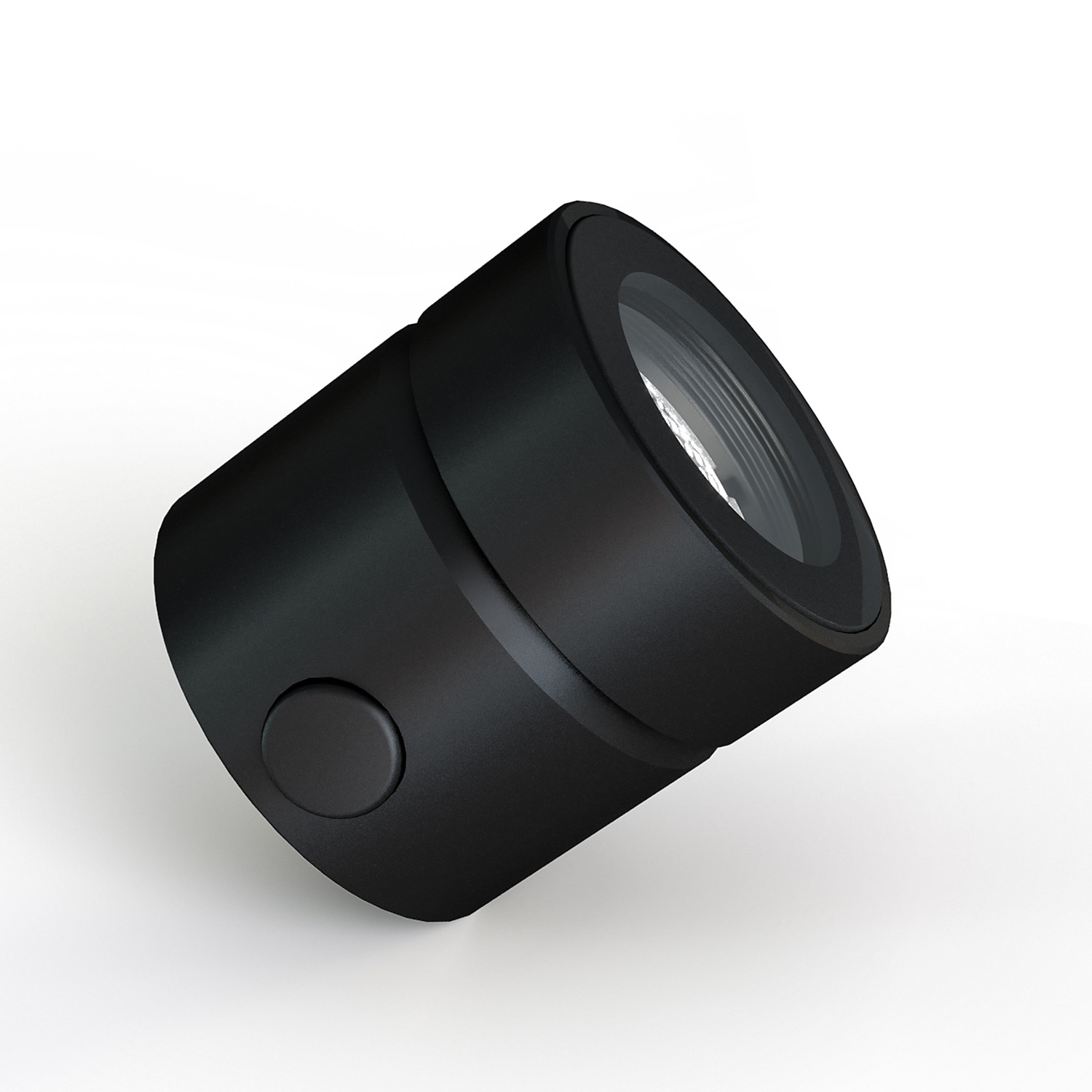

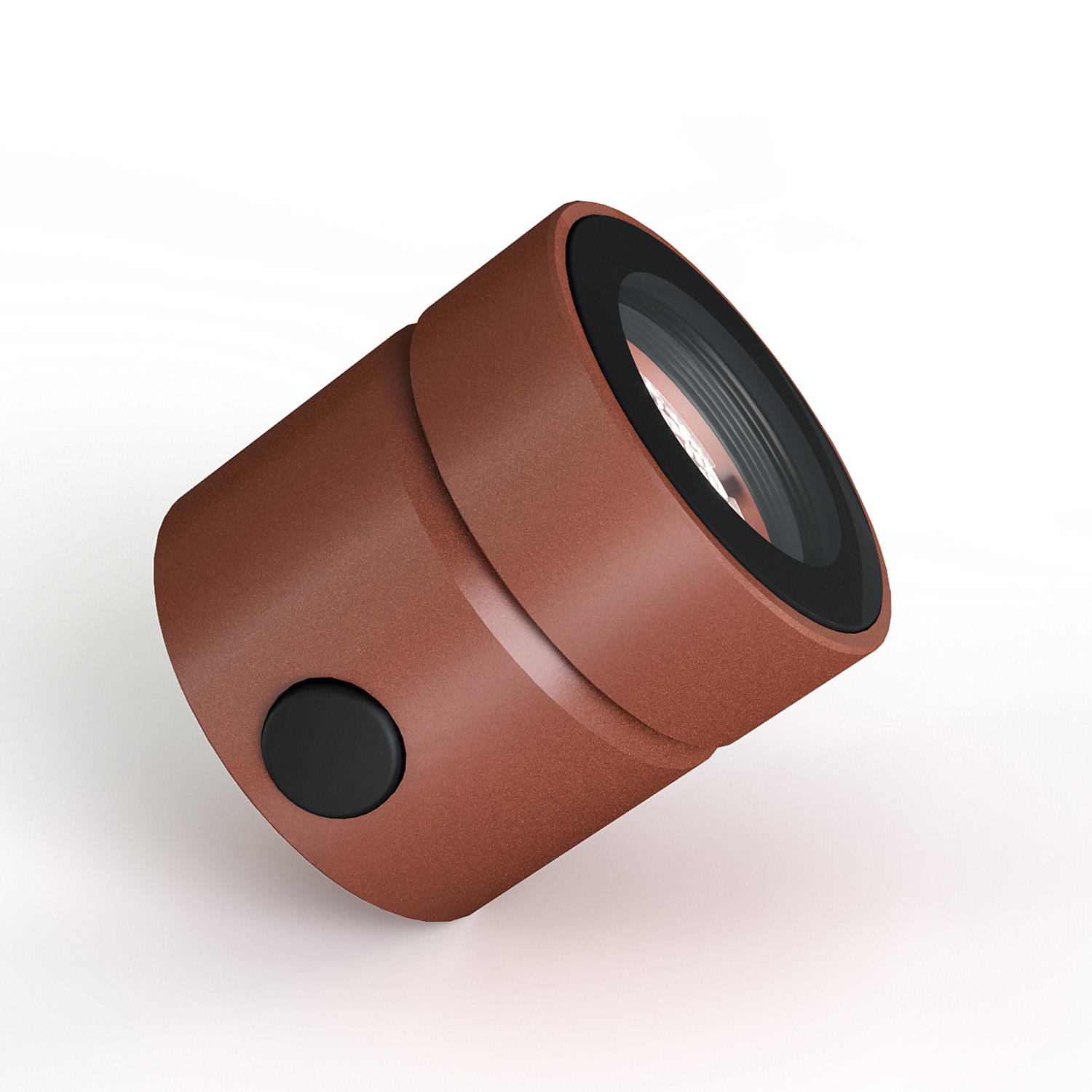

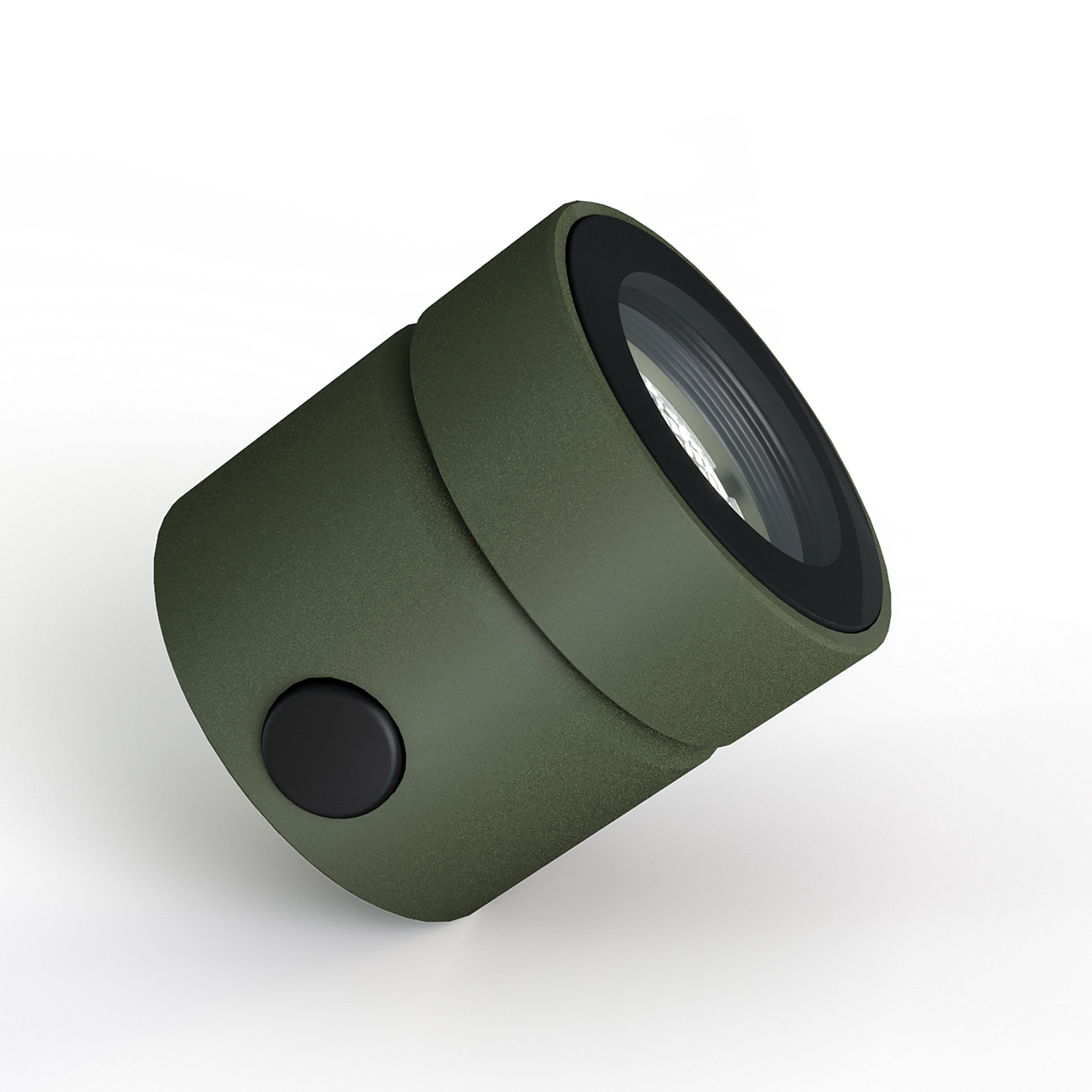

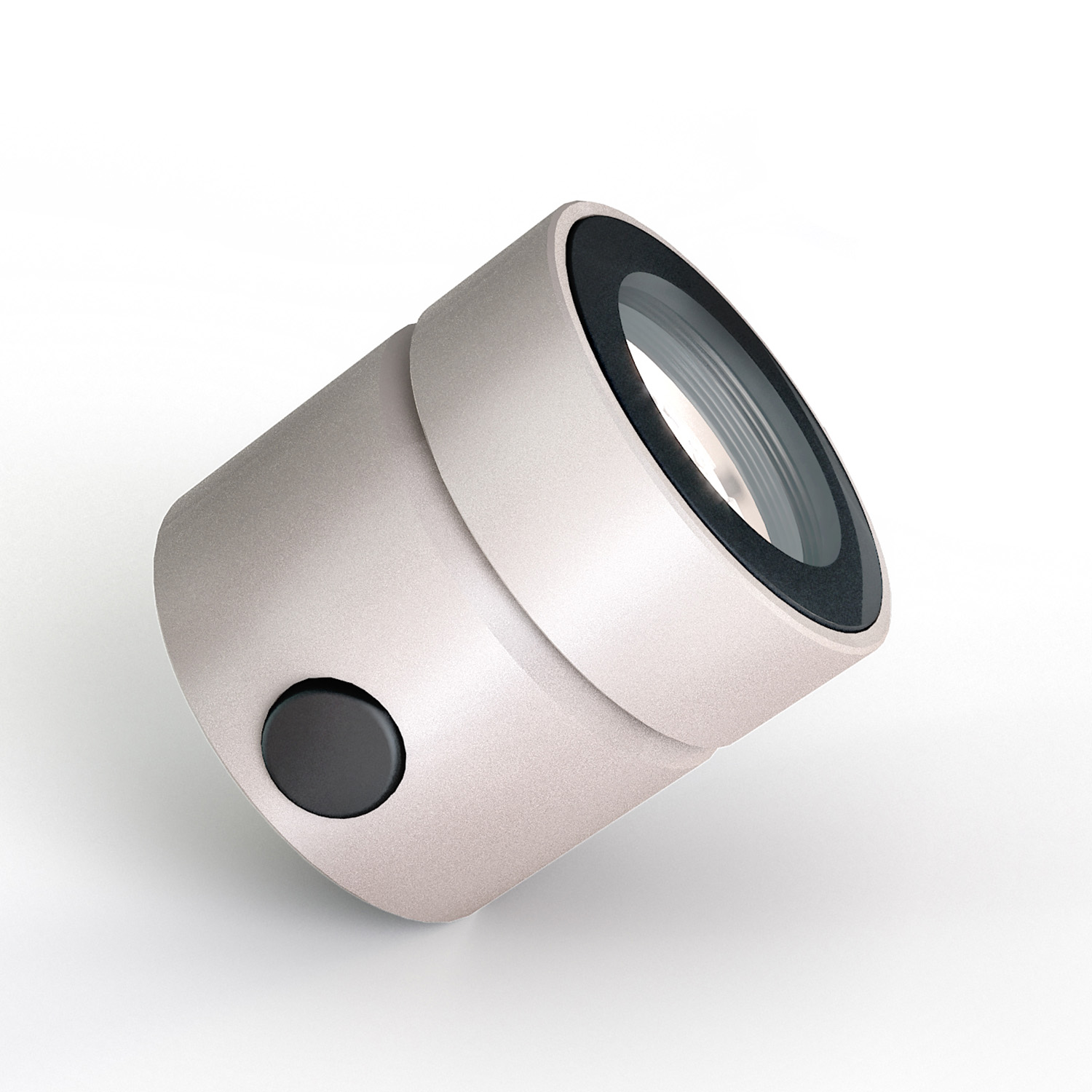

Available with black anodised or Ferrite finishes
24V remote driver
Design

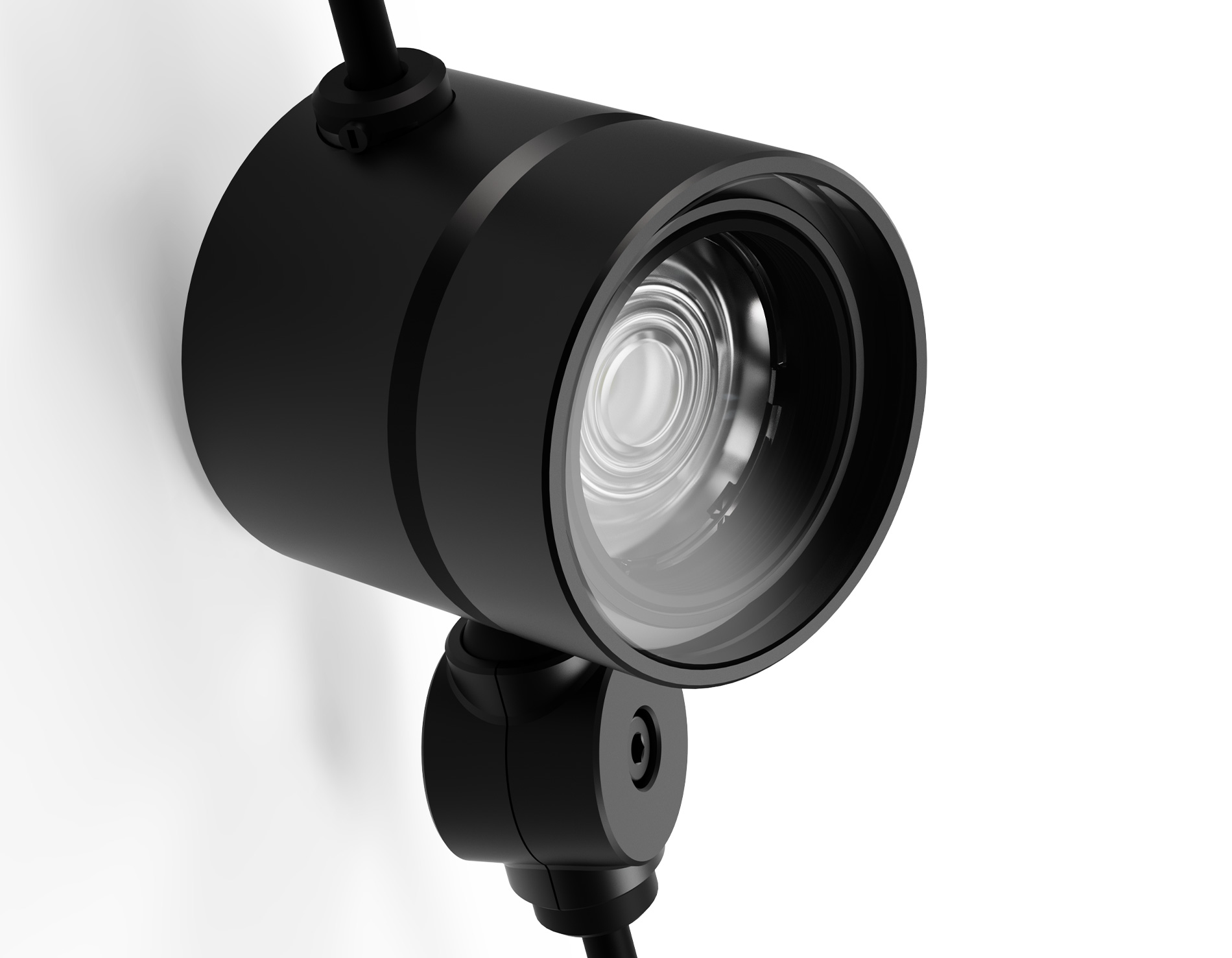

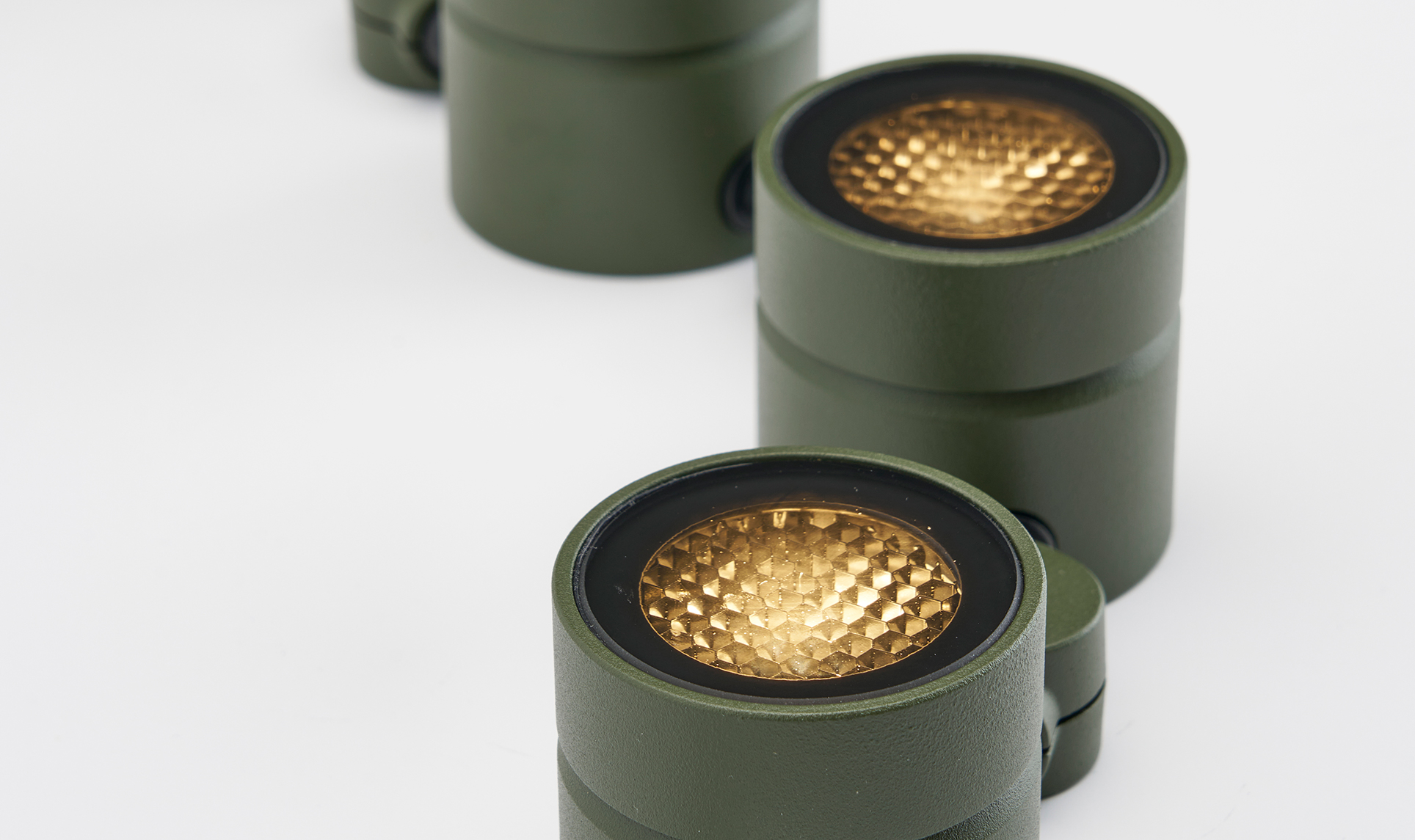

The single module is a single projector combined with a spherical joint that allows for maximum installation freedom and movement.
Design
The single module is a single projector combined with a spherical joint that allows for maximum installation freedom and movement.

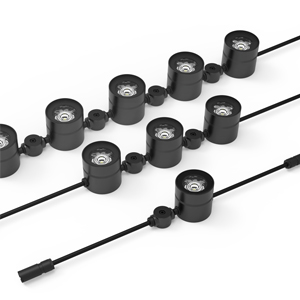

System modules

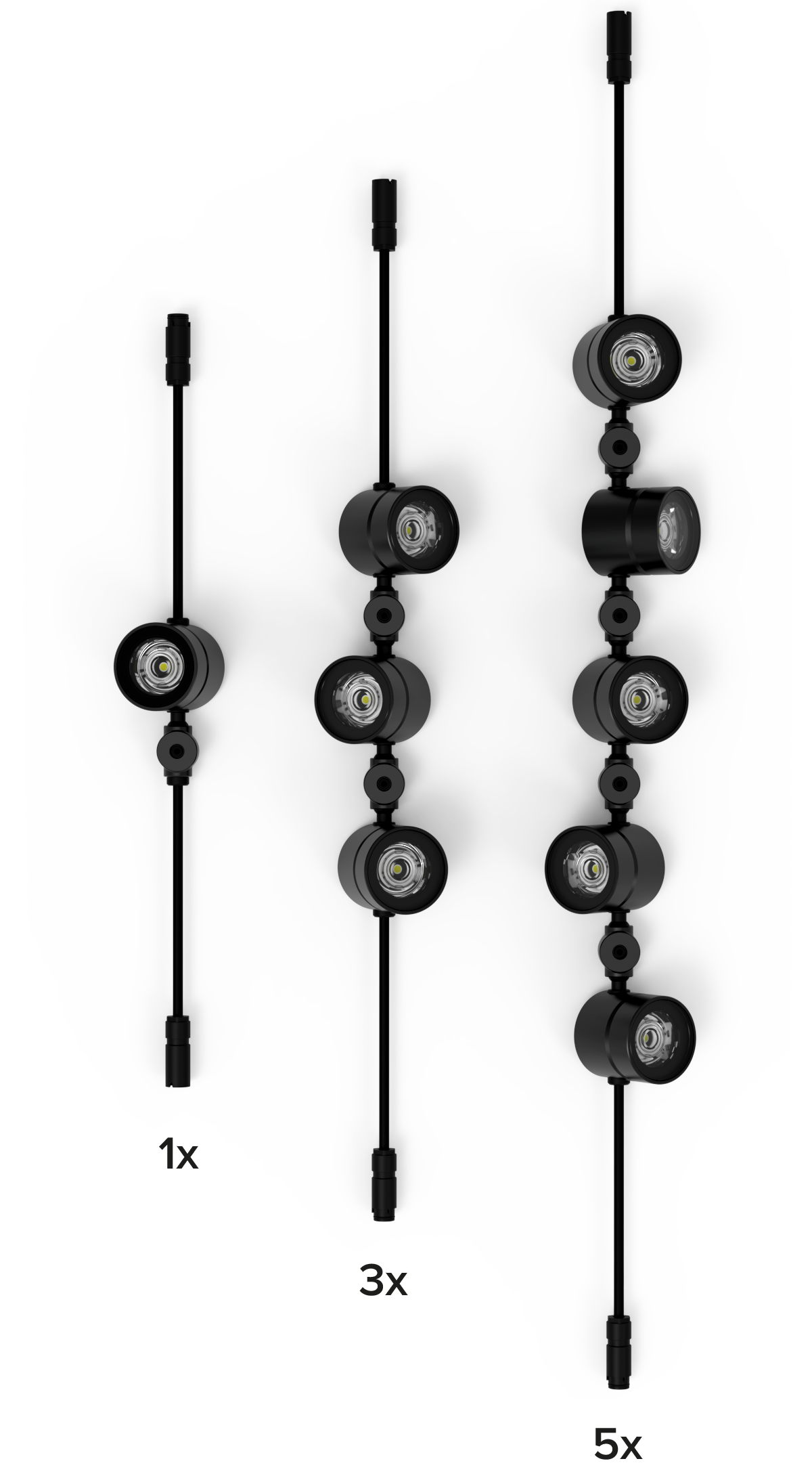

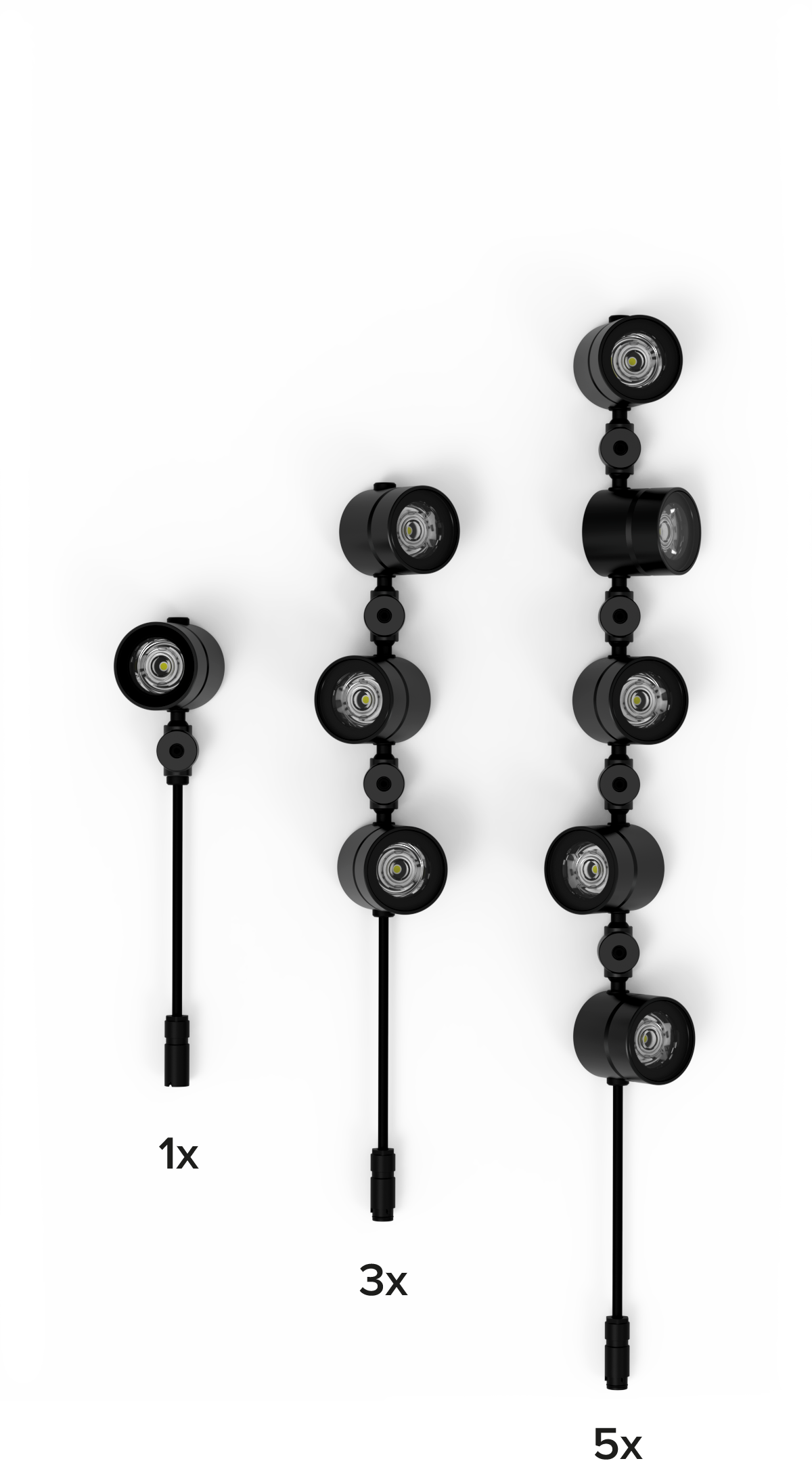

Catirpel is available in light modules with just one projector (1x) or multiple modules with three (3) or five (5x) projectors.
System modules
Catirpel is available in light modules with just one projector (1x) or multiple modules with three (3) or five (5x) projectors.
Adjustability
The spherical joint that connects the light units together makes it possible to curve multiple modules to obtain circular shapes to perfectly follow the features and peculiarities of the surface they are installed on such as trees, monuments, columns and architecture.
Adjustability
The spherical joint that connects the light units together makes it possible to curve multiple modules to obtain circular shapes to perfectly follow the features and peculiarities of the surface they are installed on such as trees, monuments, columns and architecture.
R 95mm
R 112.5mm
without accessory spacer
R 95mm
with accessory spacer
R 140mm
without accessory spacer
R 160mm
with accessory spacer
The spacer supplied as an accessory makes Catirpel even more flexible. Moving the light modules away from the installation surface makes it possible to increase the curvature of the modules and to aim each projector individually (+/-110°).
The spacer supplied as an accessory makes Catirpel even more flexible. Moving the light modules away from the installation surface makes it possible to increase the curvature of the modules and to aim each projector individually (+/-110°).
Lighting effects
It is possible to choose from four different beam openings from Narrow Spot (7°) to MWFL (48°) and a Grazing optic which is ideal to highlight details and materials with grazing lighting.
Scegli l'effetto Luminoso
NARROW SPOT
7°
7°
SPOT
19°
19°
FLOOD
34°
34°
MEDIUM WIDE FLOOD
48°
48°
GRAZING
57/19°
57/19°
Choose the lighting effect

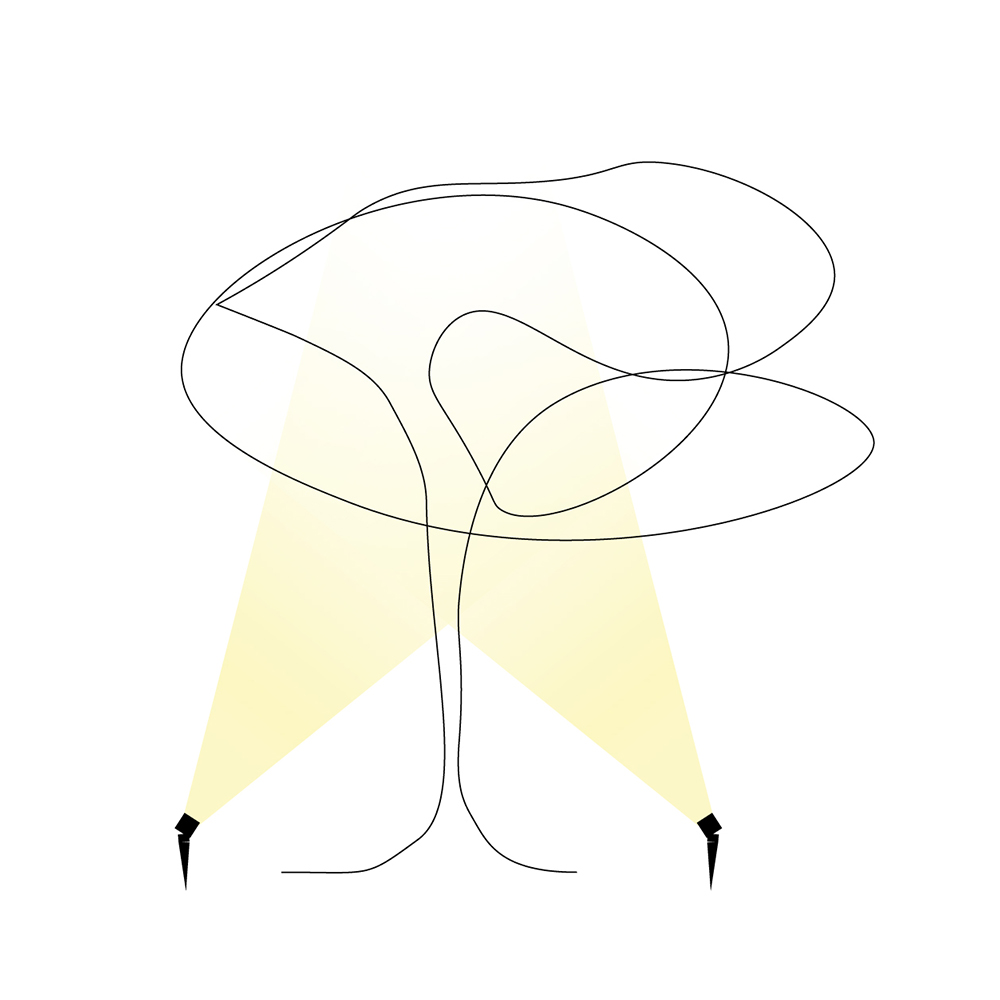

Projection
Catirpel projectors can be installed on the ground using the practical earth spike to light hedges and trees from below

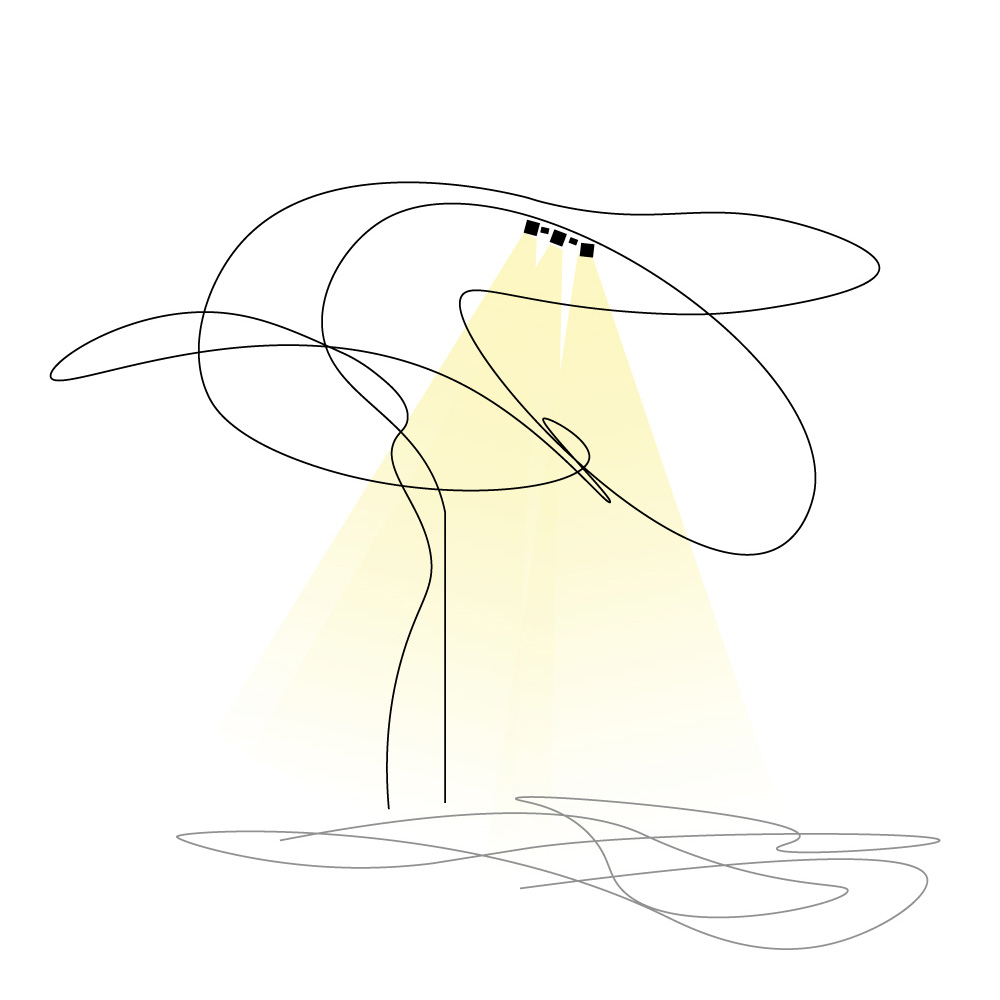

Downlighting

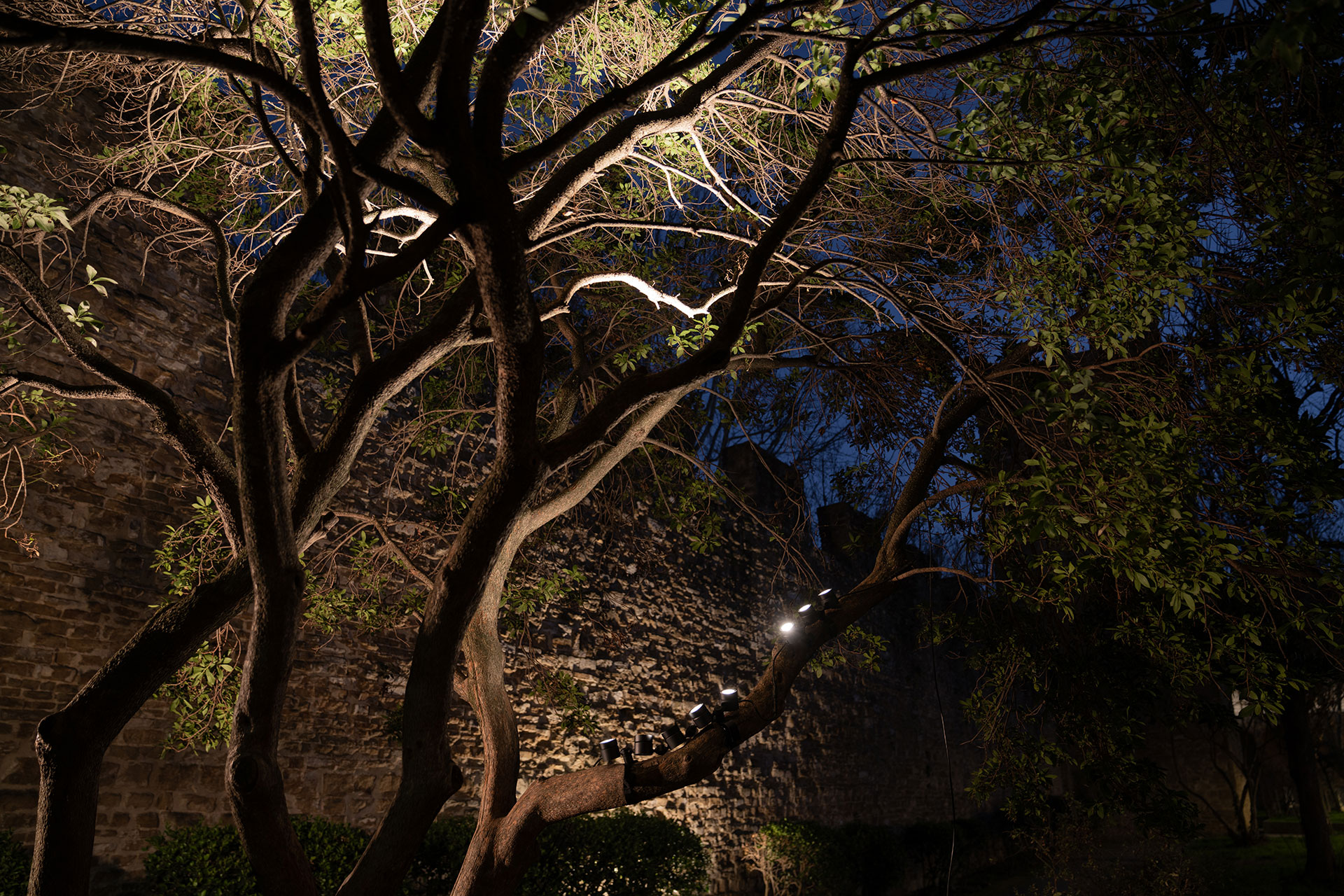

Tree branches become mounting supports to anchor lighting modules to using special belt straps to direct the light beam exactly where it is needed

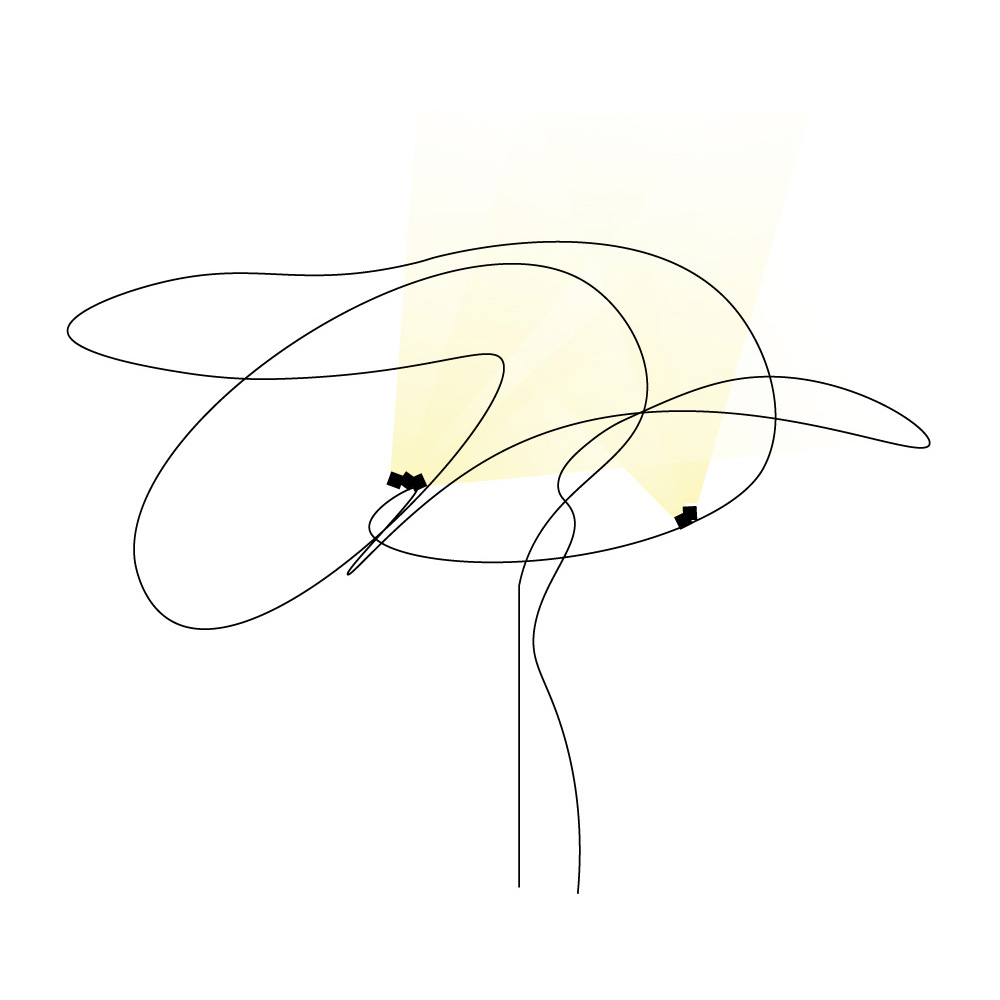

Uplighting
With Catirpel it is also possible to light the upper part of the highest foliage easily reaching areas that are impossible to reach with classic lighting from below.
Grazing
Catirpel projectors with Grazing optics illuminate the entire length of tree trunks by highlighting the texture for a scenographic effect.

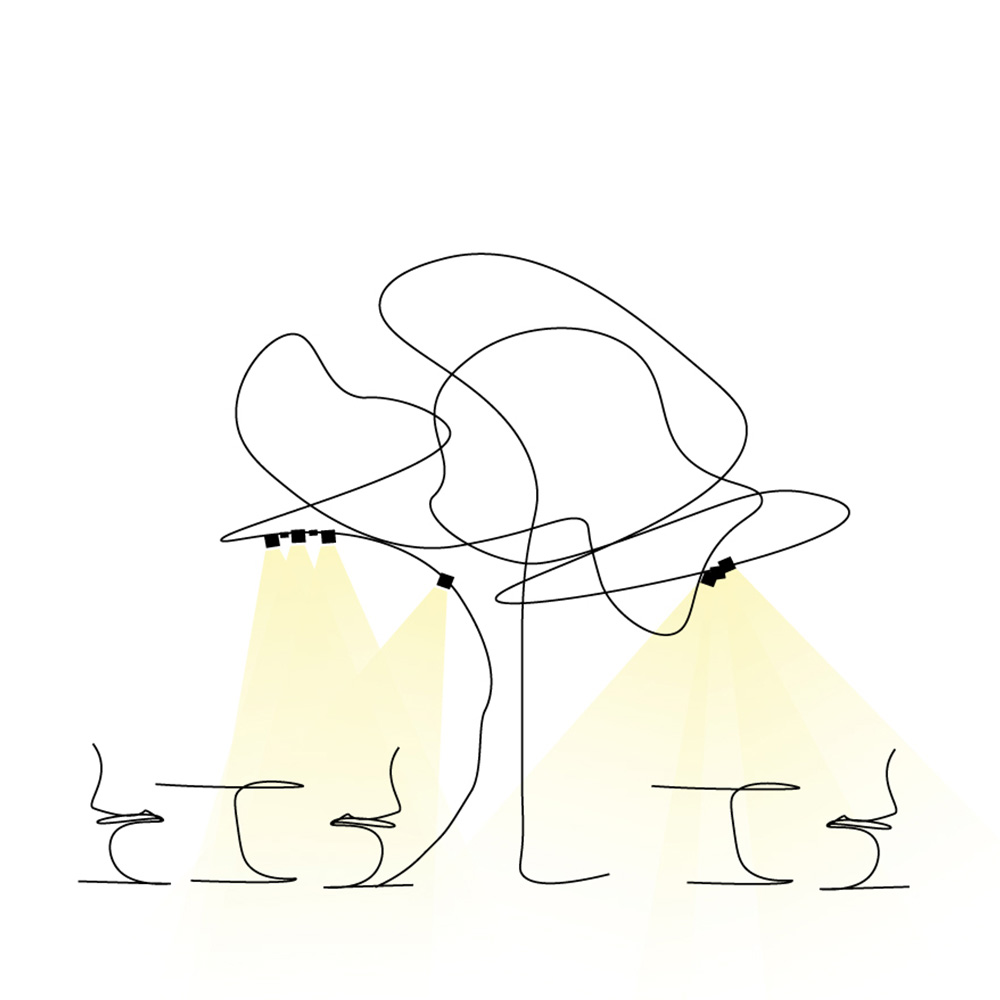

Moonlighting
Installed on the highest branches pointing downwards the grazing versions create light and shade effects on the leaves and branches.

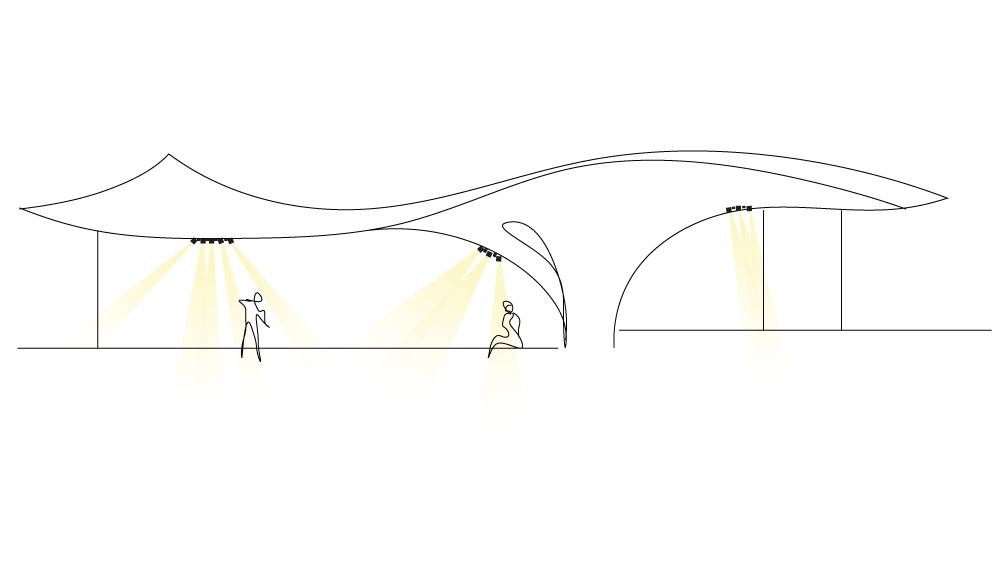

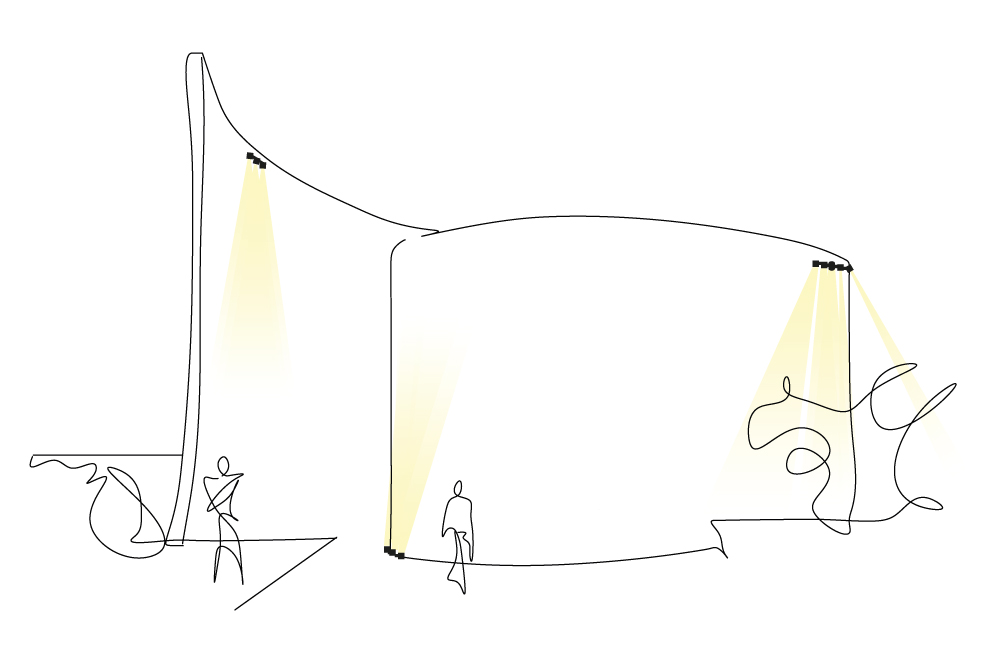

Catirpel embraces architecture following every type of surface with extreme flexibility. The Grazing optic allows for uniform grazing lighting, ideal for highlighting texture and materials on facades, porticos, vaulted rooves and all vertical surfaces.
Catirpel provides the possibility to install projectors on all surfaces and to direct beams exactly where the project requires them for soft and diffused lighting, to highlight architectural details, indicate pedestrian paths or to create accents of light.
Projection
Catirpel projectors can be installed on the ground using the practical earth spike to light hedges and trees from below

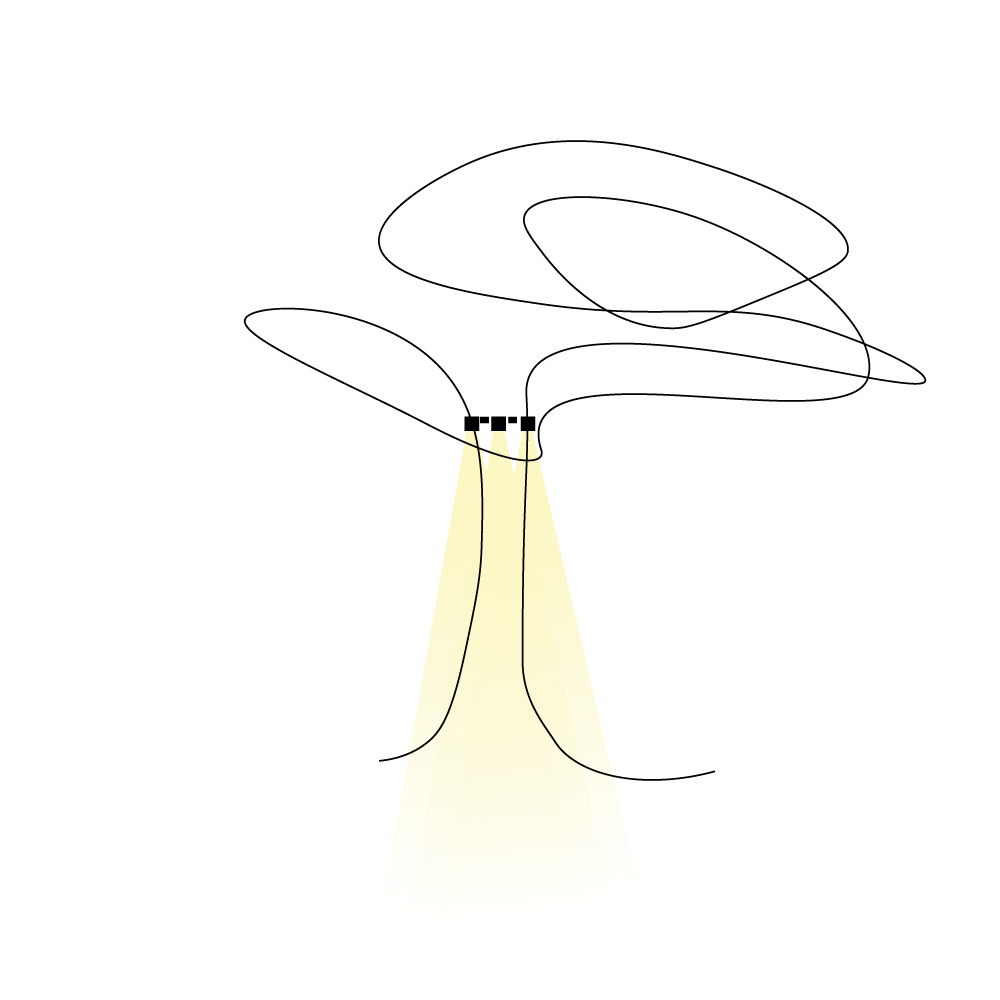

Downlighting
Tree branches become mounting supports to anchor lighting modules to using special belt straps to direct the light beam exactly where it is needed
Uplighting
With Catirpel it is also possible to light the upper part of the highest foliage easily reaching areas that are impossible to reach with classic lighting from below.
Grazing
Catirpel projectors with Grazing optics illuminate the entire length of tree trunks by highlighting the texture for a scenographic effect.
Moonlighting
Installed on the highest branches pointing downwards the grazing versions create light and shade effects on the leaves and branches.
Catirpel embraces architecture following every type of surface with extreme flexibility. The Grazing optic allows for uniform grazing lighting, ideal for highlighting texture and materials on facades, porticos, vaulted rooves and all vertical surfaces.
Catirpel provides the possibility to install projectors on all surfaces and to direct beams exactly where the project requires them for soft and diffused lighting, to highlight architectural details, indicate pedestrian paths or to create accents of light.
