Concept

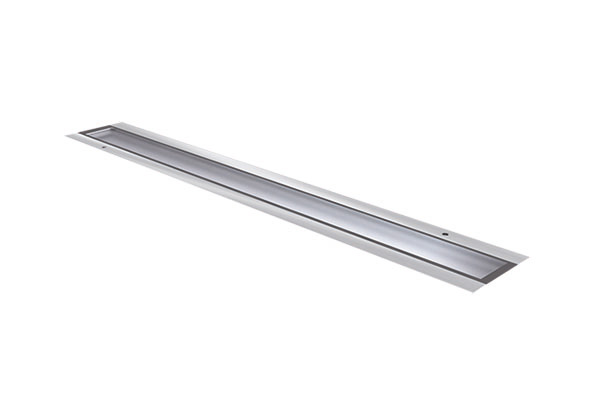

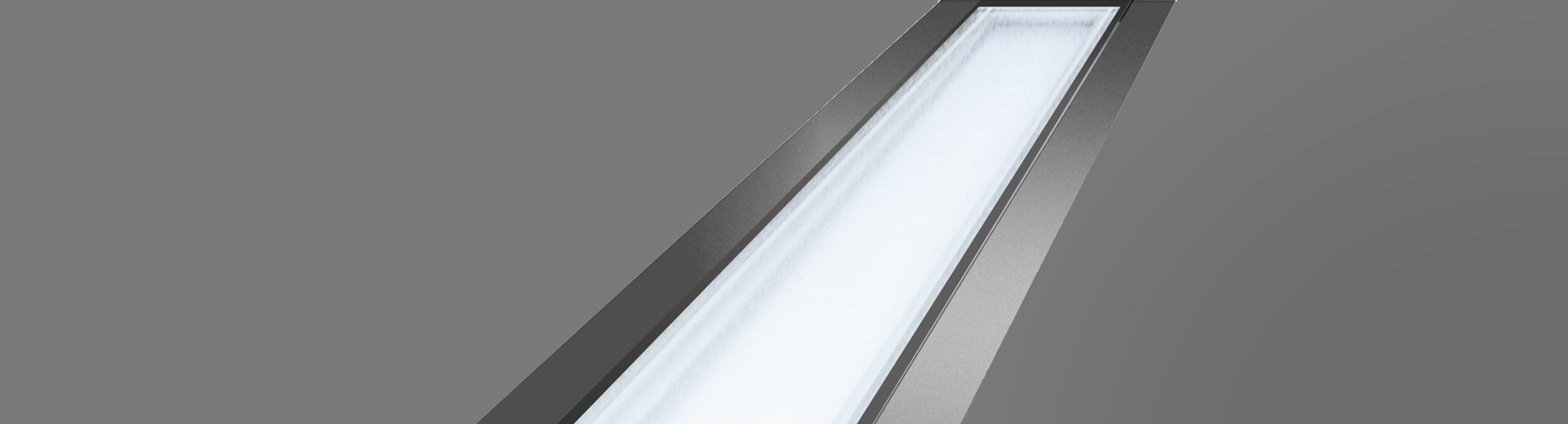

Powerful recessed linear RGBW LED projector.
Material
Extruded anodised aluminium 15µ body.
Extra clear 10mm thick glass flat screen.
Brushed stainless steel (AISI 316) frame.
The body of the fixture can resist a static load up to 20kN and vandalism (IK10).
Anti-slip glass available on request.
Source
High efficiency RGBW LED Emitter.
Optic
Internal optical unit composed of a cylindrical glass primary lens, a highly reflective anodised aluminium reflector and an integrated holographic filter for Grazing, Flood and Wall Washer emissions; acrylic lenses with an integrated holographic filter for Spot emissions.
Installation
To be completed with an aluminium insertion box suitable for in-line installation.
Power Supply
Integrated electronic power supply.
Controlled using DMX-RDM protocols that allow to programme the fixture remotely (no dip-switch) using the DMX data line.
Pass-through power supply with 1 meter cable and 3-pole IP68 connectors.
Pass-through DMX line connection with 5-pole IP68 panel connectors.
Programming the fixtures is done using the USB-RDM programmer that is available as an accessory.
220-240Vac 50/60Hz
Notes
LMS Casambi wireless control available on request.
Photometrics show the maximum emission values of fixtures.
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture.
110-277Vac version available on request.
IP68: the projector is not suitable for permanent underwater installation but can withstand temporary accidental immersion to a depth of 2 metres (max.24h).
IP69: IEC/EN 60529 standard compliant.
