Surface luminaires

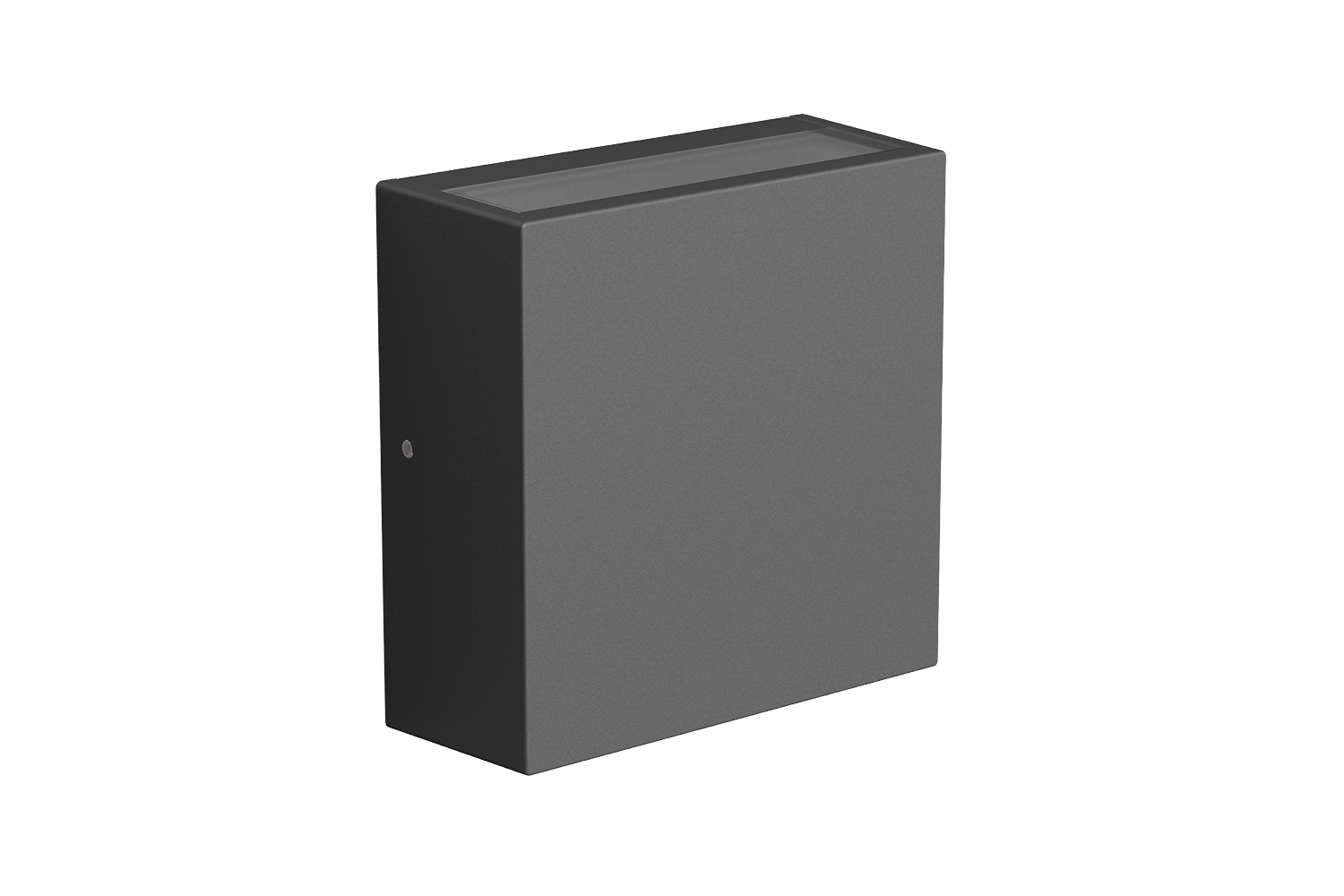

Mr & Mrs Smith
Filters
Filters
Colour
Dimension
CCT
CRI
Optic
Type of optic
Emission
Fixture Power
W
W
Fixture flux
lm
lm
Power supply
Control

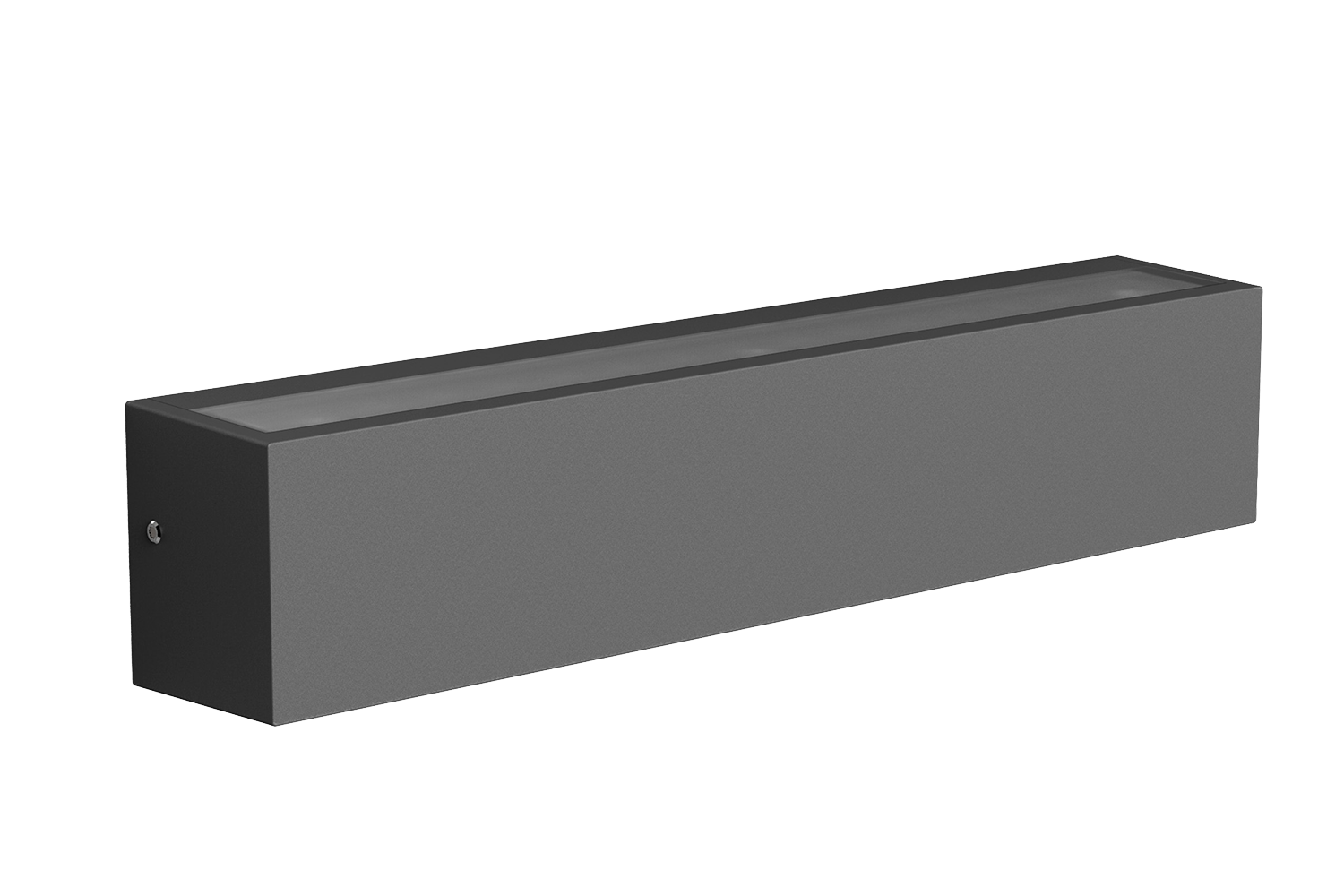

Mrs Smith
| Code | Light colour | Light distribution | Output | Power supply Control | Colour | |
|---|---|---|---|---|---|---|
| 1E3545EL90 | 2700K 90 | Opal | 6.9W 407lm | 220-240Vac ON-OFF |  |
Overview |
| 1E3547EL90 | 3000K 90 | Opal | 6.9W 437lm | 220-240Vac ON-OFF | |
Overview |
| 1E3549EL90 | 4000K 90 | Opal | 6.9W 445lm | 220-240Vac ON-OFF | |
Overview |
| 1E3545DA90 | 2700K 90 | Opal | 6.9W 407lm | 220-240Vac DALI | |
Overview |
| 1E3547DA90 | 3000K 90 | Opal | 6.9W 437lm | 220-240Vac DALI | |
Overview |
| 1E3549DA90 | 4000K 90 | Opal | 6.9W 445lm | 220-240Vac DALI | |
Overview |
| 1E3539EL90 | 2700K 90 | Opal | 6.9W 456lm | 220-240Vac ON-OFF | |
Overview |
| 1E3541EL90 | 3000K 90 | Opal | 6.9W 490lm | 220-240Vac ON-OFF | |
Overview |
| 1E3543EL90 | 4000K 90 | Opal | 6.9W 499lm | 220-240Vac ON-OFF | |
Overview |
| 1E3539DA90 | 2700K 90 | Opal | 6.9W 456lm | 220-240Vac DALI | |
Overview |
| 1E3541DA90 | 3000K 90 | Opal | 6.9W 490lm | 220-240Vac DALI | |
Overview |
| 1E3543DA90 | 4000K 90 | Opal | 6.9W 499lm | 220-240Vac DALI | |
Overview |
| 1E3551EL90 | 2700K 90 | Opal | 13.9W 863lm | 220-240Vac ON-OFF | |
Overview |
| 1E3553EL90 | 3000K 90 | Opal | 13.9W 928lm | 220-240Vac ON-OFF | |
Overview |
| 1E3555EL90 | 4000K 90 | Opal | 13.9W 945lm | 220-240Vac ON-OFF | |
Overview |
| 1E3551DA90 | 2700K 90 | Opal | 13.9W 863lm | 220-240Vac DALI | |
Overview |
| 1E3553DA90 | 3000K 90 | Opal | 13.9W 928lm | 220-240Vac DALI | |
Overview |
| 1E3555DA90 | 4000K 90 | Opal | 13.9W 945lm | 220-240Vac DALI | |
Overview |
