Logico
Logico Easy System 37 - Opal
Logico Easy System 37 - UGR19
Logico Easy System 57 - Opal HO
Logico Easy System 57 - Opal / UGR19
Logico Easy System 57 - UGR16
Logico Easy System 100 - Opal HO
Logico Easy System 100 - Opal / UGR19
Logico System - Plafonnier/Suspension - Module diffuseur continu
Logico System - Plafonnier/Suspension - Module projecteur
Logico System - Plafonnier/Suspension - Module de recouvrement
Logico System - Encastrement avec bride - Module projecteur
Filtres
Filtres
Couleur
Dimension
Version
CCT
CRI
Optique
Type de optique
Émission
Puissance installée
W
W
Flux appareil
lm
lm
Alimentation
Contrôle

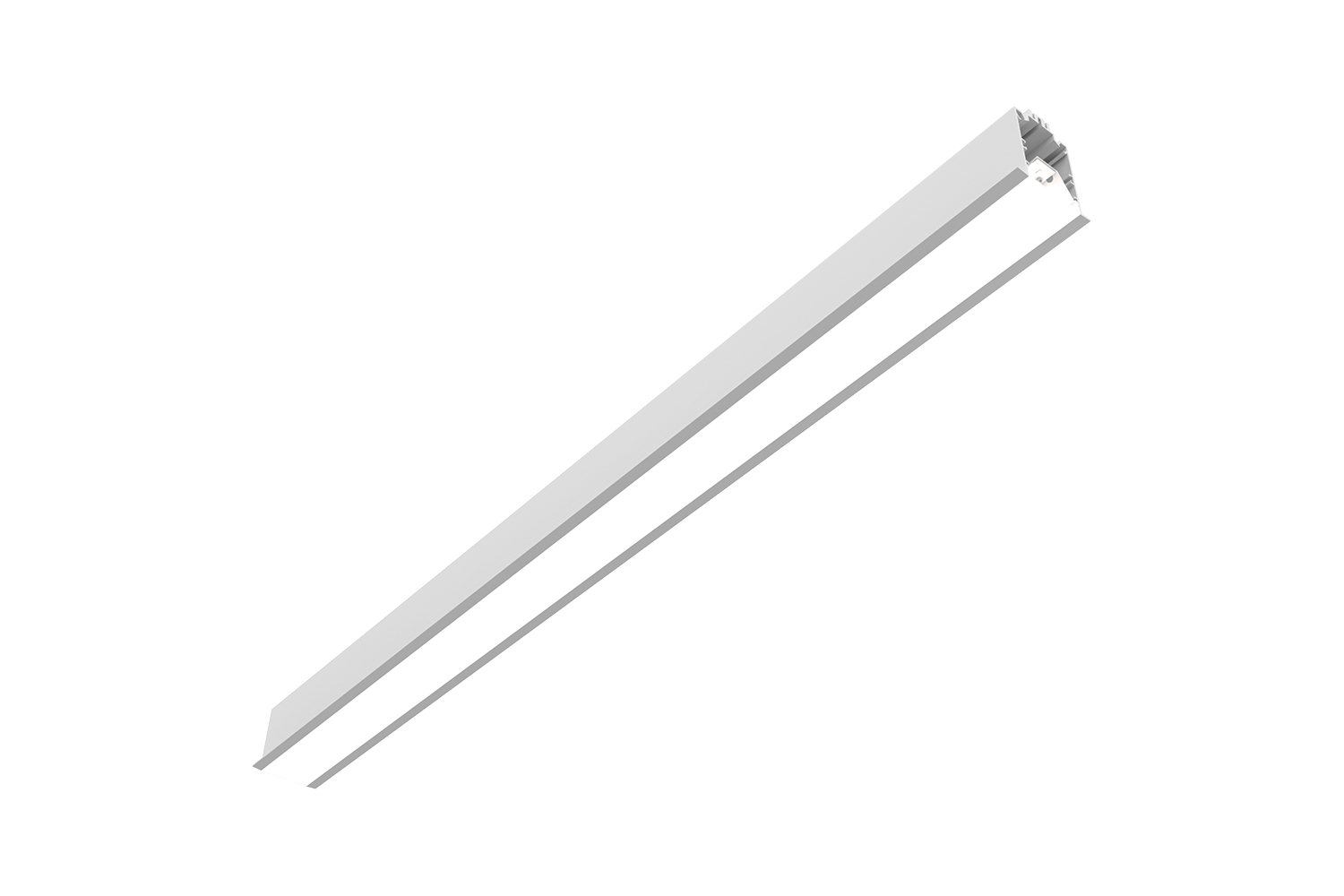

Logico System - Encastrement avec bride - Module diffuseur continu - L. 1682mm
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1T5471EL | 3000K 80 | Opal | 40W 3555lm | 220-240Vac ON-OFF |  |
Overview |
| 1T5472EL | 4000K 80 | Opal | 40W 3759lm | 220-240Vac ON-OFF | |
Overview |
| 1T5471DA | 3000K 80 | Opal | 40W 3555lm | 220-240Vac DALI | |
Overview |
| 1T5472DA | 4000K 80 | Opal | 40W 3759lm | 220-240Vac DALI | |
Overview |
| 1T5471EL90 | 3000K 90 | Opal | 40W 2938lm | 220-240Vac ON-OFF | |
Overview |
| 1T5472EL90 | 4000K 90 | Opal | 40W 2991lm | 220-240Vac ON-OFF | |
Overview |
| 1T5471DA90 | 3000K 90 | Opal | 40W 2938lm | 220-240Vac DALI | |
Overview |
| 1T5472DA90 | 4000K 90 | Opal | 40W 2991lm | 220-240Vac DALI | |
Overview |
| 1T5473EL | 3000K 80 | Opal | 81W 7028lm | 220-240Vac ON-OFF | |
Overview |
| 1T5474EL | 4000K 80 | Opal | 81W 7355lm | 220-240Vac ON-OFF | |
Overview |
| 1T5473DA | 3000K 80 | Opal | 81W 7028lm | 220-240Vac DALI | |
Overview |
| 1T5474DA | 4000K 80 | Opal | 81W 7355lm | 220-240Vac DALI | |
Overview |
| 1T5473EL90 | 3000K 90 | Opal | 81W 5876lm | 220-240Vac ON-OFF | |
Overview |
| 1T5474EL90 | 4000K 90 | Opal | 81W 5982lm | 220-240Vac ON-OFF | |
Overview |
| 1T5473DA90 | 3000K 90 | Opal | 81W 5876lm | 220-240Vac DALI | |
Overview |
| 1T5474DA90 | 4000K 90 | Opal | 81W 5982lm | 220-240Vac DALI | |
Overview |
| 1T5475EL | 3000K 80 | UGR | 27W 2447lm | 220-240Vac ON-OFF | |
Overview |
| 1T5476EL | 4000K 80 | UGR | 27W 2603lm | 220-240Vac ON-OFF | |
Overview |
| 1T5475DA | 3000K 80 | UGR | 27W 2447lm | 220-240Vac DALI | |
Overview |
| 1T5476DA | 4000K 80 | UGR | 27W 2603lm | 220-240Vac DALI | |
Overview |
| 1T5475EL90 | 3000K 90 | UGR | 27W 2047lm | 220-240Vac ON-OFF | |
Overview |
| 1T5476EL90 | 4000K 90 | UGR | 27W 2082lm | 220-240Vac ON-OFF | |
Overview |
| 1T5475DA90 | 3000K 90 | UGR | 27W 2047lm | 220-240Vac DALI | |
Overview |
| 1T5476DA90 | 4000K 90 | UGR | 27W 2082lm | 220-240Vac DALI | |
Overview |
| 1T5477EL | 3000K 80 | Wall Washer | 40W 4108lm | 220-240Vac ON-OFF | |
Overview |
| 1T5478EL | 4000K 80 | Wall Washer | 40W 4344lm | 220-240Vac ON-OFF | |
Overview |
| 1T5477DA | 3000K 80 | Wall Washer | 40W 4108lm | 220-240Vac DALI | |
Overview |
| 1T5478DA | 4000K 80 | Wall Washer | 40W 4344lm | 220-240Vac DALI | |
Overview |
| 1T5477EL90 | 3000K 90 | Wall Washer | 40W 3395lm | 220-240Vac ON-OFF | |
Overview |
| 1T5478EL90 | 4000K 90 | Wall Washer | 40W 3457lm | 220-240Vac ON-OFF | |
Overview |
| 1T5477DA90 | 3000K 90 | Wall Washer | 40W 3395lm | 220-240Vac DALI | |
Overview |
| 1T5478DA90 | 4000K 90 | Wall Washer | 40W 3457lm | 220-240Vac DALI | |
Overview |
| 1T5479EL | 3000K 80 | Wall Washer | 81W 8122lm | 220-240Vac ON-OFF | |
Overview |
| 1T5480EL | 4000K 80 | Wall Washer | 81W 8500lm | 220-240Vac ON-OFF | |
Overview |
| 1T5479DA | 3000K 80 | Wall Washer | 81W 8122lm | 220-240Vac DALI | |
Overview |
| 1T5480DA | 4000K 80 | Wall Washer | 81W 8500lm | 220-240Vac DALI | |
Overview |
| 1T5479EL90 | 3000K 90 | Wall Washer | 81W 6790lm | 220-240Vac ON-OFF | |
Overview |
| 1T5480EL90 | 4000K 90 | Wall Washer | 81W 6913lm | 220-240Vac ON-OFF | |
Overview |
| 1T5479DA90 | 3000K 90 | Wall Washer | 81W 6790lm | 220-240Vac DALI | |
Overview |
| 1T5480DA90 | 4000K 90 | Wall Washer | 81W 6913lm | 220-240Vac DALI | |
Overview |
30
