Plafonniers encastrés
CCTEvo Architectural
Filtres
Filtres
Couleur
Dimension
Version
CCT
CRI
Optique
Type de optique
Puissance installée
W
W
Flux appareil
lm
lm
Alimentation
Contrôle

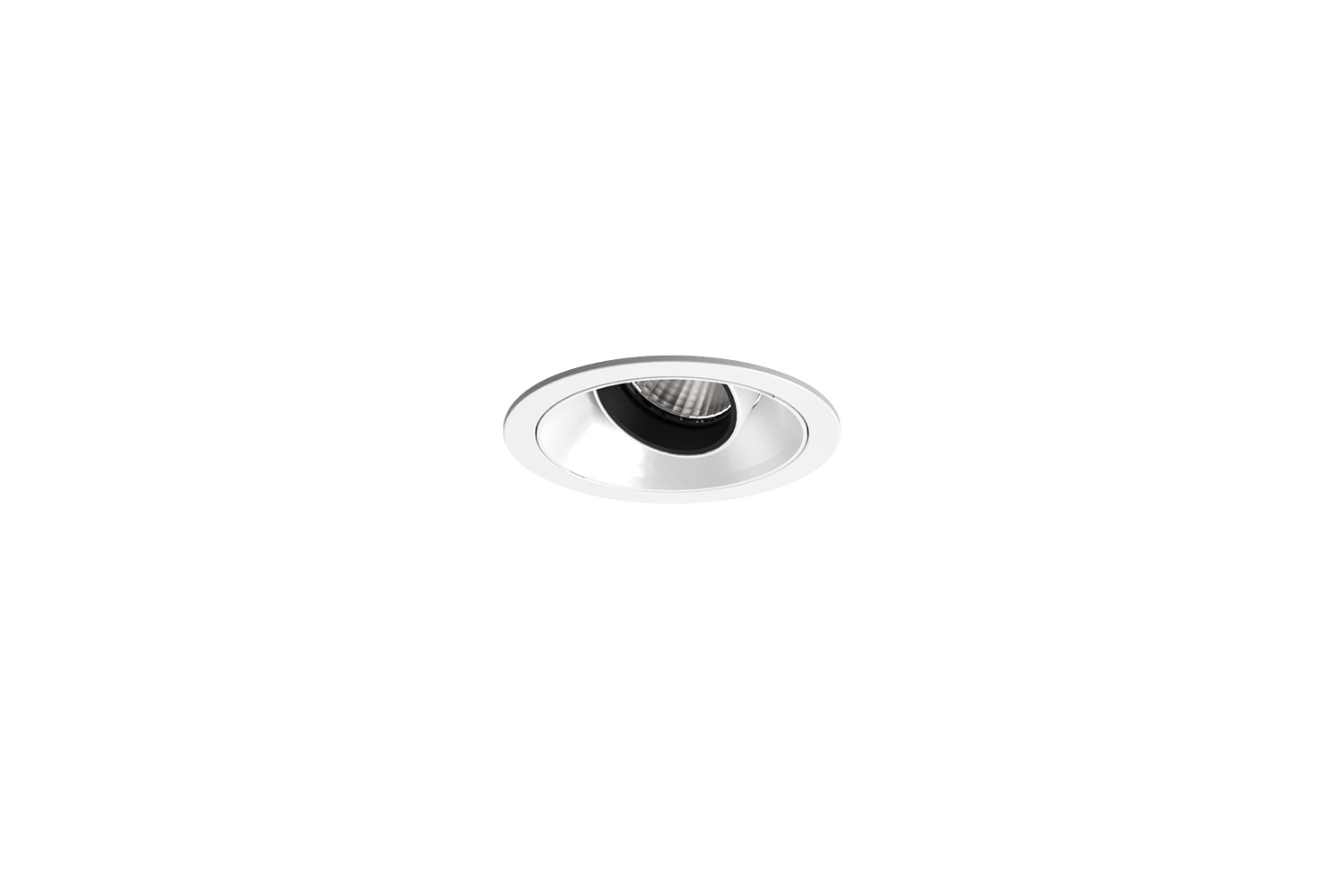

CCTEvo Architectural 78
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1T7886EL | 2700K 90 | SP 18° | 11,1W 614lm | 220-240Vac ON-OFF |  |
Overview |
| 1T7887EL | 3000K 90 | SP 18° | 11,1W 641lm | 220-240Vac ON-OFF | |
Overview |
| 1T7888EL | 3500K 90 | SP 18° | 11,1W 672lm | 220-240Vac ON-OFF | |
Overview |
| 1T7889EL | 4000K 90 | SP 18° | 11,1W 686lm | 220-240Vac ON-OFF | |
Overview |
| 1T8826EL | 2700K 90 | SP 18° | 11,1W 614lm | 220-240Vac ON-OFF |  |
Overview |
| 1T8827EL | 3000K 90 | SP 18° | 11,1W 641lm | 220-240Vac ON-OFF | |
Overview |
| 1T8828EL | 3500K 90 | SP 18° | 11,1W 672lm | 220-240Vac ON-OFF | |
Overview |
| 1T8829EL | 4000K 90 | SP 18° | 11,1W 686lm | 220-240Vac ON-OFF | |
Overview |
| 1T7886DA | 2700K 90 | SP 18° | 11,1W 614lm | 220-240Vac DALI | |
Overview |
| 1T7887DA | 3000K 90 | SP 18° | 11,1W 641lm | 220-240Vac DALI | |
Overview |
| 1T7888DA | 3500K 90 | SP 18° | 11,1W 672lm | 220-240Vac DALI | |
Overview |
| 1T7889DA | 4000K 90 | SP 18° | 11,1W 686lm | 220-240Vac DALI | |
Overview |
| 1T8826DA | 2700K 90 | SP 18° | 11,1W 614lm | 220-240Vac DALI | |
Overview |
| 1T8827DA | 3000K 90 | SP 18° | 11,1W 641lm | 220-240Vac DALI | |
Overview |
| 1T8828DA | 3500K 90 | SP 18° | 11,1W 672lm | 220-240Vac DALI | |
Overview |
| 1T8829DA | 4000K 90 | SP 18° | 11,1W 686lm | 220-240Vac DALI | |
Overview |
| 1T8818EL | 2700K 90 | FL 27° | 13,1W 1076lm | 220-240Vac ON-OFF | |
Overview |
| 1T8819EL | 3000K 90 | FL 27° | 13,1W 1147lm | 220-240Vac ON-OFF | |
Overview |
| 1T8820EL | 3500K 90 | FL 27° | 13,1W 1192lm | 220-240Vac ON-OFF | |
Overview |
| 1T8821EL | 4000K 90 | FL 27° | 13,1W 1239lm | 220-240Vac ON-OFF | |
Overview |
| 1T8830EL | 2700K 90 | FL 27° | 13,1W 1076lm | 220-240Vac ON-OFF | |
Overview |
| 1T8831EL | 3000K 90 | FL 27° | 13,1W 1147lm | 220-240Vac ON-OFF | |
Overview |
| 1T8832EL | 3500K 90 | FL 27° | 13,1W 1192lm | 220-240Vac ON-OFF | |
Overview |
| 1T8833EL | 4000K 90 | FL 27° | 13,1W 1239lm | 220-240Vac ON-OFF | |
Overview |
| 1T8818DA | 2700K 90 | FL 27° | 13,1W 1076lm | 220-240Vac DALI | |
Overview |
| 1T8819DA | 3000K 90 | FL 27° | 13,1W 1147lm | 220-240Vac DALI | |
Overview |
| 1T8820DA | 3500K 90 | FL 27° | 13,1W 1192lm | 220-240Vac DALI | |
Overview |
| 1T8821DA | 4000K 90 | FL 27° | 13,1W 1239lm | 220-240Vac DALI | |
Overview |
| 1T8830DA | 2700K 90 | FL 27° | 13,1W 1076lm | 220-240Vac DALI | |
Overview |
| 1T8831DA | 3000K 90 | FL 27° | 13,1W 1147lm | 220-240Vac DALI | |
Overview |
| 1T8832DA | 3500K 90 | FL 27° | 13,1W 1192lm | 220-240Vac DALI | |
Overview |
| 1T8833DA | 4000K 90 | FL 27° | 13,1W 1239lm | 220-240Vac DALI | |
Overview |
| 1T8822EL | 2700K 90 | MWFL 42° | 13,1W 1114lm | 220-240Vac ON-OFF | |
Overview |
| 1T8823EL | 3000K 90 | MWFL 42° | 13,1W 1187lm | 220-240Vac ON-OFF | |
Overview |
| 1T8824EL | 3500K 90 | MWFL 42° | 13,1W 1233lm | 220-240Vac ON-OFF | |
Overview |
| 1T8825EL | 4000K 90 | MWFL 42° | 13,1W 1283lm | 220-240Vac ON-OFF | |
Overview |
| 1T8834EL | 2700K 90 | MWFL 42° | 13,1W 1114lm | 220-240Vac ON-OFF | |
Overview |
| 1T8835EL | 3000K 90 | MWFL 42° | 13,1W 1187lm | 220-240Vac ON-OFF | |
Overview |
| 1T8836EL | 3500K 90 | MWFL 42° | 13,1W 1233lm | 220-240Vac ON-OFF | |
Overview |
| 1T8837EL | 4000K 90 | MWFL 42° | 13,1W 1283lm | 220-240Vac ON-OFF | |
Overview |
| 1T8822DA | 2700K 90 | MWFL 42° | 13,1W 1114lm | 220-240Vac DALI | |
Overview |
| 1T8823DA | 3000K 90 | MWFL 42° | 13,1W 1187lm | 220-240Vac DALI | |
Overview |
| 1T8824DA | 3500K 90 | MWFL 42° | 13,1W 1233lm | 220-240Vac DALI | |
Overview |
| 1T8825DA | 4000K 90 | MWFL 42° | 13,1W 1283lm | 220-240Vac DALI | |
Overview |
| 1T8834DA | 2700K 90 | MWFL 42° | 13,1W 1114lm | 220-240Vac DALI | |
Overview |
| 1T8835DA | 3000K 90 | MWFL 42° | 13,1W 1187lm | 220-240Vac DALI | |
Overview |
| 1T8836DA | 3500K 90 | MWFL 42° | 13,1W 1233lm | 220-240Vac DALI | |
Overview |
| 1T8837DA | 4000K 90 | MWFL 42° | 13,1W 1283lm | 220-240Vac DALI | |
Overview |
38

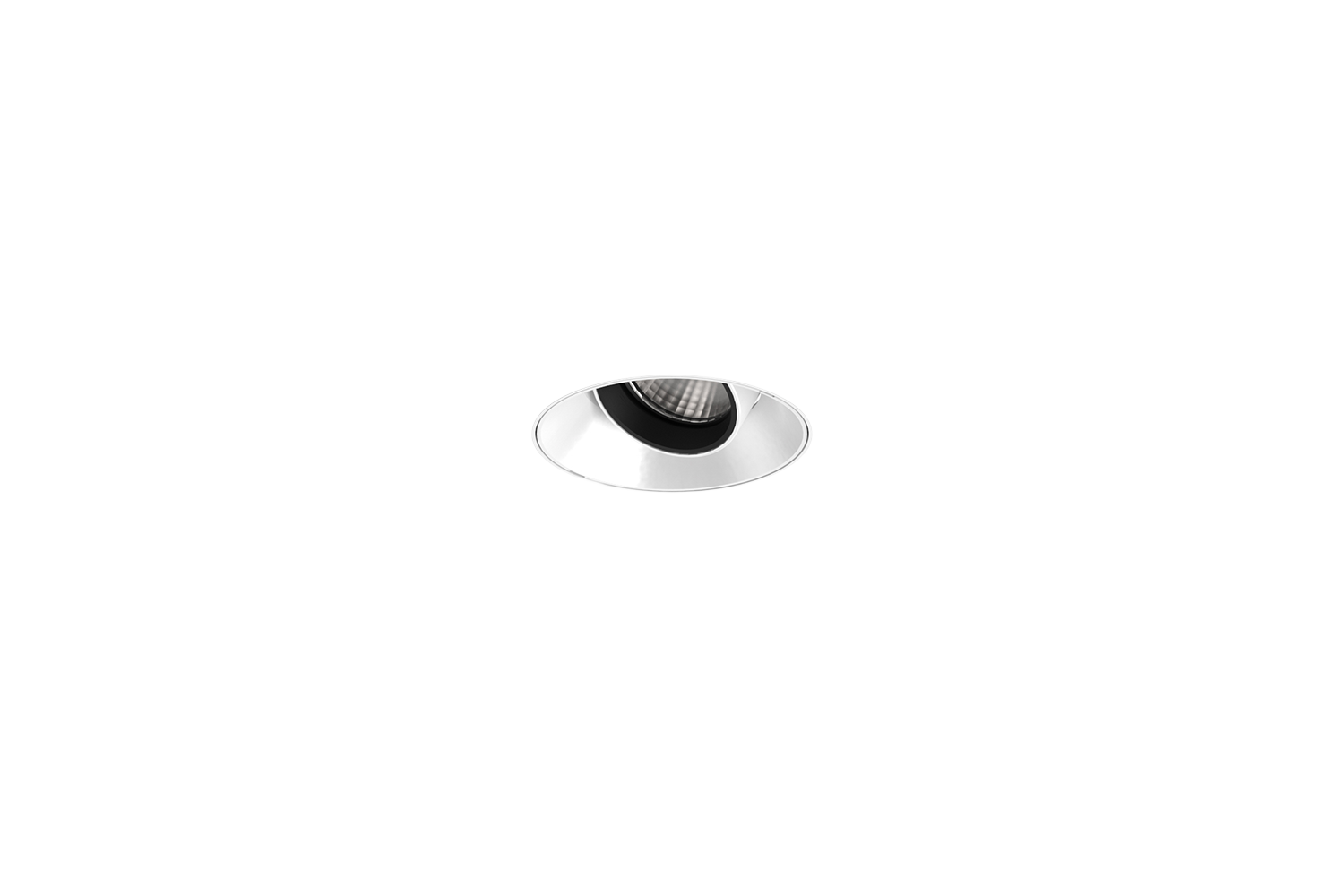

CCTEvo Architectural 78 Trimless
| Code | Température de couleur | Distribution lumineuse | Output | Alimentation Contrôle | Couleur | |
|---|---|---|---|---|---|---|
| 1T7886ELTR | 2700K 90 | SP 18° | 11,1W 614lm | 220-240Vac ON-OFF | |
Overview |
| 1T7887ELTR | 3000K 90 | SP 18° | 11,1W 641lm | 220-240Vac ON-OFF | |
Overview |
| 1T7888ELTR | 3500K 90 | SP 18° | 11,1W 672lm | 220-240Vac ON-OFF | |
Overview |
| 1T7889ELTR | 4000K 90 | SP 18° | 11,1W 686lm | 220-240Vac ON-OFF | |
Overview |
| 1T8826ELTR | 2700K 90 | SP 18° | 11,1W 614lm | 220-240Vac ON-OFF | |
Overview |
| 1T8827ELTR | 3000K 90 | SP 18° | 11,1W 641lm | 220-240Vac ON-OFF | |
Overview |
| 1T8828ELTR | 3500K 90 | SP 18° | 11,1W 672lm | 220-240Vac ON-OFF | |
Overview |
| 1T8829ELTR | 4000K 90 | SP 18° | 11,1W 686lm | 220-240Vac ON-OFF | |
Overview |
| 1T7886DATR | 2700K 90 | SP 18° | 11,1W 614lm | 220-240Vac DALI | |
Overview |
| 1T7887DATR | 3000K 90 | SP 18° | 11,1W 641lm | 220-240Vac DALI | |
Overview |
| 1T7888DATR | 3500K 90 | SP 18° | 11,1W 672lm | 220-240Vac DALI | |
Overview |
| 1T7889DATR | 4000K 90 | SP 18° | 11,1W 686lm | 220-240Vac DALI | |
Overview |
| 1T8826DATR | 2700K 90 | SP 18° | 11,1W 614lm | 220-240Vac DALI | |
Overview |
| 1T8827DATR | 3000K 90 | SP 18° | 11,1W 641lm | 220-240Vac DALI | |
Overview |
| 1T8828DATR | 3500K 90 | SP 18° | 11,1W 672lm | 220-240Vac DALI | |
Overview |
| 1T8829DATR | 4000K 90 | SP 18° | 11,1W 686lm | 220-240Vac DALI | |
Overview |
| 1T8818ELTR | 2700K 90 | FL 27° | 13,1W 1076lm | 220-240Vac ON-OFF | |
Overview |
| 1T8819ELTR | 3000K 90 | FL 27° | 13,1W 1147lm | 220-240Vac ON-OFF | |
Overview |
| 1T8820ELTR | 3500K 90 | FL 27° | 13,1W 1192lm | 220-240Vac ON-OFF | |
Overview |
| 1T8821ELTR | 4000K 90 | FL 27° | 13,1W 1239lm | 220-240Vac ON-OFF | |
Overview |
| 1T8830ELTR | 2700K 90 | FL 27° | 13,1W 1076lm | 220-240Vac ON-OFF | |
Overview |
| 1T8831ELTR | 3000K 90 | FL 27° | 13,1W 1147lm | 220-240Vac ON-OFF | |
Overview |
| 1T8832ELTR | 3500K 90 | FL 27° | 13,1W 1192lm | 220-240Vac ON-OFF | |
Overview |
| 1T8833ELTR | 4000K 90 | FL 27° | 13,1W 1239lm | 220-240Vac ON-OFF | |
Overview |
| 1T8818DATR | 2700K 90 | FL 27° | 13,1W 1076lm | 220-240Vac DALI | |
Overview |
| 1T8819DATR | 3000K 90 | FL 27° | 13,1W 1147lm | 220-240Vac DALI | |
Overview |
| 1T8820DATR | 3500K 90 | FL 27° | 13,1W 1192lm | 220-240Vac DALI | |
Overview |
| 1T8821DATR | 4000K 90 | FL 27° | 13,1W 1239lm | 220-240Vac DALI | |
Overview |
| 1T8830DATR | 2700K 90 | FL 27° | 13,1W 1076lm | 220-240Vac DALI | |
Overview |
| 1T8831DATR | 3000K 90 | FL 27° | 13,1W 1147lm | 220-240Vac DALI | |
Overview |
| 1T8832DATR | 3500K 90 | FL 27° | 13,1W 1192lm | 220-240Vac DALI | |
Overview |
| 1T8833DATR | 4000K 90 | FL 27° | 13,1W 1239lm | 220-240Vac DALI | |
Overview |
| 1T8822ELTR | 2700K 90 | MWFL 42° | 13,1W 1114lm | 220-240Vac ON-OFF | |
Overview |
| 1T8823ELTR | 3000K 90 | MWFL 42° | 13,1W 1187lm | 220-240Vac ON-OFF | |
Overview |
| 1T8824ELTR | 3500K 90 | MWFL 42° | 13,1W 1233lm | 220-240Vac ON-OFF | |
Overview |
| 1T8825ELTR | 4000K 90 | MWFL 42° | 13,1W 1283lm | 220-240Vac ON-OFF | |
Overview |
| 1T8834ELTR | 2700K 90 | MWFL 42° | 13,1W 1114lm | 220-240Vac ON-OFF | |
Overview |
| 1T8835ELTR | 3000K 90 | MWFL 42° | 13,1W 1187lm | 220-240Vac ON-OFF | |
Overview |
| 1T8836ELTR | 3500K 90 | MWFL 42° | 13,1W 1233lm | 220-240Vac ON-OFF | |
Overview |
| 1T8837ELTR | 4000K 90 | MWFL 42° | 13,1W 1283lm | 220-240Vac ON-OFF | |
Overview |
| 1T8822DATR | 2700K 90 | MWFL 42° | 13,1W 1114lm | 220-240Vac DALI | |
Overview |
| 1T8823DATR | 3000K 90 | MWFL 42° | 13,1W 1187lm | 220-240Vac DALI | |
Overview |
| 1T8824DATR | 3500K 90 | MWFL 42° | 13,1W 1233lm | 220-240Vac DALI | |
Overview |
| 1T8825DATR | 4000K 90 | MWFL 42° | 13,1W 1283lm | 220-240Vac DALI | |
Overview |
| 1T8834DATR | 2700K 90 | MWFL 42° | 13,1W 1114lm | 220-240Vac DALI | |
Overview |
| 1T8835DATR | 3000K 90 | MWFL 42° | 13,1W 1187lm | 220-240Vac DALI | |
Overview |
| 1T8836DATR | 3500K 90 | MWFL 42° | 13,1W 1233lm | 220-240Vac DALI | |
Overview |
| 1T8837DATR | 4000K 90 | MWFL 42° | 13,1W 1283lm | 220-240Vac DALI | |
Overview |
38
