DART Round Medium TW
HOME>Products>Outdoor>Projectors>DART ROUND
Concept

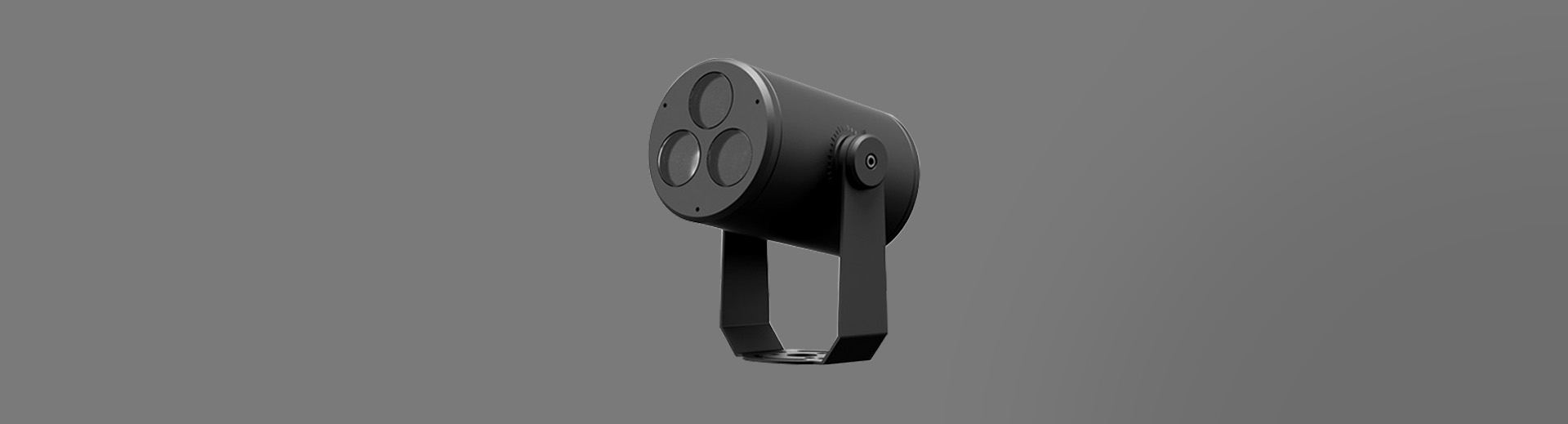

Professional adjustable LED projector.
Material
Painted die-cast anodised aluminium body and painted stainless steel mounting bracket.
Tempered extra clear front glass.
Source
Tunable White light module made of high power and high efficiency Ra80 LED sources.
Color temperature adjustment range between 2700K and 5000K.
Optic
Equipped with precision methacrylate lenses and spreader filter.
Installation
Mounting bracket with aiming adjustability.
Adjustable up to ±45° on the horizontal pane and +90°/-45° on the vertical plane.
Power Supply
Remote electronic driver with DALI DT8 interface.
The driver is housed inside an IP68 box and allows to control from 1 to 3 fixtures.
All versions are precabled with a 1.5m long feeding cable H07RN-F.
Notes
Casambi control system available using a dedicated accessory (only for DALI version products).
Uses the "Waterblock Smart" technical solution that involves resin coating the connection cables, limiting the risk of humidity reaching the driver or the fixture.
It is possible to subject the product to Cataphoresis treatment on request.
110-277Vac version available on request.
Values relating to the power of the fixture do not take into account the absorption of the accessory driver. This value depends on the choice of driver.
For more information
about DART Round Medium TW
Reset selections
DART Round Medium TW
3.35
IP66
IK10
1.5m
Source
Code
CCT nominal
Flux (lm)
Nominal power
Colour rendering index
Beam angles
Optic
Emission
Colour and finish
Version
Dimensions
Power supply
Type of driver / Control
Driver included
Insulation Class
Protection degree
IP exposed part
IK
Class F
Certifications
LED TW

2700-5000K

11,9W
80
SP
LENS

Ferrite


700mA

NO
CLASS 3
IP66

IK10


LED TW

2700-5000K

11,9W
80
FL
LENS

Ferrite


700mA

NO
CLASS 3
IP66

IK10


LED TW

2700-5000K

11,9W
80
MWFL
LENS

Ferrite


700mA

NO
CLASS 3
IP66

IK10


Code
1E4040
1E4041
1E4042
Market
