Concept

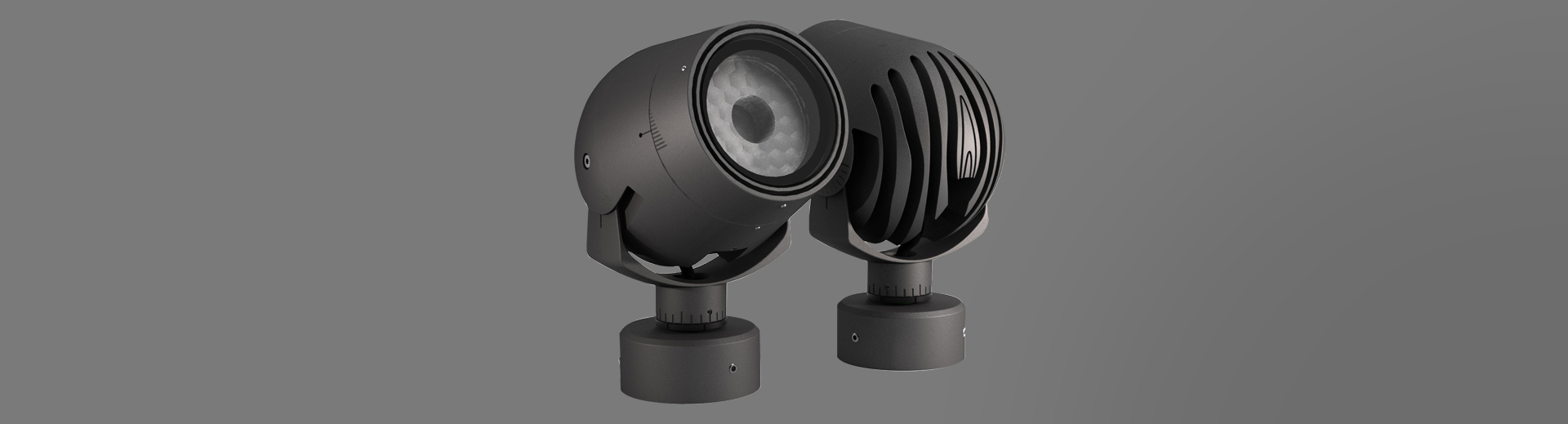

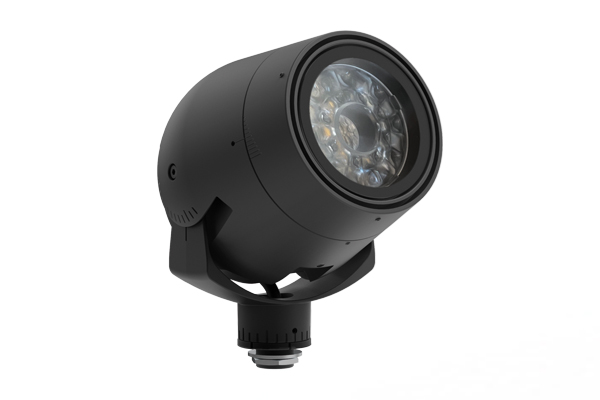

Adjustable outdoor professional projector equipped with a zoom optic.Material
Die-cast aluminium body with 3 layers of protection: anodising, cataphoresis and painting.
The optical unit can be adjusted from -20° a +90° on the vertical plane and 355° on the horizontal plane with the possibility to block the beam.
Extra-clear tempered front glass glued flush.Source
High efficiency Chip on Board LED with Ra90 (2200K) and Ra80 (2700/3000/4000K).Optic
Zoom optic composed of three PMMA elements operating together, a fixed TIR lens and a second adjustable lens.
Rotation of 22° using the front sealing ring of the second lens allows for the zoom range between the minimum and maximum beam opening respectively of 24° and 41°.
Graduated adjustment scale with 2 steps.
Optic group pre-set for the installation of one or more dedicated optical accessories to be ordered separately.Installation
The product can be installed combined with one of the various installation accessories, to be ordered separately.
Surface installation on bases, stakes, bollards, trees and poles.Power Supply
Optional power supply available with ON-OFF, 0-10V dimmable and DALI dimmable 1050mA electronic driver.
